Description:

Affeldt 170 10VB + 929T18 weigher with clipper

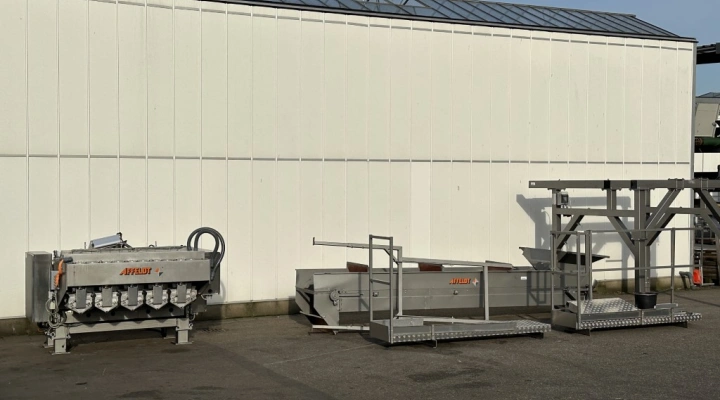

Affeldt 170 10VB weighing machine with elevator, Affeldt 29 T18 net clipper and roller inspection table

Affeldt weighing line for various types of fruit and vegetables, such as onions, brussels sprouts, potatoes, garlic, tomatoes and citrus.

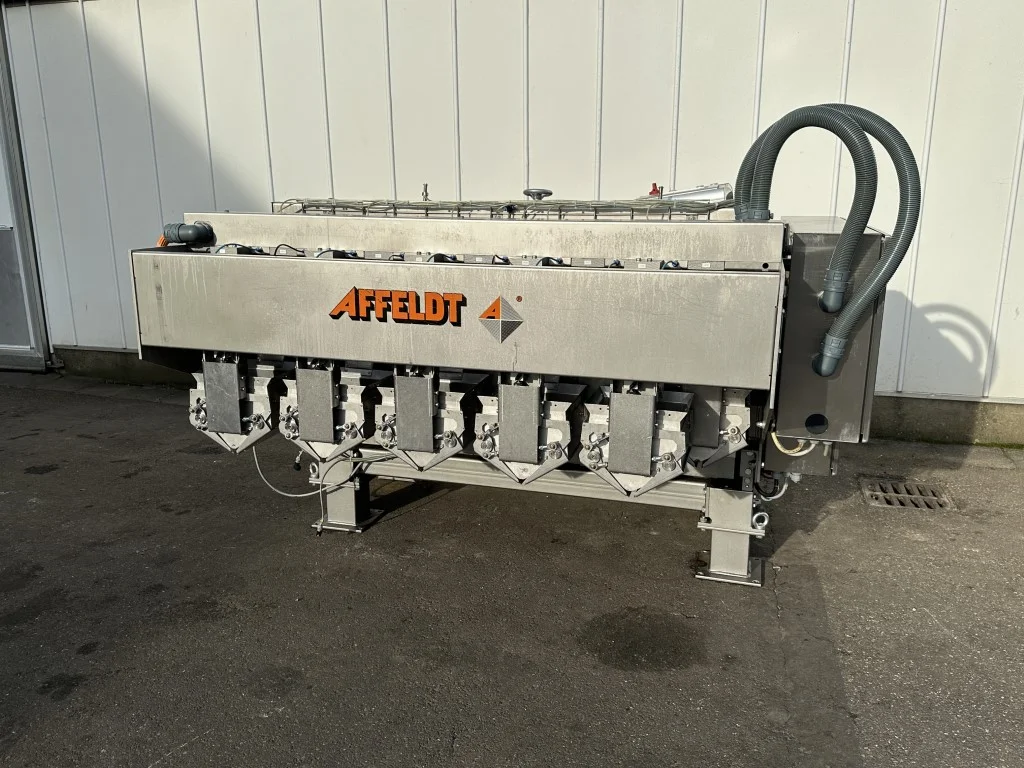

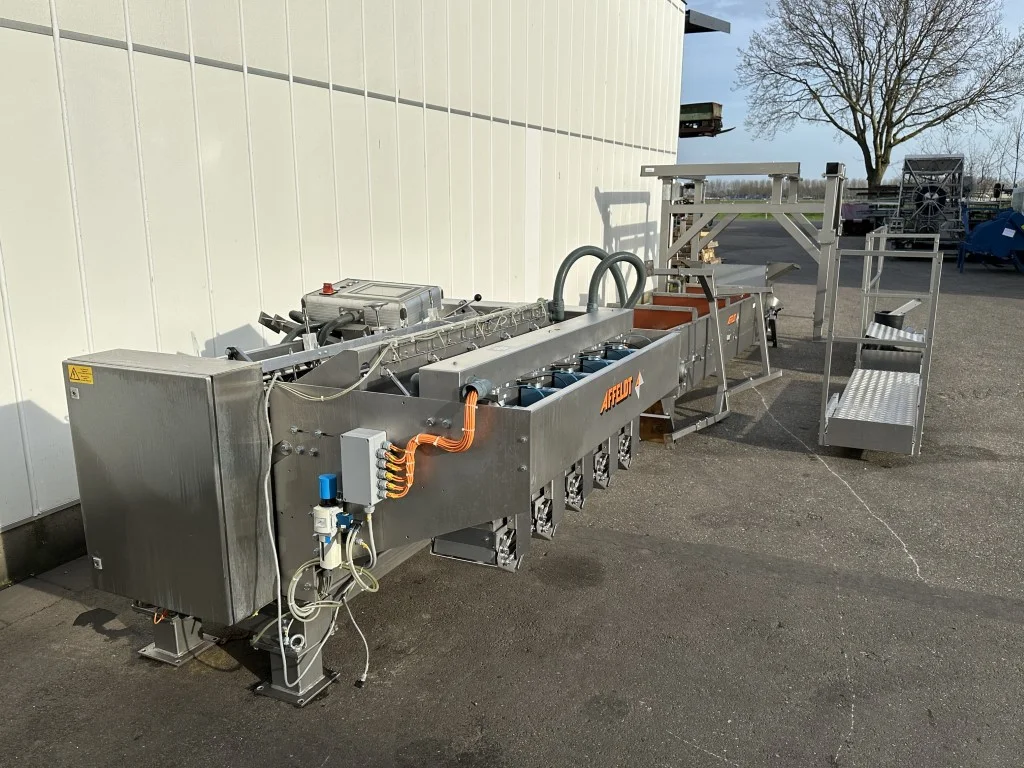

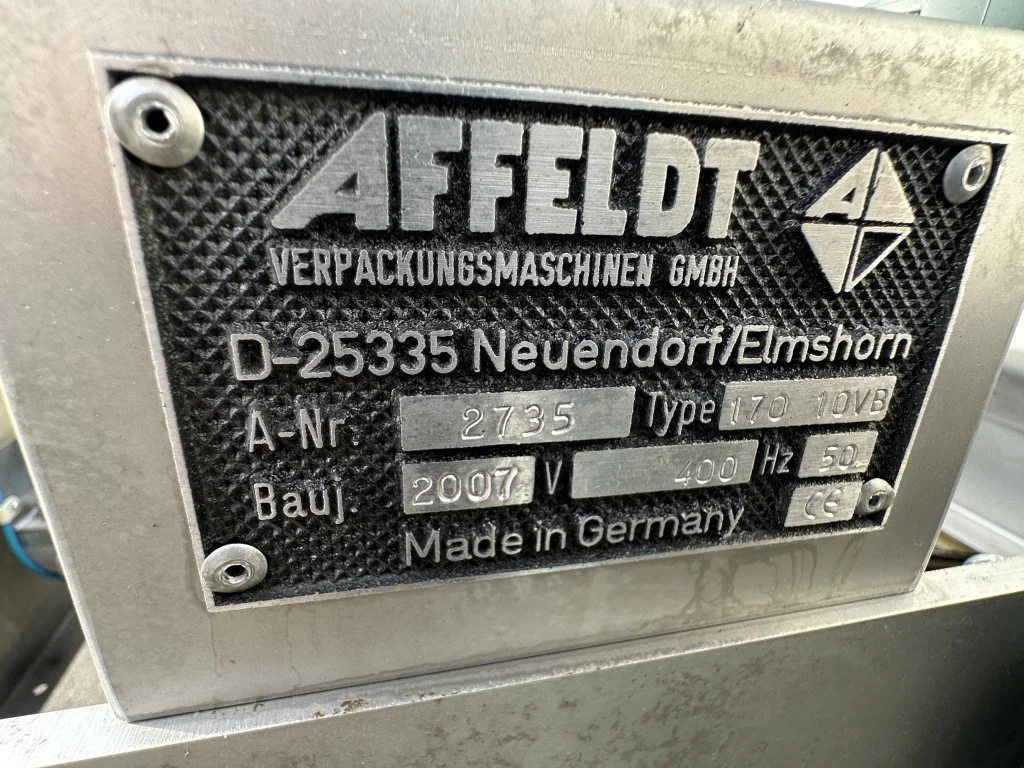

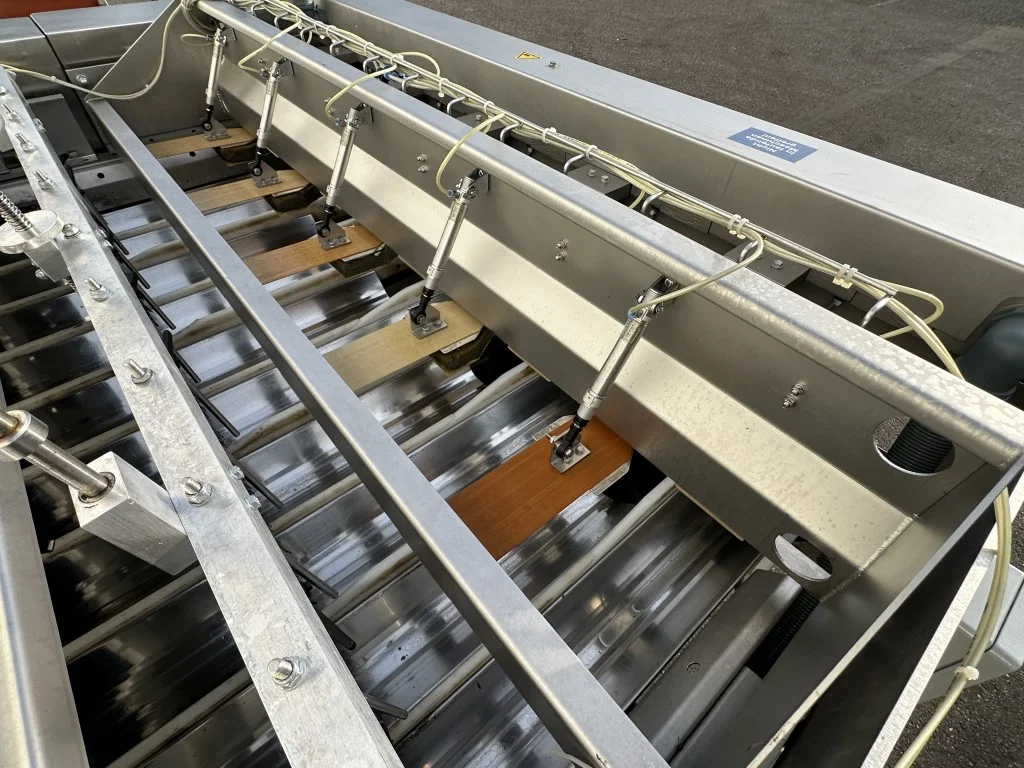

Affeldt 170 10VB  weighing machine:

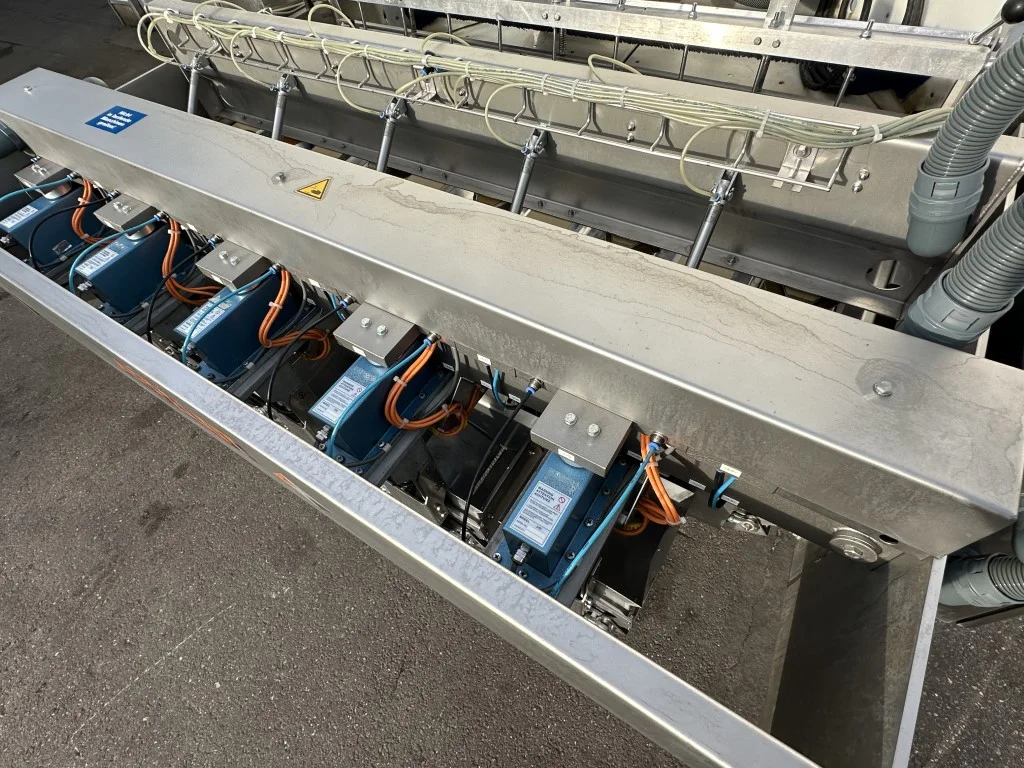

• 10 load cells / weighing positions
• Stainless steel

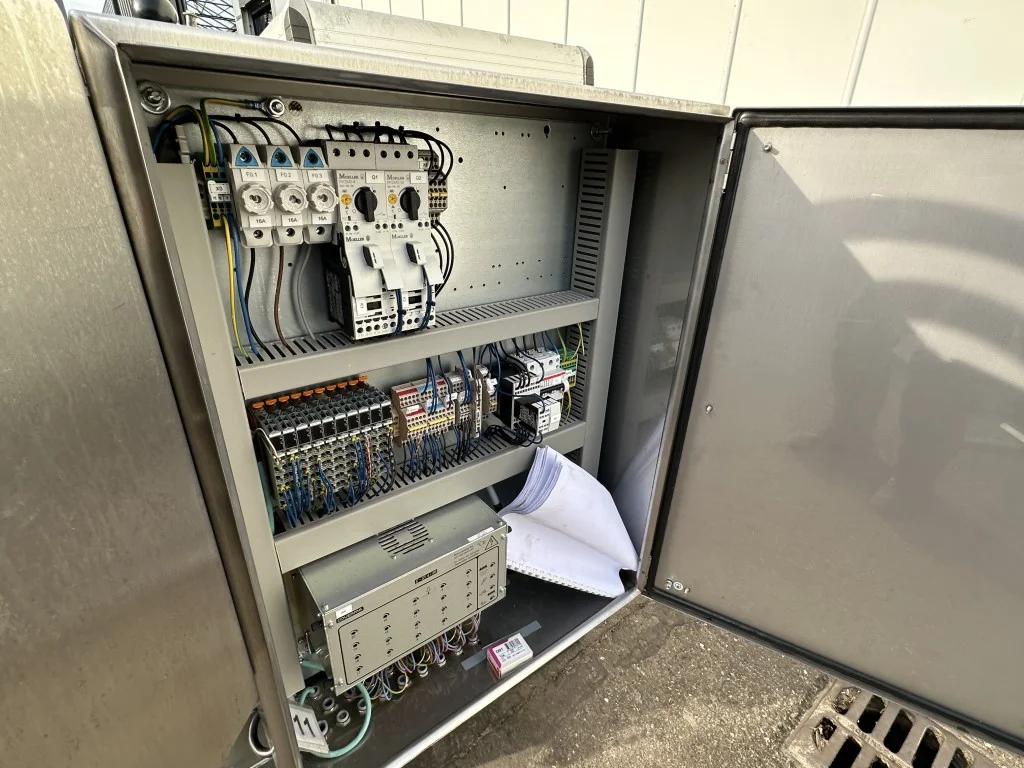

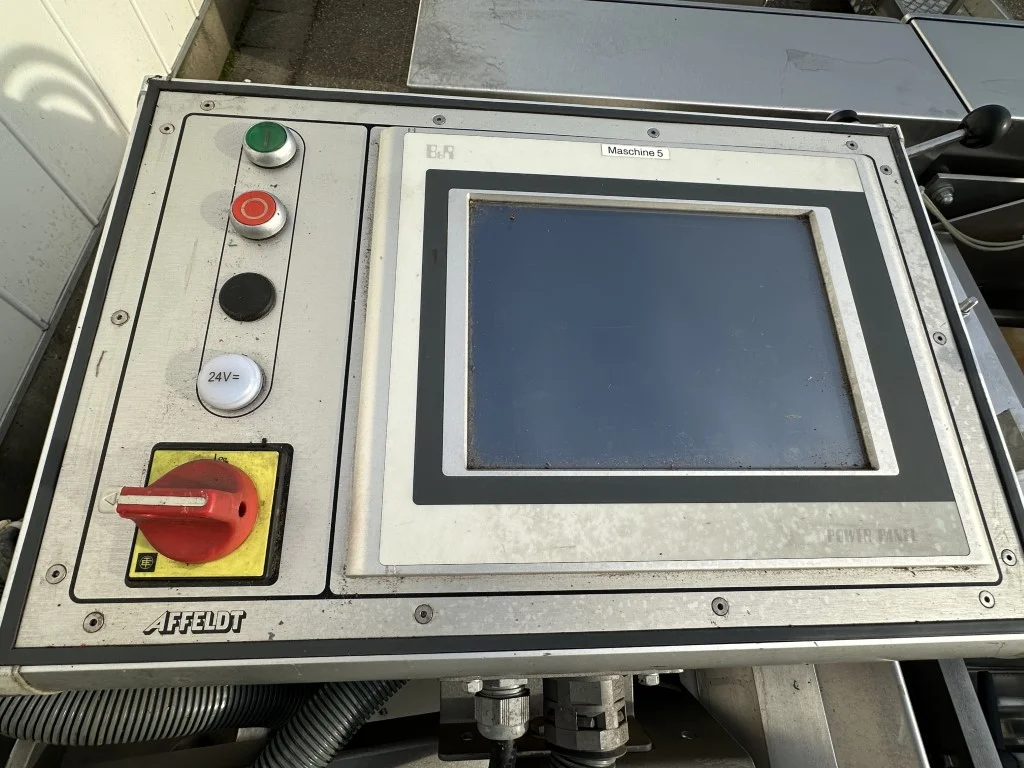

• Computer
• Year: 2007
• Including frame with stairs
• inclcluding elevator
• Weighing machine has been checked and in good working order

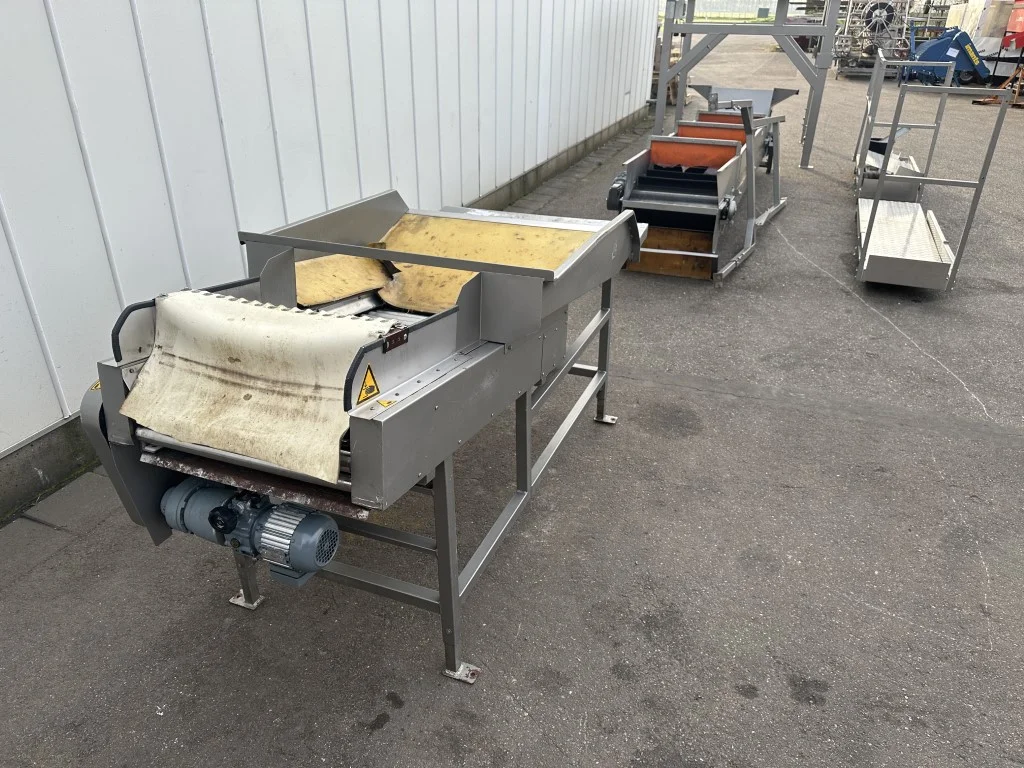

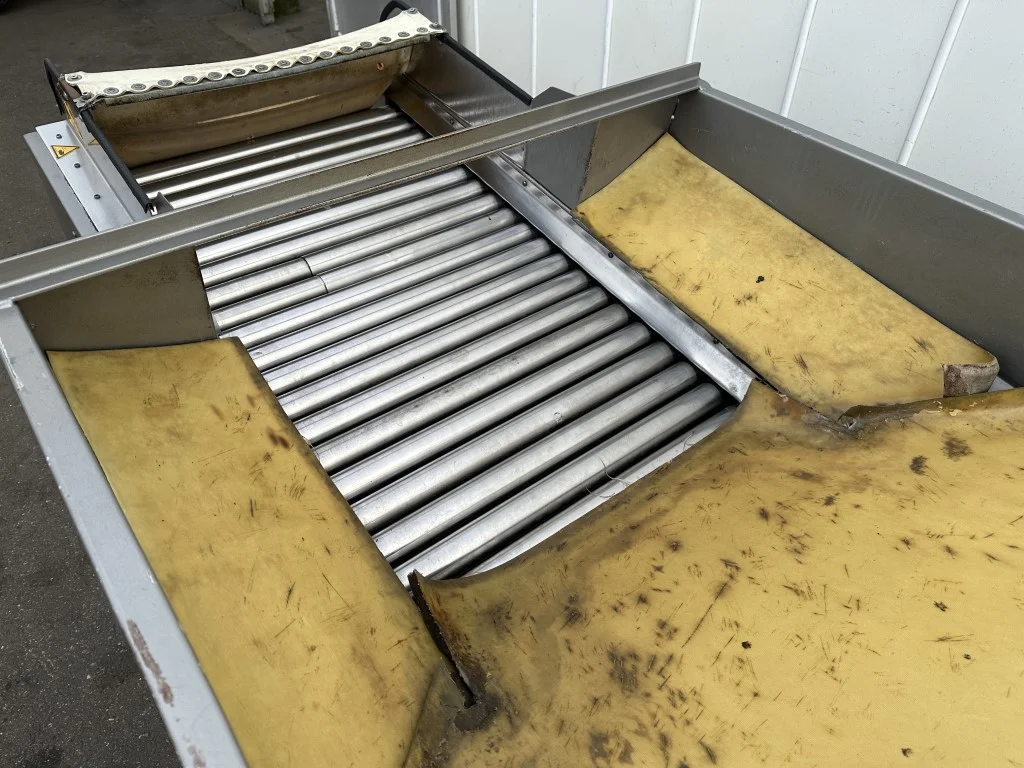

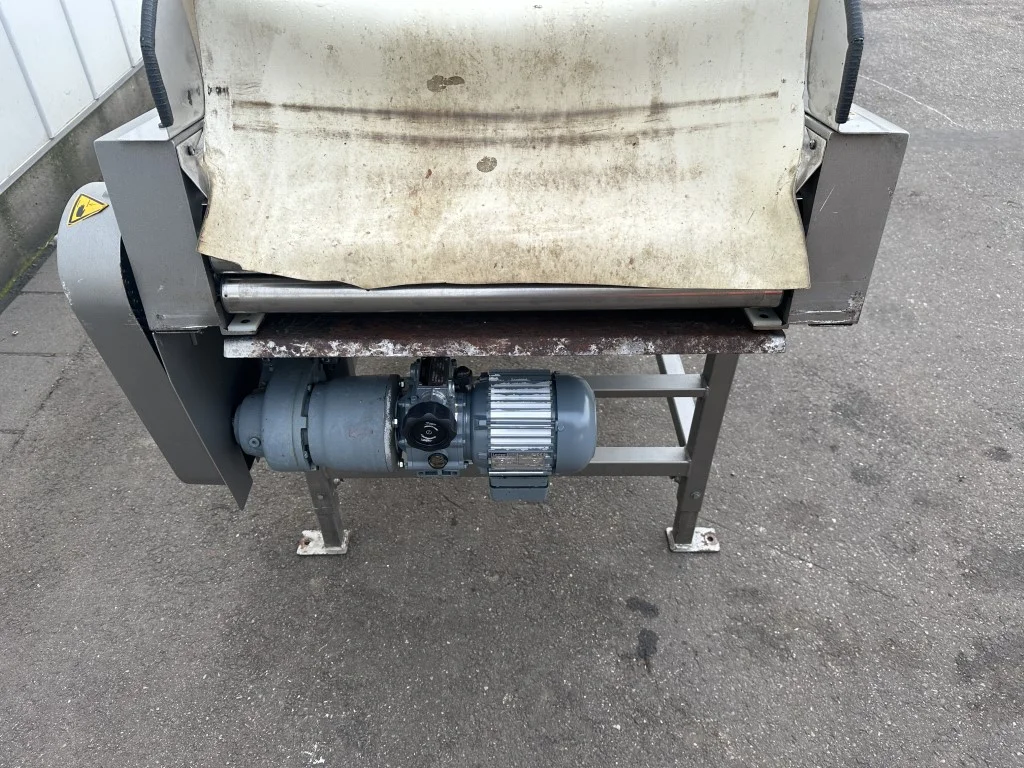

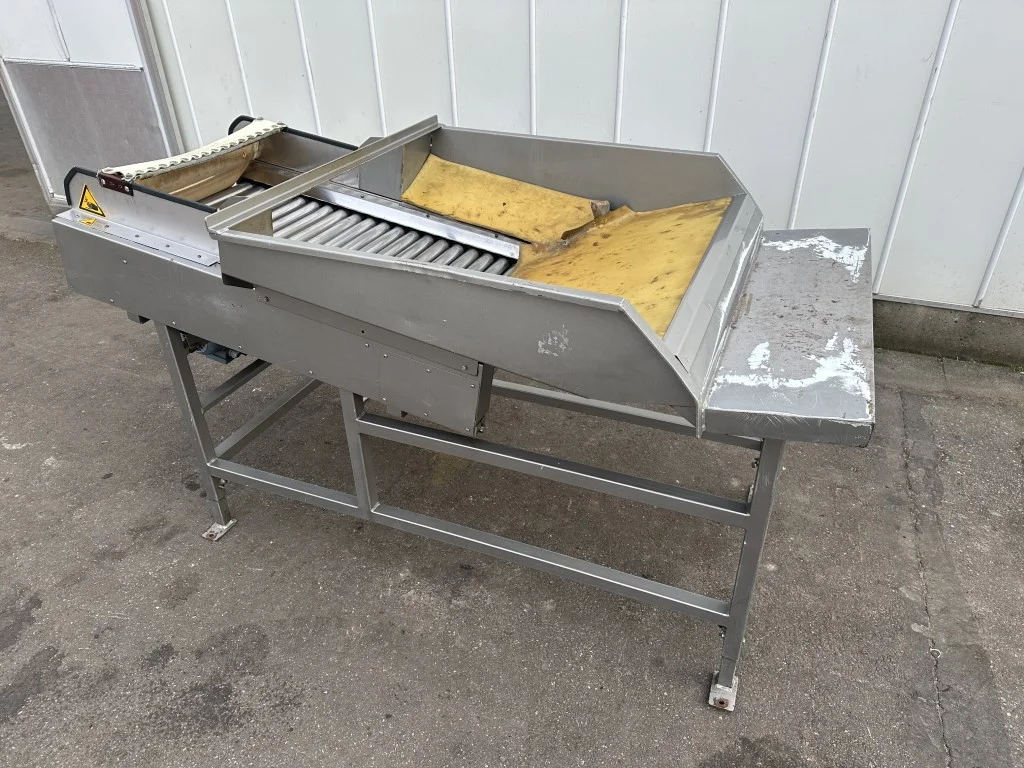

• Stainless steel roller inspection conveyor with dosing bin (length x working width) total L195 x W 95cm ( roller reading belt 100 x 60)

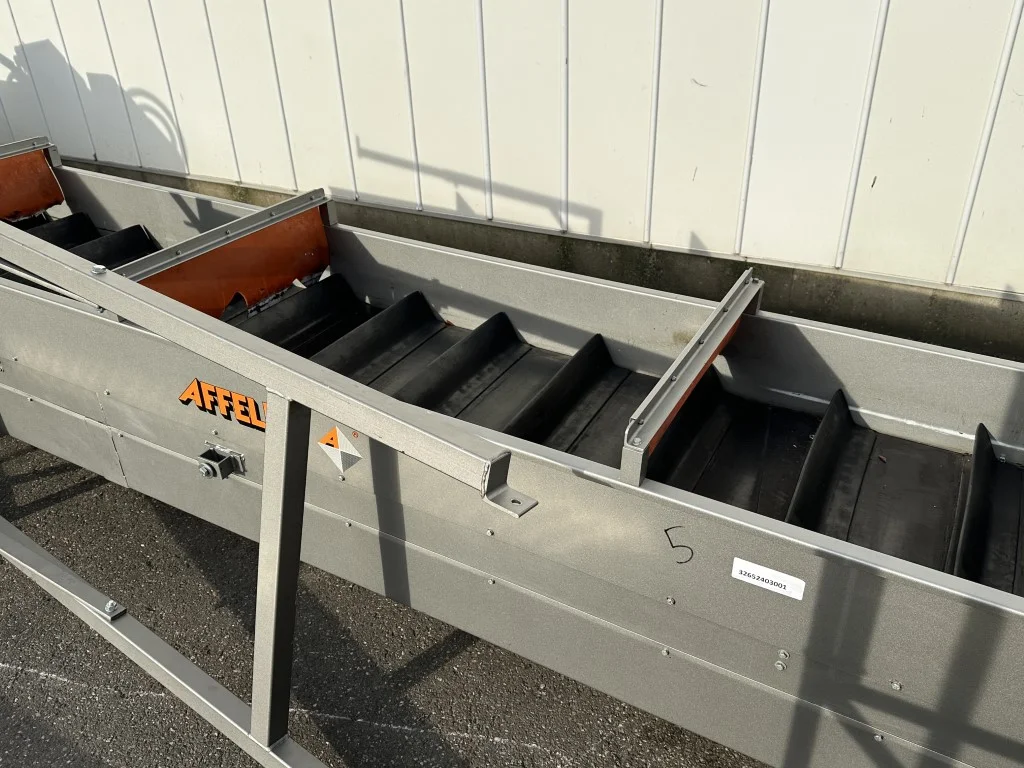

• Elevating belt (length x working width) total 420 x 90 cm soaking width 50 cm
• Dimensions of platform L237 x W200 x H195 + 50 cm additional platform on the side

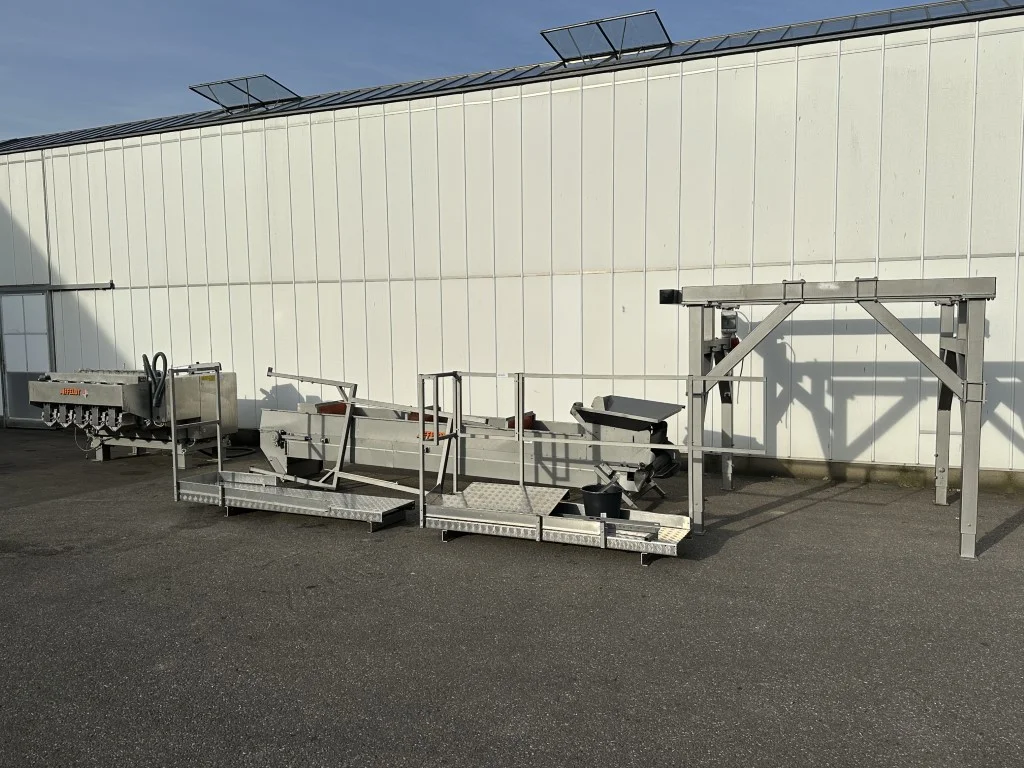

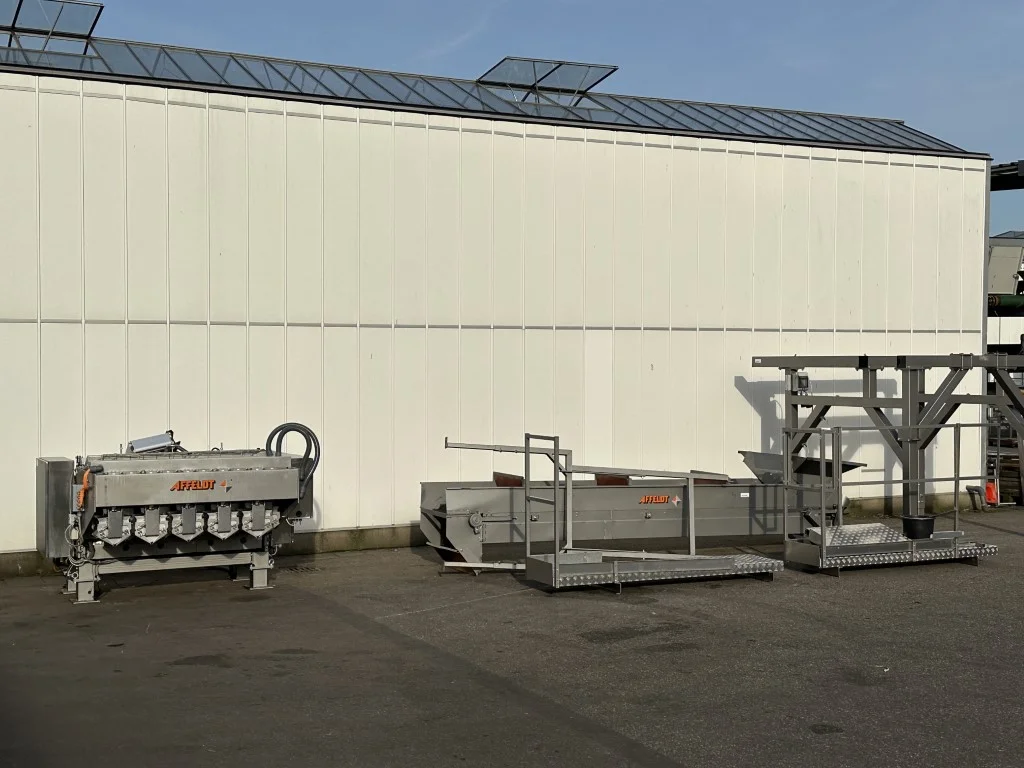

Total set-up approx. L700 x W250 x H325 cm

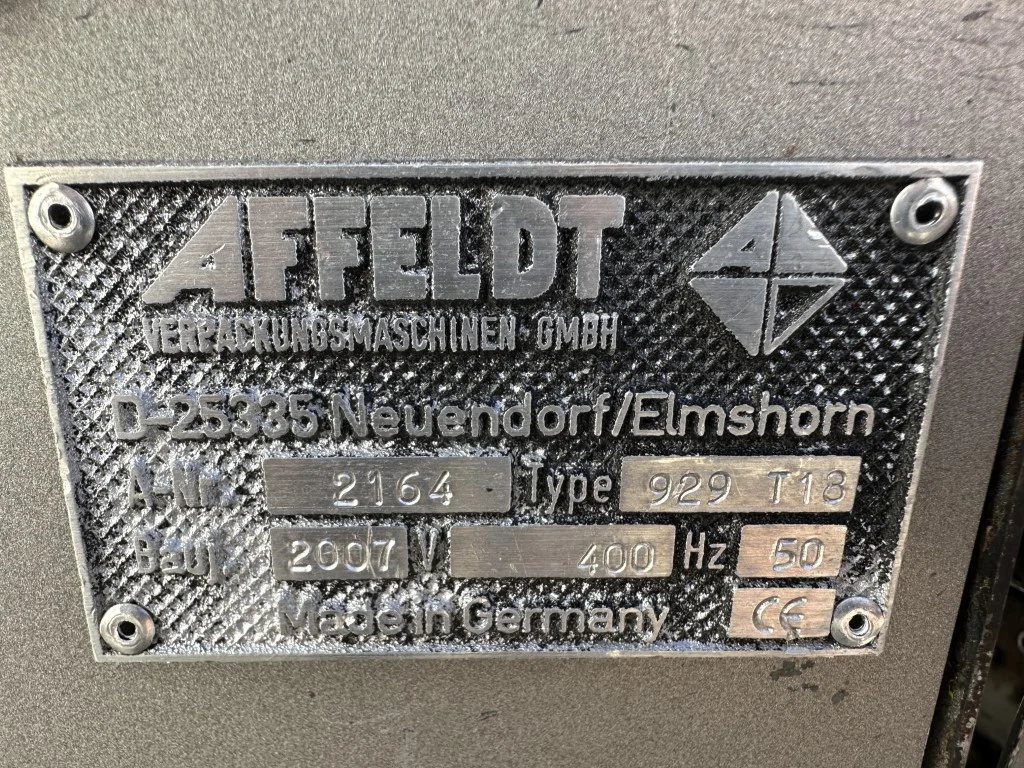

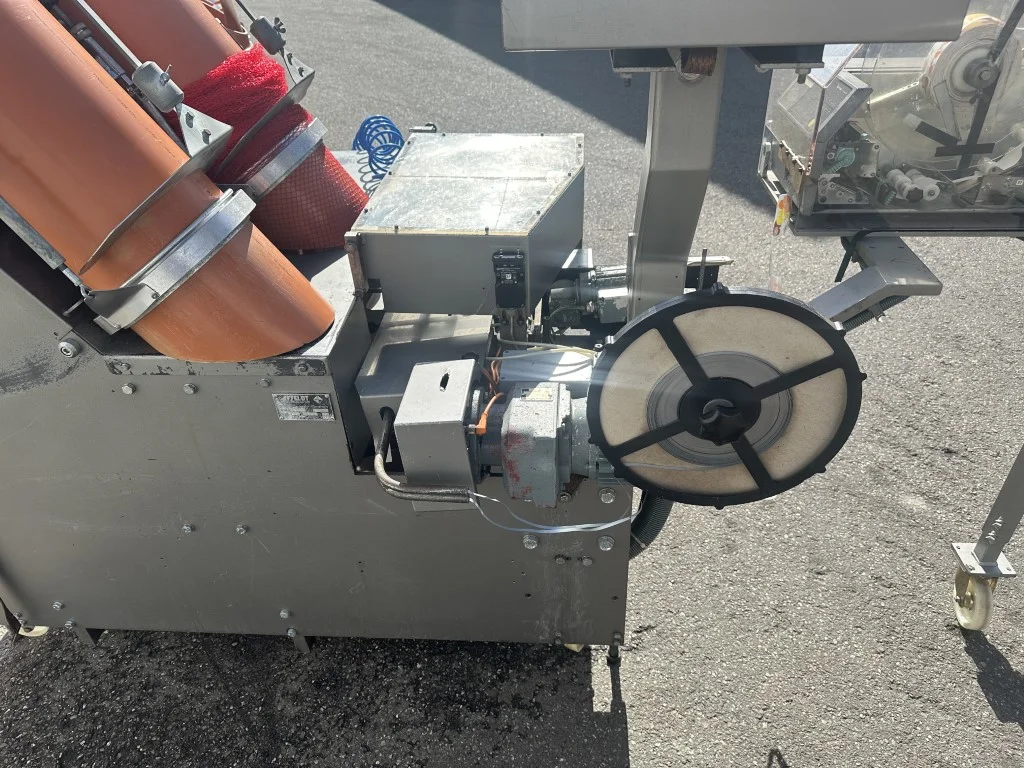

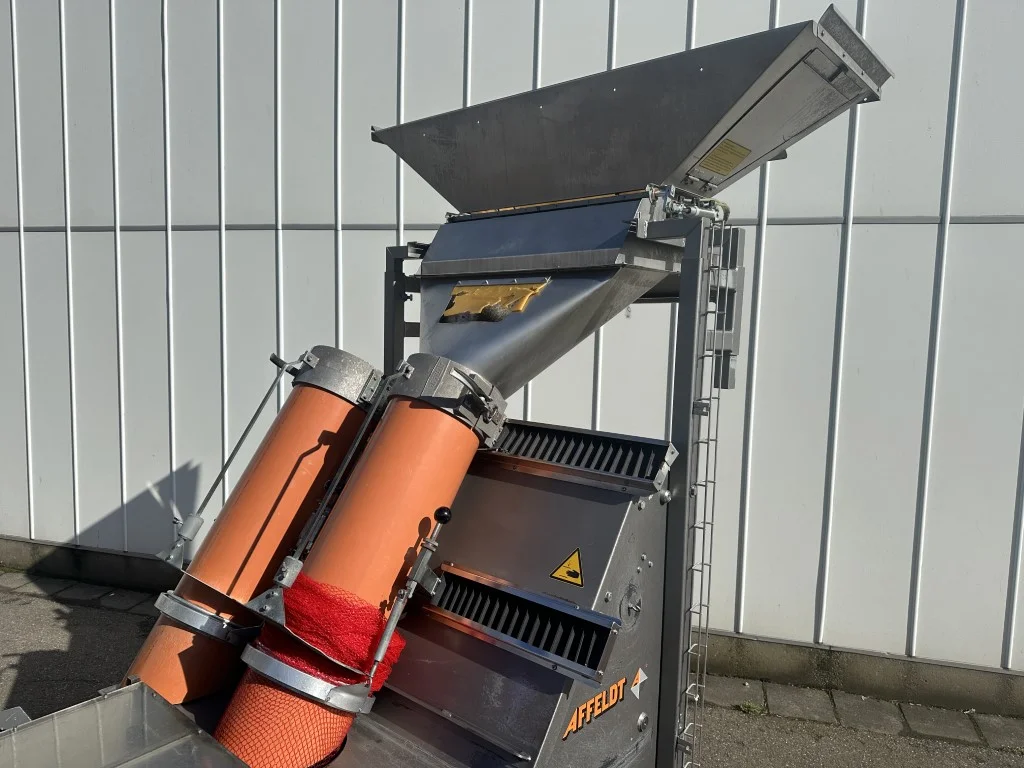

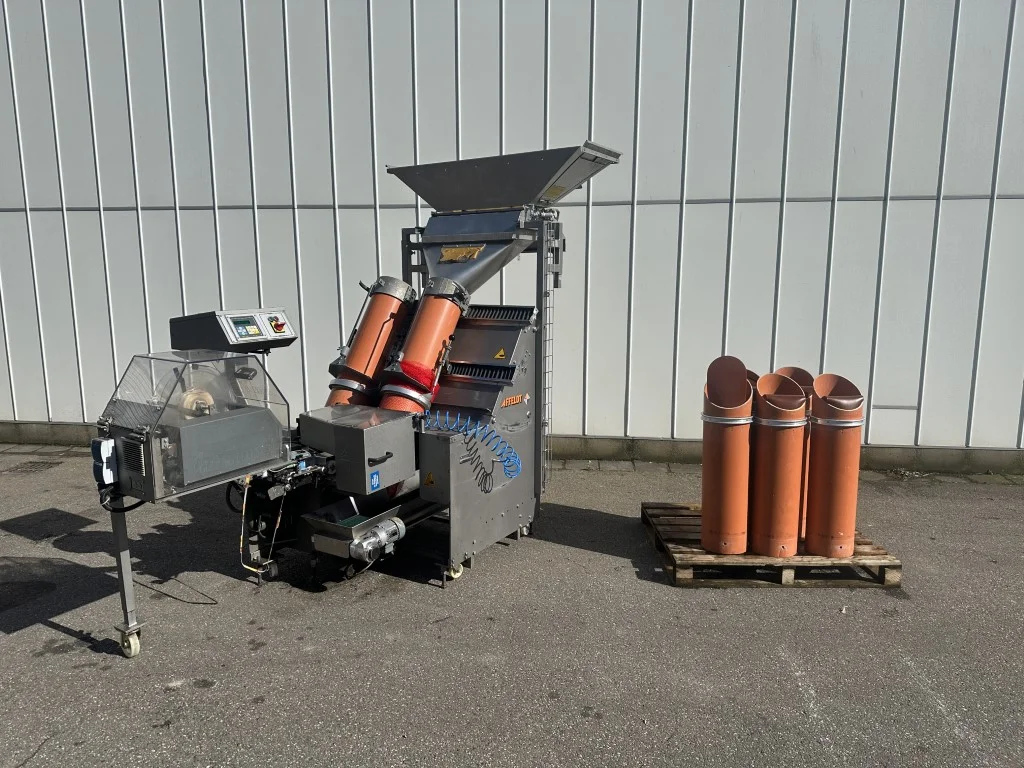

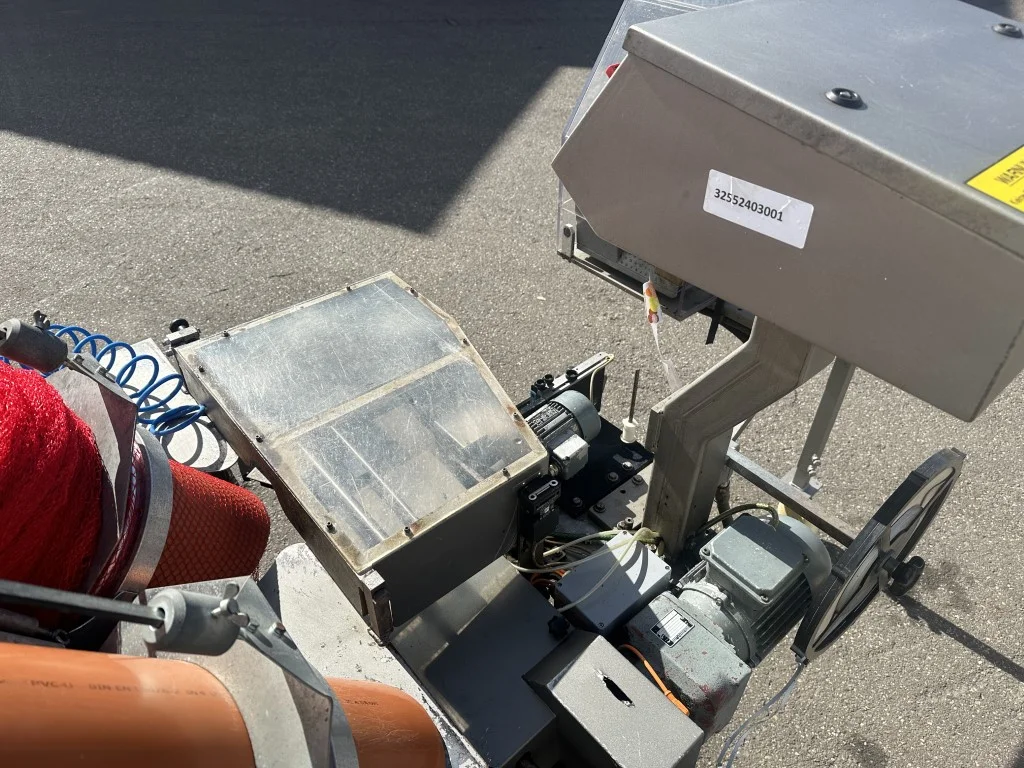

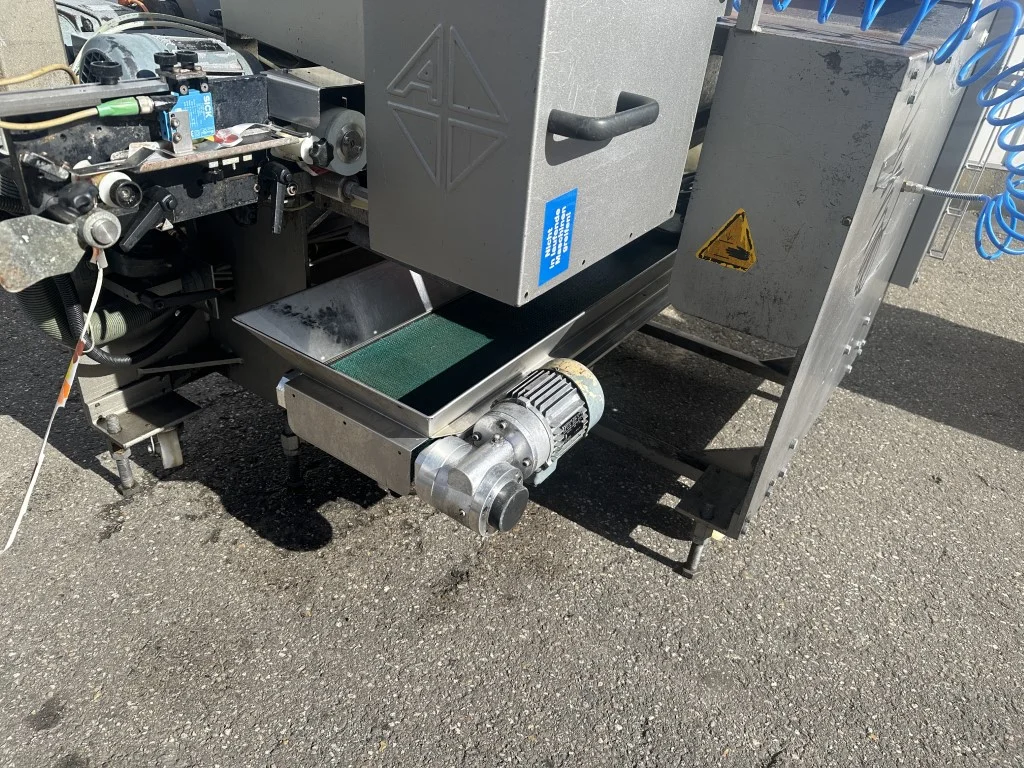

Affeldt 929T18 net clipping machine with printer

Used for citrus

The net clipping machine 929T18  packs solid goods such as onions, potatoes, garlic, brussels sprouts, citrus fruits, avocados, tomatoes, and similar products, which have been previously accumulated by a weighing or counting machine, speedily and efficiently into nets.

• Clipping on the top and bottom of the net package

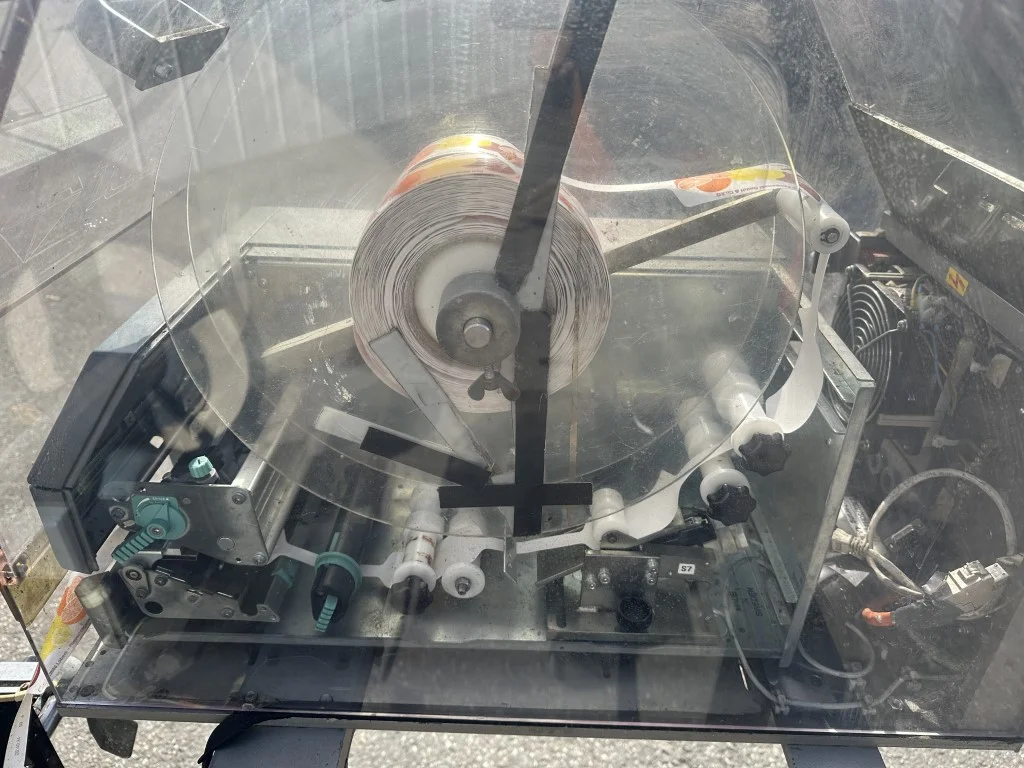

• Wineglass labelling machine with printer
• Automatic pipe change system, which prevents downtime when filling the pipes.
• Net type: Knitted net (endless / roll), Compostable net
• Packaging type: Standard clip packaging
• Closure: Metal clip top and bottom
• Packaging: up to +/- 5 kg
• Capacity (1kg): 45 - 50 packs/min

Advantages Affeldt 929T18 clipper:

• High-performance rate
• Compact dimensions
• Solid design and high reliability
• Easy maintenance due to wide access points
• Simple operation
• Easy to integrate into existing systems
• Clipper will be checked and overhauled with some new parts by specialist *invoice on request
