Description:

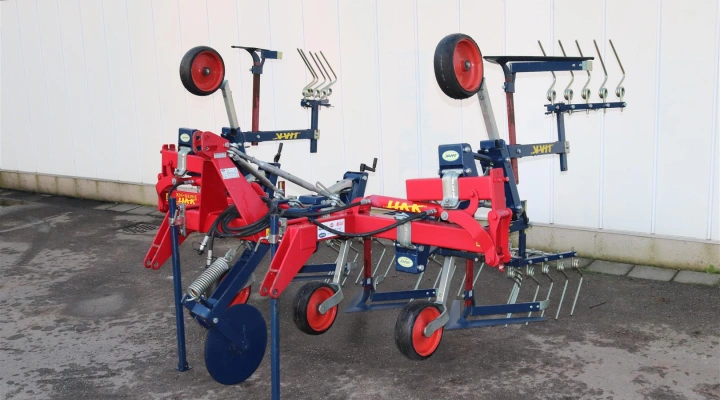

Hak interrow cultivator / hoeing machine.

• Brand new *used as demo machine during agricultural fairs
• 4 rows 5 elements
• Hydraulic foldable
• Width hoes 60 cm

The XH series parallel developed by HAK has a slim design, making it easy to maneuver through the crops. Crop damage is therefore excluded. Thanks to the wide Farmflex wheel with a size of ø300 x 100 mm, the pressure of the hoeing elements is well distributed over the land and the tires remain clean. The wheel can be adjusted in height without tools and free of play, as only HAK provides. By using bearings in the pivot points you can work very accurately for many years. The use of bearings with seals also makes the machine low in maintenance. The compact element can be easily mounted to the frame at various driving distances. The quick clamp ensures that you mount the entire XH parallelogram on the bar exactly by tightening 1 bolt. No adjustment is necessary here. The element is always mounted straight.

The spring pressure is also manually adjustable. The element can be easily removed from the work by operating the blocking switch and lifting the element. Depending on the desired version, the whole can be supplemented with earthing attachments, foliage protectors, row harrows, cultivators, finger weights and torsion weights.

Technical specifications:
