Описание:

Proseal MC002 + SlipStream Весовая линия с разделителем полос и 14 позициями для взвешивания мягких фруктов.

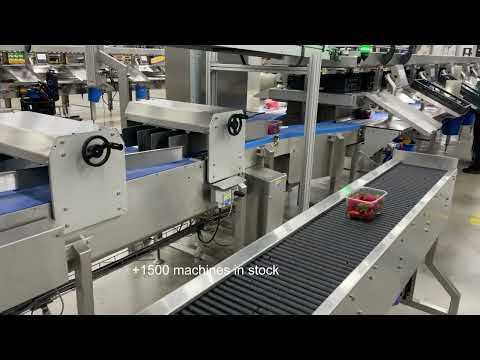

This weighing and repackaging line was used for the manual weighing and repacking of trays with soft fruits and grapes. Before a tray sealer.
The line is equipped with a Proseal Slipstream line diverter with 3 lanes to which a checkweigher can be connected. The trays with soft fruits (such as strawberries) that are over or under weight go to one lane and will be returned to the working position of the first weigher.

In addition to trays with soft fruits, this machine can also be used for the manual weighing of other products in trays, such as strawberries, cherries, grapes, berries, tomatoes, etc.

High-capacity grape weighing and packaging line, designed for efficient manual packing processes and easy integration with automatic traysealing machines.

The line is equipped with 14 ergonomic weighing workstations, positioned on both sides of the conveyor belt, allowing multiple operators to work simultaneously and achieve a high production capacity.

Specifications:

• 14 manual weighing workstations arranged as 2 × 7 stations on both sides of the line

• 14 weighing scales with digital display, Dutch Weighing Systems, model YES 701

• YES Manager software (Yield Efficiency System) with central Windows 10 PC for:
  • YES Manager is a production and weighing management software that collects data from weighing stations, analyzes it, and uses it to reduce give-away, monitor operators, and improve the efficiency of packaging lines.

    • Production monitoring

    • Real-time weight control

    • Production statistics and reports
      (Software licenses excluded)

• Motorized roller conveyor for full boxes, stainless steel construction

• Motorized roller conveyor for empty boxes, stainless steel construction

• Two discharge conveyors for the removal of weighed trays

• Lane merging system combining two conveyor lanes into one

• Proseal Slipstream lane divider, converting one lane into three lanes for high-speed distribution to downstream packaging machines

• 180° curved modular belt conveyor with stainless steel frame

• Accumulation roller conveyor with stainless steel frame for product buffering

Additional Information:

Excluding checkweigher for controlling the Proseal SlipStream. The line previously operated with a Bizerba checkweigher. Checkweighers from various manufacturers can be integrated into this line.

The line is suitable for packing grapes and other small fruit products and can be easily integrated into existing packaging lines with traysealers or flowpack machines for trays from Proseal or other manufacturers.
