Description:

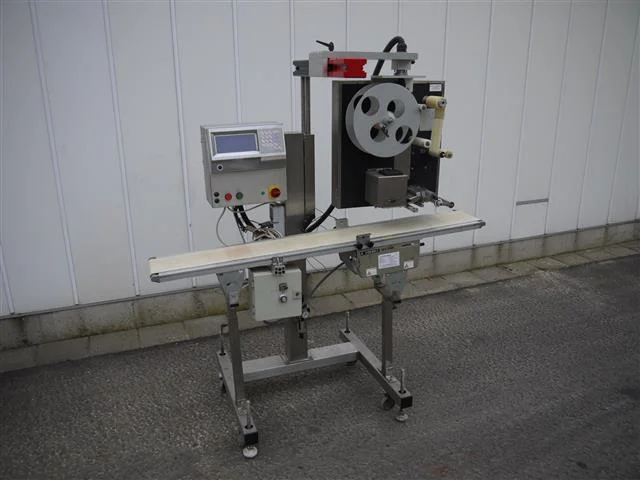

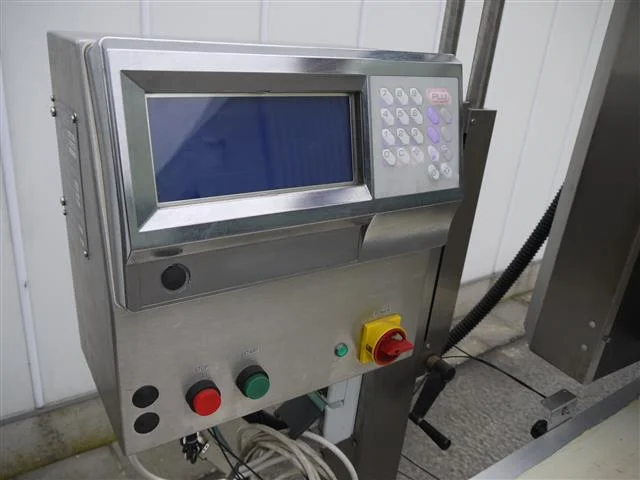

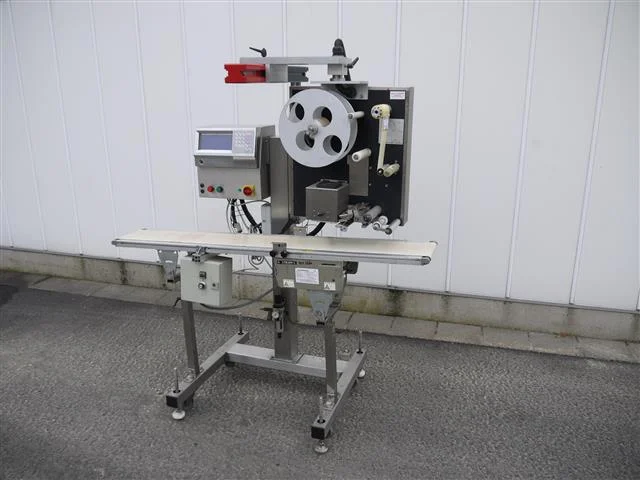

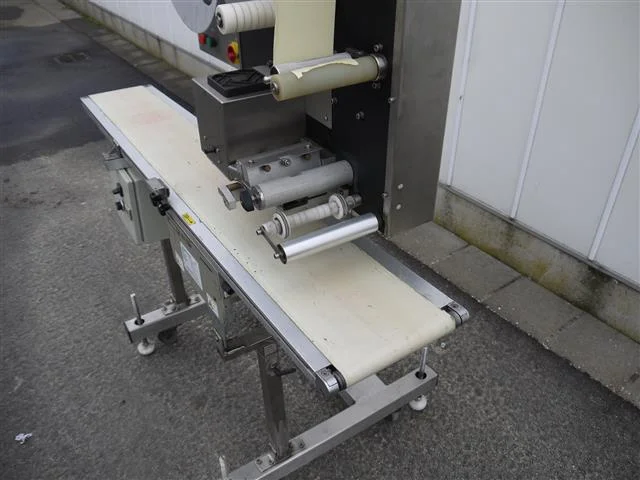

Digi Europe HC-3600 print and labeling system with conveyor. The HC-3600‘print and apply’ labelling system demonstrates that DIGI is still at the leading edge of labelling technology. It has been designed to be as flexible as possible, but still achieves speeds of up to 130 packs per minute.   • Direct thermal/thermal transfer operation • Historically controlled thermal head (resulting in very high print quality) • Easy loading label • Print head temperature selectable • Choice of label applicators • Touch screen display • Product sensing by photocell • Self contained console and electronics   SPECIFICATION Pack Speed: 130 packs per minute, depending on pack and label size. Print Speed: Up to 300mm/sec. Print Method: 60mm (7.4 dots/mm) thermal head or 75mm (6 dots/mm) thermal head. Pack Size: 80-600mm (3.15”-23.62”) long 40-300mm (1.57”-11.81”) wide. Pack Height: 10mm/2mm (0.39”/0.08”) long (option*) min (*10mm with angled photosensors, 2mm with horizontal photosensors). 180mm (7.09”) high maximum. Label Size: Min. 30mm (1.18”) wide x 28mm (1.10”) high Max. 120mm (4.72”) wide x 210mm (8.27”) high. Label Format: 12 standard formats and 68 additional fully programmable formats. (*depending on label configuration). Preset Data Incl: PLU code, price, pack quantity, pack date, sell by date, time, shop name, commodity name etc. Industry barcodes - Code 128,A,B,C/ITF/Code 39. Label Roll: Roll diameter 300mm (11.8”) Core diameter 76mm (3.0”) Power: 220-240V 50/60Hz AC single phase
