Flier Substrat Elevator
Visser Trommel Plattensämaschine
Da Ros Trommel-Sämaschine R650

Mosa platte-tray füllmaschine

Preis auf Anfrage

Super occasion
Verkauft

Vor-und Nachteile

  • Super occasion

Beschreibung:

Mosa platte-tray Füllmaschine mit Bürstenmaschine

Die befüllten Trays werden mit einer Bürsteinheit abgebürstet,


  • Rollenbahn
  • regulierbar
  • 400 Volt 3 phase 50 Hz

Technische Spezifikationen:

Modell:R9G
Jahr:2010

Description:

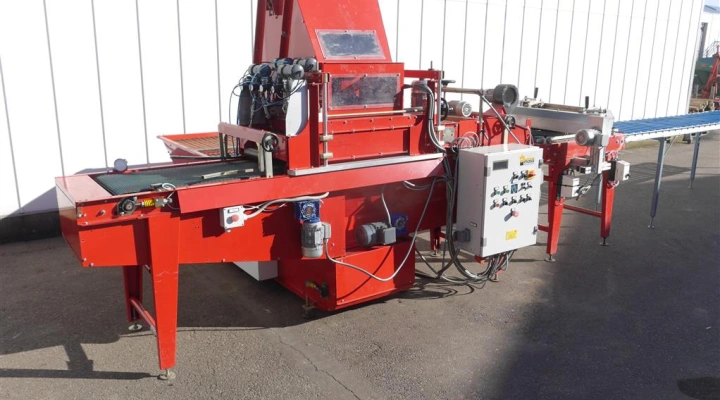

Mosa tray filling machine
Complete with brushing machine and roller conveyor

The Mosafiller is a machine for filling trays or carrier trays with pots which are flat at the upper side of the tray. The tray filler has of a soil hopper, an soil elevator, a filling head  and a belt for transport of the trays through the machine.

The soil hopper has a conveyor belt at the bottom of the hopper which transports the soil to the elevator. The elevator elevates the soil up to the filling head. The soil is put in the filling head where it will be divided over the tray by means of a Compacter The tray is put on the belt of the tray filler by hand or by means of a destacker in front of the tray filler. The conveyor belt of the tray filler transports the tray under the filling head. The conveyor belt has a grip surface so the trays will be transported during filling. After filling, the trays run under a rotating brush, so the upper side of the trays is brushed. The soil from the brush will be returned to the soil hopper. By brushing the top of the tray will be cleaned so there will be no soil between the cells of the tray, so roots of different cells can not bound.

A couple of things are adjustable for working with other tray sizes or with an other result of filling (higher / lower density).

  • The side guides of the tray filler can be adjusted with a spindle for working with a tray with an other width
  • The height of the filling head can be adjusted, for working with trays with an other height
  • Sturdy construction for long life
  • Designed to work in line with mosa seed systems
  • Versatile quality filler
  • Large hopper capacity
  • Can be fitted with tray dispenser

Technical specifications:

Model:R9G
Year:2010

Mosa platte-tray füllmaschine


Leider ist diese Mosa platte-tray füllmaschine inzwischen verkauft.

Möchten Sie informiert werden, wenn ein vergleichbares Aufnahmegerät verfügbar ist? Geben Sie hier Ihre Daten ein.


Verkauft

Marke
Produktgruppe
Erzeugnisse
Modell
R9G
Nummer
0340180203
Jahr
2010

Kontaktieren Sie bitte Jordy

Wir beraten Sie gerne. Unsere Berater warten jetzt auf Sie.

Direkter KontaktRufen Sie uns an: +31 180 632 088

Beschreibung:


Mosa platte-tray Füllmaschine mit Bürstenmaschine

Die befüllten Trays werden mit einer Bürsteinheit abgebürstet,


  • Rollenbahn
  • regulierbar
  • 400 Volt 3 phase 50 Hz
