Description:

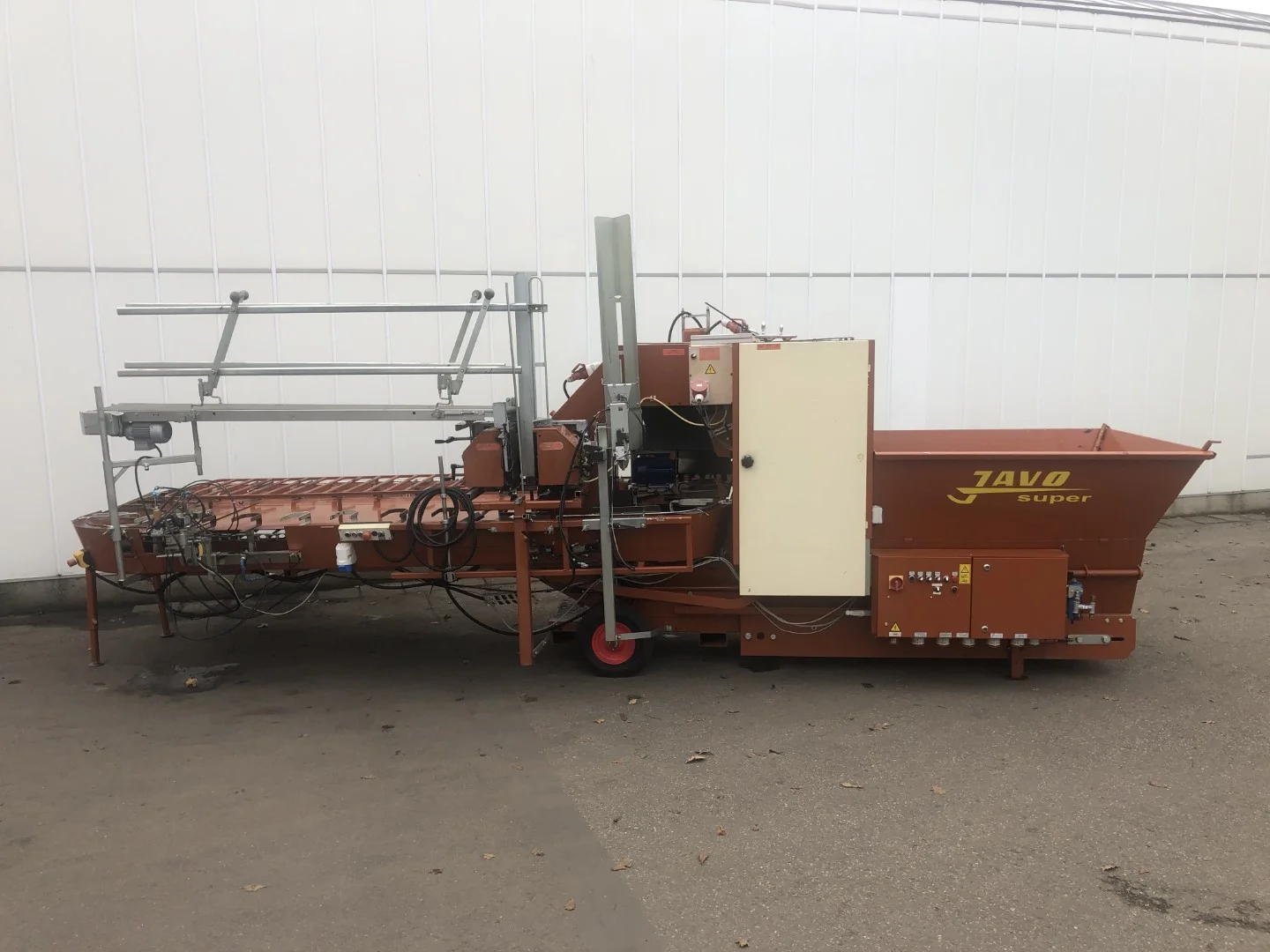

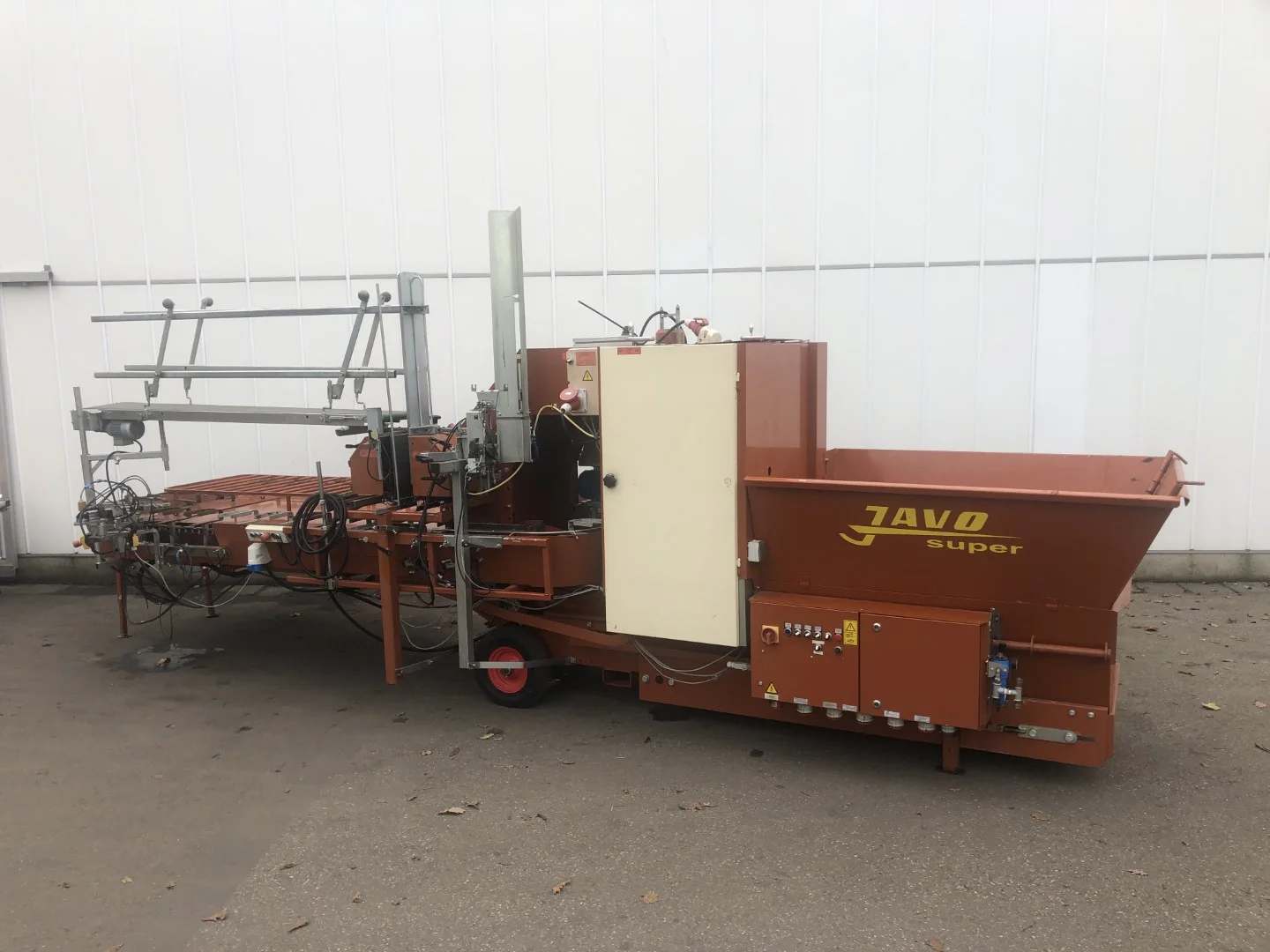

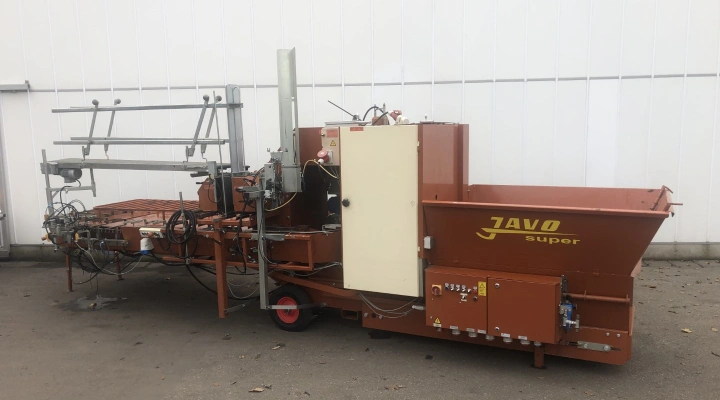

Javo Super Mega potting machine with pneumatic potdispenser

Javo Super Mega potting machine with pneumatic potdispenser and pneumatic take off

The Javo Super Mega potting machine is a solid universal machine suitable for any soil type. By applying a unique soil elevating system, this machine is technically unsurpassed and user friendly. This provides a high level of assurance in productivity.

The Mega provides an extra large  working area. Ideal for large and high pots up to 24 cm. An automatic soil supply / cut-off system and a unique paddle wheel prevents any deformation of the soil structure.

The capacity of the Javo Super Mega potting machine is stepless control from 600 up to 3,000 pots per hour single.

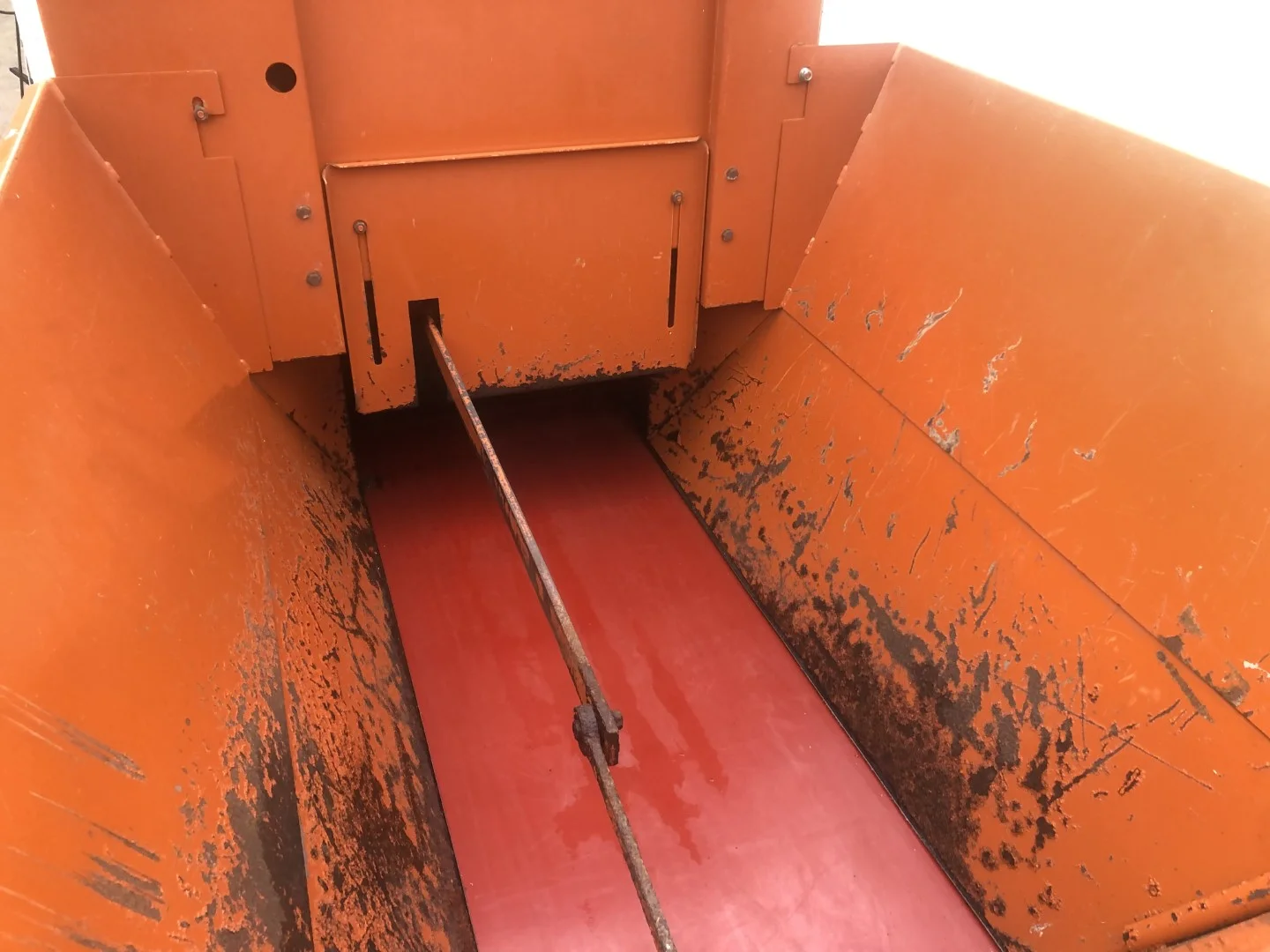

The soil bin of 1.5-cubic yards is accessible from 3 sides and equipped with a soil conveyor belt. With adjustable steps, this belt supplies the paddle wheel. The soil bin can be filled with i.a. a front loader, forklift or crate tilter.

Javo Super Mega is equipped with the following options:

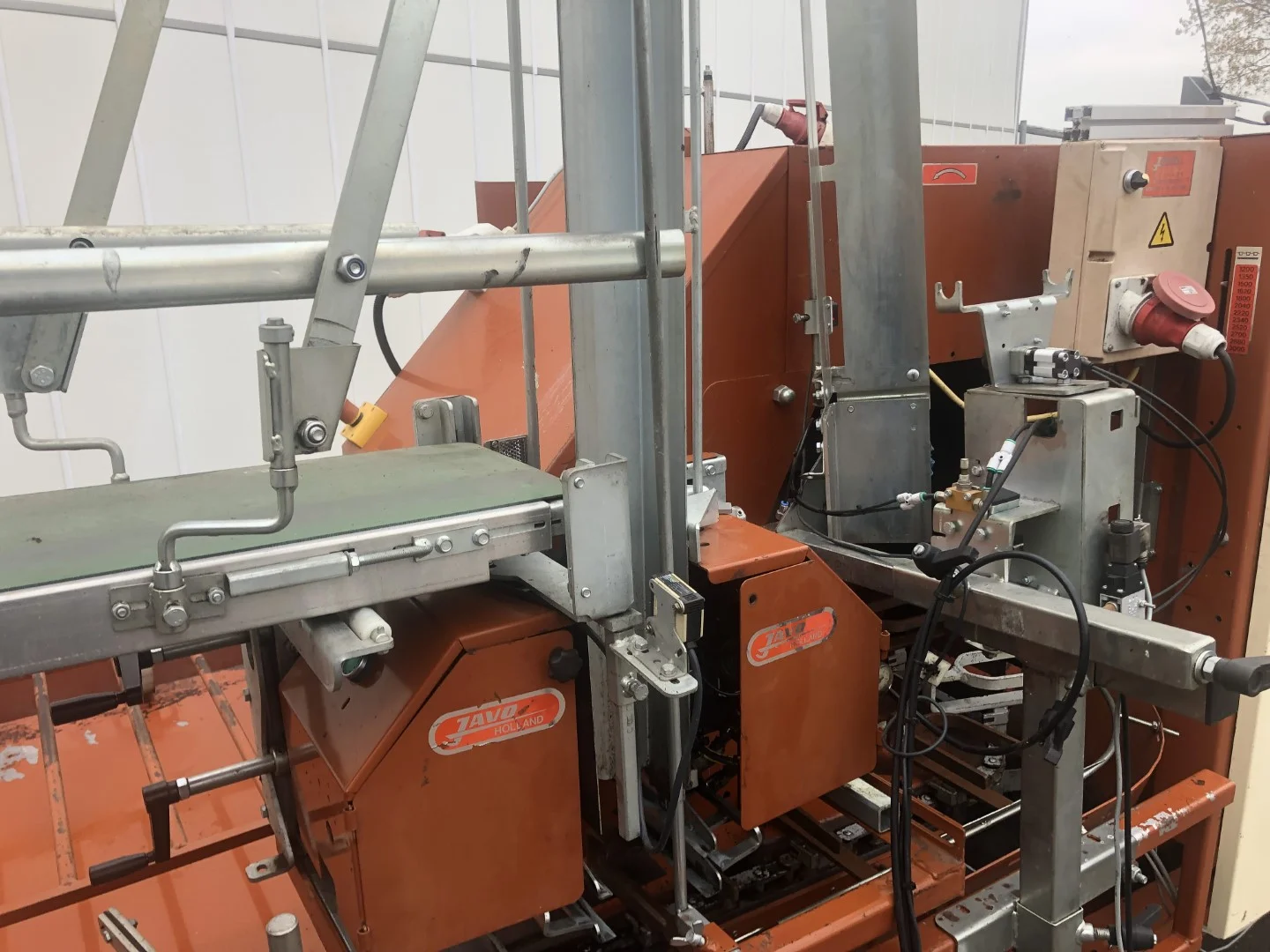

• Pneumatic LPO potdispenser (double) With supply conveyor
• Pneumatic potdispenser (single)
• Pneumatic take off
• Drilling motor (double)

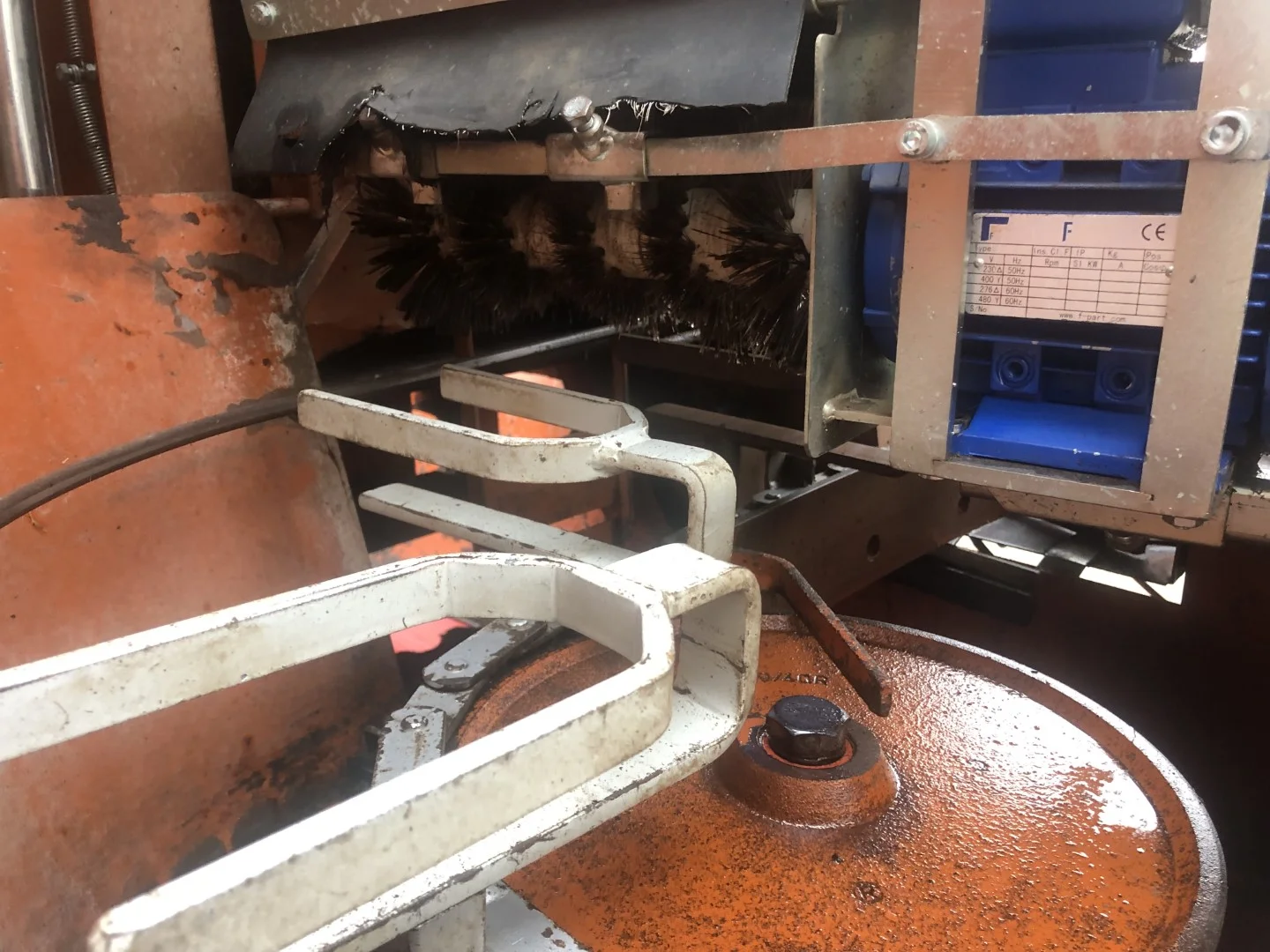

• Brush
• 1 sets double potholders(2x9cm)

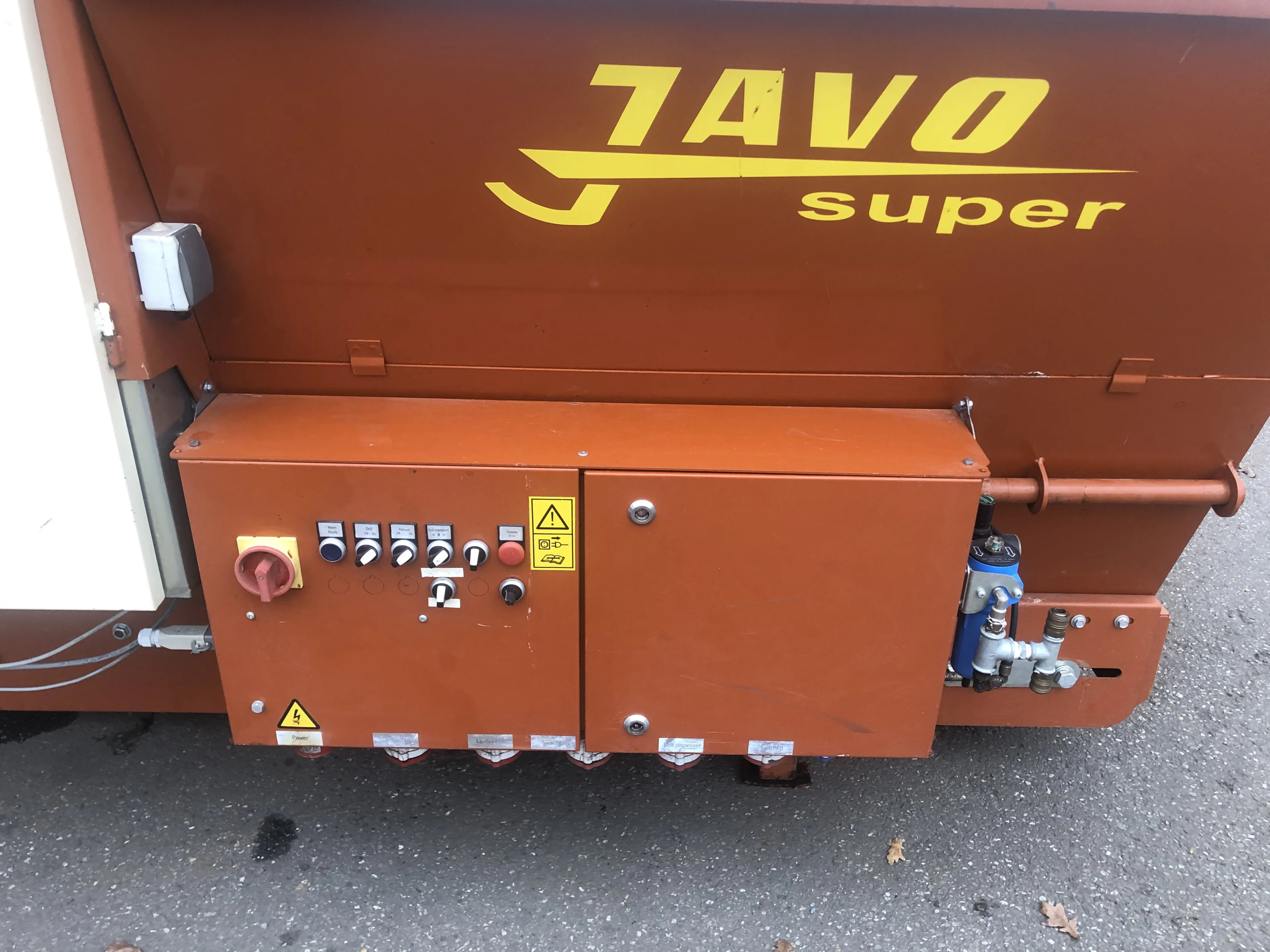

• Electronic speed control

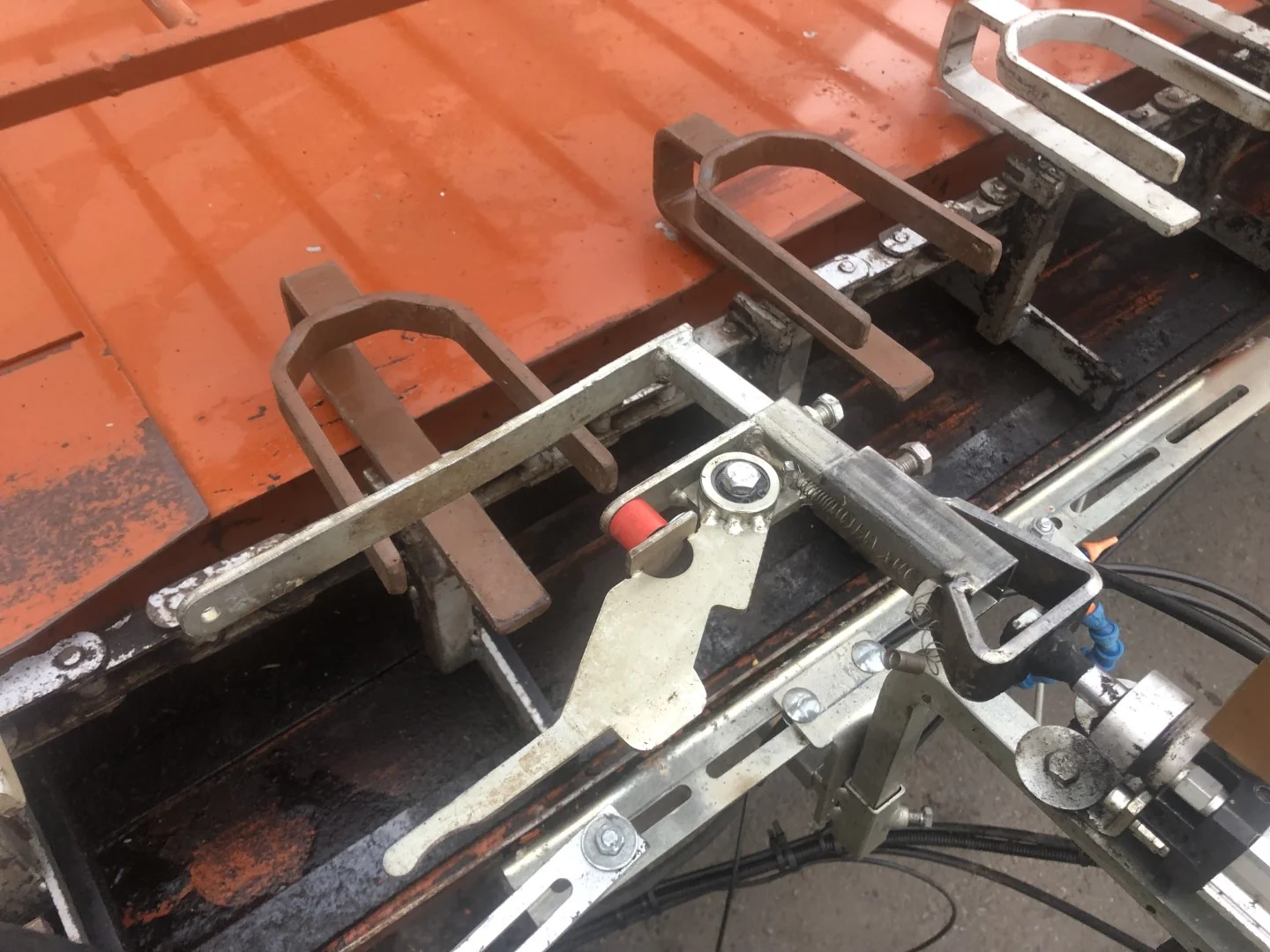

• Pottrack chain with 30 positions
• With Pot interrupter

Specifications Javo Super Mega:

• Suitable for pots from 9cm up to 24 cm
• Suitable for any soil type
• Equipped with 2 wheels
• User friendly

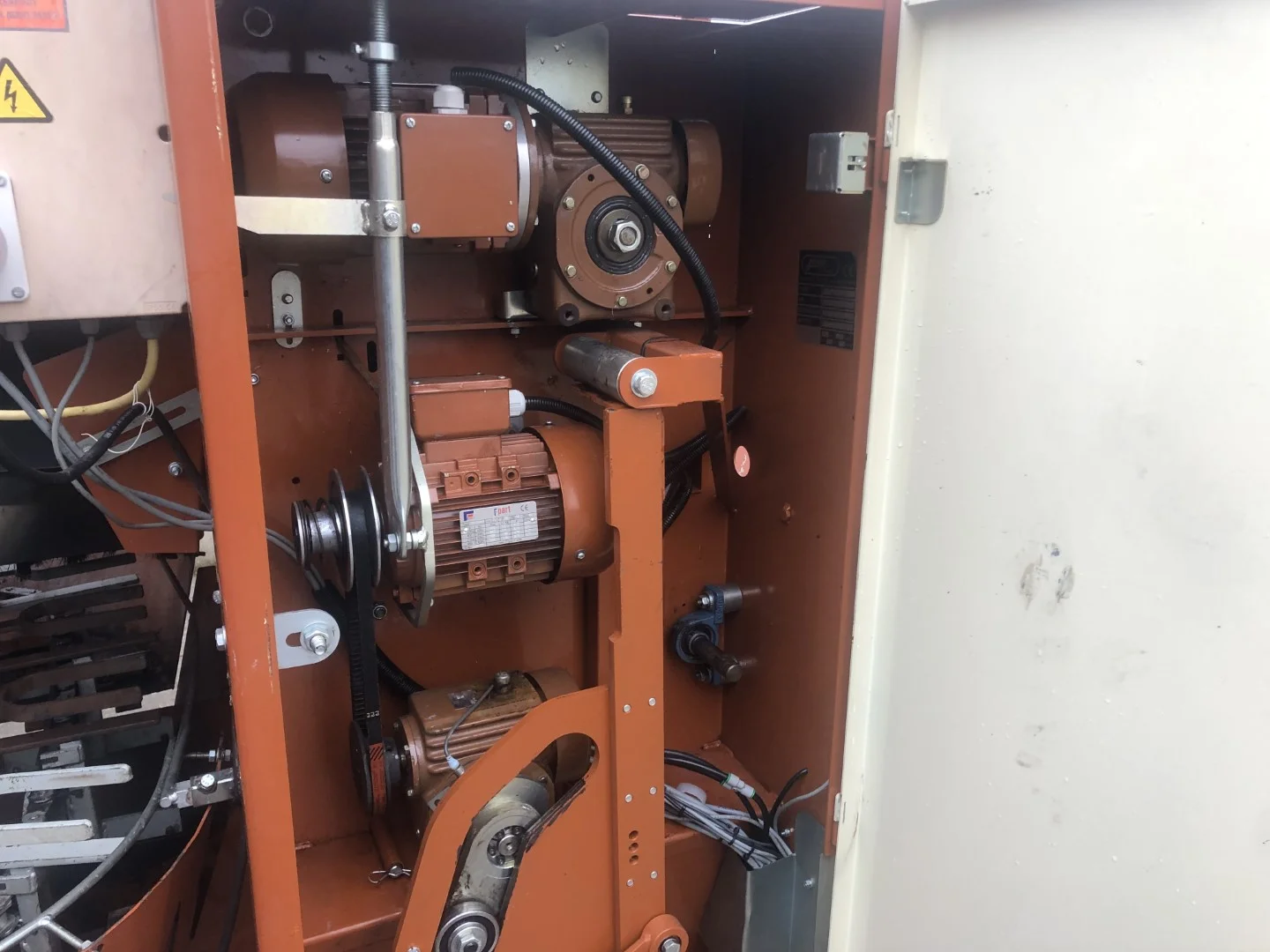

• Equipped with 3 electro motors
• Frequency controlled pottrack speed

Technical specifications Javo Super Mega:

• Length: 500 cm
• Width: 160 cm
• Height: 184 cm
• Weight: 2,200 lbs (1,000kg)
• Capacity: from 1,440 up to 6,240 pots per hour (double equiped)
• 380 volt 3-phase, 50Hz
• Power: 5KW

* Pot chain is in a lesser condition

Optional with this machine: New pot-chain, assembly included. Extra costs: €2.000,-
