Description:

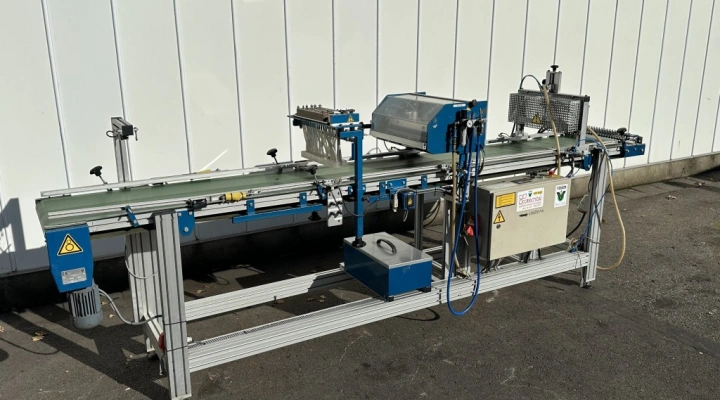

Visser Granette 2000

Visser Granette 2000 vacuum nozzle tray seeder

• Dibbler
• Vacuum nozzle seeder
• With single headed nozzles
• with 3 granudine slide seeders ( these are not conected and not working)

The Visser Granette trayseeder is a nozzle seeder with self-cleaning nozzles, which sows direct into the cell of the tray. Because of the many possible adjustments at the seeder in combination with the PSL-II index belt a very high accuracy is possible. The seeder has standard a double nozzle bar for sowing two rows of cells in a tray in one stroke   The vibrating nozzle bar will be positioned above the vibrating seed hopper, where the seeds will be picked up.   By adjusting the time for picking up the seed, the amount of vacuum and the vibration intensity of the seed hopper and nozzle bar a perfect result can be achieved.   After picking up the seeds, the nozzle bar will be above the positioned tray, where the vacuum at the nozzles will be released so the seeds will drop into the centre of the cells of the tray.   After dropping the seed, as the nozzle bar returns to the seed hopper, the nozzles are cleaned out by needles that come out of the nozzle-ends.
