Description:

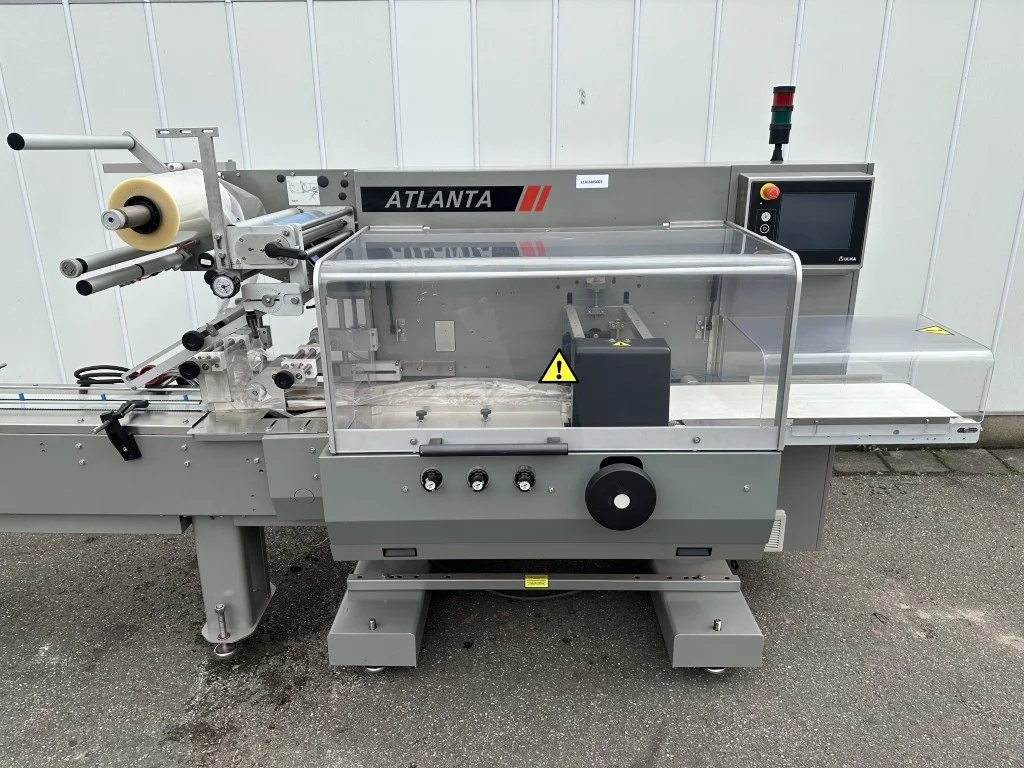

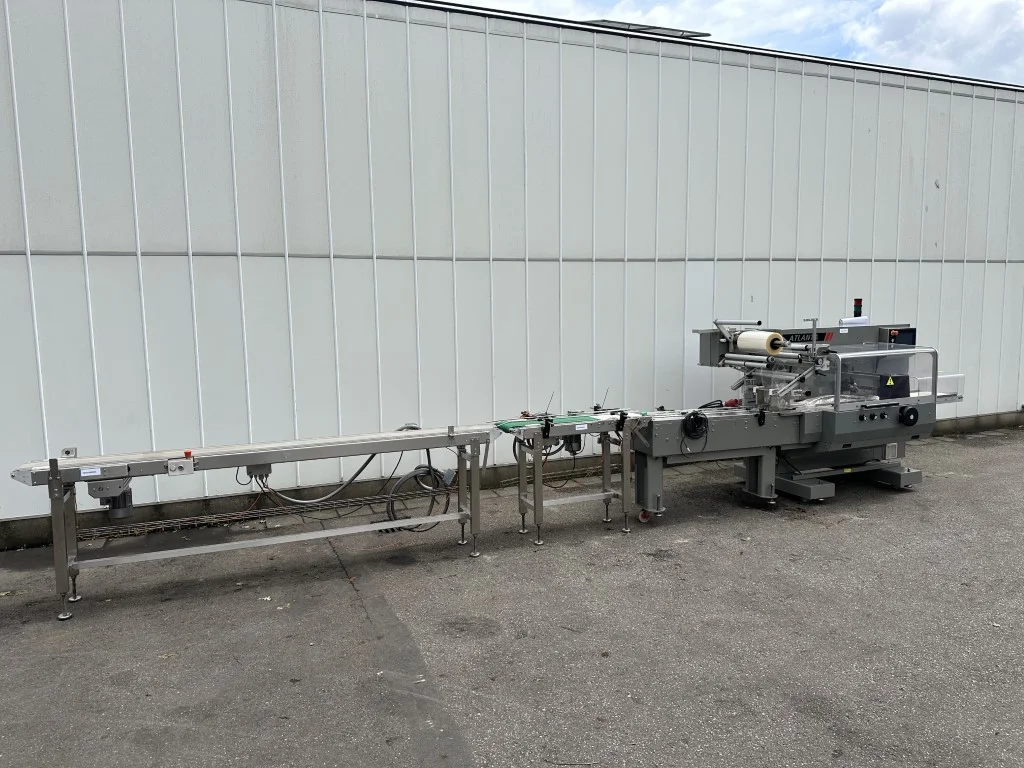

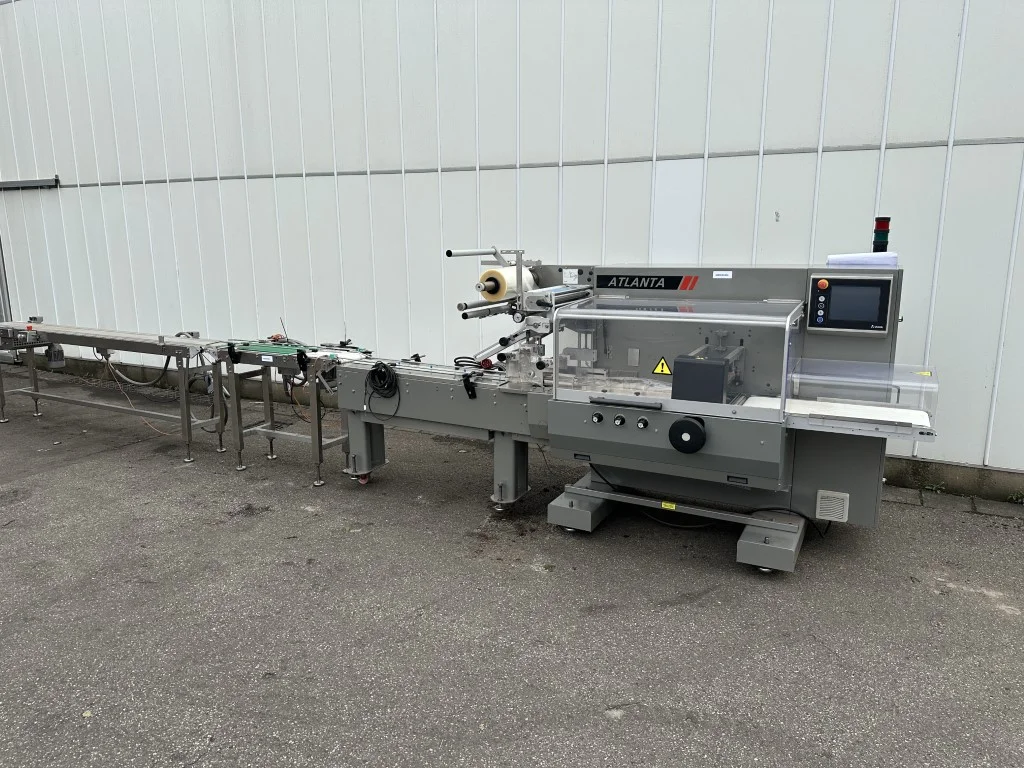

Ulma Atlanta E flow pack machine with supply conveyor

With automatic infeed conveyor (DAKOTA 1225) for packing trays

• Right-hand version, product flow from left to right, painted version
• The Atlanta version is equipped with brushless servomotors
• Automatic feeders

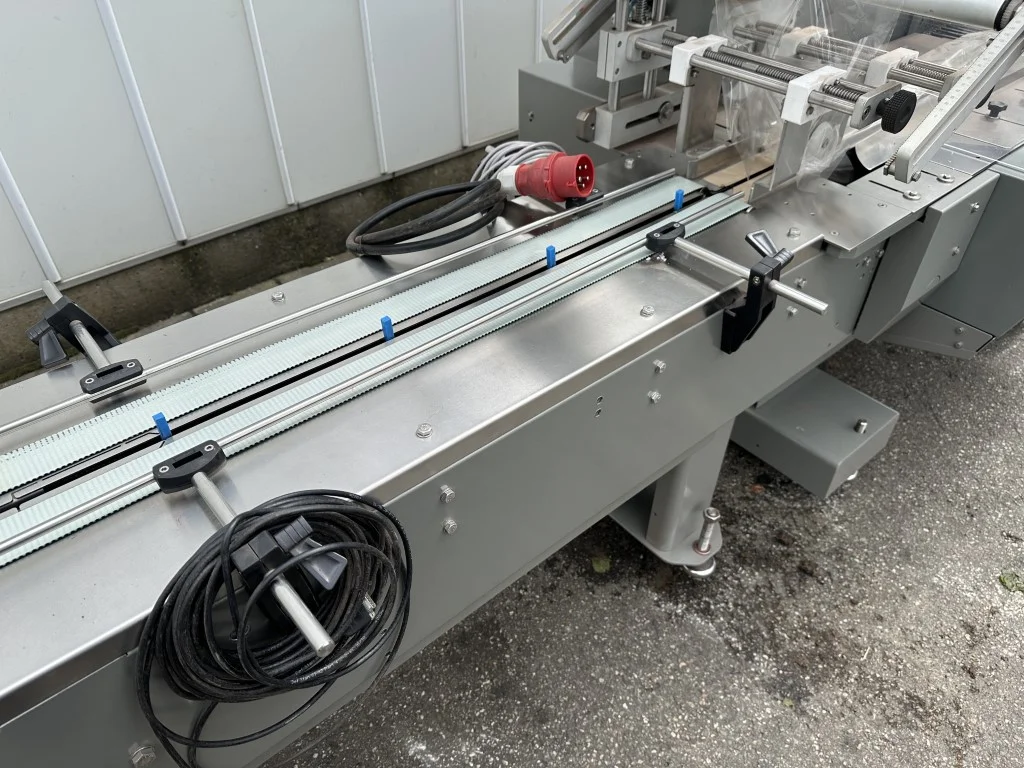

• Automatic inline feeder Dakota 1225 with non-removable belts

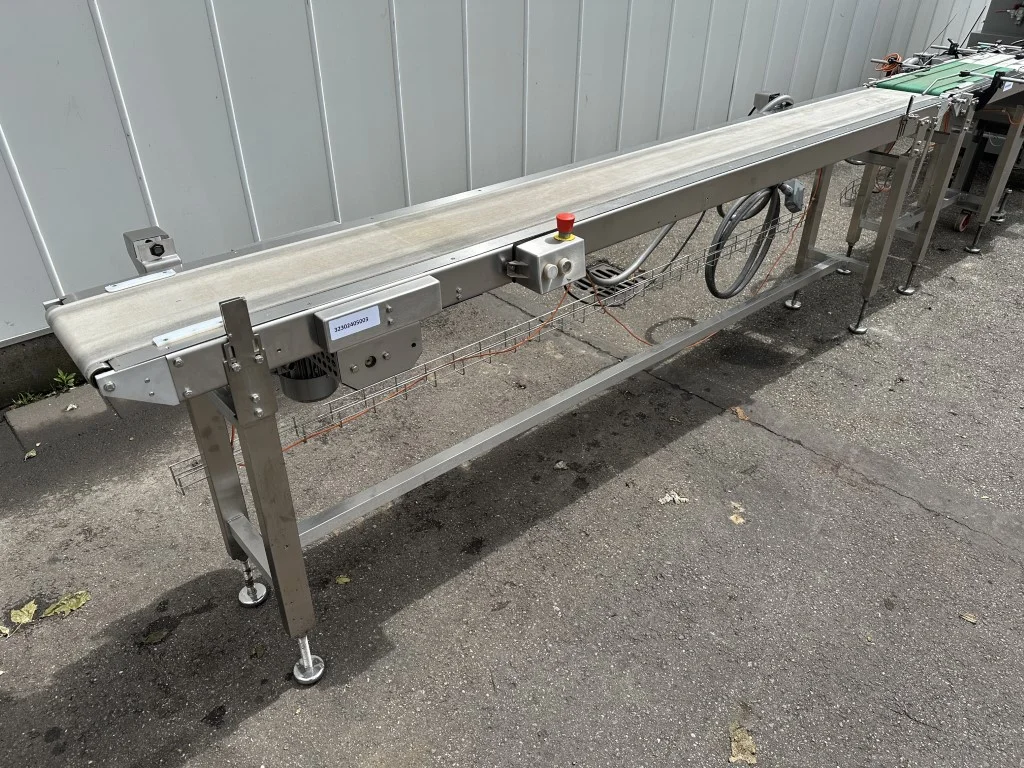

• Infeed conveyor
• Pusher infeed conveyor
• Roll holder 500 mm. wide roll holder
• Film end and machine stop device
• Signal for date printer
• Motorised unwinding of the film 500 mm.
• Folding box
• Double flexible folding box
• Longitudinal sealing unit
• Sealing roller group with first roller ø 90mm, 2 pairs of heated rollers ø 110mm and 4th pair of rollers ø60mm.

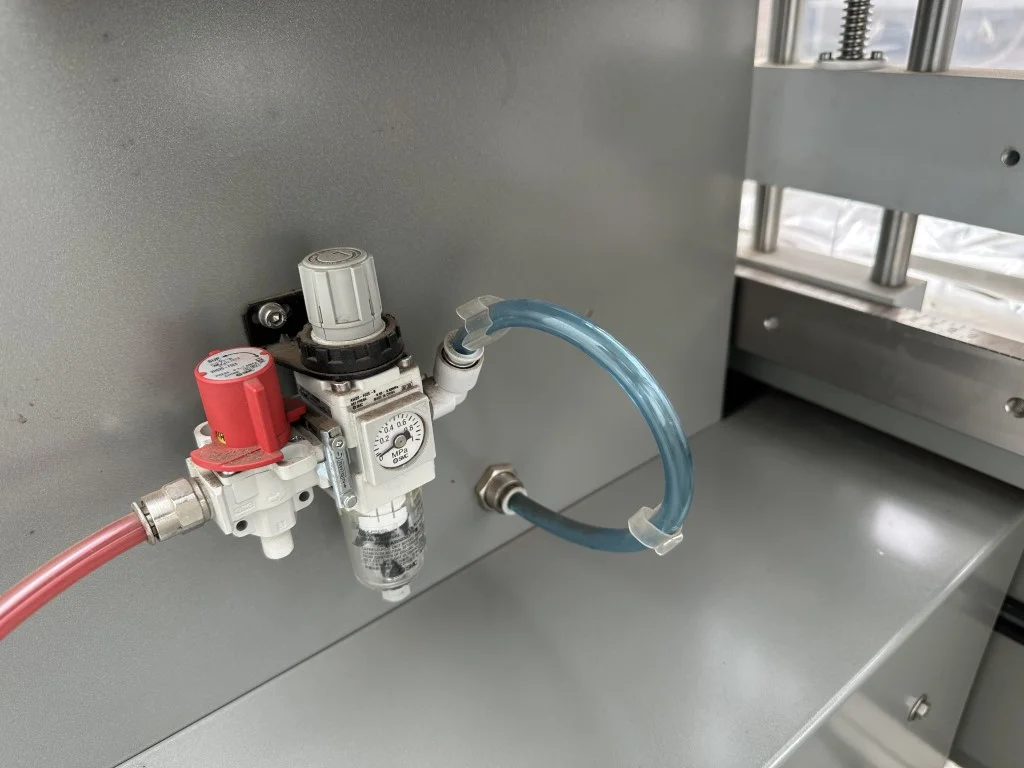

• Pneumatic device for opening the three pairs of sealing rollers

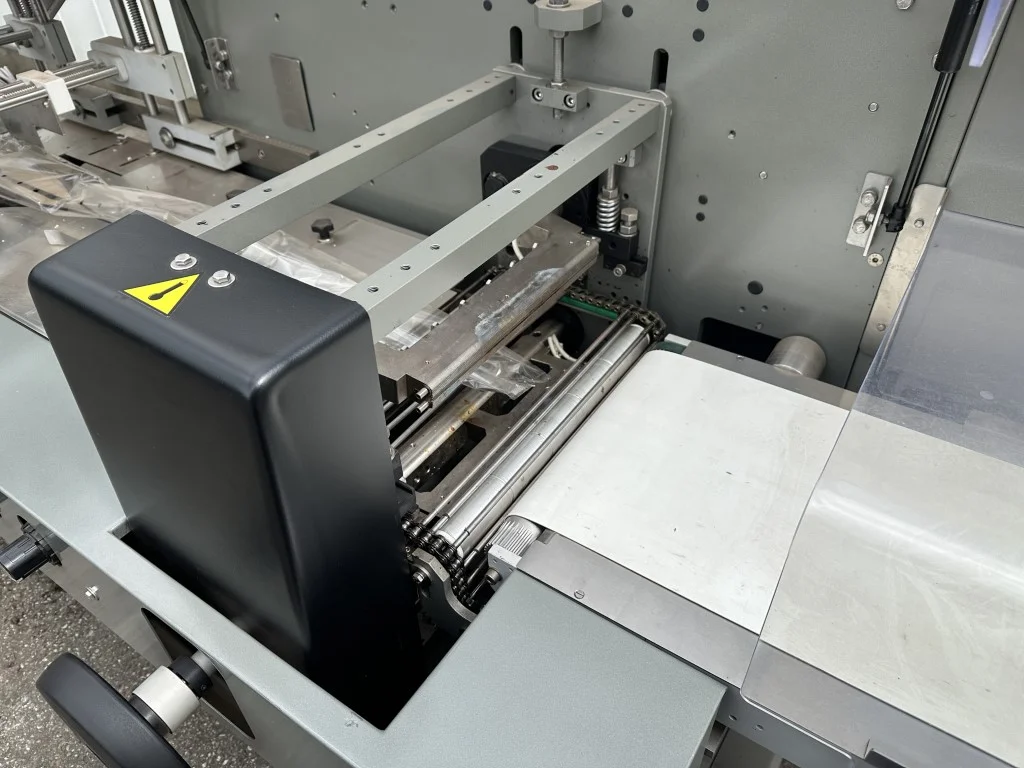

• Cross sealing device
• 300 mm wide sealing jaws
• Rotatable jaw head
• Cross pattern on sealing jaws
• Curved sealing jaws
• Motorised rollers through the jaws
• 1 jaw cross-sealing station ø200 mm.
• AUX 1 (plug x401) prepared for a printer
