Description:

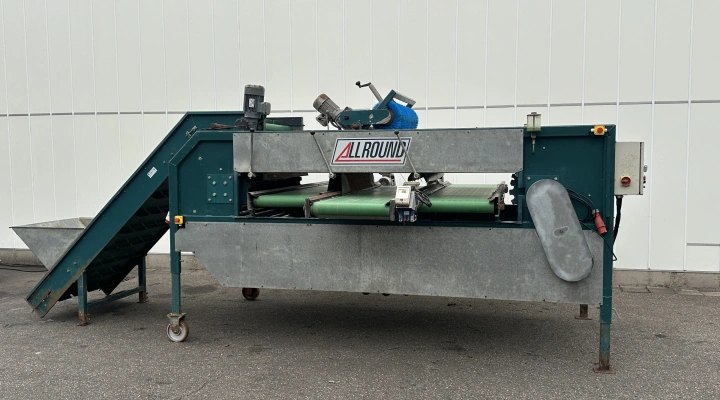

Allround roller sorting machine
For grading root crops by size, such as like carrots, chicory, red beets, onions and flower bulbs.
- 3 conveyors 60 cm wide
- Adjustable speed
- Diameter rollers 70 mm
- Chain pitch 80 mm
- Sorting 10-90 mm
- With brush
This machine is equipped with lateral placed grading rollers out of stainless steel. The distance between these rollers changes in steps over the different grading stages. Conveyor belts are placed under the machine, one for each grading size.
When the distance between the rollers changes above the size sections, every second roller lowers its position. This ensures a proper positioning of the product between the rollers. The speed is adjustable by frequency control,
| Estimated capacity (tons/hour) | R120 |
| Carrots | 8 |
| Baby carrots | 5 – 8 |
| Red beet | 8 – 10 |
| Potatoes | 8 – 10 |
| Parsnips | 3 – 4 |
| Onions | 8 – 10 |
| Set onions | 6 – 8 |
Technical specifications:
| Condition | Used, checked by own mechanics |
| Year: | 2001 |
| Transport dimensions: | 370 cm x 240 cm x 250 cm (length x width x height) |
| Transport weight: | 1200 kg |
| Sorts on: | Size |
| Sorting range: | adjustable |
| Number of exits: | 3 |
Allround roller sorting machine
Unfortunately, this Allround roller sorting machine has now been sold.
Would you like to be kept informed when a comparable Roller sorting machines becomes available? Fill in your details here.
Sold
