Description:

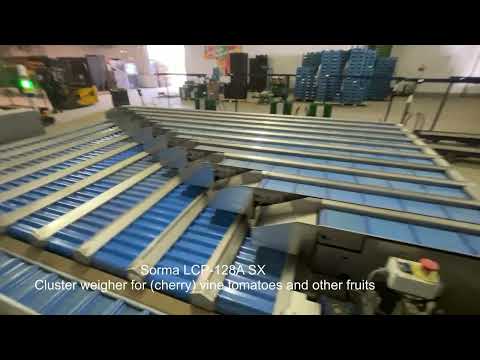

Sorma LCP-128A SX cluster weigher for (cherry) vine tomatoes and other fruits

Cluster weigher for vine tomatoes, beef tomatoes, ginger, grapes and other delacate fruit.

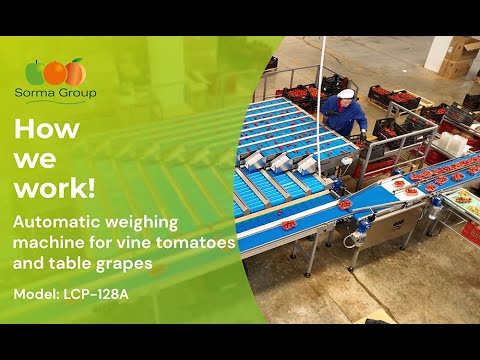

The Sorma LCP-182A is a combined weighing machine to overcome the main difficulties relating to the packaging of cluster tomatoes. As those in the trade are well aware, the most time-consuming, labour-intensive phase in the process is the filling of trays with the right combination of fruit to reach a given weight.

The princple is that the weigher assists people in completion of a partially pre-filled tray. In practice, peope part-fill the tray with fruit by hand, and then depending on the weight reached, the machine finds the best combination for reaching the guaranteed minimum weight and places the missing weight of fruit on the line next to the tray to be completed.

• High speed: up to 60 packs/minute depending on product and working mode.
• Labour saving: 30% less costs.
• No overweight packs: an average reduction of product between 20 and 30 gr per punnet.
• Gentle handling: wavy belts, soft edges, just 70mm drop.
• Compactness: less volume.
• Flexibility: for up to 30x20 cm punnets.
• Cluster Weigher for Sale – For Packing Cocktail/Cherry Vine Tomatoes The product is placed manually, and the machine automatically creates the correct combination.

Principle based on the manual pre-filling of the punnets and on the automatic search for the best combination needed to get the requested weight.

The line starts with two Taks pre-weighing tables. The trays are filled there with 70–80% of the final weight.

Next, the trays pass over a checkweigher, which determines which outputs should be used to top up the trays to the desired final weight.

Cluster weigher specifications:

• 10 head combination weigher with double pre-weighing
• Rotating angle infeed conveyor with 10-head weigher and special weighing hoppers
• Triangular wave belt, 10-fold, with central drive
• 2 x driven infeed belts (5000 x 210 mm)
• Double weighing belt for stationary pre-weighing
• Driven insert belt (600 x 110 mm)
• Driven product conveyor with wave pattern (5300 x 160 mm)
• Driven tray conveyor (6000×210 mm)
• Central control cabinet

Optional: Record Scorpion ESE Flowpacker with inliner (32302504005)

• Suitable for trays
• Undersealer
• 1 servo motor
• Year of Manufacture: 2007
• Inliner places the trays at a distance into the machine
• Automation Systems TGT005 film printer, Automator Zodiac+, year of manufacture: 2012
