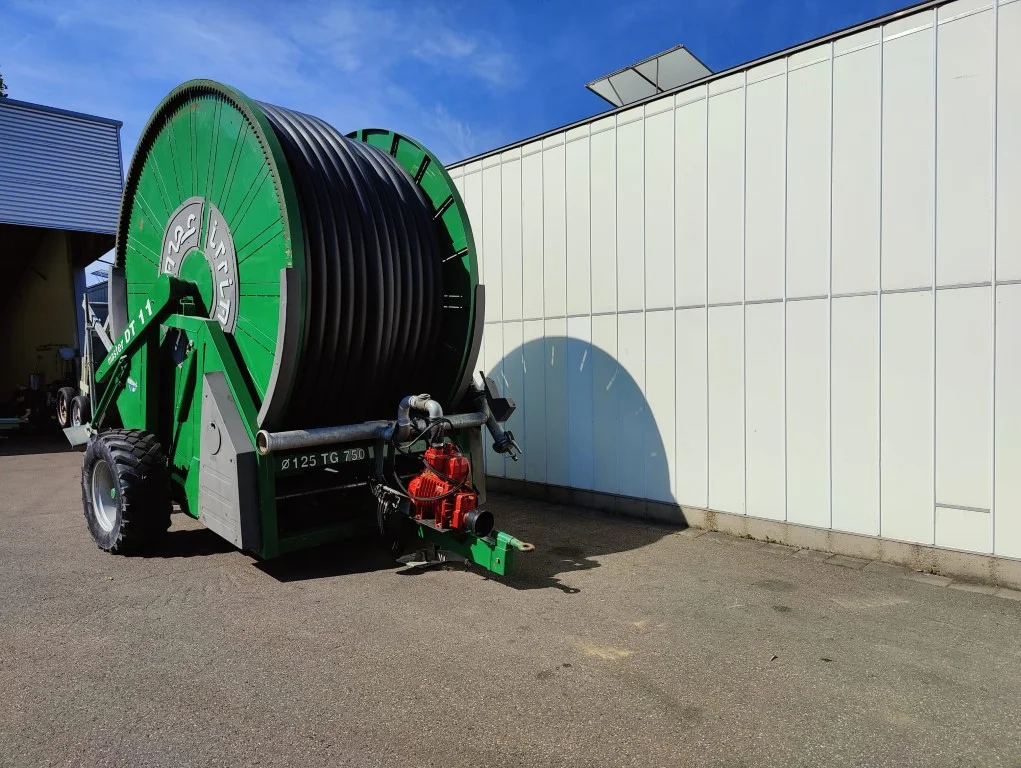

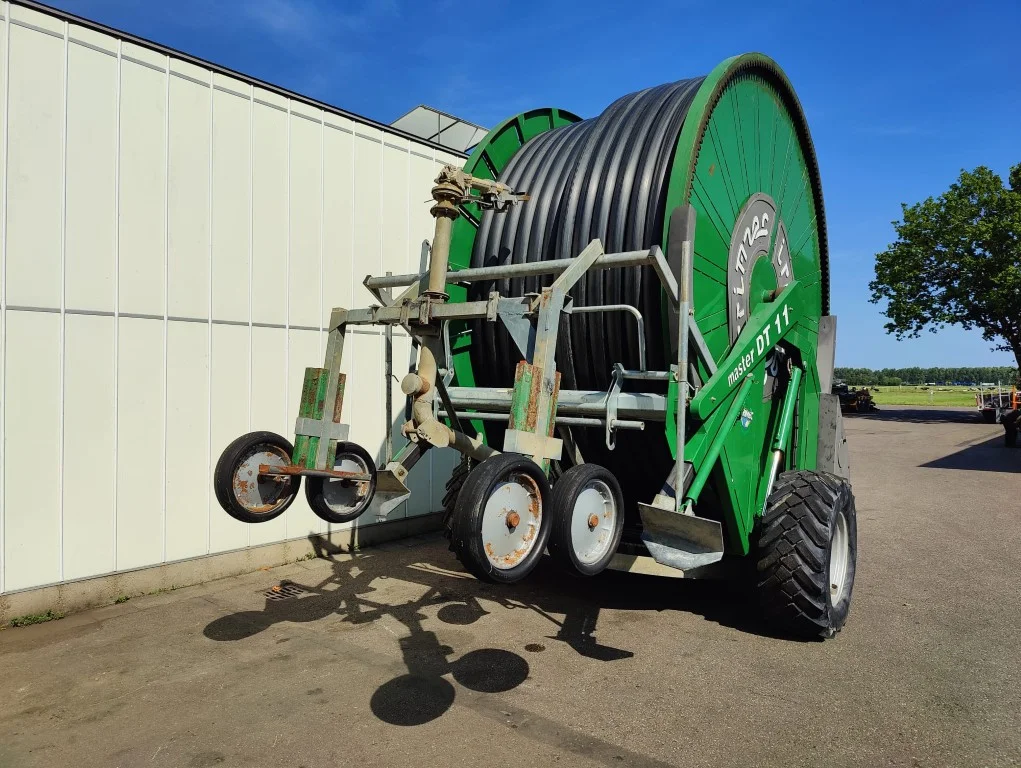

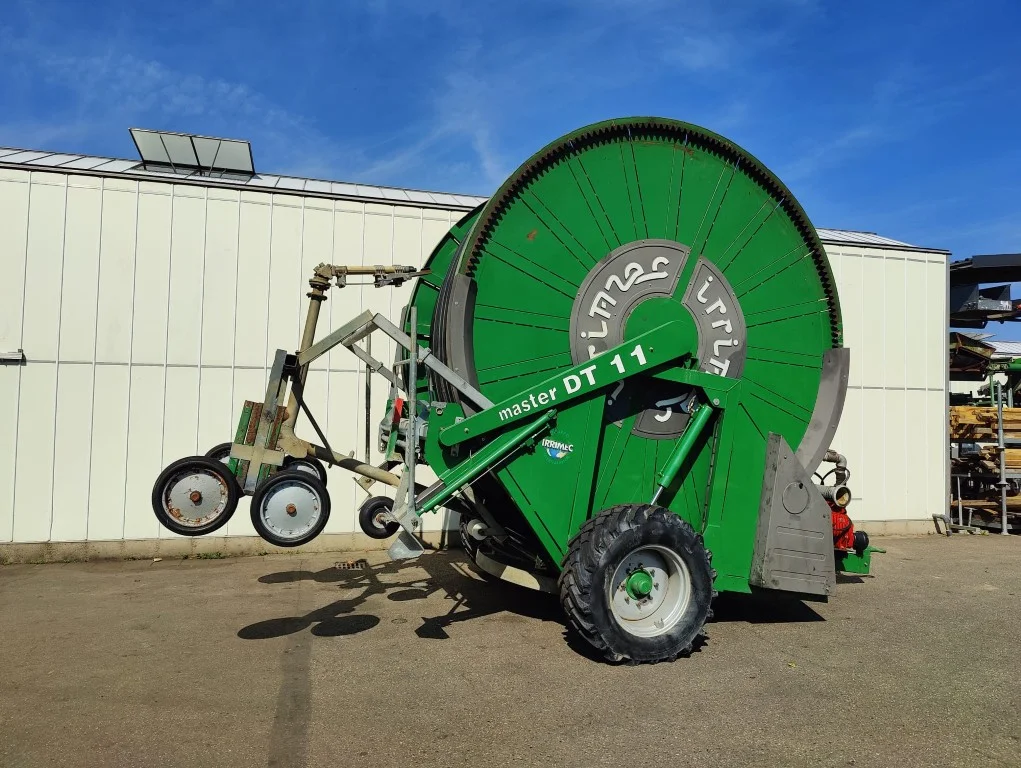

Irrimec MDT11 irrigation hosereel 750 meter, 125 mm

Only 1
Irrimec MDT11 irrigation hosereel 750 meter, 125 mm
Top occasion
With license plate
Sold
Irrimec MDT11 irrigation hosereel 750 meter, 125 mm
Irrimec MDT11 irrigation hosereel 750 meter, 125 mm
Irrimec MDT11 irrigation hosereel 750 meter, 125 mm
Irrimec MDT11 irrigation hosereel 750 meter, 125 mm
Irrimec MDT11 irrigation hosereel 750 meter, 125 mm
Irrimec MDT11
Irrimec MDT11
Irrimec MDT11
Irrimec MDT11
Irrimec MDT11
Irrimec MDT11
Irrimec MDT11
Irrimec MDT11
Irrimec MDT11
Irrimec MDT11
Irrimec MDT11
Irrimec MDT11
Irrimec MDT11
Irrimec MDT11
Irrimec MDT11

Pros and cons

  • Top occasion
  • With license plate

Description:

Irrimec MDT11 irrigation hosereel 750 meter, 125 mm

English: Irrimec MDT11 – Hose Reel Irrigator (750 m, 125 mm)

The Irrimec MDT11 is a high-capacity hose reel irrigator from the Master range, designed for professional use on large agricultural fields.


  • Double-Sided Drum Drive: The drum is driven on both sides using large-diameter ring gears, ensuring consistent and smooth hose retraction.

  • Hydraulic Operations: Hydraulic systems for lifting/lowering the wheels, stabilizer legs, and rotating the turntable allow single-person operation.

  • 360° Rotating Turntable: Fully rotating base for flexible positioning.

  • High Ground Clearance: Suitable for rough terrain transport.

  • Turbine Drive: Aluminum turbine with efficient impeller for flows between 10–130 m³/h.

  • Electronic Control: Integrated with DOSIDIS/TAKY control system for precision.

Specifications

  • Hose Length: Up to 750 meters

  • Hose Diameter: 125 mm

  • Flow Rate: 10 to 130 m³/h

  • Rotation: 360° turntable

  • Drive: Dual-sided mechanical drum

  • Control System: DOSIDIS/TAKY electronic unit

  • 150 HP tractor required.

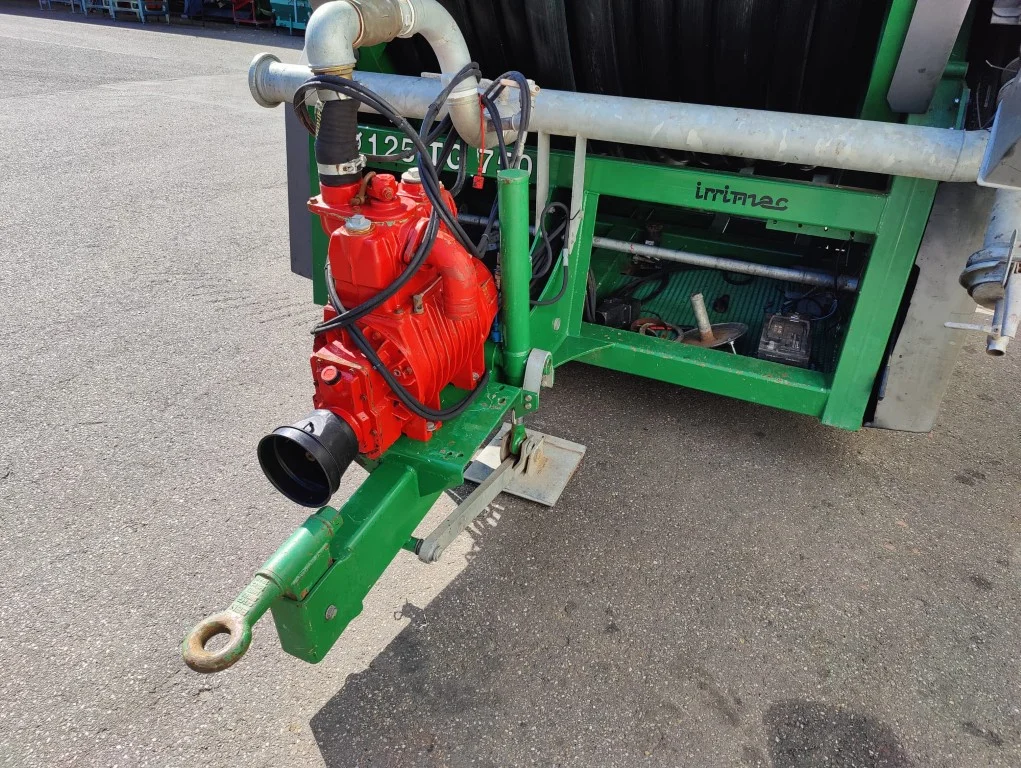

    Ideally unroll up to a maximum of 730 meters; if you unroll further, there is a risk the machine won’t rewind properly – in that case, you’ll have to rewind it manually using the PTO on the side of the machine. An older pump from a feed mixer is installed, which is not original and less powerful than the original one.
  •  No battery – new battery is optional.


Irrimec

Technical specifications:

Model:MDT11
ConditionUsed, checked by own mechanics
Year:2005
Transport dimensions:750 cm x 325 cm x 390 cm (length x width x height)
Transport weight:9000 kg

Irrimec MDT11 irrigation hosereel 750 meter, 125 mm


Unfortunately, this Irrimec MDT11 irrigation hosereel 750 meter, 125 mm has now been sold.

Would you like to be kept informed when a comparable Irrigation hosereels becomes available? Fill in your details here.


Sold

Available
Only 1
Brand
Model
MDT11
Number
28502505001
Year
2005

Please contact Reinier

We are happy to help. Our consultants are now waiting for you.

Direct ContactCall us: +31 180 632 088

Description:


English: Irrimec MDT11 – Hose Reel Irrigator (750 m, 125 mm)

The Irrimec MDT11 is a high-capacity hose reel irrigator from the Master range, designed for professional use on large agricultural fields.


  • Double-Sided Drum Drive: The drum is driven on both sides using large-diameter ring gears, ensuring consistent and smooth hose retraction.

  • Hydraulic Operations: Hydraulic systems for lifting/lowering the wheels, stabilizer legs, and rotating the turntable allow single-person operation.

  • 360° Rotating Turntable: Fully rotating base for flexible positioning.

  • High Ground Clearance: Suitable for rough terrain transport.

  • Turbine Drive: Aluminum turbine with efficient impeller for flows between 10–130 m³/h.

  • Electronic Control: Integrated with DOSIDIS/TAKY control system for precision.

Specifications

  • Hose Length: Up to 750 meters

  • Hose Diameter: 125 mm

  • Flow Rate: 10 to 130 m³/h

  • Rotation: 360° turntable

  • Drive: Dual-sided mechanical drum

  • Control System: DOSIDIS/TAKY electronic unit

  • 150 HP tractor required.
    Ideally unroll up to a maximum of 730 meters; if you unroll further, there is a risk the machine won’t rewind properly – in that case, you’ll have to rewind it manually using the PTO on the side of the machine. An older pump from a feed mixer is installed, which is not original and less powerful than the original one.
  •  No battery – new battery is optional.
