Description:

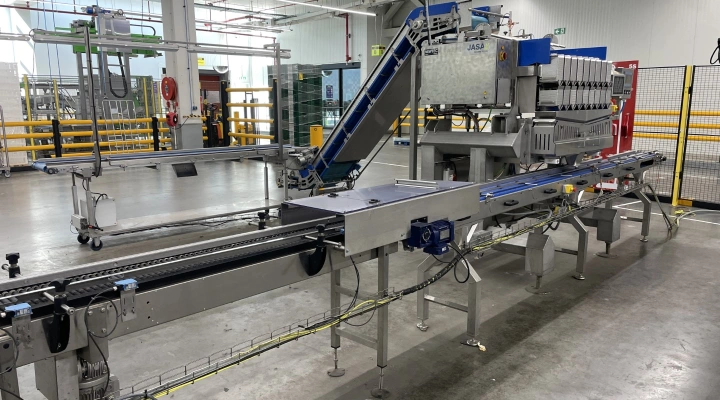

Newtec PCS2009 Weighing line for products in trays with flow pack machine

Jasa weighing line with Newtec H2009PC weigher and Ilapak Carrera 500 flow pack machine for weighing and packing products in trays.

The line consists of:

Stainless steel inspection conveyor 325 x 50 cm

• On wheels
  • One side swiveling
  • With brakes
• With hydraulic hand winch for height adjustment
  • Working height at lowest point 78 cm
  • Working height at highest point 105 cm
• With waste chute 25 x 10 cm
  • Output in relation to 20 cm high undercarriage:
    • 30 cm at lowest position
    • 57 cm at highest position
• With lighting
• One side slightly worn (see photo)

Jasa stainless steel incline conveyor 325 x 50 cm

• Bend below 50 cm and above 45 cm
• Infeed height 80 cm
• Discharge height 195 cm
• With returning waste belt above 57 x 50 cm
• With crate rack for waste, for max. 55 x 36.5 cm crates
• With water pipes for cleaning the belt inside and outside and rinsing the product at the end of the belt
• Carriers 4 cm high
• Distance between flights 27.5 cm
• Easy to clean
• Built in 2015

Jasa H2009PC-2B linear weigher

• 9 weighing buckets
• Discharge conveyor under the weighers to central drop point for filling trays
• 4 filling molds with stainless steel transport trolley
• Year of construction: 2015

Freshtech tray dispenser

• Suitable for both cardboard and plastic trays
• Trays must have a small notch for precise spacing. See photo.
• Input conveyor 133.5 x 12 cm
• Currently set for 15x8 cm trays

Tray transport track with plastic carriers

Ilapak Carrera 500 PC flow packer

• With inliner, various conveyor belts with sensors for positioning trays at correct distance
• Bottom sealer
• Adjustable folding/forming box
• Seal bar 25 cm
• No sensor for printed film (this may possibly be added later, to be verified)
• Year of construction: 2007
