Description:

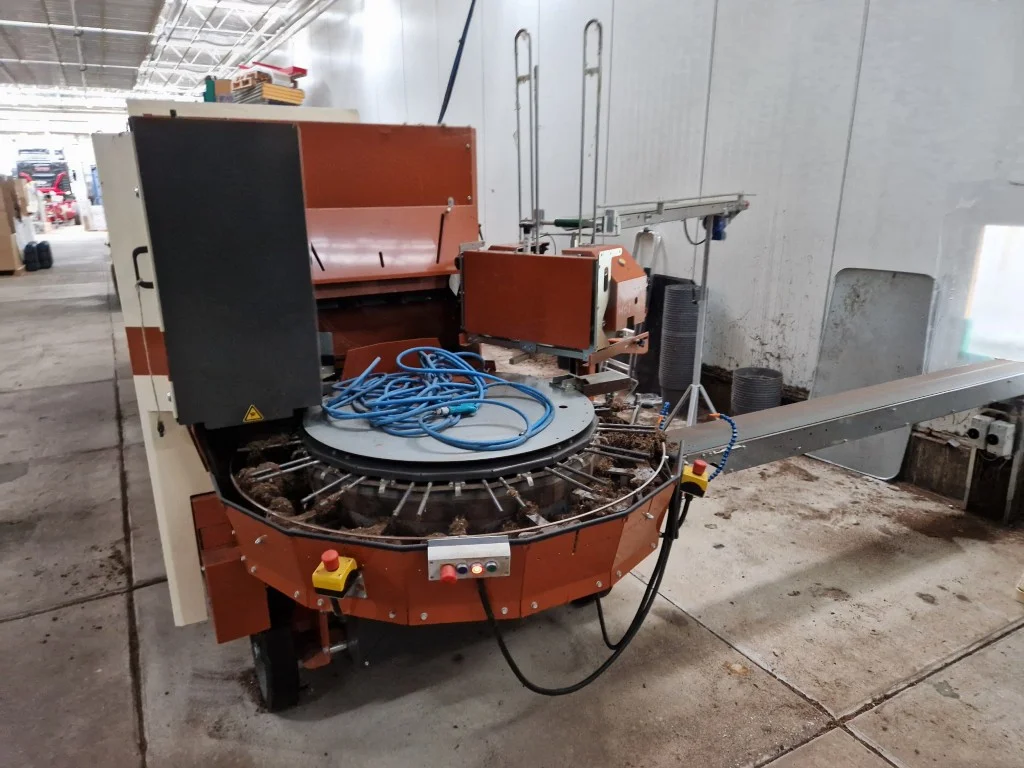

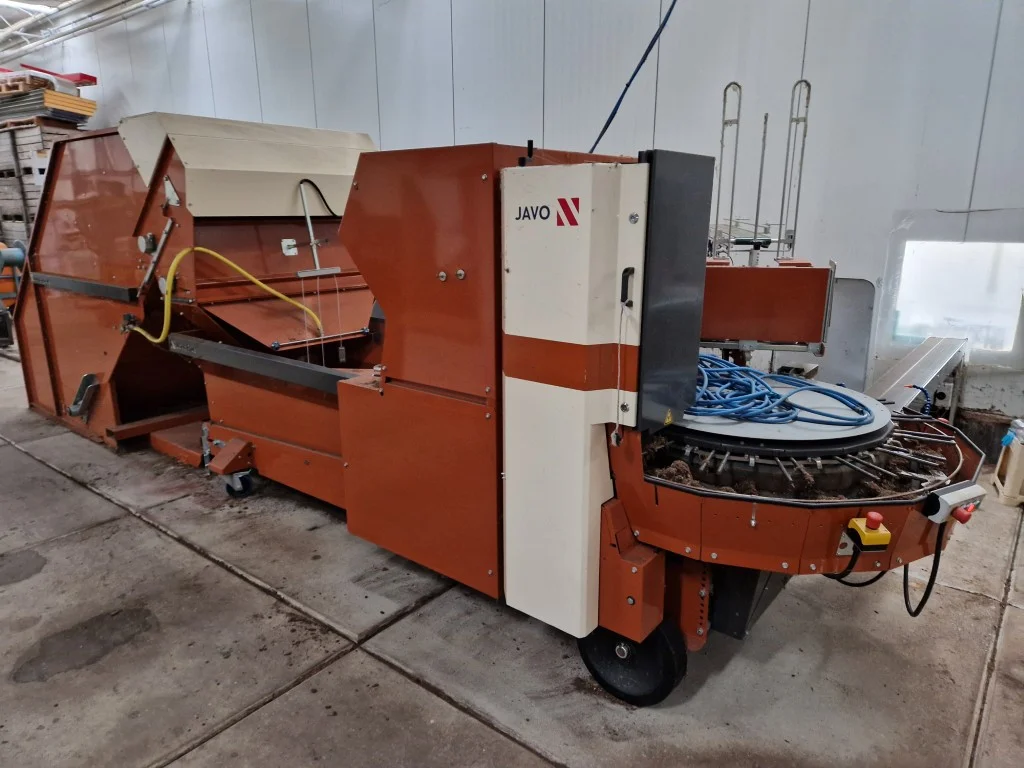

Javo Plus potting machine

 This potting machine with a round pot track is suitable for pots from 9 to 23 cm. The electronically adjustable adjustment offers a great advantage when using multiple pot sizes. The rubber elevator belts and special pot track drive make the machine low-noise and low-maintenance.

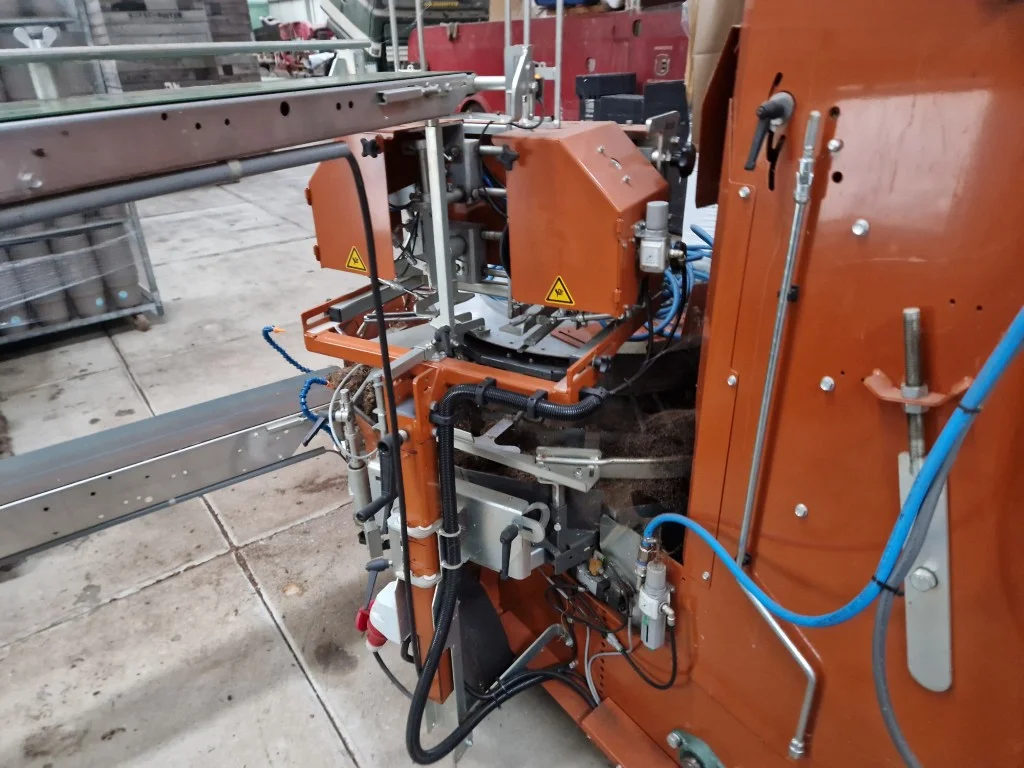

• With pneumatic pot inserter, pot supply belt, drill and mechanical discharger and discharge belt
• Elevator and pot conveyor frequency controlled.
• Simple operation.

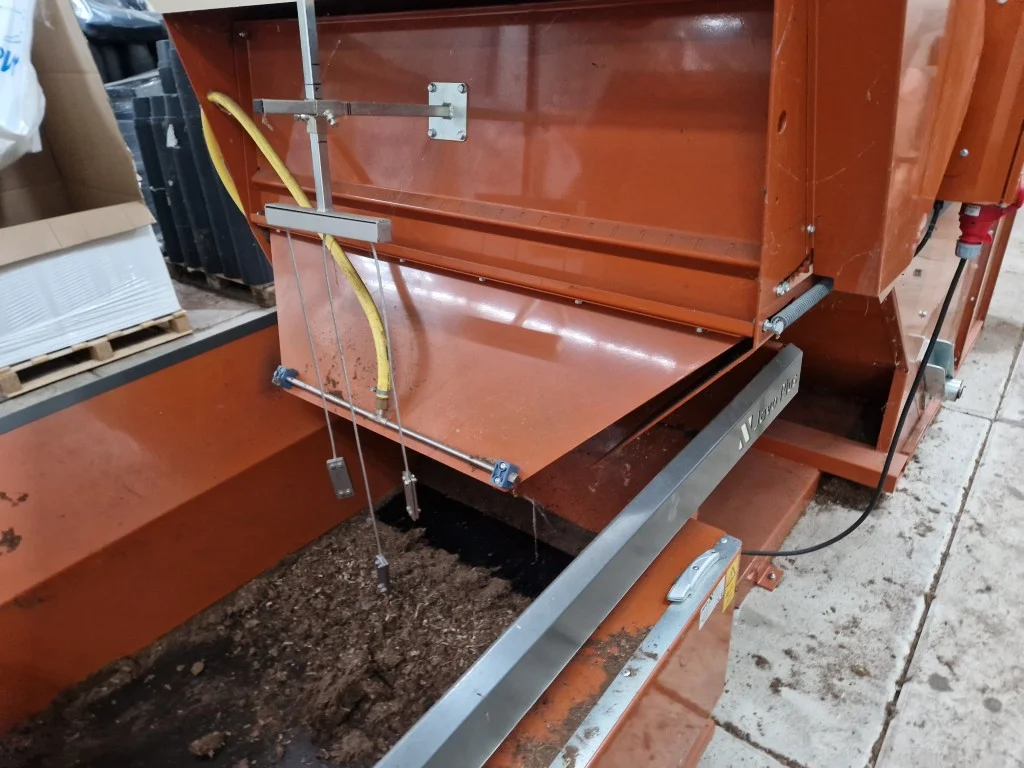

• Own soil bunker with soil belt and steering strings.
• Very precise adjustment of the soil supply.
• Minimal structure change of the substrate.
• Unique soil-return system prevents congestion and waste of substrate.
• Extremely suitable for working with several pot sizes, due to the easy adjustment.
• Highly manoeuvrable thanks to 4 wheels, 2 of which have brakes.
• Easy to link to other systems.

Operation The soil belt gradually moves the substrate in the soil tray to the elevator. When using a pot elevator, the pots are placed in the pot conveyor, which then moves the pots shock-free. The elevator deposits the substrate into the pots. The wiper returns the excess soil to the soil container. A drill can optionally be used to make a hole in the substrate. By choosing a drain, the pots are automatically pushed onto a conveyor belt. Otherwise, the pots can be removed manually.
