Description:

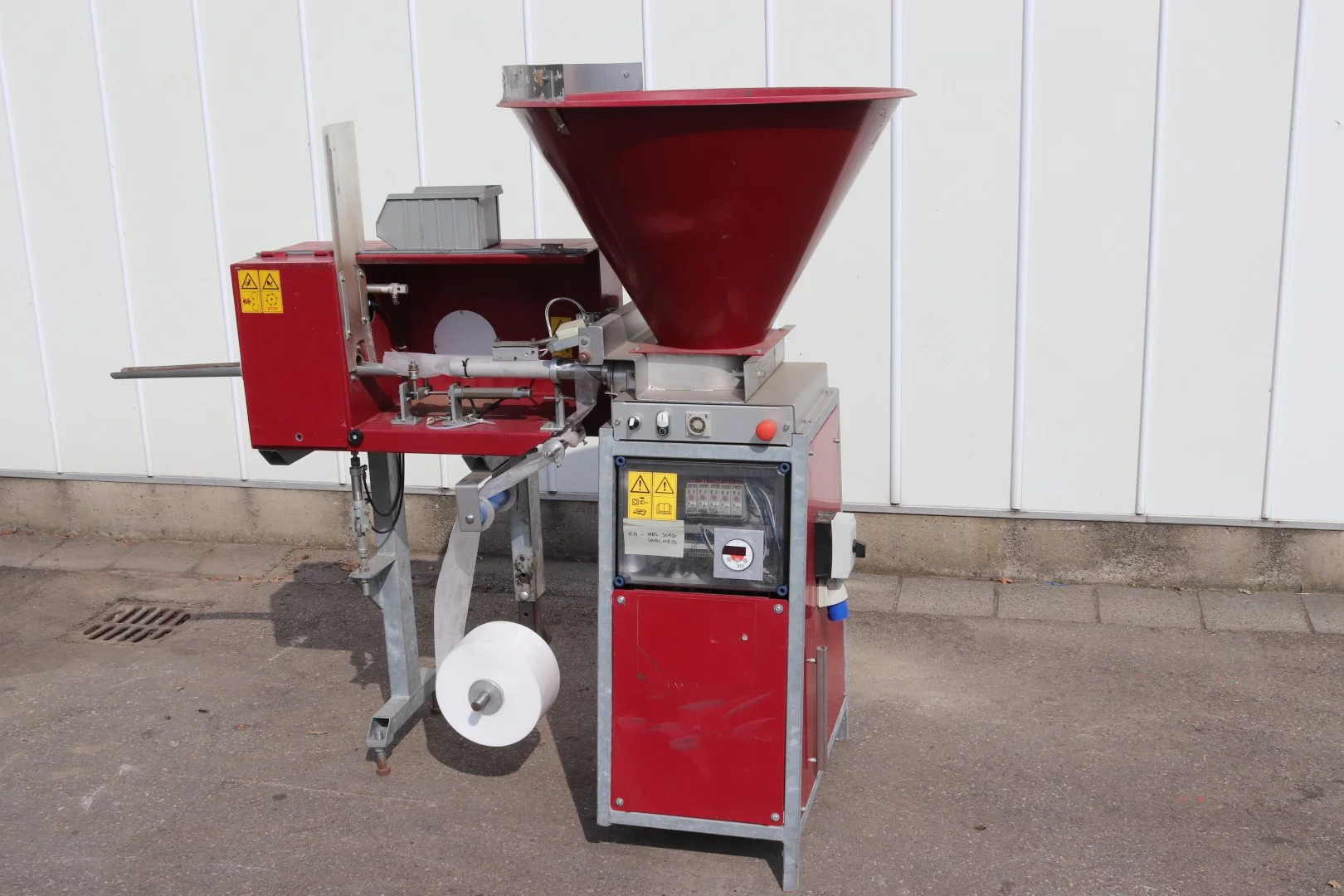

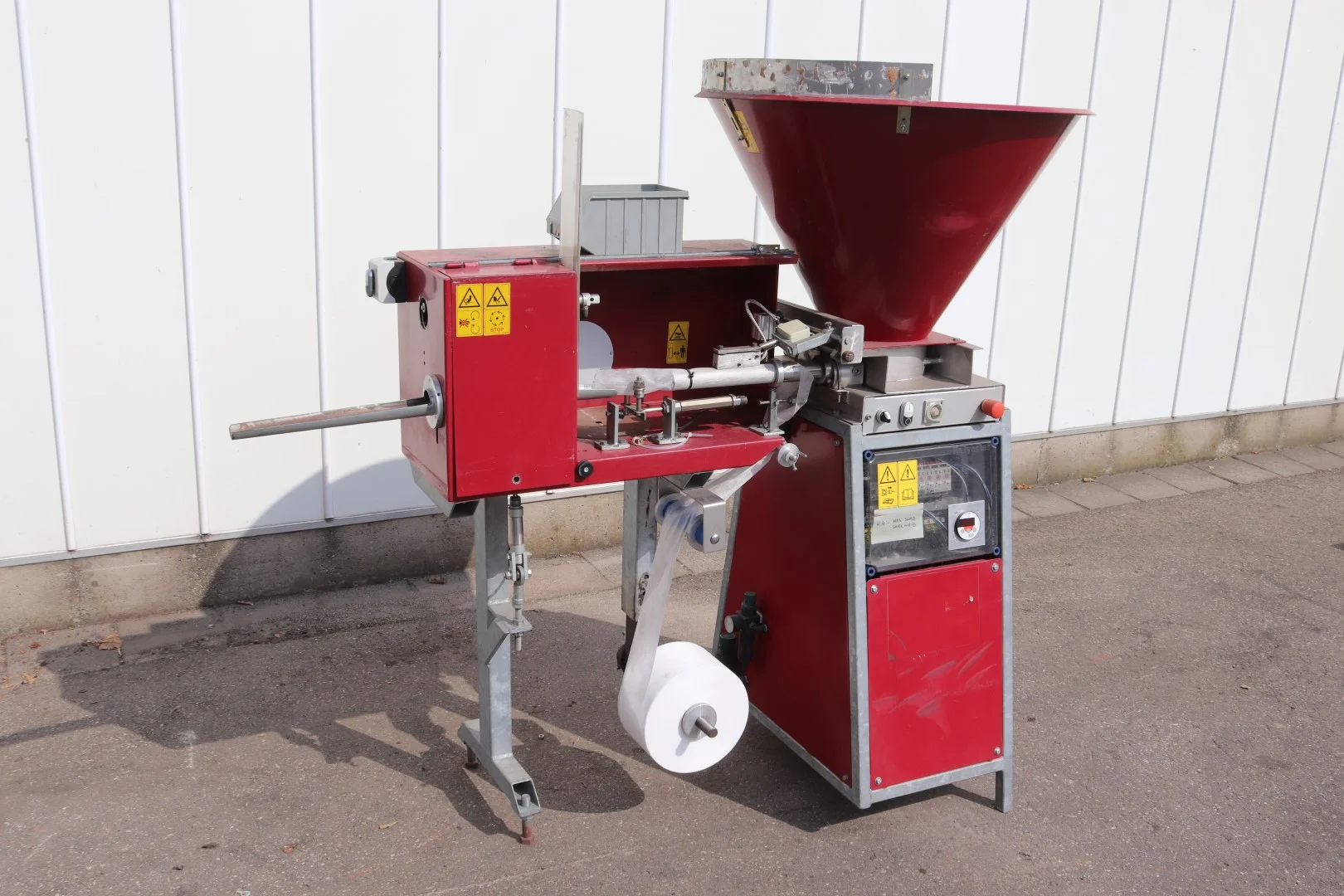

Heto PPS paperpot machine
Model Standaard

4 cm ø plugs

The paperpotmachine has been developed to produce the paperpots. Paperpots are made by machine with substrate and paper.

Working

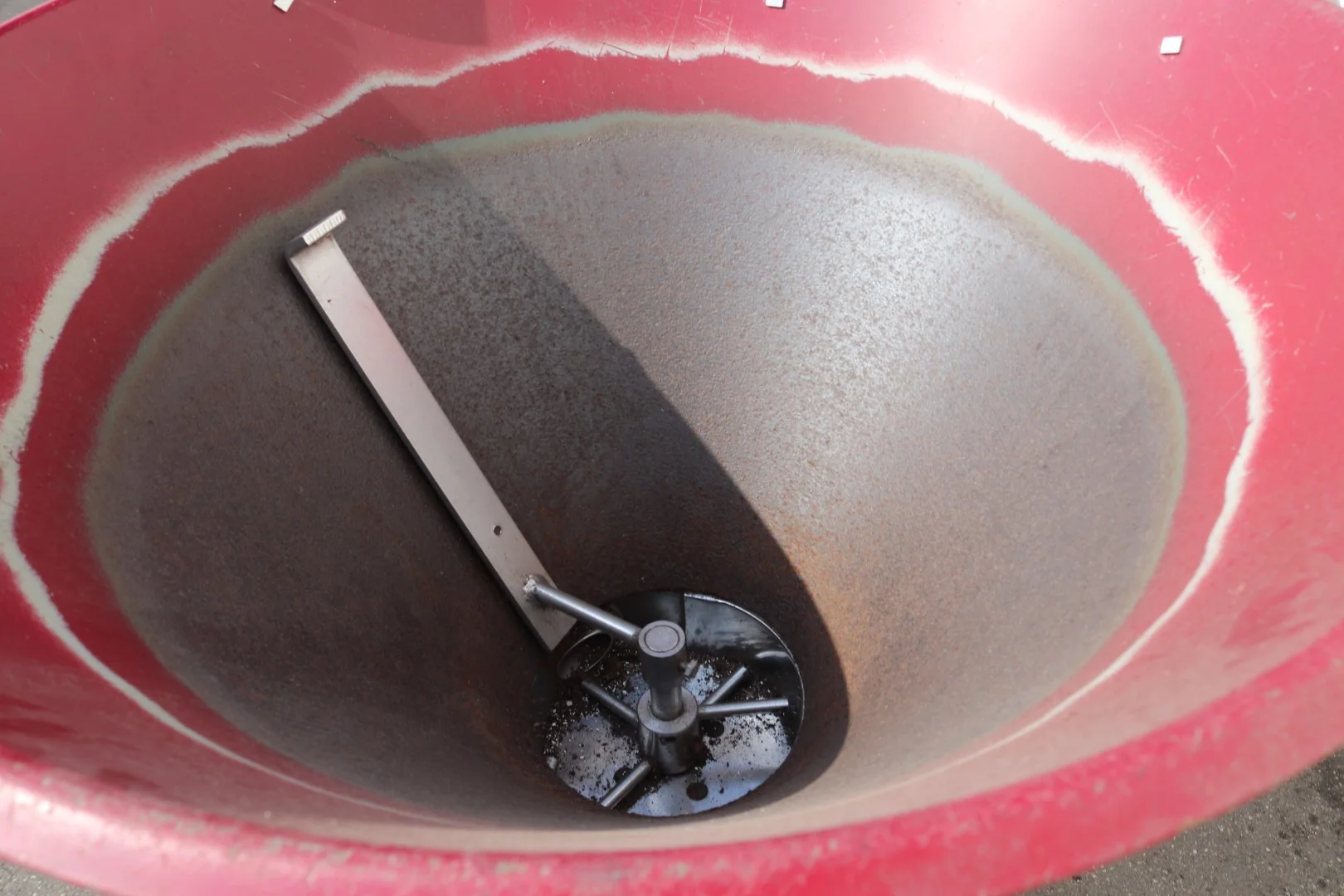

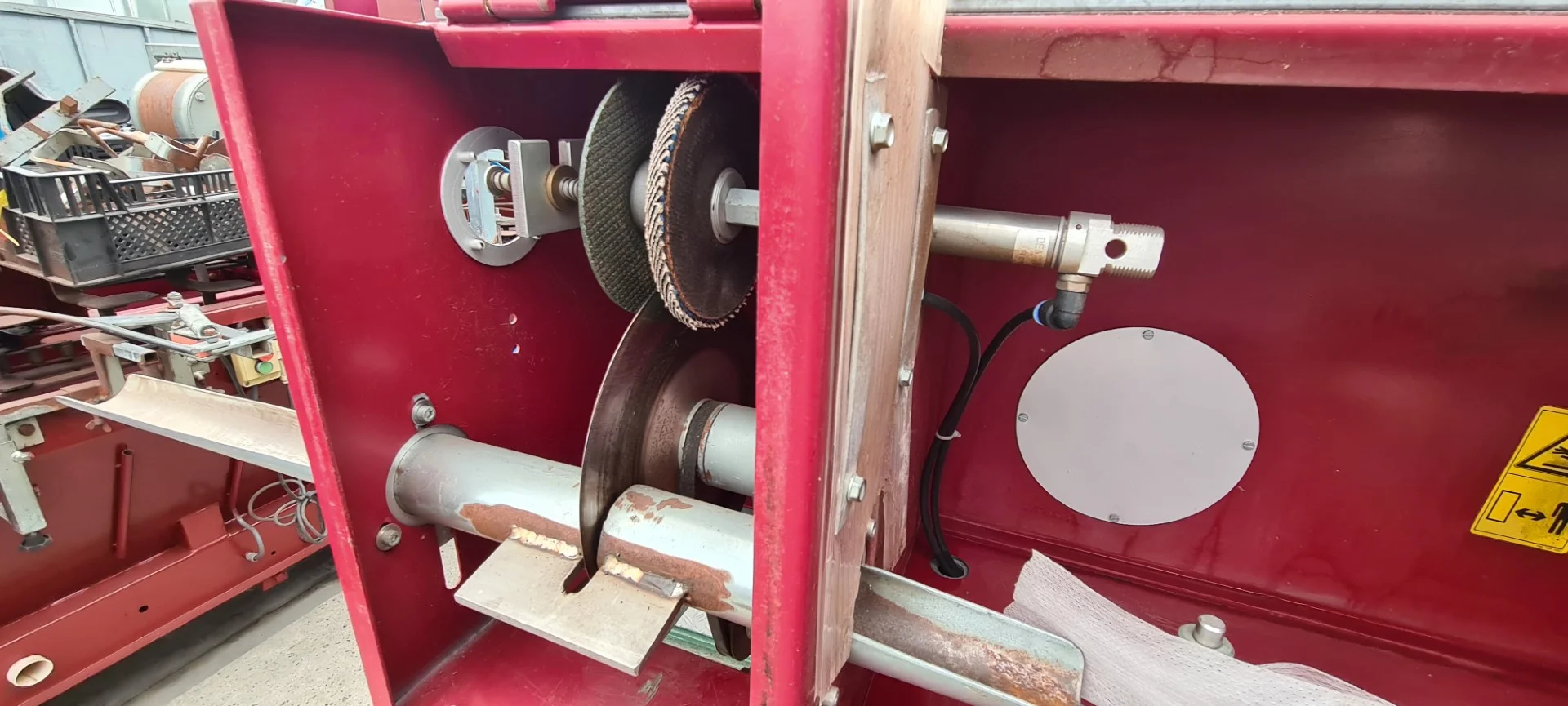

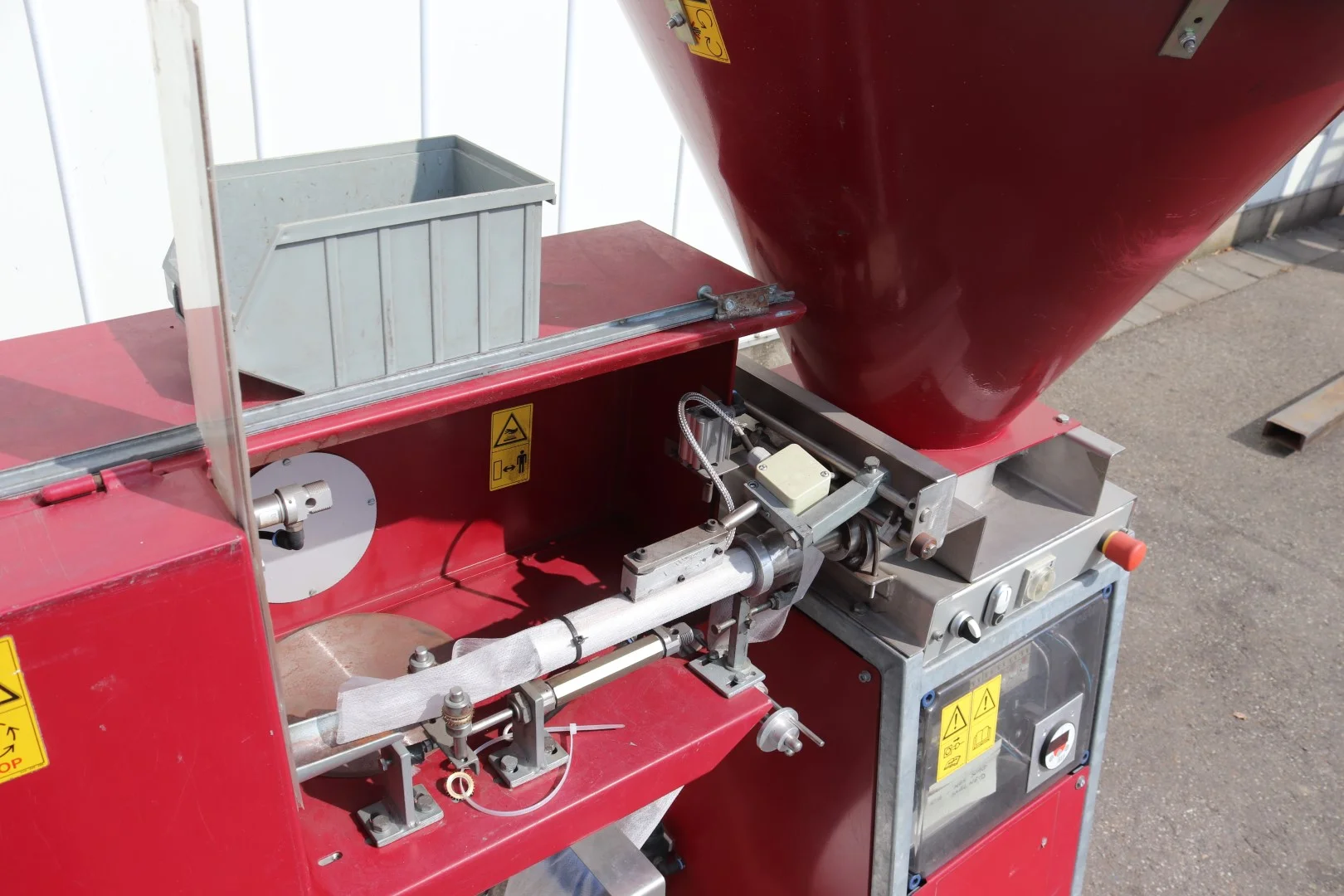

With the paperpotmachine it is possible to produce socalled paperpots using soil and paper. The disconnected soil is supplied through the chute provided with a driven movement. The movement will allow for a regular delivery to the venturi. The paper is unrolled by means of a roll and a conductor-roll and then by means of a folder folded around a pipe. Against the top of the overlap is glued with a flat iron. In this way an endless sausage is created with an adjustable size. At the same time the soil is driven by means of pressurised air through a venturi. These so-called sausages are transported by means of transmissions and on the desired length are cut by one fast, rotating, selfsharpening knife.

• Stand-alone machine
• High-quality construction and maintenance free
• Extremely light and a homogeneous paperpot for optimal rooting
• Other papersize possible
• Simply to operate
• Built in accordance with the CE-norm
• Emergency stop
• Weight : 200 kg
• Capacity : up to max. 5.000 paperpots per hour
• Paperpotdiameter changeable
• Connection power : 0,5 kW
• Power supply : 230V. 50Hz
• Airpress : min. 8 bar (works best at 10 bar)
• Airpress : vol. ± 600 litre per min.

Machine has been checked and serviced by engineer.
