Description:

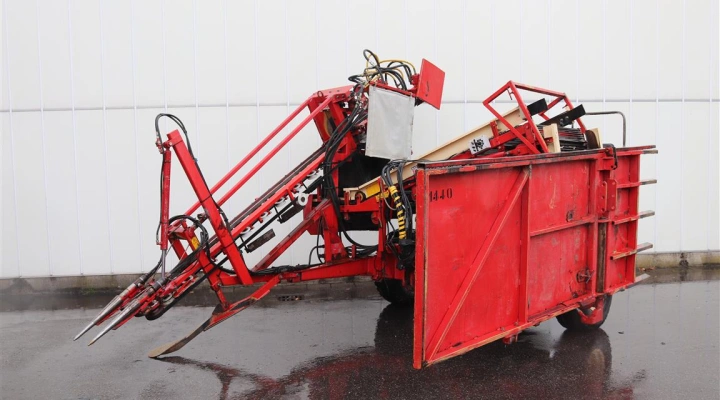

Simon 1 row top belt lifter for carrots with conveyor / elevator

• New cutters
• Own hydraulics with double pump
• Electrically operated
• Wheels with tires 11,5x15 (6ply)
• Box version with height-adjustable reading belt (850 mm)
• Eg twin bars 32 mm stitch, 14 mm fall, box platform
• OMR hydromotors on drive belts (OMR160) and pincers (OMR100)
• 3rd support wheel 18x700-8 (4ply)
• Trap operation d.m.v. cylinder
• Road lighting and LRV board
• Belts cleaning on the return of the belts
• Electric valve to switch hydromotors on and off
• Hydraulically foldable platform, connected to the hydraulics of the tractor
• Discharge conveyor hydraulically collapsible connected to hydraulics v.d. tractor
• Large pulleys on belt drive
• Electrical speed control of the belts
• Reading belt adjustable in height by means of cylinder instead of mechanical
• Hydraulic leaf separators
• Large removal platform, fixed coupling
• Speed control reading belt and pincers at rear window tractor
• The harvester is welded to the picker frame

This Simon 3-point linked top lifting carrot harvesters is equipped with an elevator for harvesting into trailer or boxes

This professional carrot harvester provides a user-friendly system and a comfortable harvesting season.

• Proven and tested worldwide
• Low maintenance
• Guaranteed carrot quality
