Description:

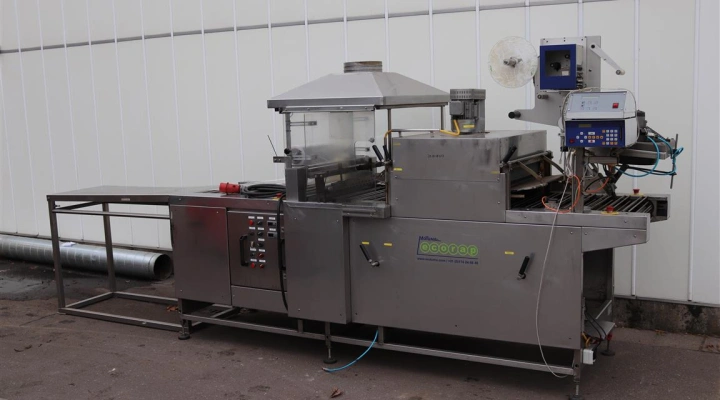

Christiaens cucumber sealer shrink wrapper ER01 with labeler

 Christiaens ER01 cucumbers shrink wrapping machine.

Sealing cucumbers is great way to extent the freshnes of cucumbers and also add value to the procuts.

Christiaens Agro Systems has specialised in the development and manufacturing of machines for asparagus, leeks, spring onions and cucumbers. Christiaens built a machine for packing cucumbers and other vegetables. This machine is based and improved on the principle of the Brinkman Vito sealing machine.

Important advantage of this cucumber sealing machine are:

• The single knife system, which results in a limited use of foil with a saving of up to 20%.
• The good quality of the sealing seam.
• The stainless steel machine is just about maintenance free and is user friendly.
• Adjustable speed.

This machine has been designed for sealing cucumber and vegetables, like leek, big carrots, courgette, corn, etc. It wraps the products airtight in foil. Moisture loss is thus prevented so that the durability is enhanced.

How this cucumber shrink wrapper works:

The machine consists of a seal and a shrinking unit, the processing is adjustable. The chain transports the product through the seal and shrink unit. The seal unit operates with two foil roles, one of the roles is driven by an electromagnetic clutch. When the cucumber is wrapped into the foil and cut it goes to the shrink unit where the foil shrinks tightly around the cucumber. The shrink unit consists of two shrink ovens, the products going between them. After shrinking, the product would be cooled by a cold air blower.

Benefits of cucumbers sealer ER01

• Capacity to 5000 pieces / hour
• Perfect seal seam
• Very economical with foil because of the one sealing bar system. Saving up to 20%
• Frame and parts made of stainless steel, so maintenance free and "food friendly"
• Easy operation
• Les susceptible to failure
• Low maintenance
• Very long life
• Easy and quick change film rolls
• 32 Amp socket
• Alipack Labeling machine year 2007

Optional:

• Turn table

Year of production: 2007
