Description:

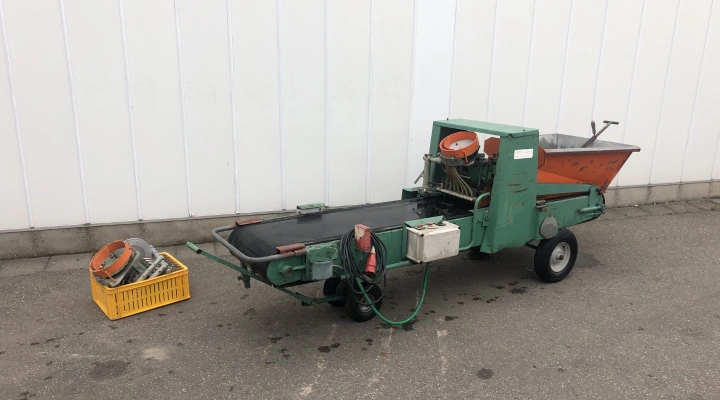

Unger soil blocking machine with seeder

Unger soil blocking machine with mechanical seeder and dosing unit

The loose and moistened peat soil from the soil container is pre-compressed using a stainless steel roller and then shaped into compacted earth pots with the pressing tool and the seed bolt rail. The compacted soil pots are sown with seeds via the disc seeder.

The sowing device works for pills, natural seeds or fine seeds, depending on the grain size of the seeds, different sowing discs are used.

The motor and drive are inside the machine. This ensures easy cleaning and good access to the pressing tools. By using stainless steel on the knives, pressure plate, bolts, pre-pressure roller, soil intake, hold-down device and locking bar on the seeder, the soil potting machine offers good corrosion protection. Flawless planting holes are created with additional picking pins.

Hourly output: approx. 18,000 compacted earth pots with a width of 4.2 cm.

Soil blocking machine with:

• Seeder
• 5  Seeding discs
• Working width 30 cm
• Fork
• dies 4 ,5,and 6 cm
