Description:

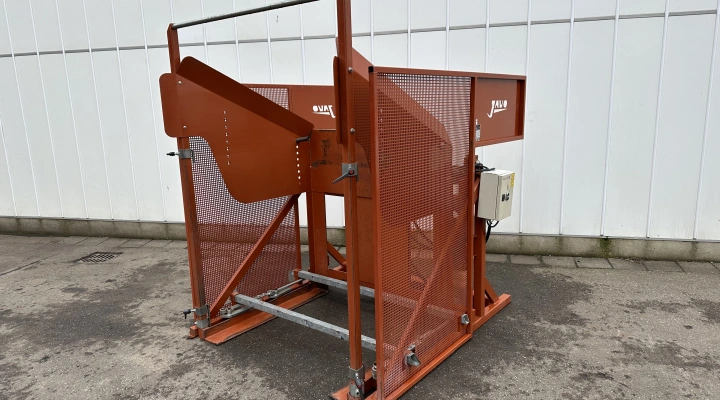

Javo box tipper /big bags tipper

The Javo Crate Tilter is suitable for emptying bigbags and different sized crates (max. 4' 8" x 4' 3" x 4' 3") and is protected to a maximal lifting capacity of 900 kilo
The machine is equipped with a solid base frame and supplied with safety gates.

The tilting part with its turning points with bearings is tilted by a dual function hydraulic cylinder. A very reliable hydraulic system is positioned within the frame.

Several safety valves prevent a free fall in case of a mishap. The hydraulic unit is filled with a biodegradable oil, type: Q8 Holbein 46.

Specifications:

• Simple to operate
• Supplied with safety gates
• Hydraulic is dual functioning

Technical specifications

• Length 7' (2,100mm)
• Width  5' 6" (1,650mm)
• Height  5' 10" (1,750mm)
• Voltage  208 / 220Volt, 3 phase
• Power  2,1KW
