Description:

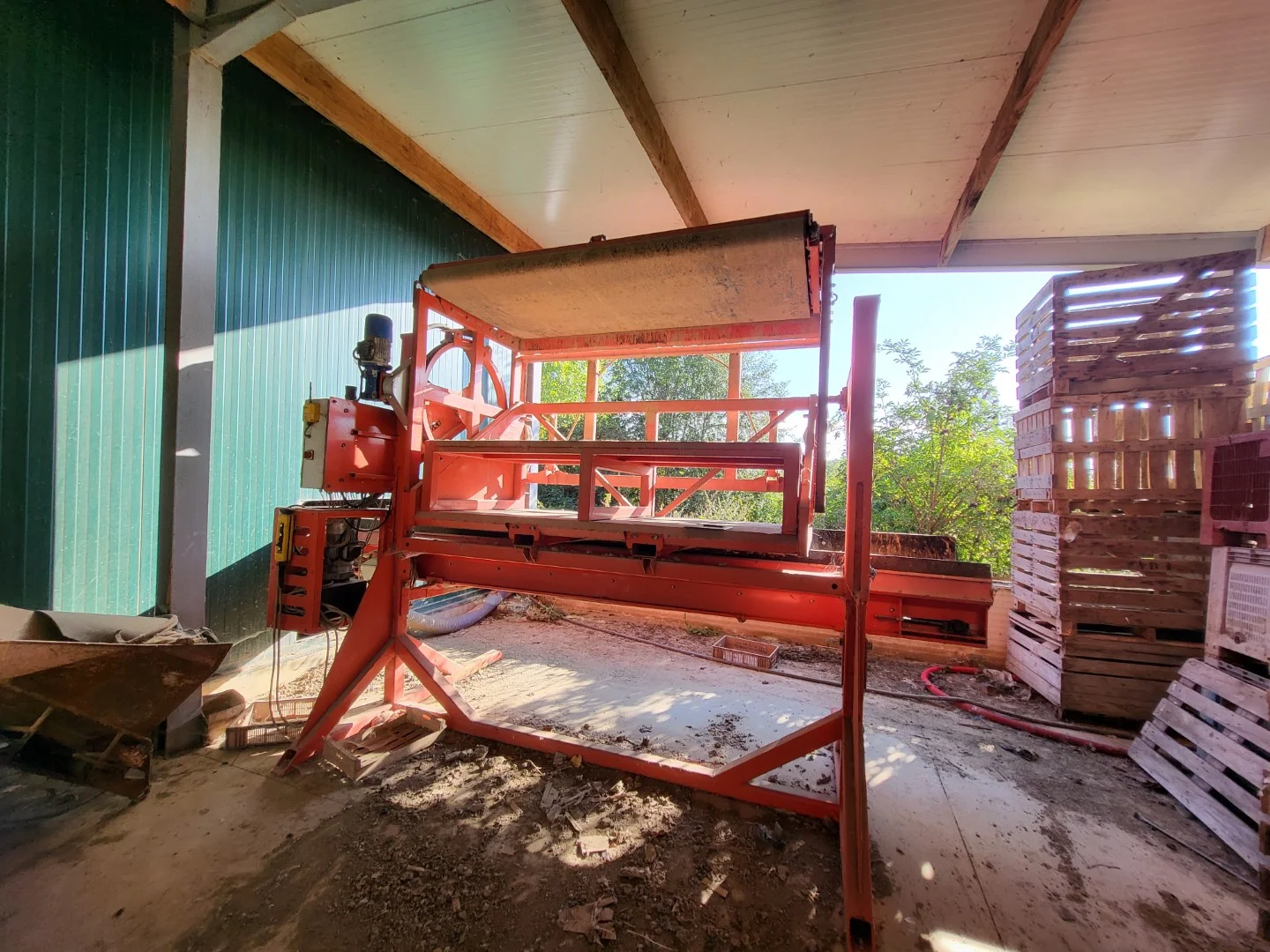

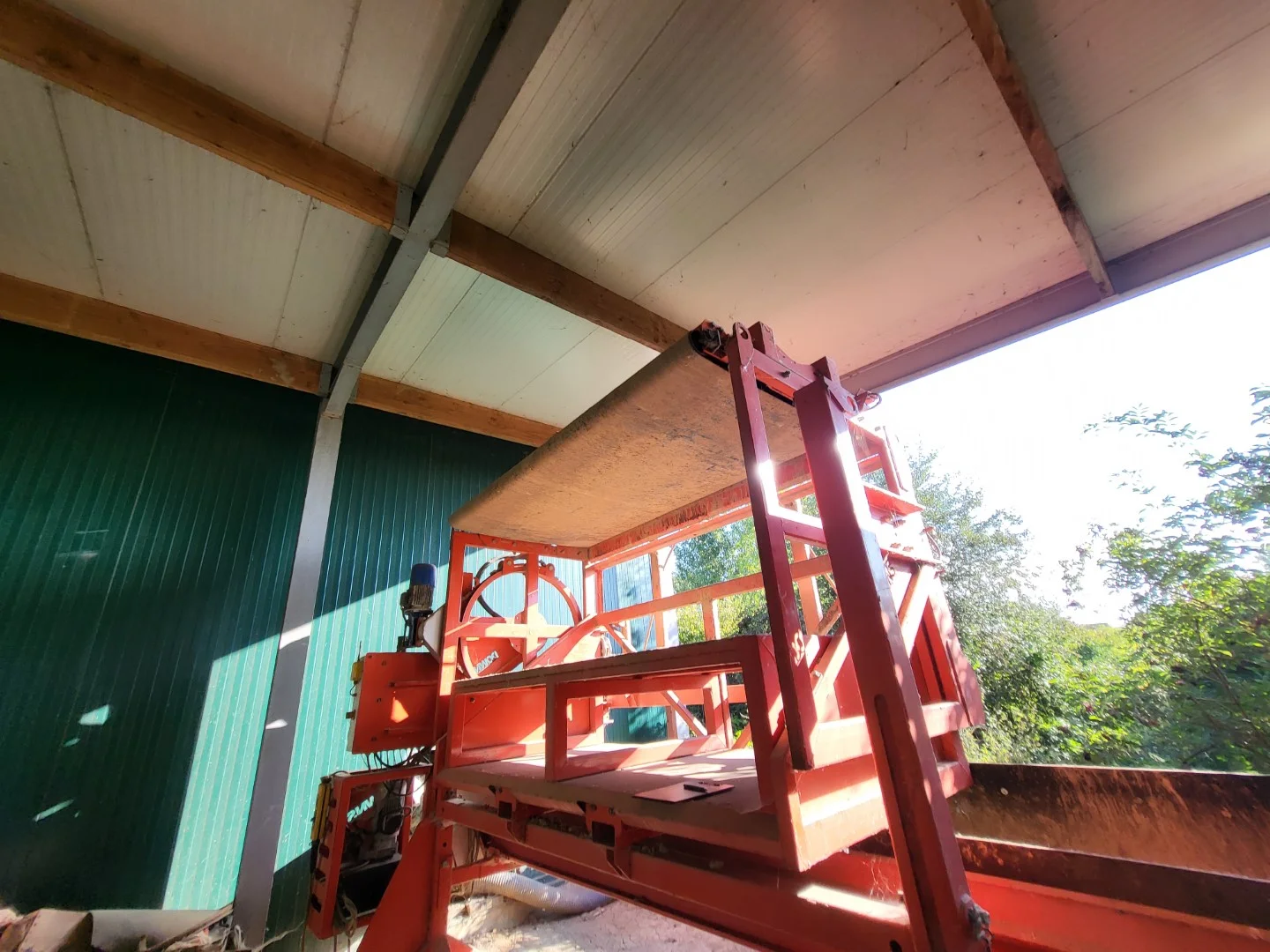

Downs DR240 box tipper 260 cm

Downs DR240 boxtipper

The DR240 potato box tipper is known for its Downs patented rolling lid.

This potato box tipper is multipurpose and adapts to all kind of boxes to 2.40 m wide. It corresponds perfectly to the structures using boxes of different sizes.

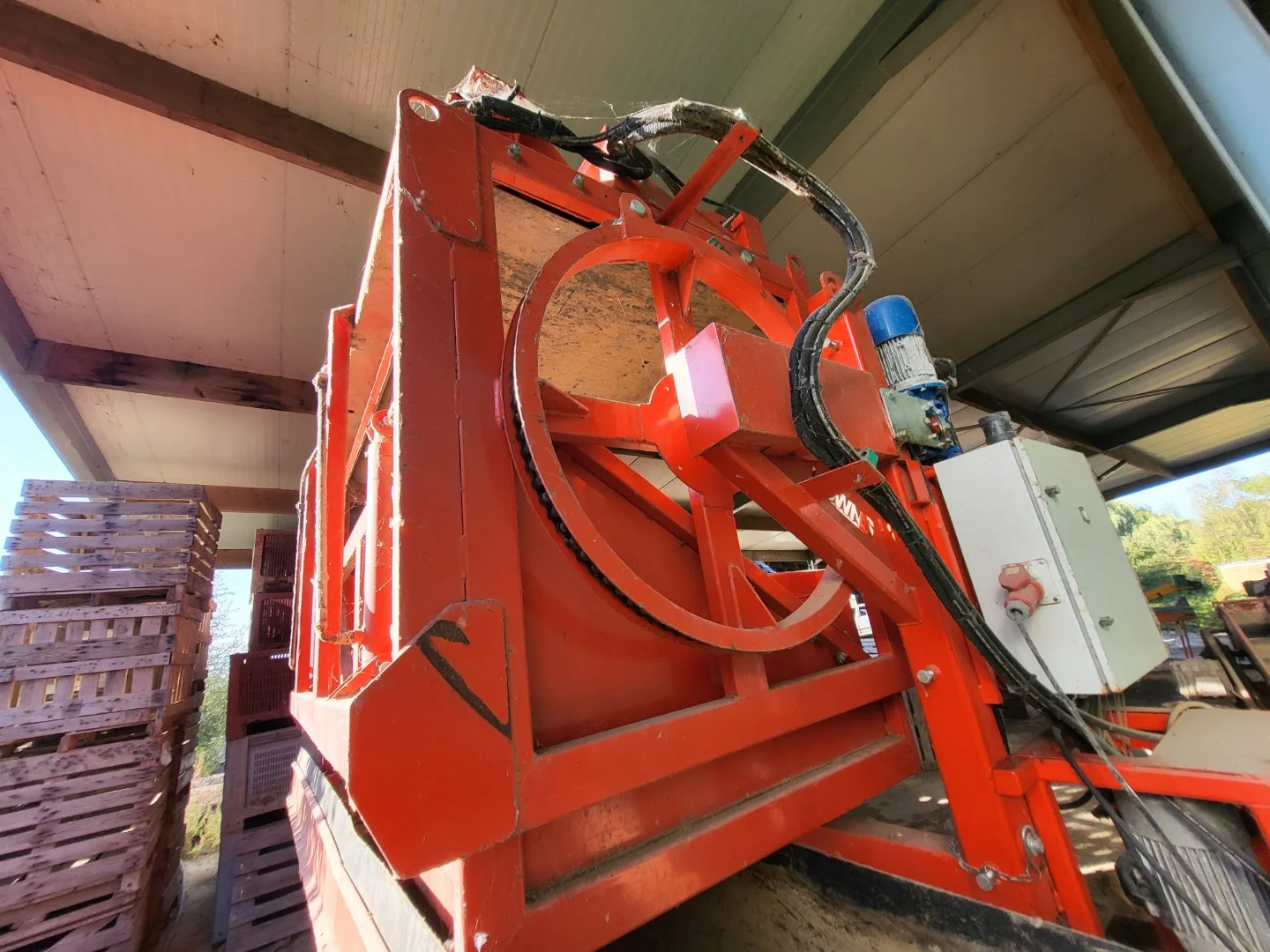

The main advantages of the DR240 box tipper are a high degree of accuracy and a constant control of the height of drop thanks to a unique rolling lid system. Indeed, the rolling lid automatically closes the box before it rotates 145 degrees. Then, the gradual opening of the rolling lid makes it possible to discharge the product as progressively as necessary according to the user’s needs. This rolling lid system allows to perfectly control the height of drop and to avoid frictions and scratches on the product.

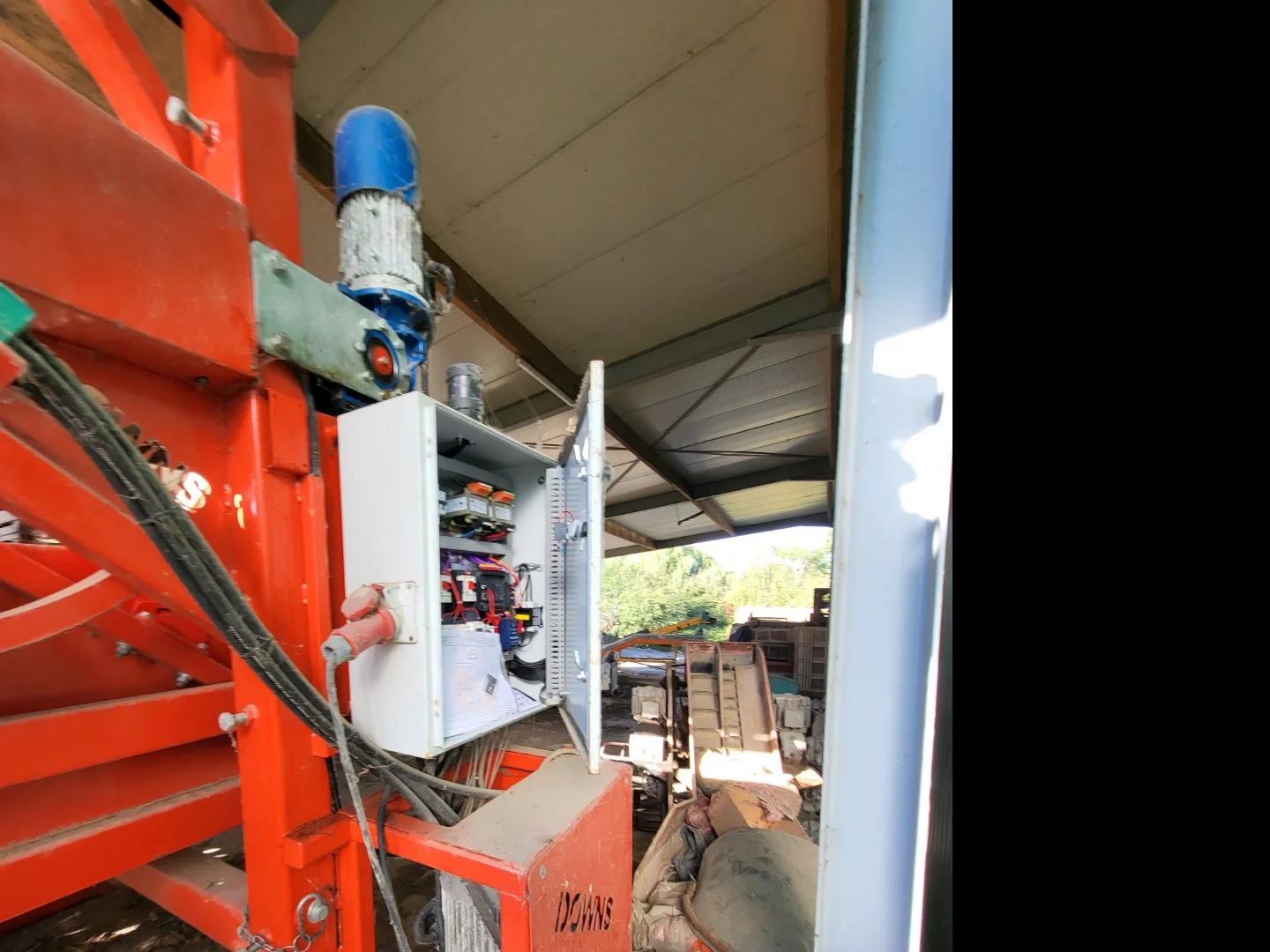

The DR240 potato box tipper has been designed to meet the agricultural and industrial companies’ requirements. That explains why the rotation of the box is carried out thanks to a powerful gear motor equipped with brakes, allowing a better shaking of the box and so, a perfect emptying.

• This machine can be also be used for emptying 2 smaller boxes of 120 cm at the same time
  • Max. total width of the boxes 260 cm
  • Max. total depth of the boxes 120 cm
  • Max. total height of the boxes 155 cm
    • Complete with plateau for emptying lower boxes, such as fruit boxes

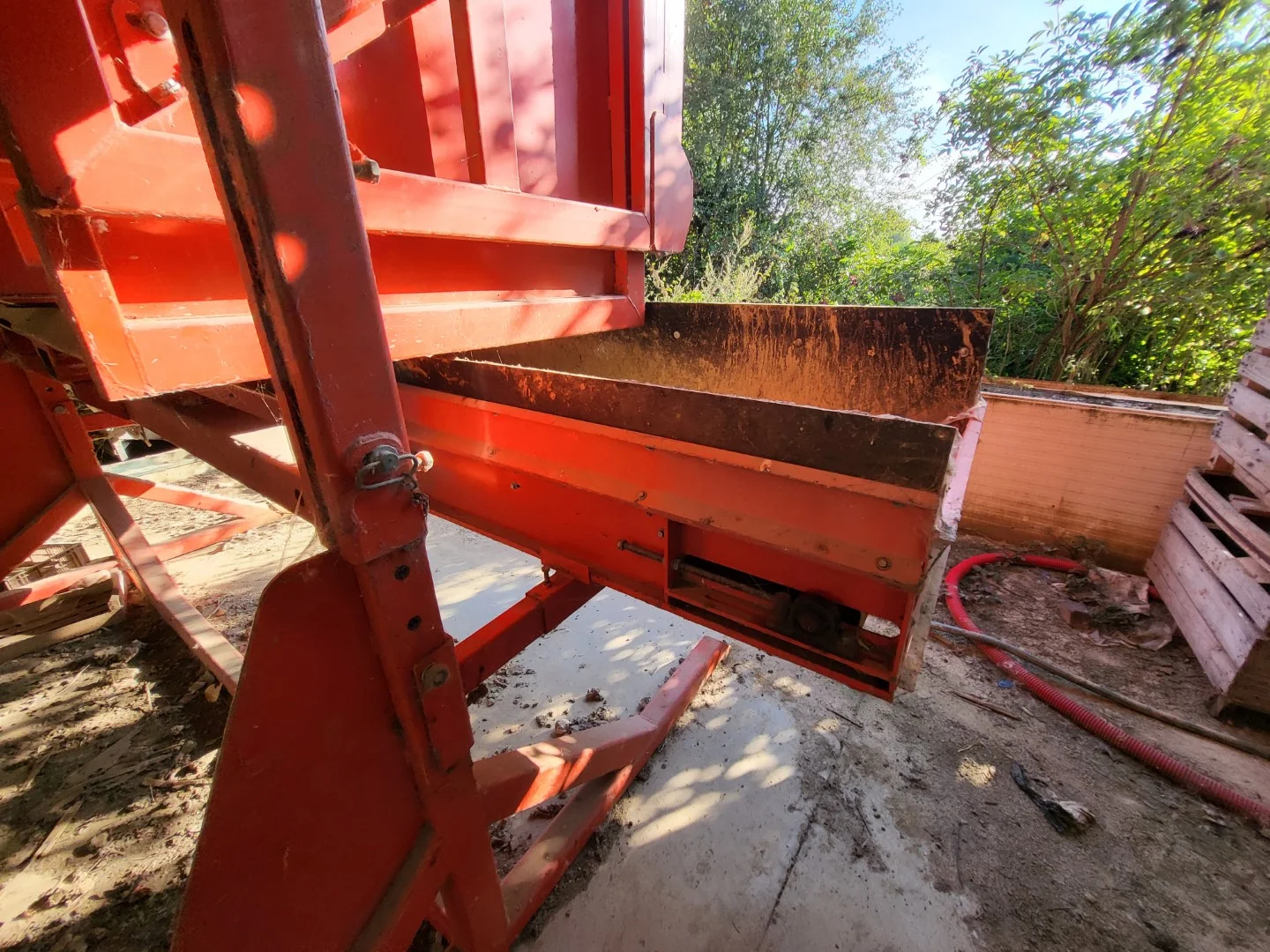

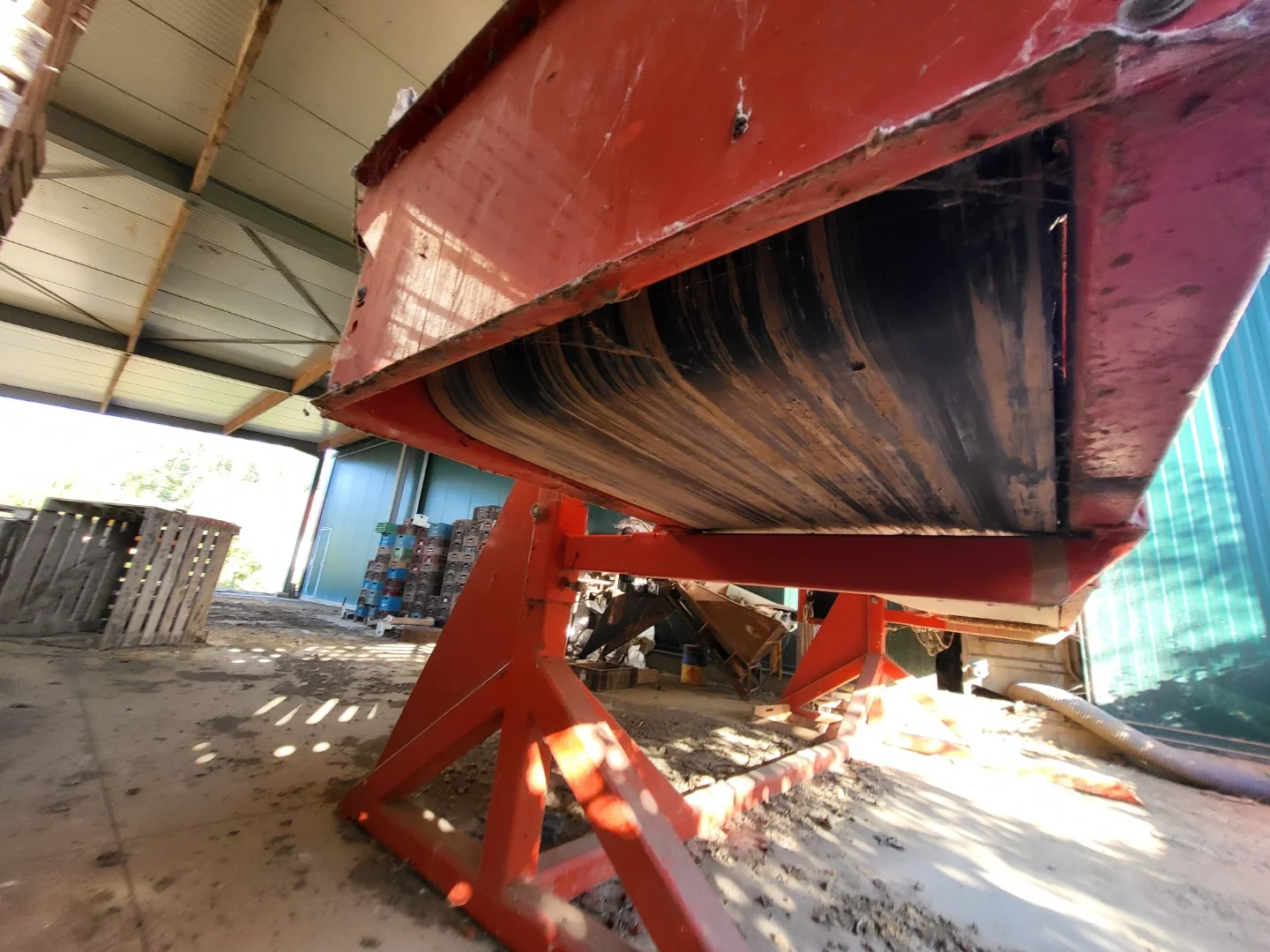

• This machine is equipped with a discharge conveyor

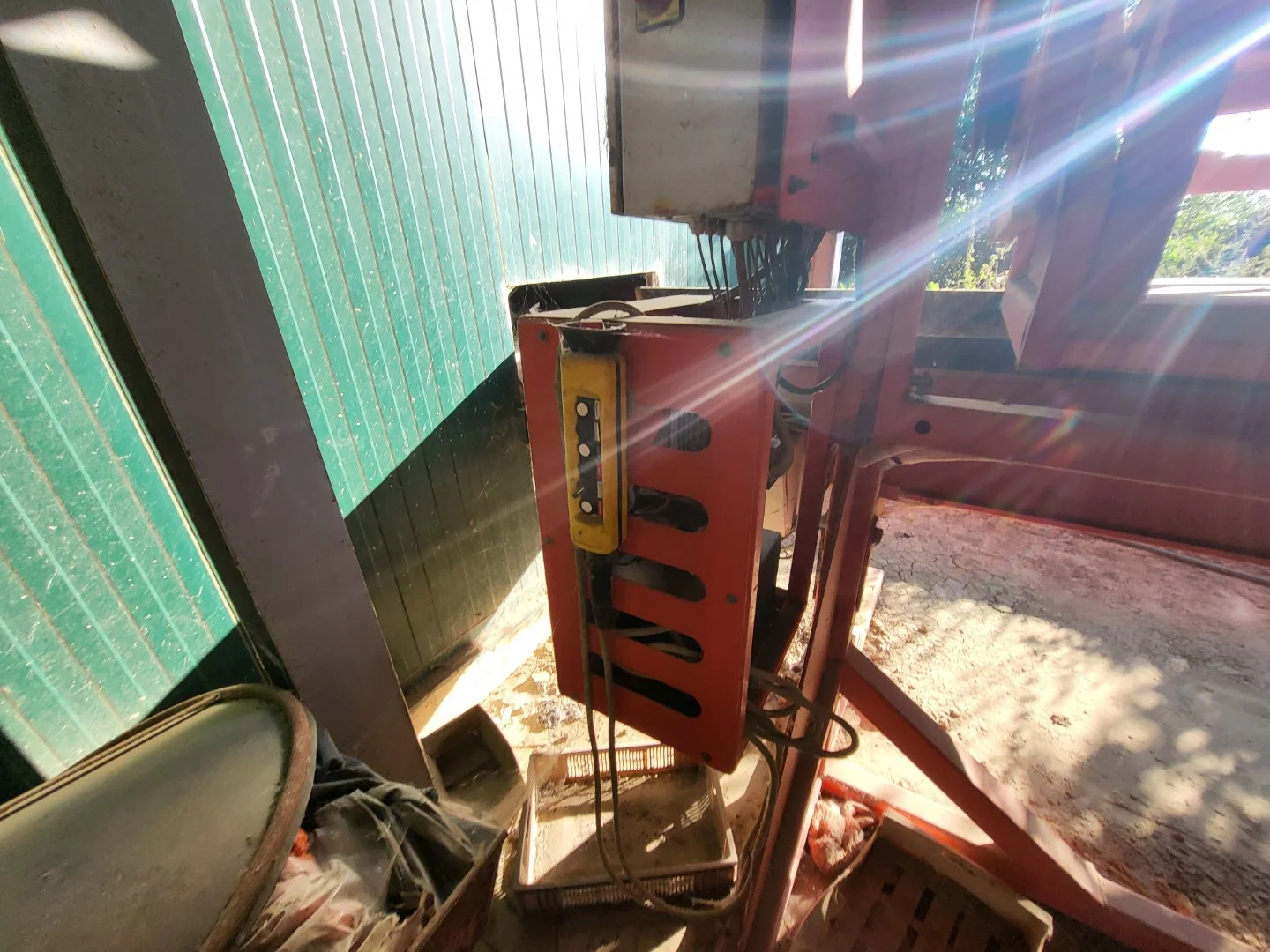

• This machine comes with a cabled remote control

Machine comes from the first and only owner, which used the machine very little, therefore is the machine in an very neat condition!
