Description:

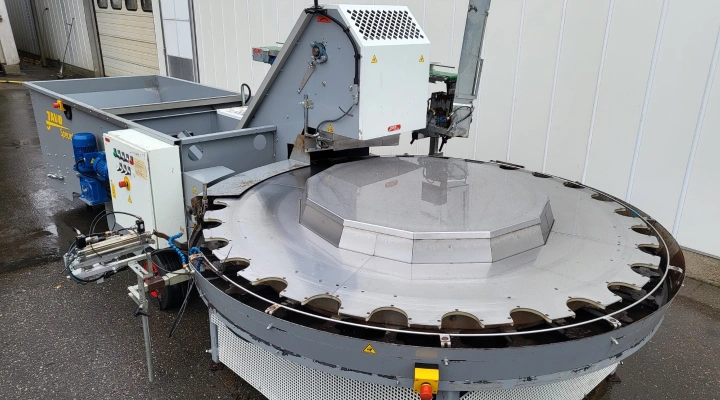

Javo Special potting machine for Phalaenopsis orchids

• 12 cm pots
• Potdispenser with supply conveyor
• Pot-ejection
• Hopper with PVC conveyor and PVC elevator with elevator for bark or soil
• Speed of the elevator, potting table and soil conveyor separately adjustable

A patented Javo design, especially for the Orchid culture. Because of an unique direct substrate-return-system, there is no change in the structure of the bark. This results in optimal growing conditions.

Bare root plants (especially Phalaenopsis) can be planted fast and easily.

The volume and supply of the substrate is electronically controlled. The supply of the substrate onto the pottrack disc is accurately deposited by the supply bin.

The speed of the smooth action pottrack disc is electronically adjustable up to 2.000 pots per hour. The rotation of the pottrack disc can be clockwise or counter-clockwise (factory installation). The 8' (2.300mm) diameter of the pottrack disc provides room for 4 to 5 planters.

The high outside rail and pot guides on the inside secure a stable pot position.

The Javo Direct is standard equipped with a pot dispenser and a pneumatic take-off.

• Exceedingly suitable for bare rooted plants
• Compact design because of internal substrate return system
