Description:

Tumoba Kerian X 150 brussels sprout grading line

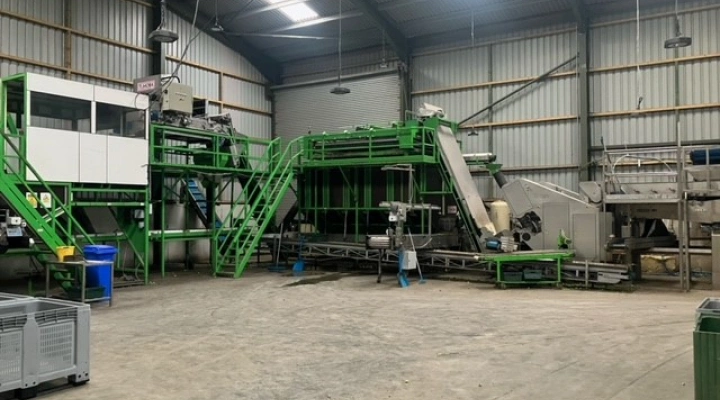

Tumoba brussels sprout grading line with Kerian roller grader

This brussels sprout sorting line consists of:

• Elevator conveyor 495 x 132 cm with adjustable speed
• Kerian X 150 roller grader
  • 7 sizes, from 15 mm till max. 42 mm
  • Currently the size classes are set at: 15 - 18 - 20 - 23 - 28 - 33 - 38 - 42 mm
  • One large discharge conveyor
  • Conveyor belt is the PVC top layer at one point worn away to canvas
  • Width including walkway: 420 cm
  • Highest point: 480 cm (at elevator)
• 6 x bunker
  • With 2 discharge conveyor belt 580 x 57 cm, on each sides of the bunkers.
  • With fall breakers
  • Is located under the Kerian grader
  • Bunker 1: 284 x 58 x 220 cm (L x W x H)
  • Bunker 2: 284 x 75 x 220 cm (L x W x H)
  • Bunker 3: 284 x 78 x 220 cm (L x W x H)
  • Bunker 4: 284 x 84 x 220 cm (L x W x H)
  • Bunker 5: 284 x 75 x 220 cm (L x W x H)
  • Bunker 6: 284 x 58 x 220 cm (L x W x H)
  • Dimensions for transport: 450 x 300 x 318 cm
• Elevator conveyor 495 x 56 cm with adjustable speed
• Roller inspection conveyor 260 x 75 cm
  • Adjustable speed of the chain with the rollers
  • Adjustable speed of the rotation of the rollers; possible to rotate the brussels sprout very slowly.
  • With flat conveyor belt before the rollers
  • Dimensions of white cabin: 450 x 390 x 450 cm (including stairs 380 cm wide)
  • Dimensions for transport: 450 x 300 x 225 cm (2 pieces)
• Bunker
  • 240 x 145 x 100 cm
  • No fall breaker
• Waste conveyor belt under the white cabin 610 x 50 cm

Machine is located in the United Kingdom.
This line is still installed and at it's orignal location. The line can be inspected on request.
The machine will be dissembled and loaded on the truck.

Optional:

• Key shaker
• Stainless steel roller inspection conveyor

The Ai optical grading machine of quality that is shown in some of the pictures is already sold.
