Description:

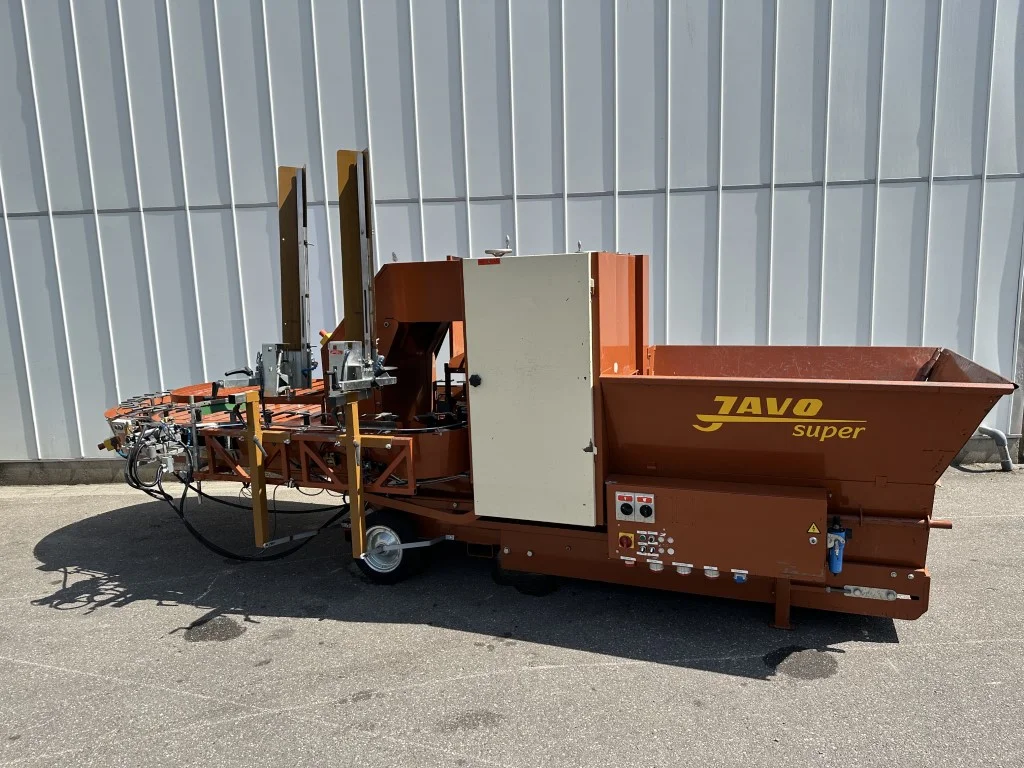

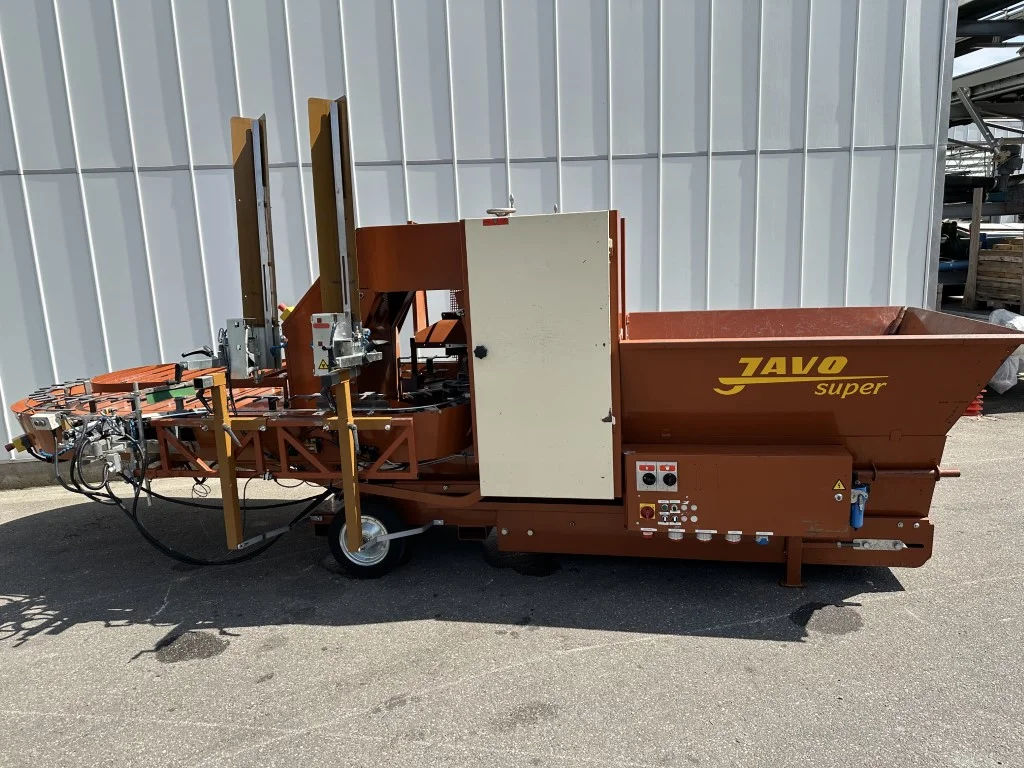

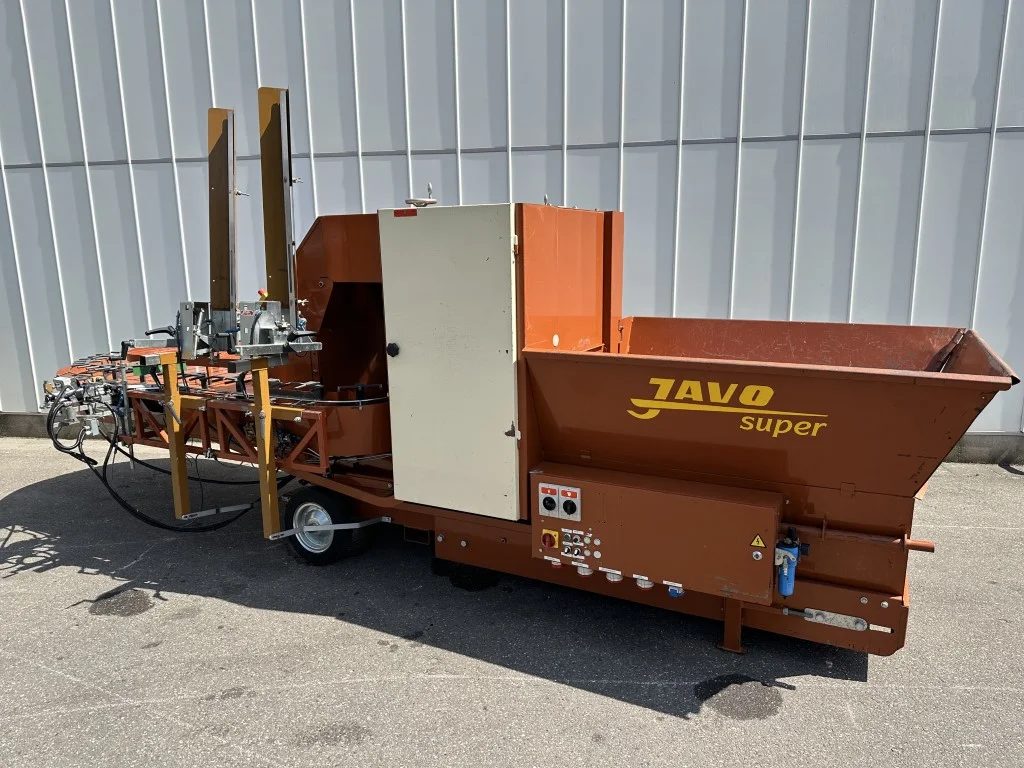

Javo Super Mega potting machine with 2 x pneumatic pot dispenser and pneumatic ejection

The Javo Super Mega potting machine is a solid universal machine suitable for any soil type. By applying a unique soil elevating system, this machine is technically unsurpassed and user friendly. This provides a high level of assurance in productivity.

The Mega provides an extra large working area. Ideal for large and high pots up to 24 cm. An automatic soil supply / cut-off system and an unique paddle wheel prevents any deformation of the soil structure.

The capacity of the Javo Super Mega potting machine is stepless controlled from 600 up to 3,000 pots per hour.

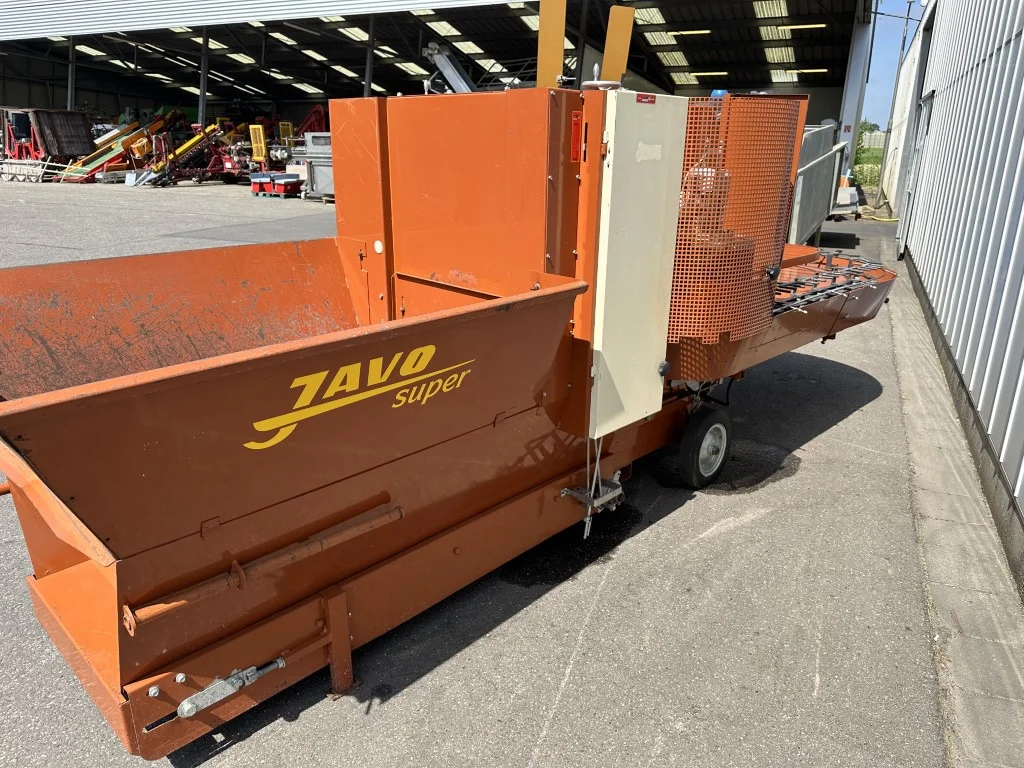

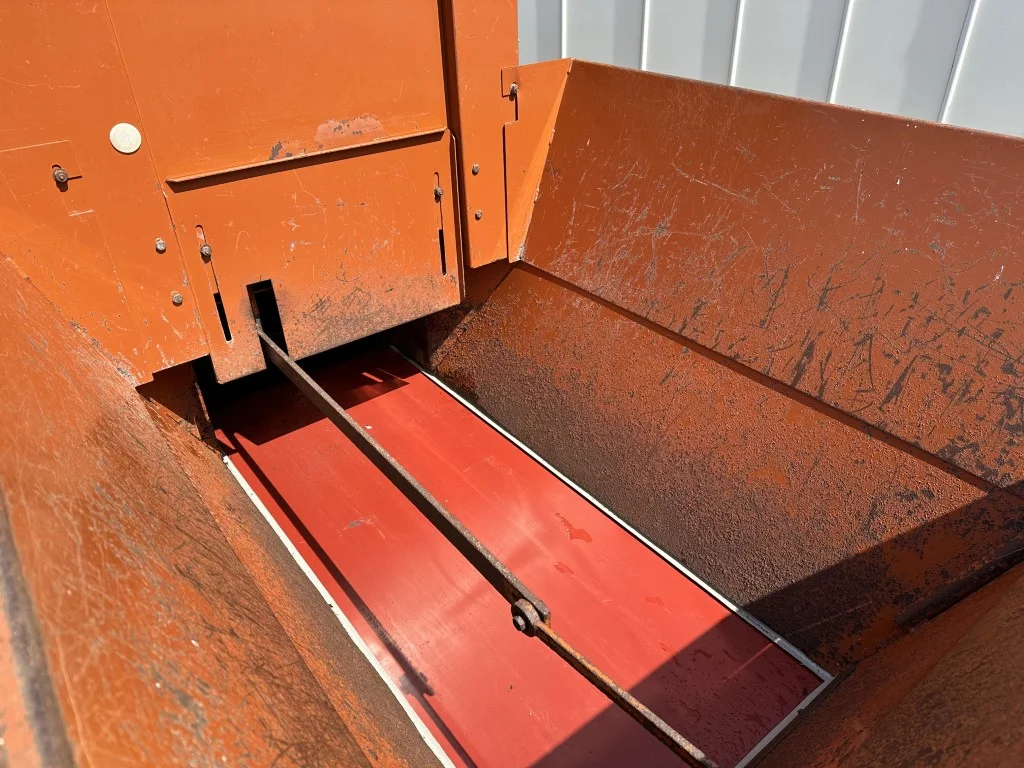

The soil bin of 1.5-cubic yards is accessible from 3 sides and equipped with a soil conveyor belt. With adjustable steps, this belt supplies the paddle wheel. The soil bin can be filled with i.a. a front loader, forklift or box tipper.

Javo Super Mega is equipped with the following options:

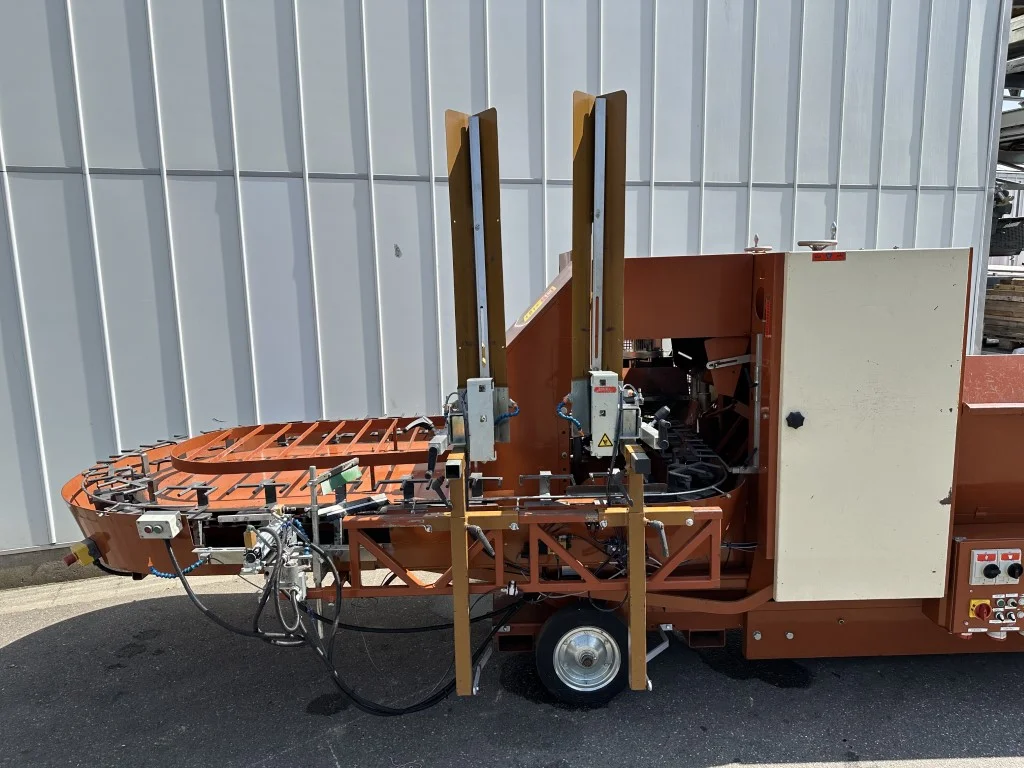

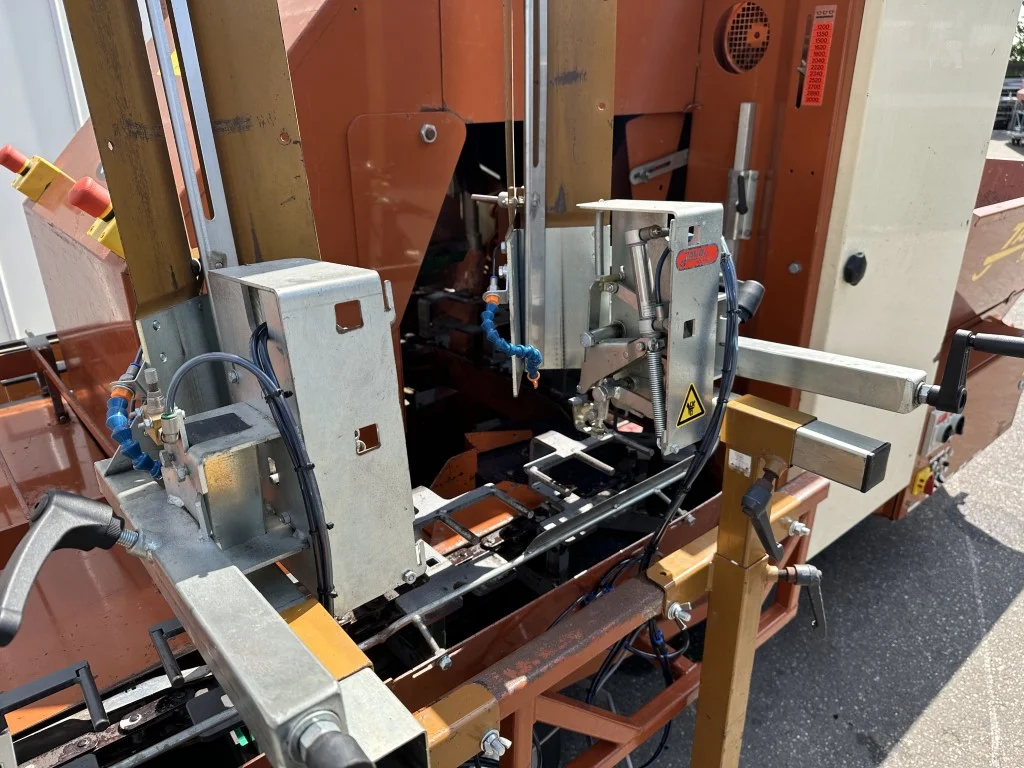

• Pneumatic potdispenser
• Pneumatic take off
• Drilling motor

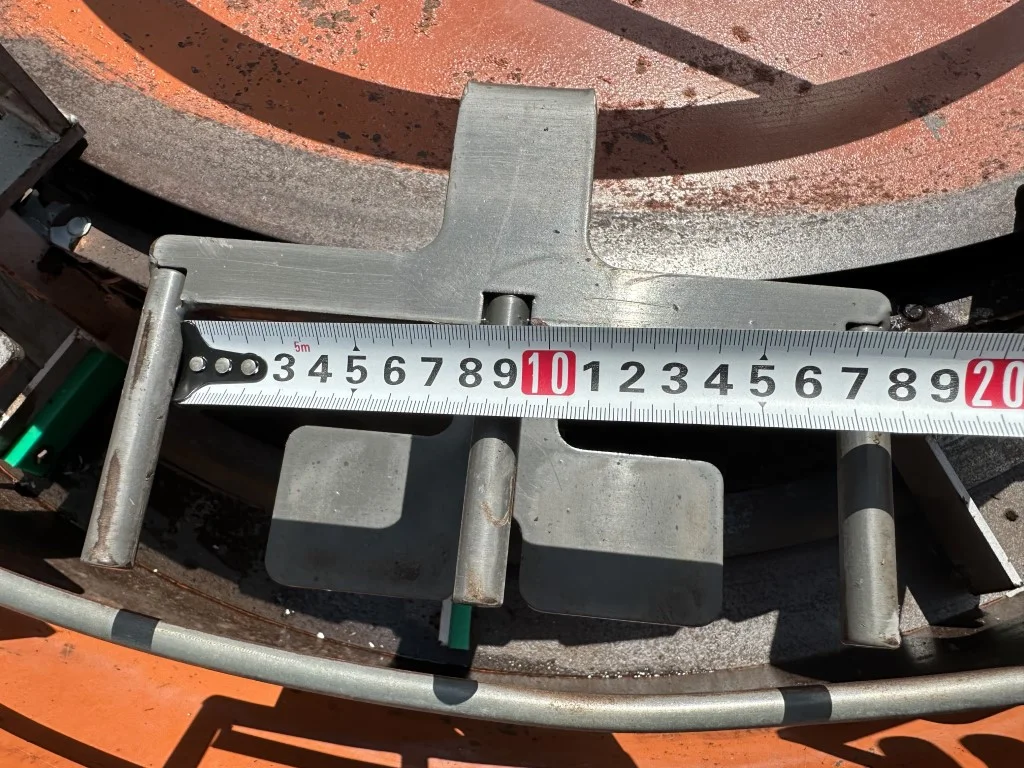

• 1 set double potholders

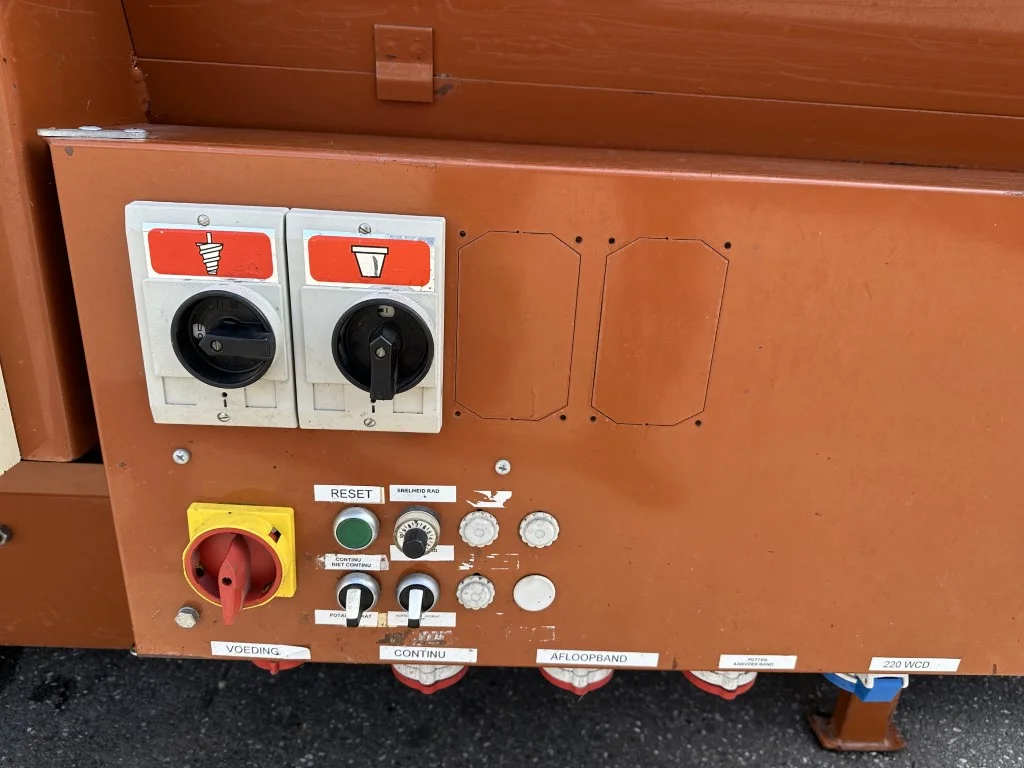

• Electronic speed control

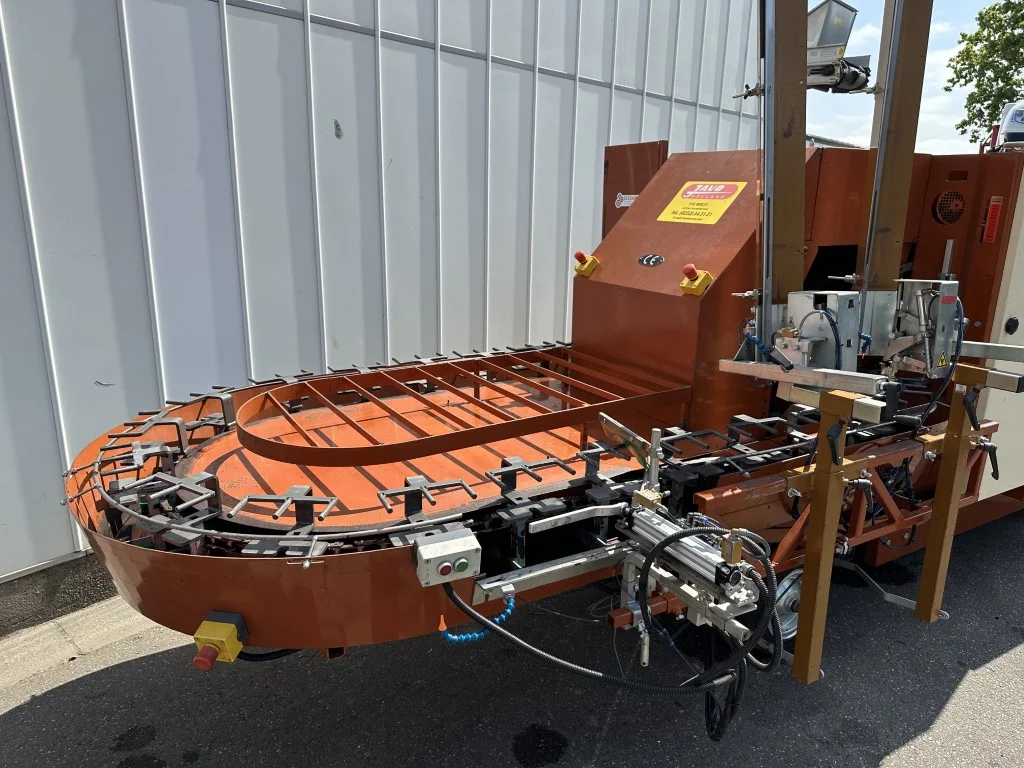

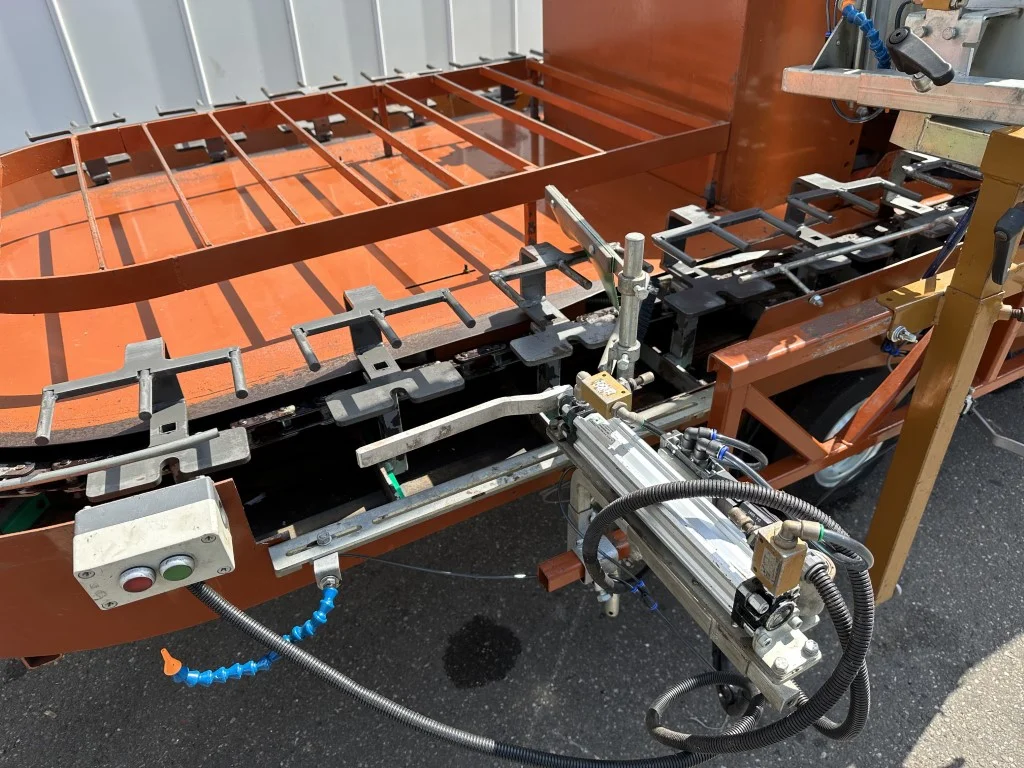

• Pottrack chain with 24 positions
• Conveyor 300 x 20 cm with adjustable speed

Specifications Javo Super Mega:

• Suitable for pots from 9 cm up to 24 cmWith the right potholders
• Suitable for any soil type
• Equipped with 2 wheels
• User friendly
• Equipped with 3 electro motors
• Frequency controlled pottrack speed

Technical specifications Javo Super Mega:

• Weight: 2,200 lbs (1,000kg)
• Capacity: from 600 up to 6000 pots per hour (double equipped)
• 380 Volt 3-phase, 50Hz
• Power: 5 kW
