Description:

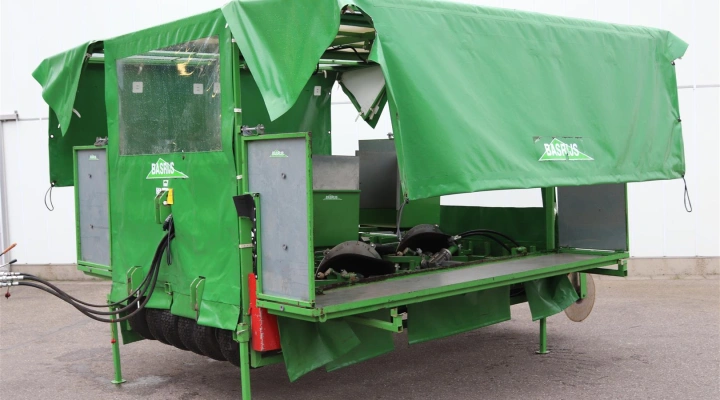

Basrijs 3 row planting machine type disc planter

Basrijs 3 row planting machine type disc planter.

Suitable for single plants varying from 2 to 50 cm and also soil-blocks up to P9 (e.g. strawberry plants, perennials and tree nurseries).

• Minimum row distance 50 cm
• Minimum planting distance in row 5 cm.
• Maximum planting depth: 15 cm (depending of planting plough / sock)
• Capacity 1000 -2500 plants / hour depending on plant type and size.
• Disc size 70 cm.

Principle:
The planter puts a plant between a metal disc and a flexible rubber disc, which insert the plant into the furrow and release it. The plant is then firmly pressed by the press wheels. The machine has wheels at the front with a chain drive to determine the speed of the planting discs driven by tractor hydraulics to obtain a correct planting distance in the row, even at different working speeds. Planting distance in the row is determined by the number of marks on planting disc and the chain drive change gear. Advantages:

Suitable for small and large planting material. Proper work posture due to large planting disc. The planter's weight does not influence the pressing of the plants. Less spare parts required.

* From 1 Owner, did approx 70 Ha total
