Description:

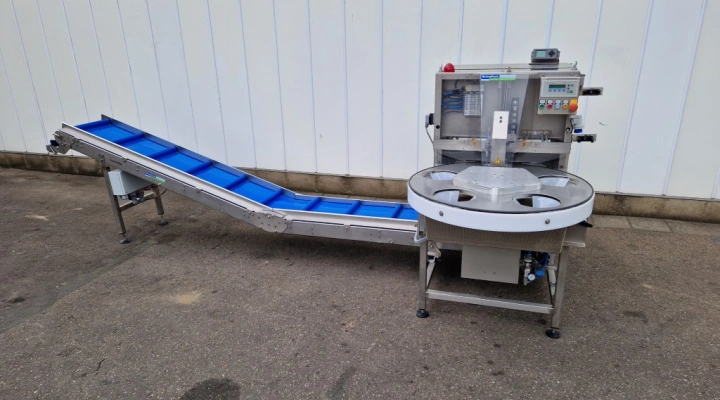

Brimapack Vepack 200-PHH packaging machine for iceberg lettuce

Brimapack Vepack 200-PHH packing machine for iceberg lettuce with labeling machine with printer

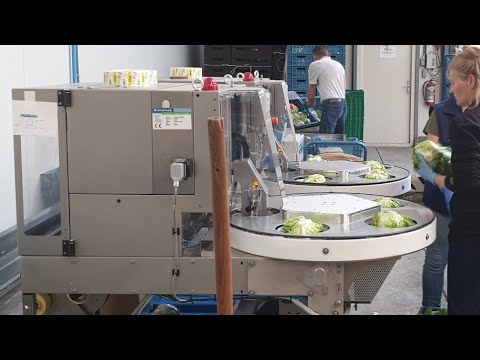

The VePack 200-PHH is equipped with a compact, automated, horizontal in-feed system (rotating table). This in-feed works as a “buffer”, giving the operator the possibility to reach maximum capacity. There is also more flexibility in the number of people working on the packing machine. From one person feeding one machine, to two people feeding four machines (in case of pre-cleaned produce).

The VePack 200-PHH is perfectly suited for the packing of Iceberg Lettuce. On request, the VePack PHH-modules can be modified for other vegetables. More than one VePack 200-PHH module can be integrated into one high capacity packing system.

Electrical details:

• Power supply 230 VAC 50Hz+PE
• Power consumption 1 kW

Pneumatic details:

• Air supply 7 bar
• Air consumption 125 L/min

Film specifications:

• Material CPP
• Width 450-600 mm
• Thickness 12-17 µm

The capacity is depending on product size, packing conditions and the type of film which is used.
