Description:

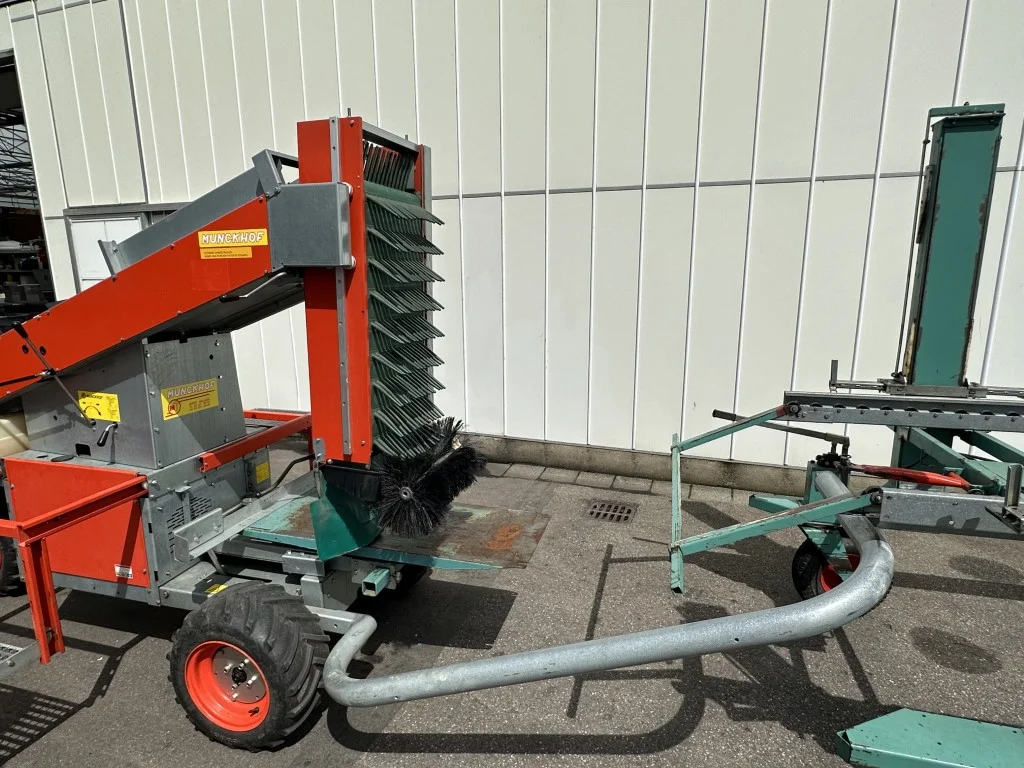

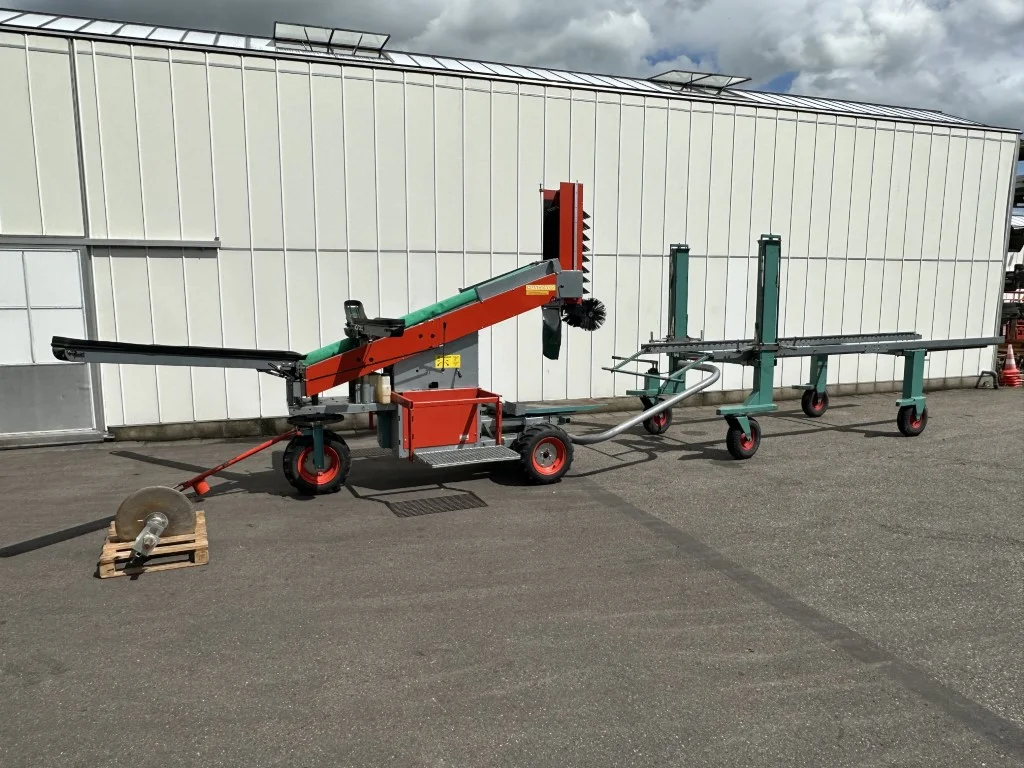

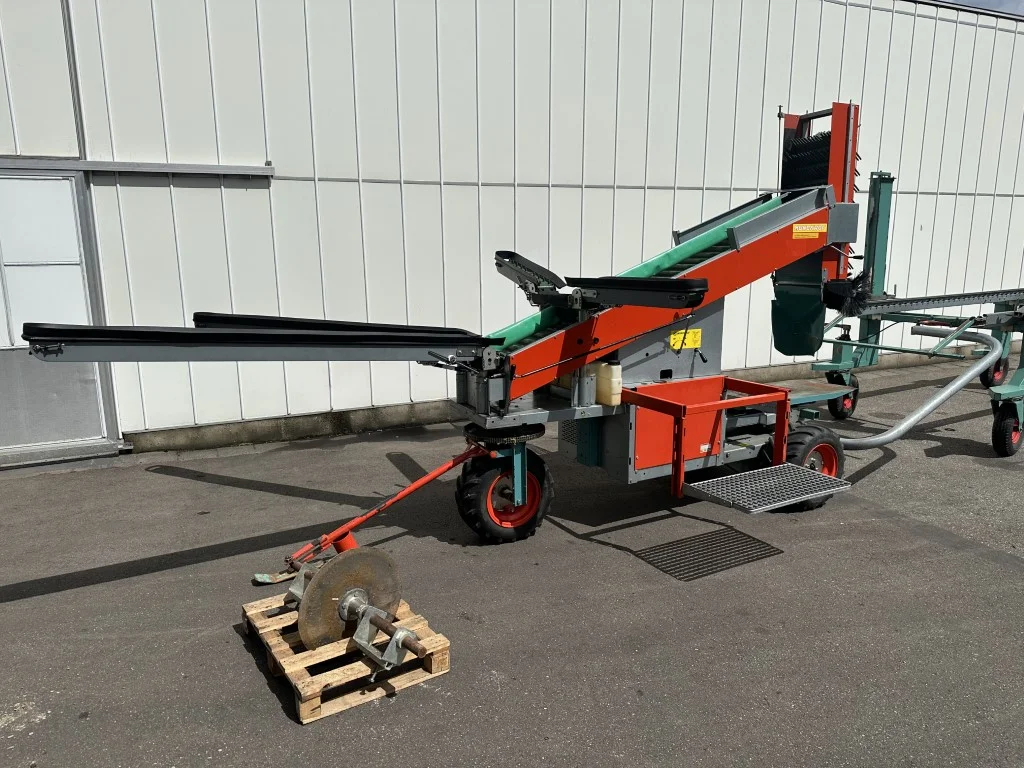

Munckhof Pluk-O-Trak Junior apple harvester

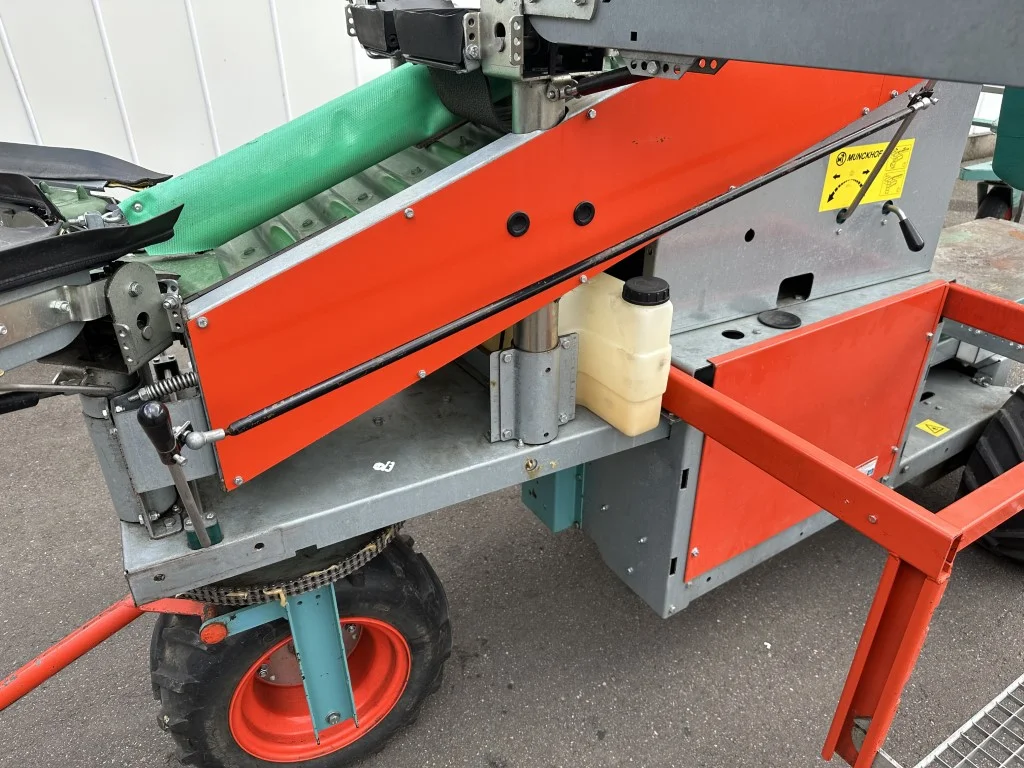

The Pluk-O-Trak Junior is a compact harvester designed for row distances of 2.50 to 4.50 metres and tree heights of up to 4 metres. Like the Senior, the manoeuvrable Pluk-O-Trak Junior harvester is designed to operate in hilly, sandy and rocky conditions. This harvester meets the highest quality standards. Four to six harvesters can work simultaneously, from the ground and on two platforms. The fruit is placed on 4 conveyor belts (optional: 6 conveyor belts). When coupled with a crate carrier, up to 16 crates can be carried. The box carrier has castor wheels and mechanically lifts the boxes via a hydro pump.

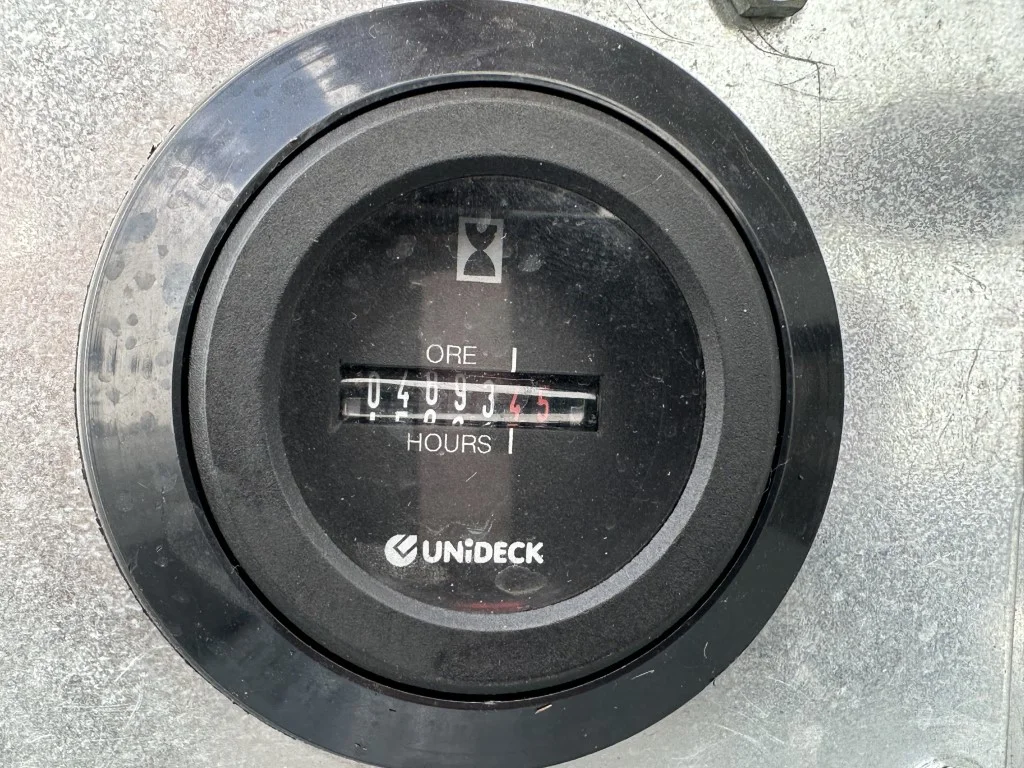

• 4900 hours
• With a tow tractor, making it easy for the box cart to follow the harvest cart

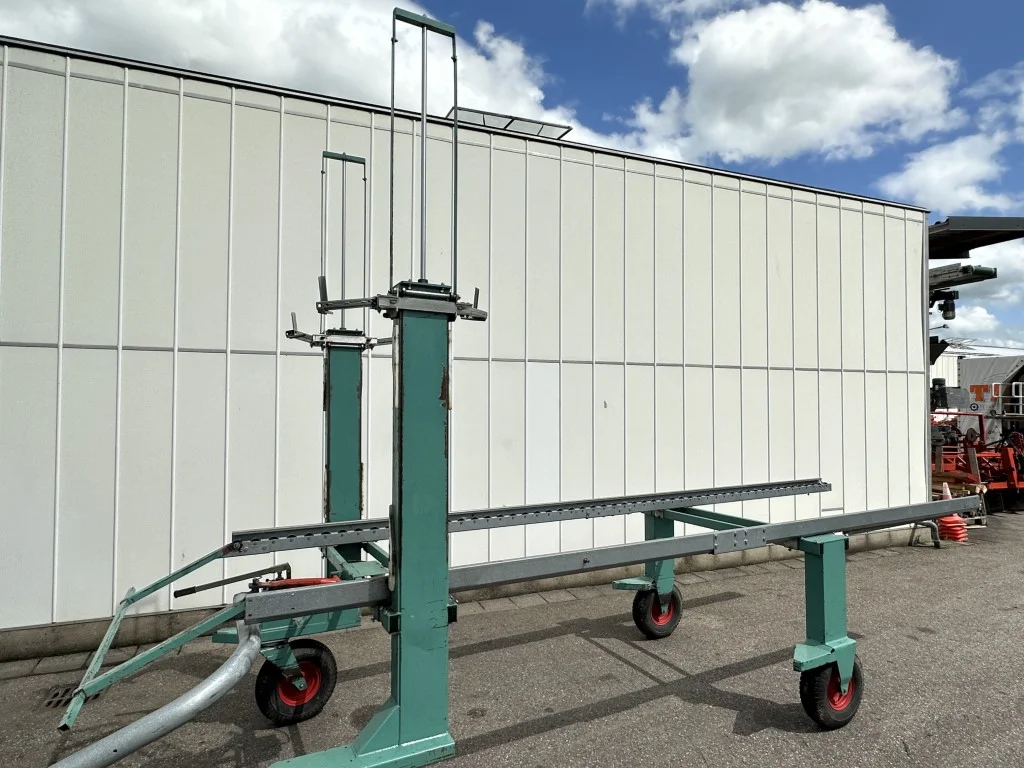

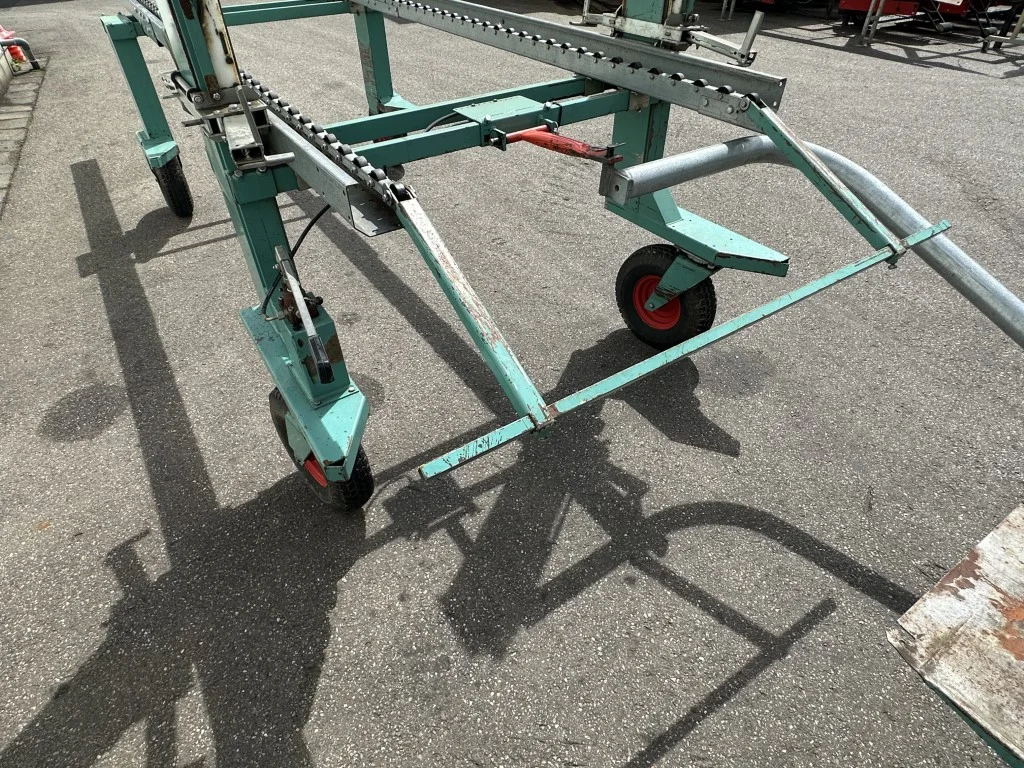

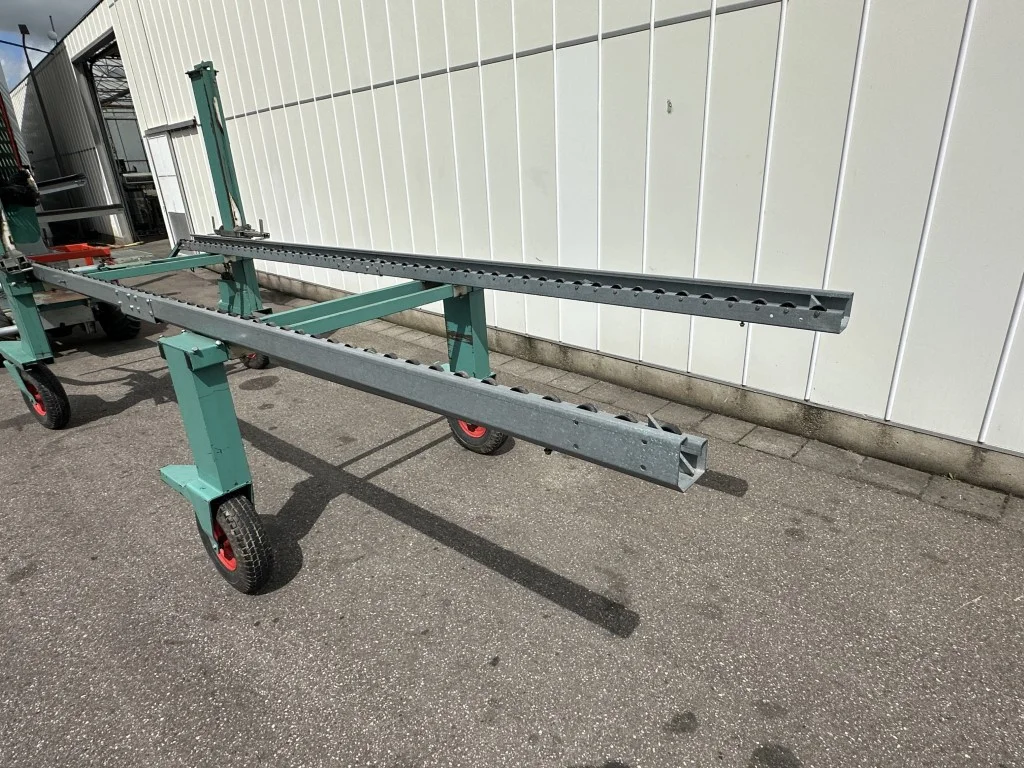

• 5-metre box cart for 12 to 16 apple boxes

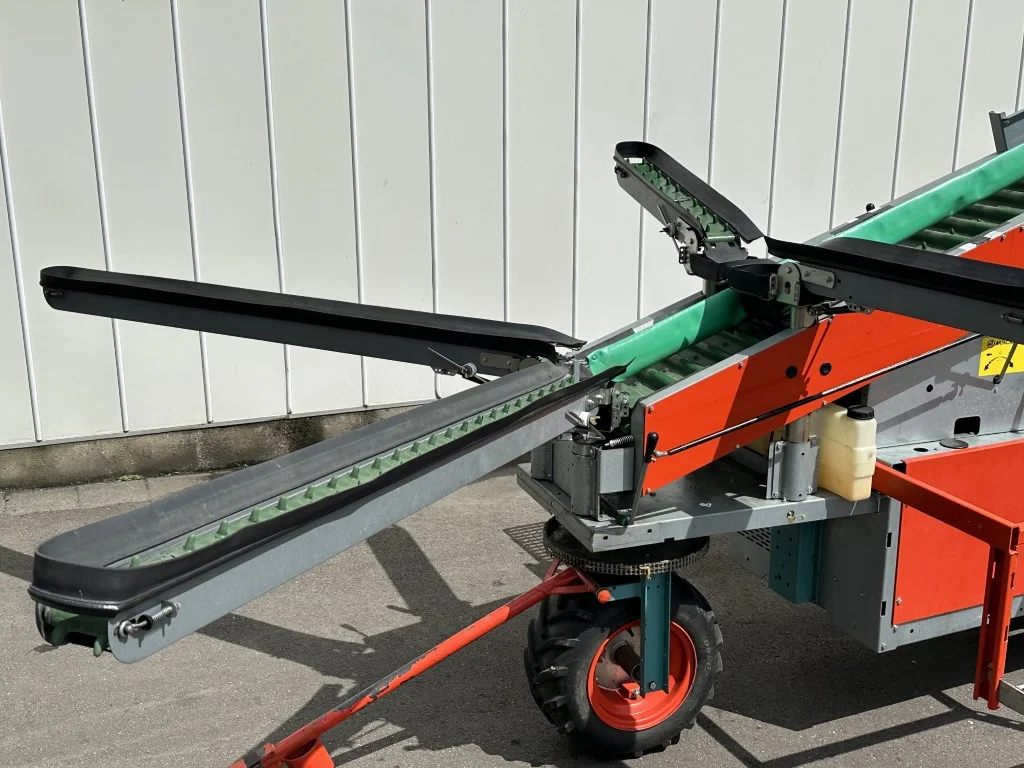

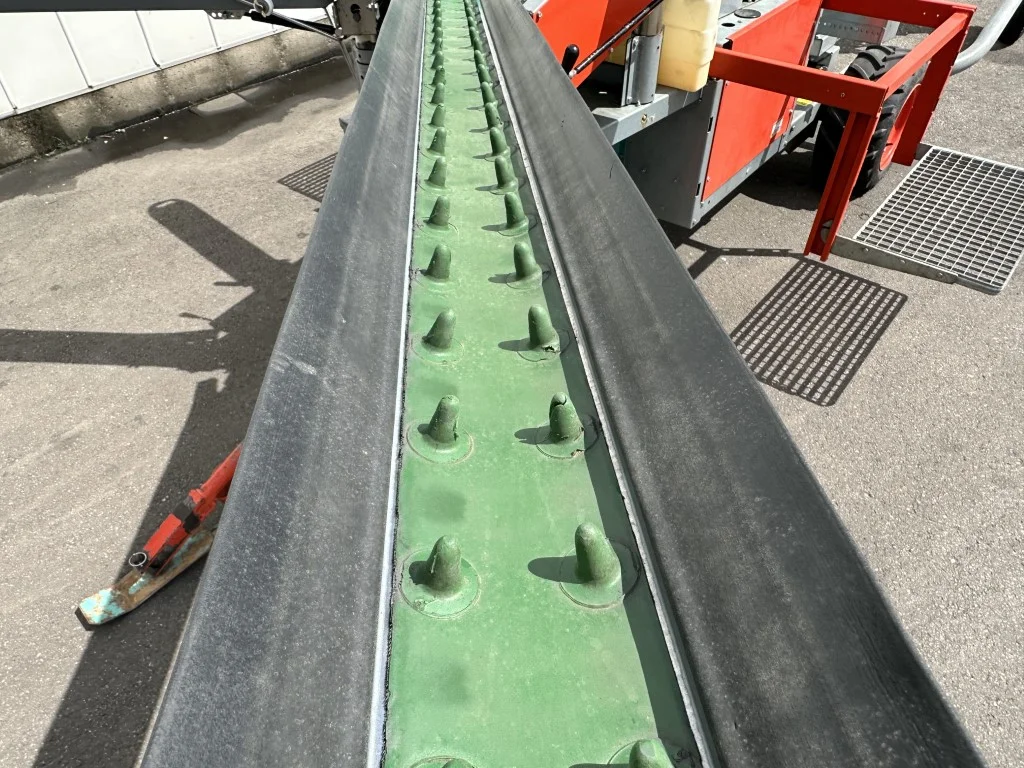

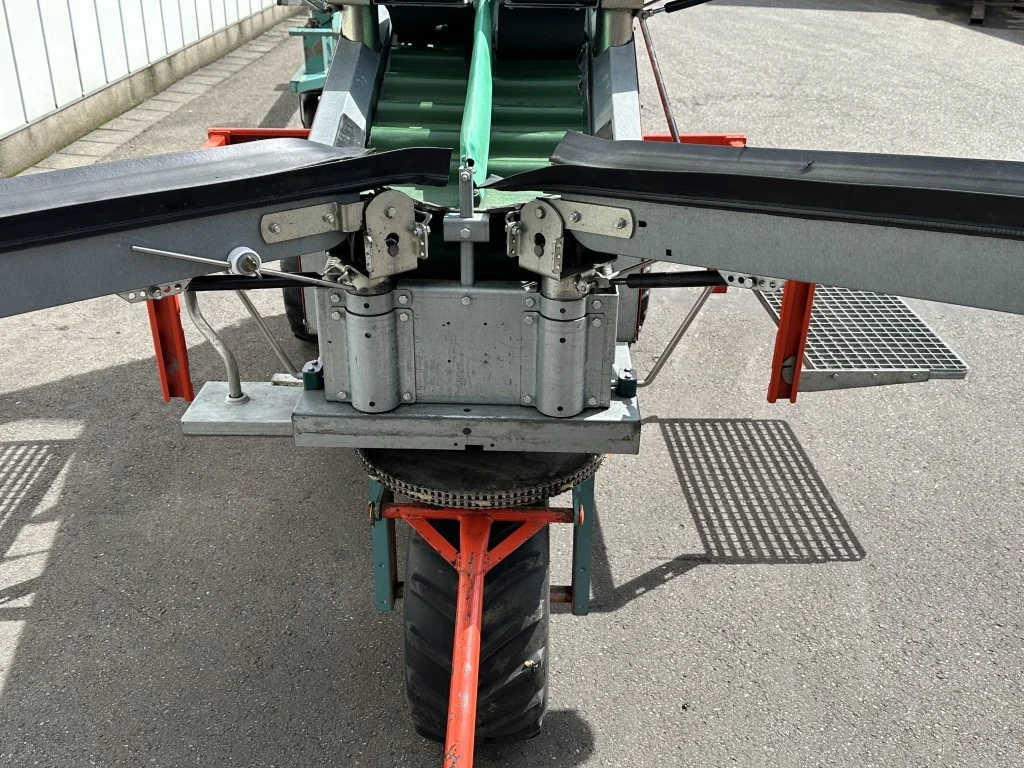

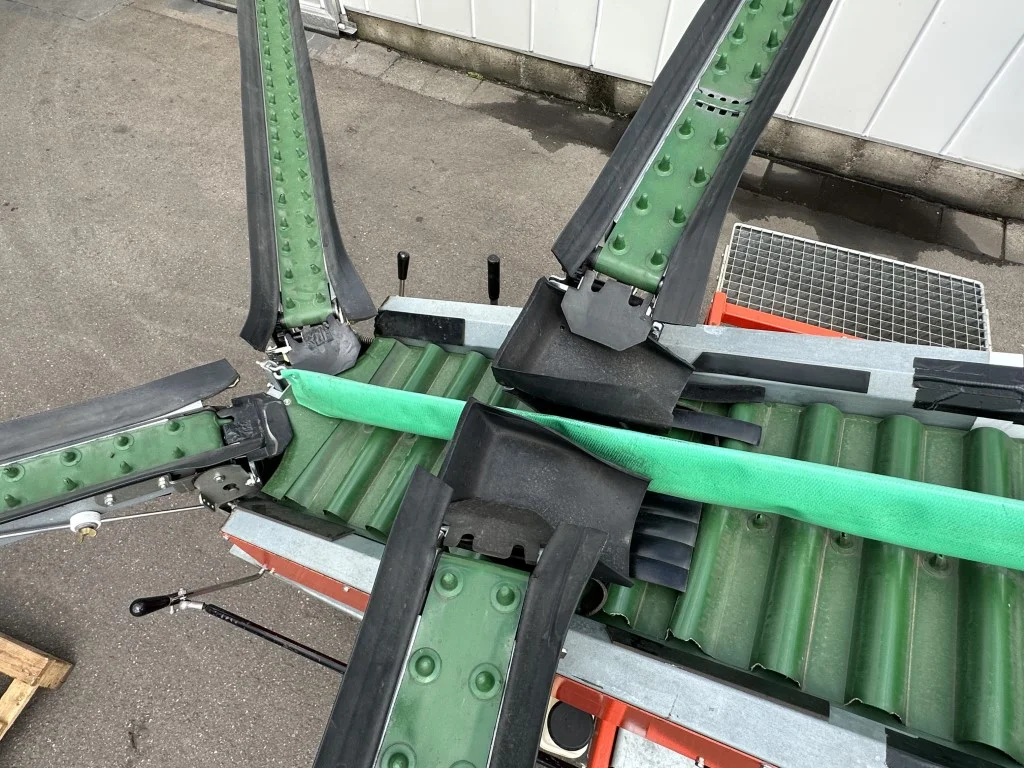

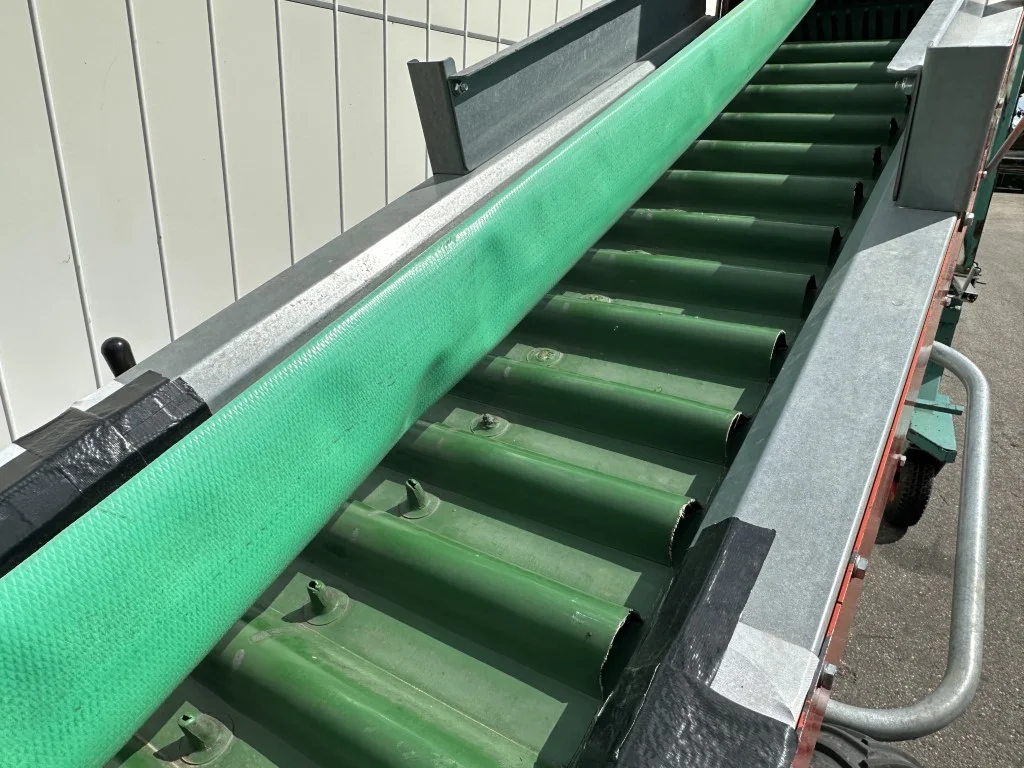

• 2 conveyors 210 cm and 2 conveyors 90 cm
• Main belt 240 cm
• Rear-wheel drive, non-automatic steering
• Mechanical platforms adjustable in height to 75 cm
• Platforms extend 130 cm from the centre, driving widths possible up to 300/350 cm Gearbox Stepless forwards and backwards
• Transmission Hydrostatic
• Speed 0 - 4 km/h
• Tyre size 23 × 10.50 - 12, 4-ply tubeless
• Fuel tank capacity 10 ltr Euro 95
• 840 Kg
• Length 3,30 cm
