Description:

Visser EC-40 tray filling machine

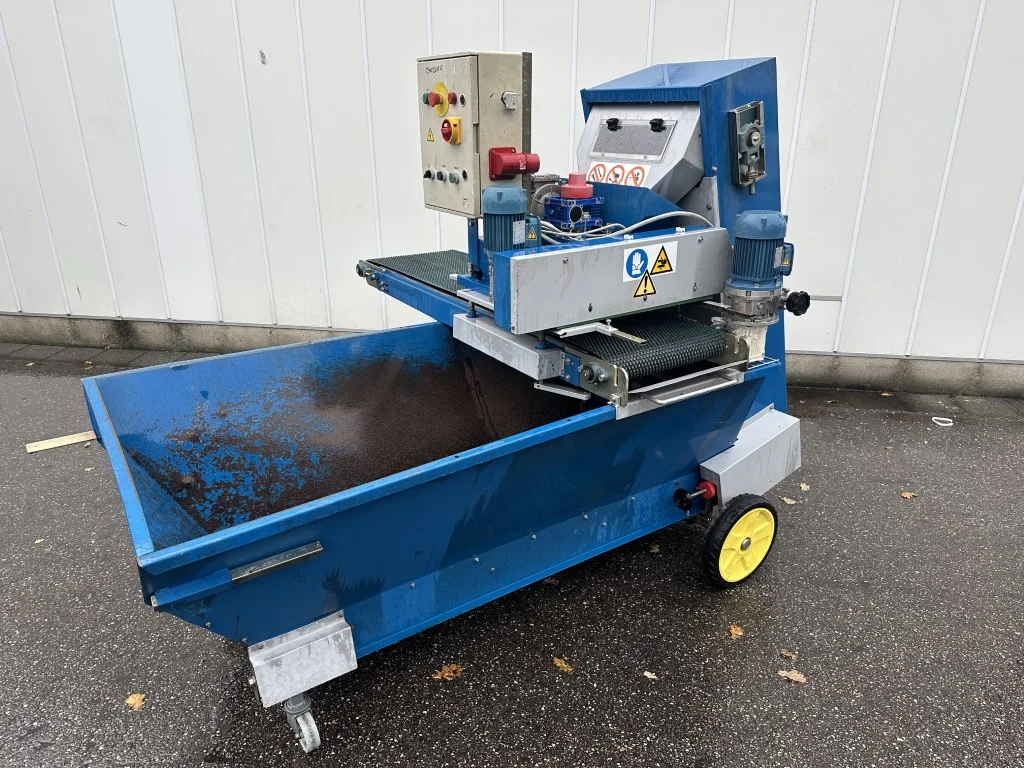

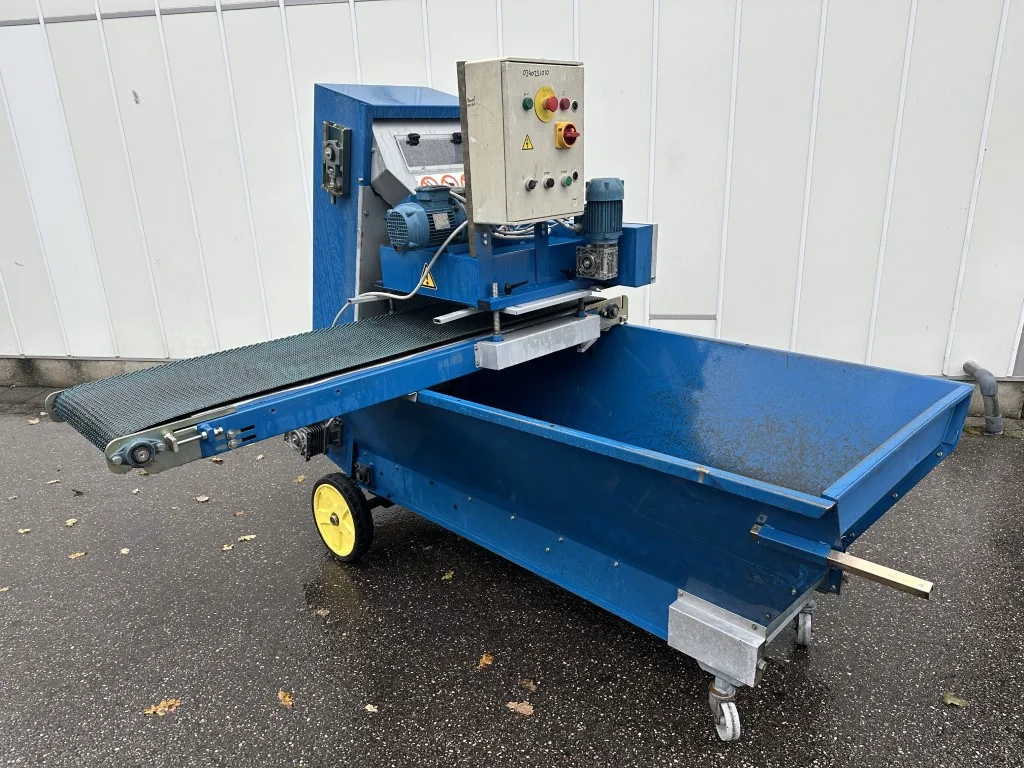

Visser EC-40 tray-filling machine

The EC-40 tray filler is a machine for filling trays or carrier trays with pots that are flat on the upper side of the tray. The tray filler has a soil hopper, a soil elevator, a filling head with a rotor, and a belt for the transport of the trays through the machine.

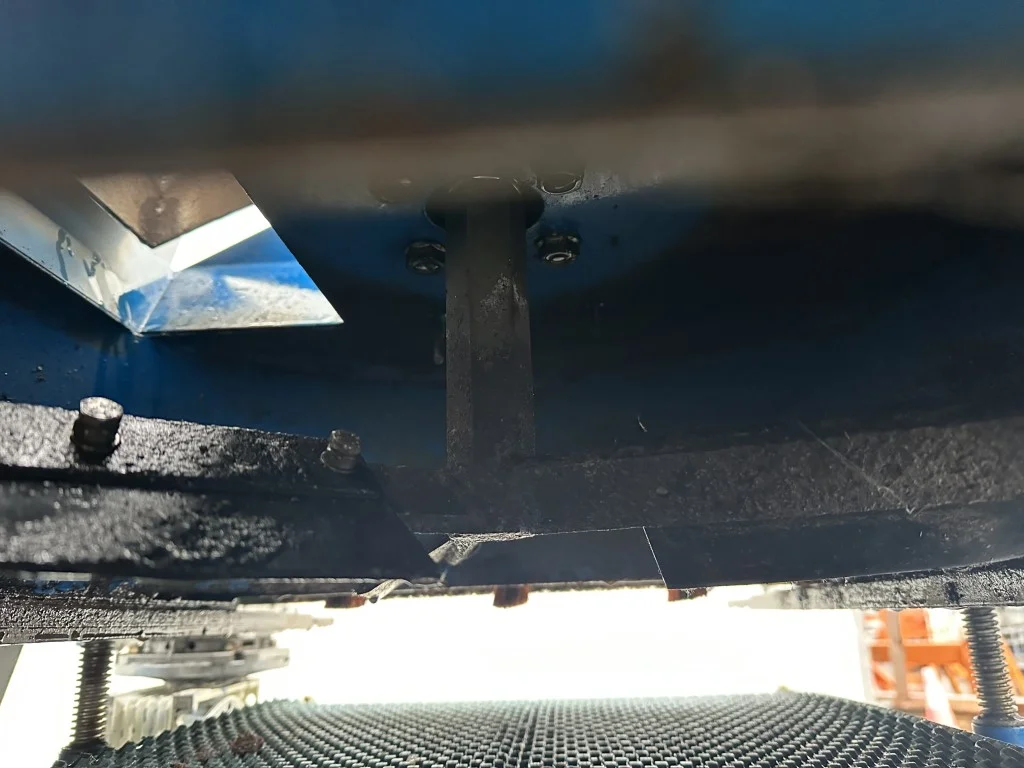

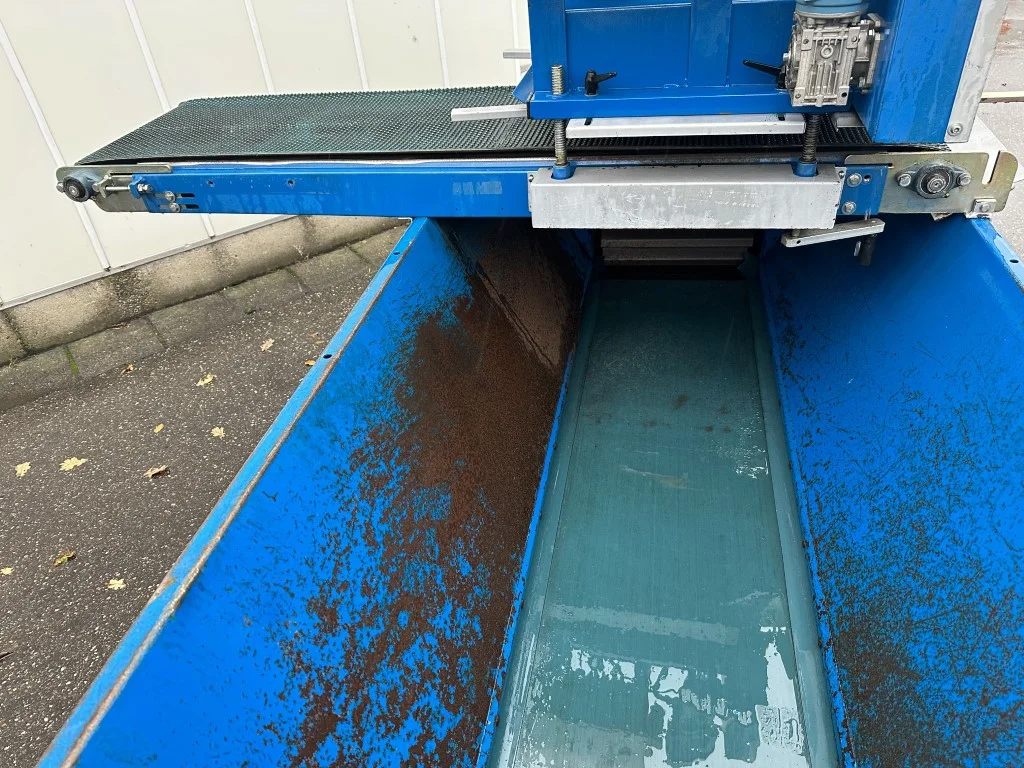

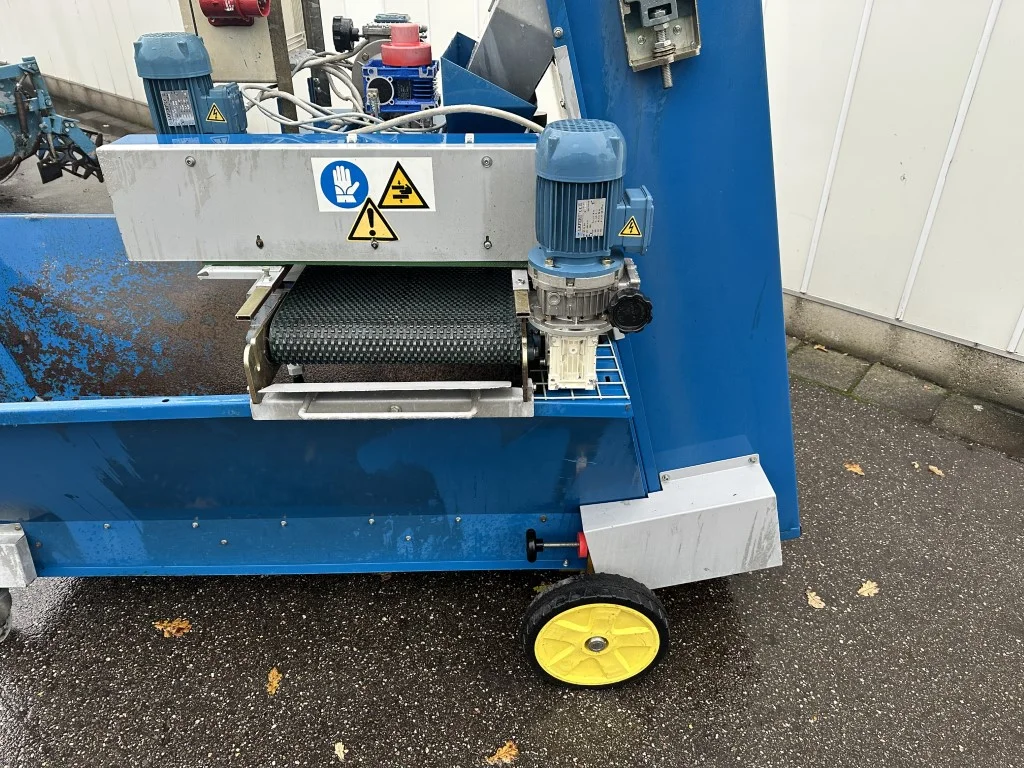

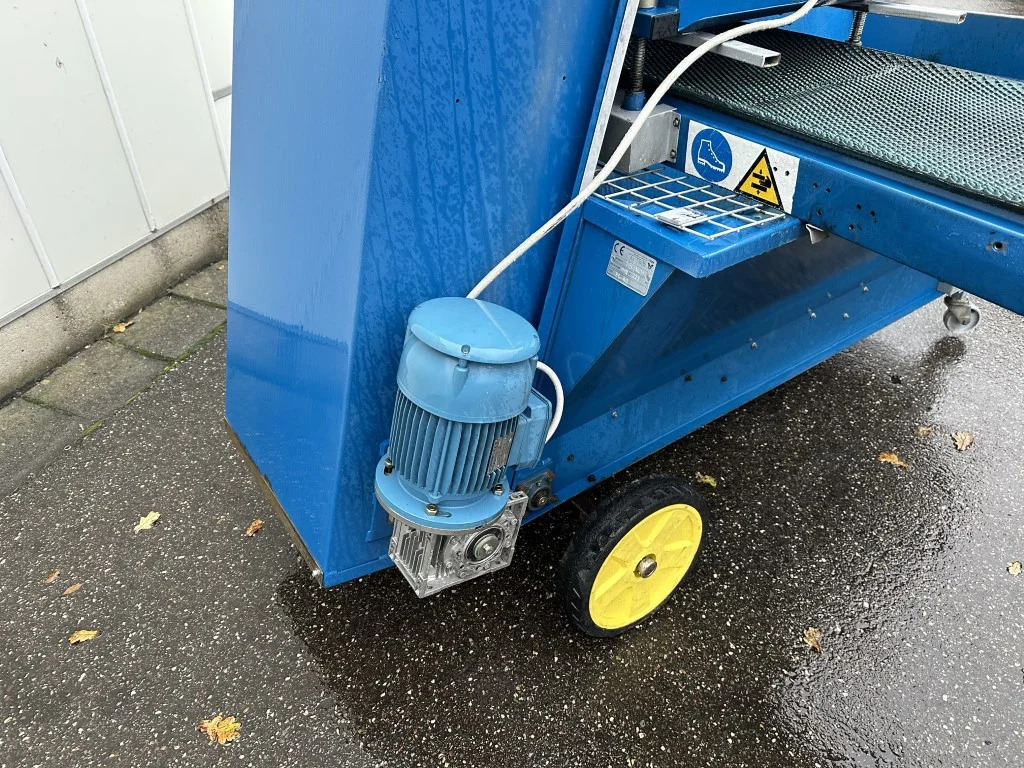

The soil hopper has a conveyor belt at the bottom of the hopper which transports the soil to the elevator. The elevator elevates the soil up to the filling head. The soil is put in the filling head where it will be divided over the tray by means of a rotor. The tray is put on the belt of the tray filler by hand or by means of a destacker in front of the tray filler. The conveyor belt of the tray filler transports the tray under the filling head. The conveyor belt has a grip surface so the trays will be transported during filling. After filling, the press will press the soil deeper into the tray

A couple of things are adjustable for working with other tray sizes or with another result of filling (higher/lower density).

• The side guides of the tray filler can be adjusted for working with a tray with another width
• The height of the filling head can be adjusted, for working with trays with another height
• The height of the rotor in the filling head can be adjusted
• Electrical requirements: 400 Volt 3 phase 50 Hz +earth
• Capacity: Between 300-500 trays per hour. A definite capacity can be given when all the parameters are known. Such as: tray size, amount of cells, length of the tray, total volume and density of filling.
• Content soil hopper: 560 ltr.

Visser EC40 tray filler specifications:

• Min. length of the tray is 230 mm.Max. length of the tray is 700 mm.
• Min. width of the tray is 230 mm.Max. width of the tray is 400 mm.
• Min. height of the tray is 20 mm.Max height of the tray is 120 mm.
