Description:

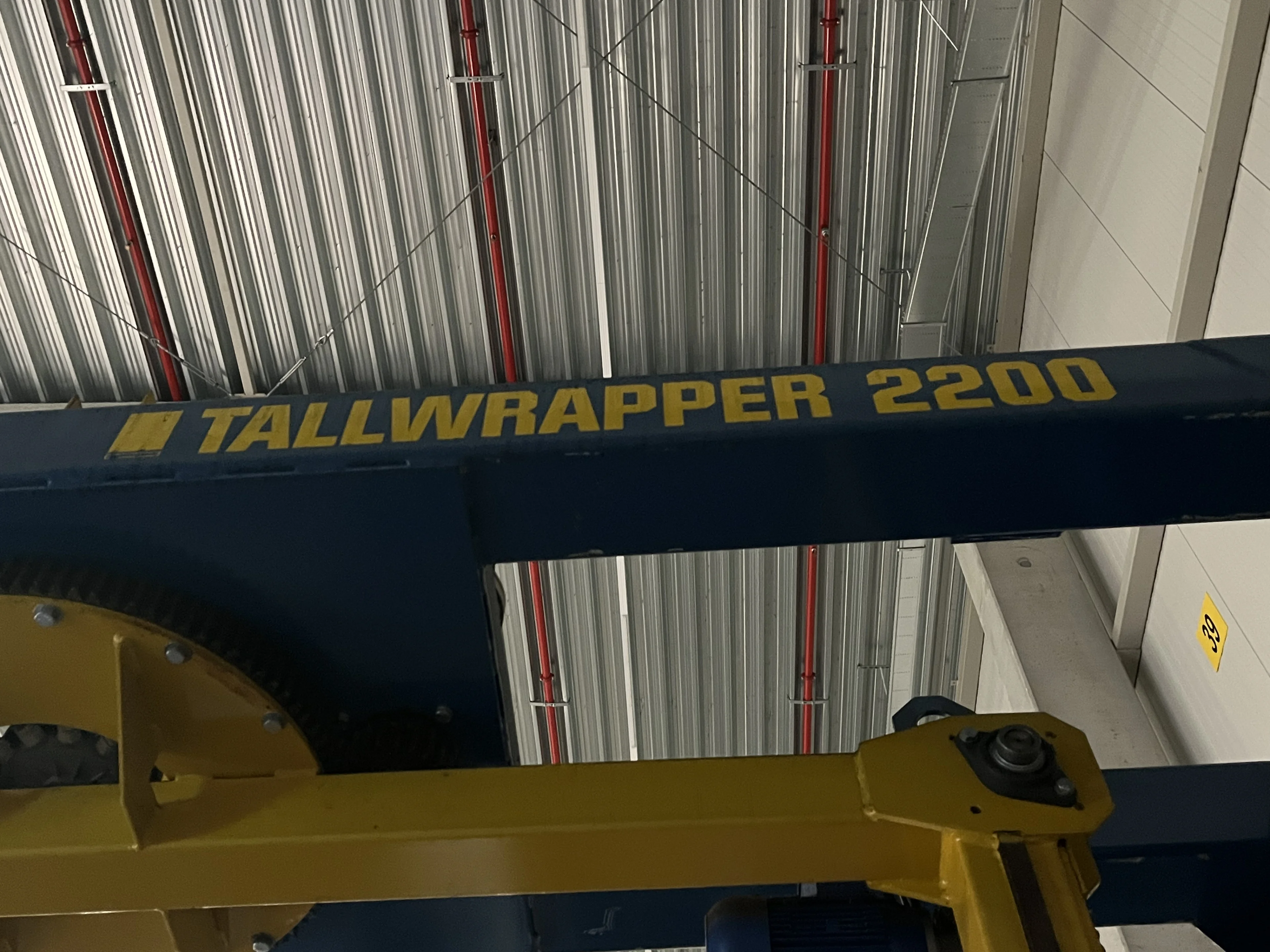

Tallpack Tallwrapper 2200 pallet wrapper

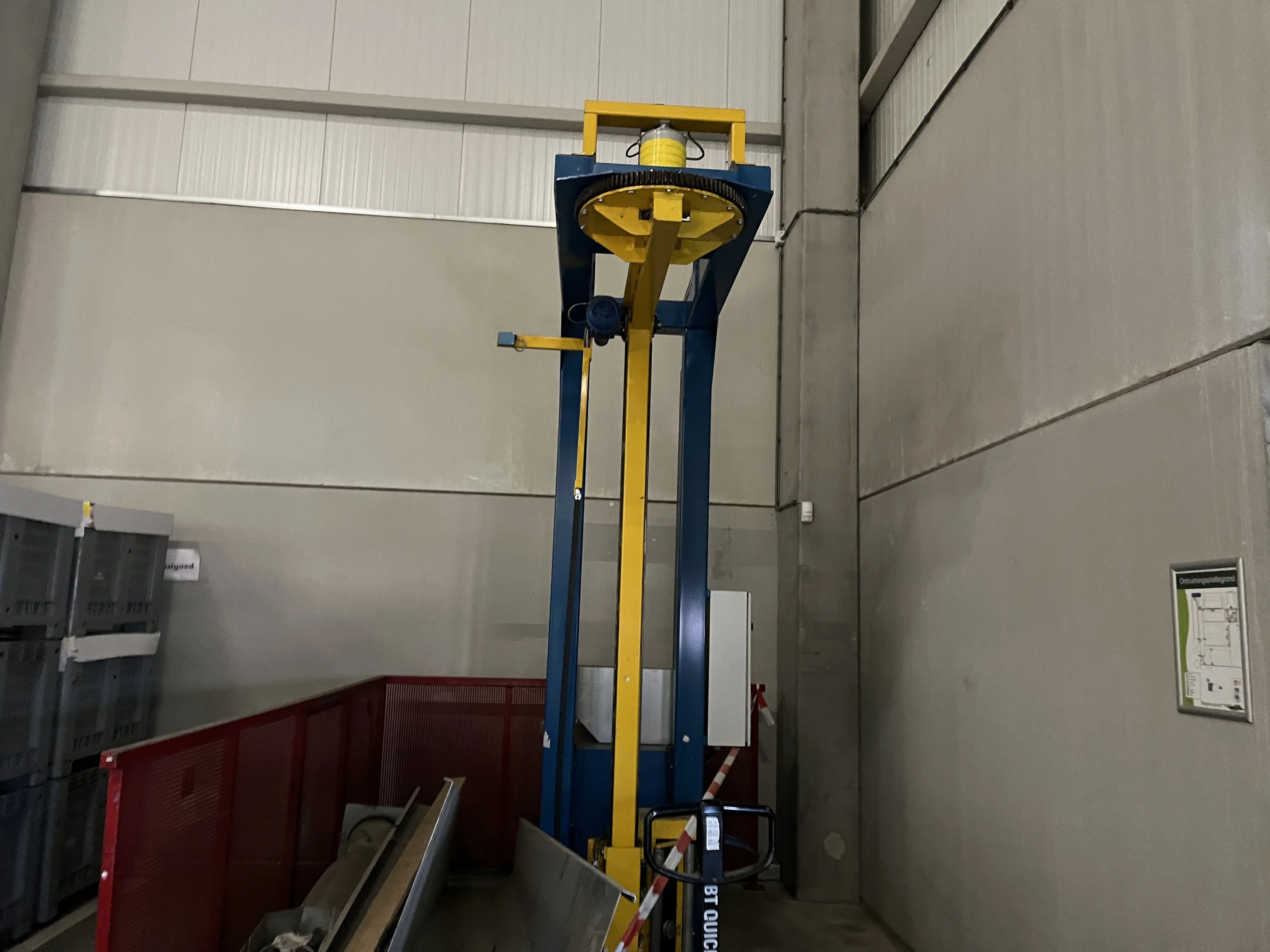

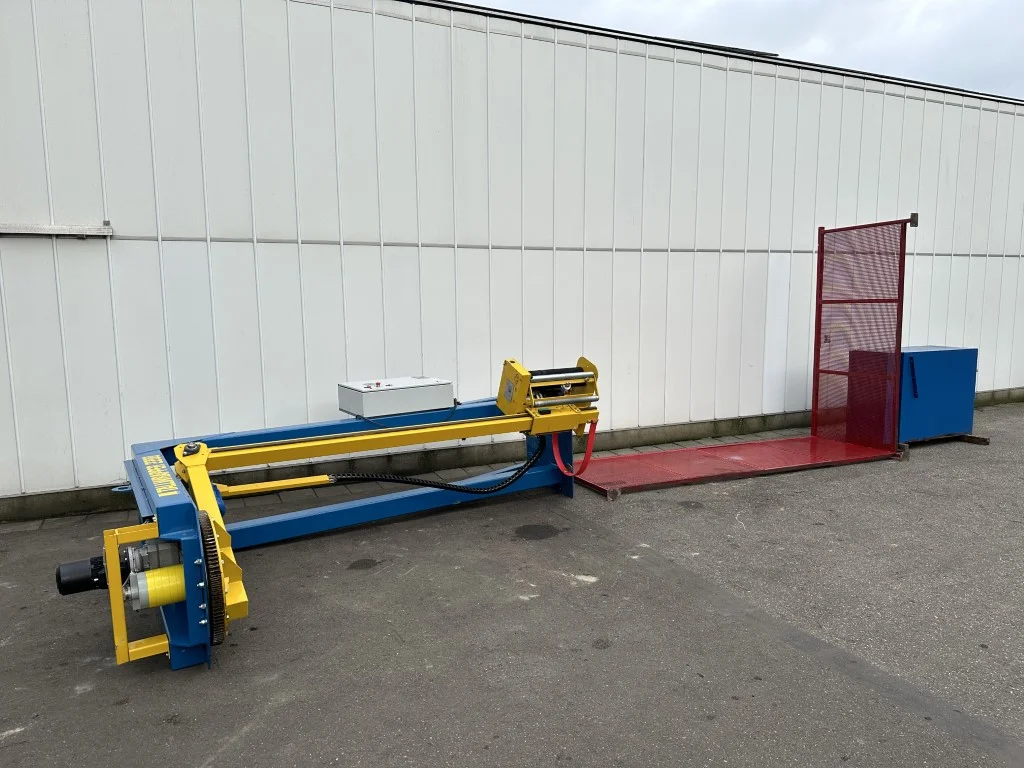

The Tallwrapper 2200 is an automatic stretch wrapper based on a rotating arm system. This means that the pallet is stationary on the ground and the wrapping arm rotates around the pallet. According to this principle, the pallet does not suffer from centrifugal forces on the products and therefore cannot slide during the wrapping process.

When the turntable wrapper cannot handle the capacity, a ramp is not desired, lack of space is a problem, loads are unstable or light, the Tallwrapper arm wrapper is a very good solution.

The arm wrapper can also be integrated into a modular system, making it an investment for the future.

Specifications:

• steel frame painted in colour

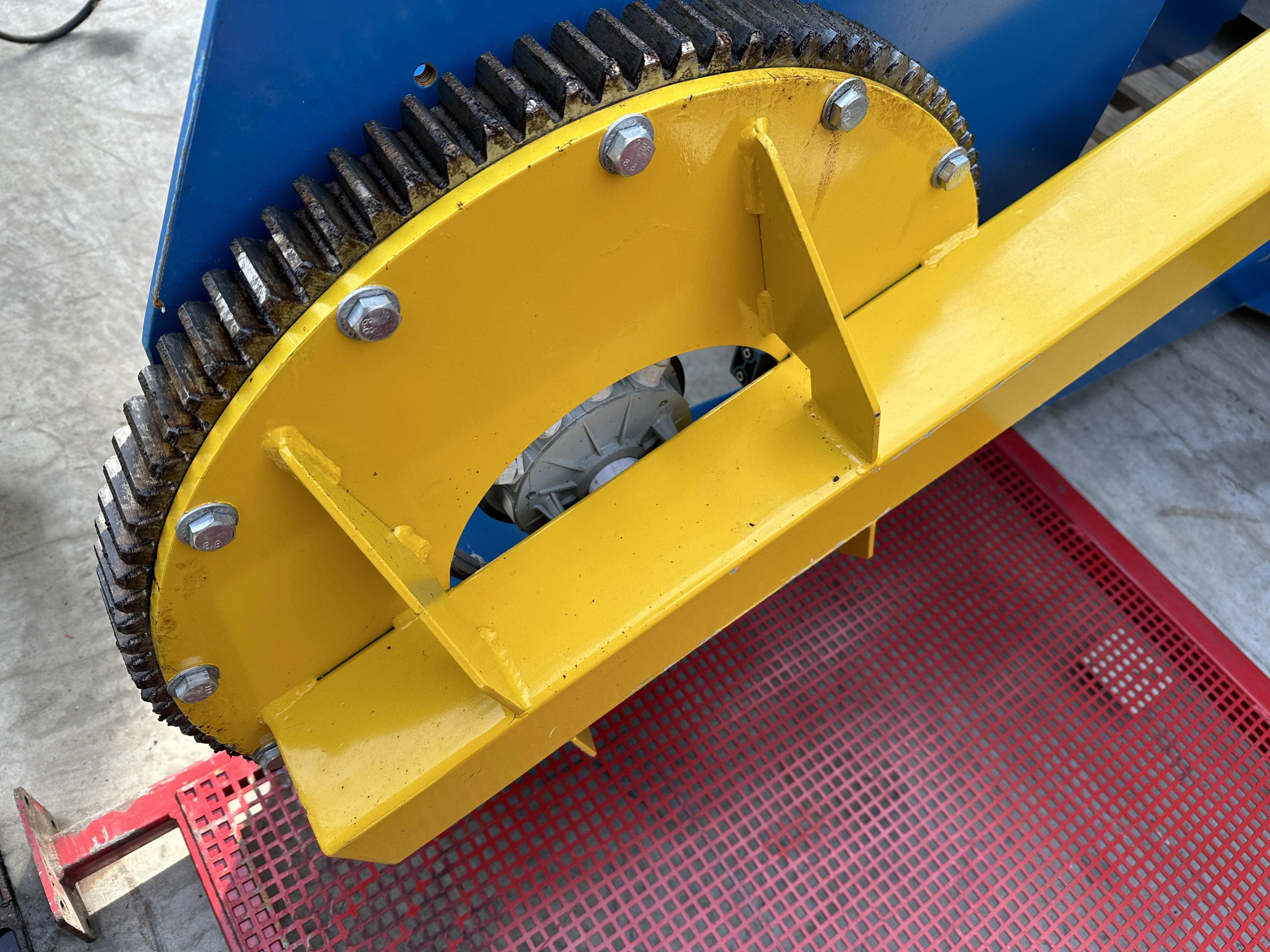

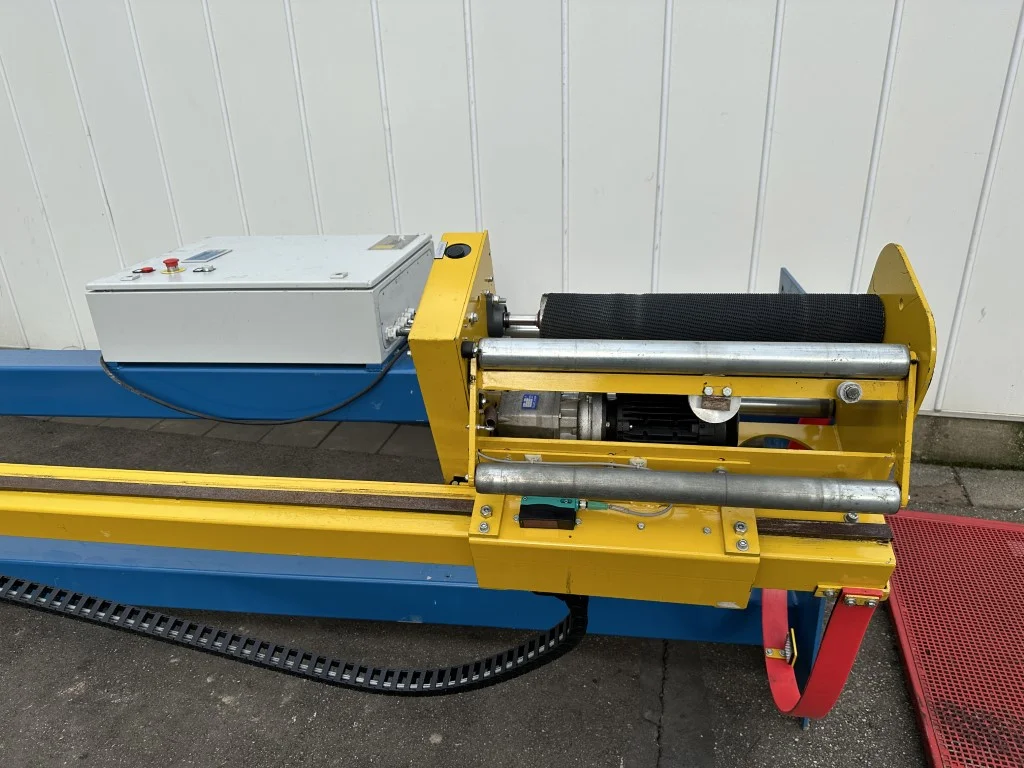

• Rotating arm fitted with a heavy-duty slewing ring
• Stops automatically when at the top
• pallet height sensing by photocell
• pallet height 2,350 mm
• 12 rpm
• pallet size 1,200 x 1,200 mm
• 30 pallets per hour (depending on project specification)

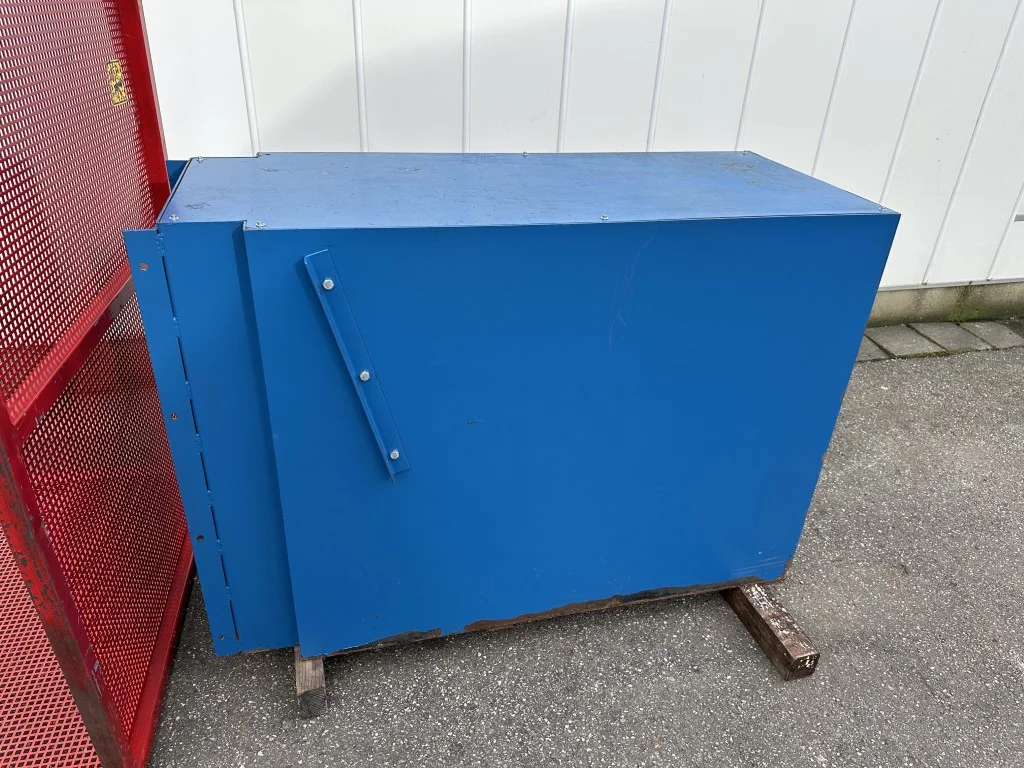

• Counterweight
