Description:

SBO Pruning machine with bin

SBO Pruning Machine with bin
The SBO Cutting Machine is a machine that has been developed for the tops of crops in order to get a stronger plant, or just to cut,  cuttings to multiply

Technical data:

• Blade width 190 cm
• Height adjustment for cutting up to 70 cm
• Petrol engines: 2x 2-stroke 22 cc

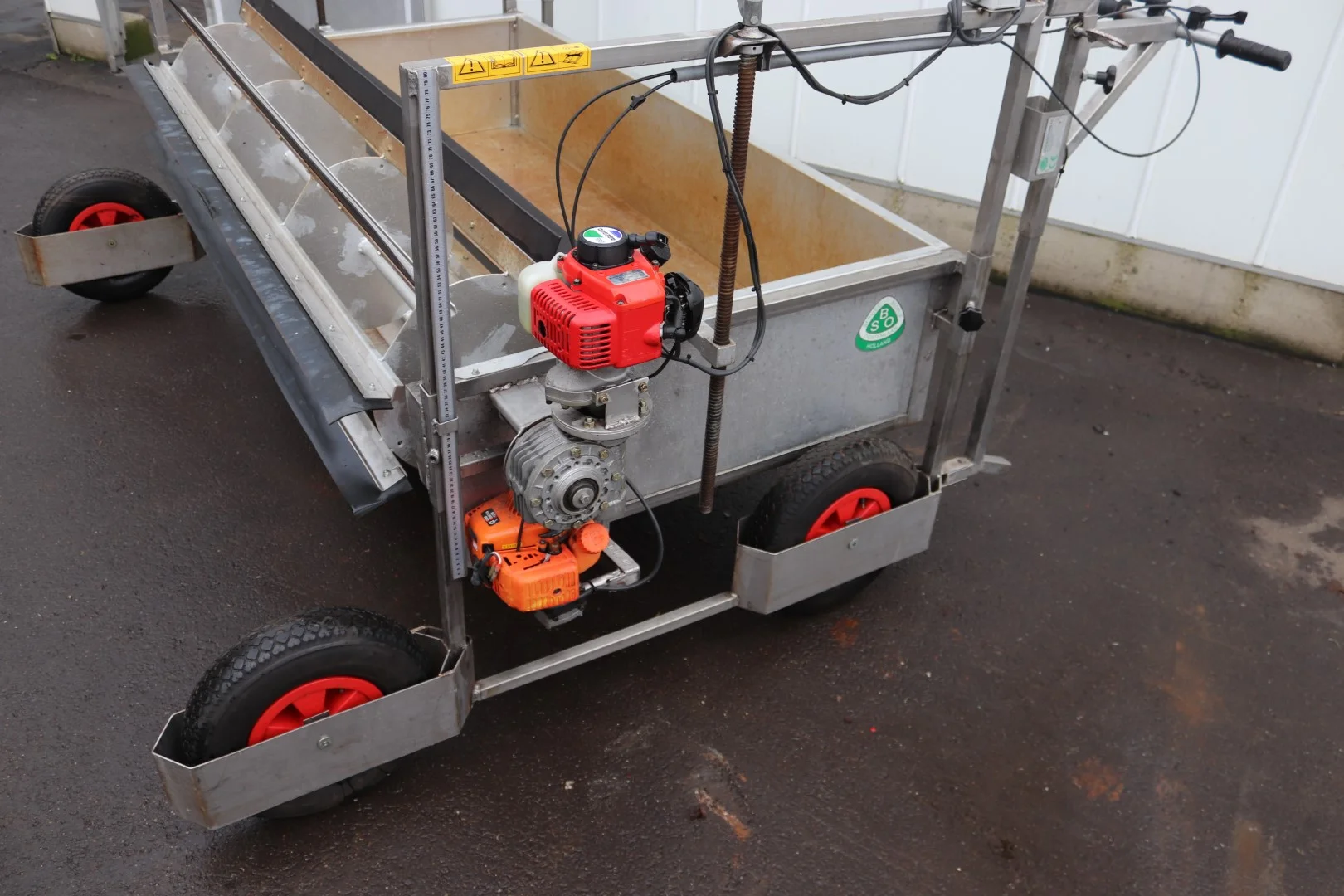

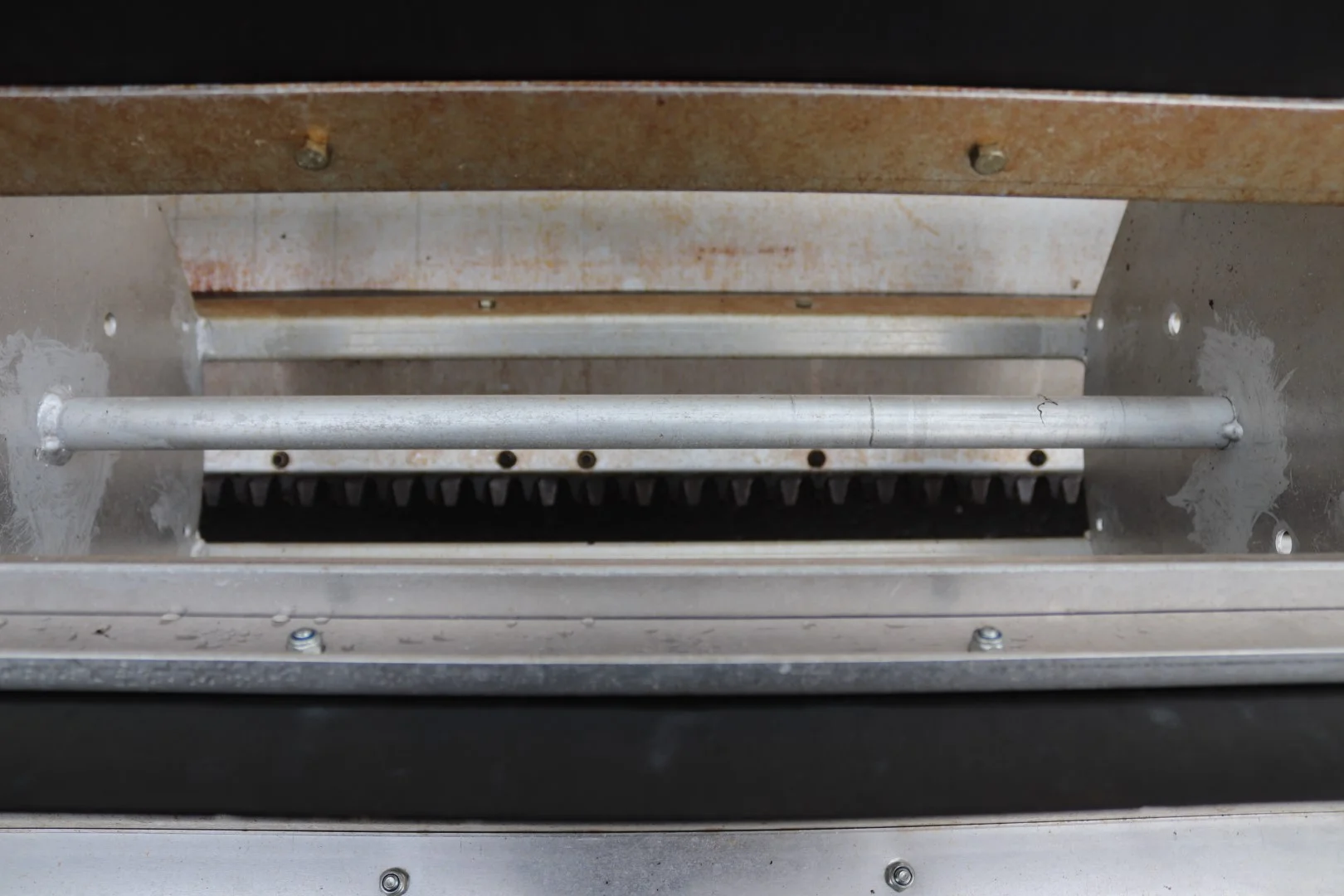

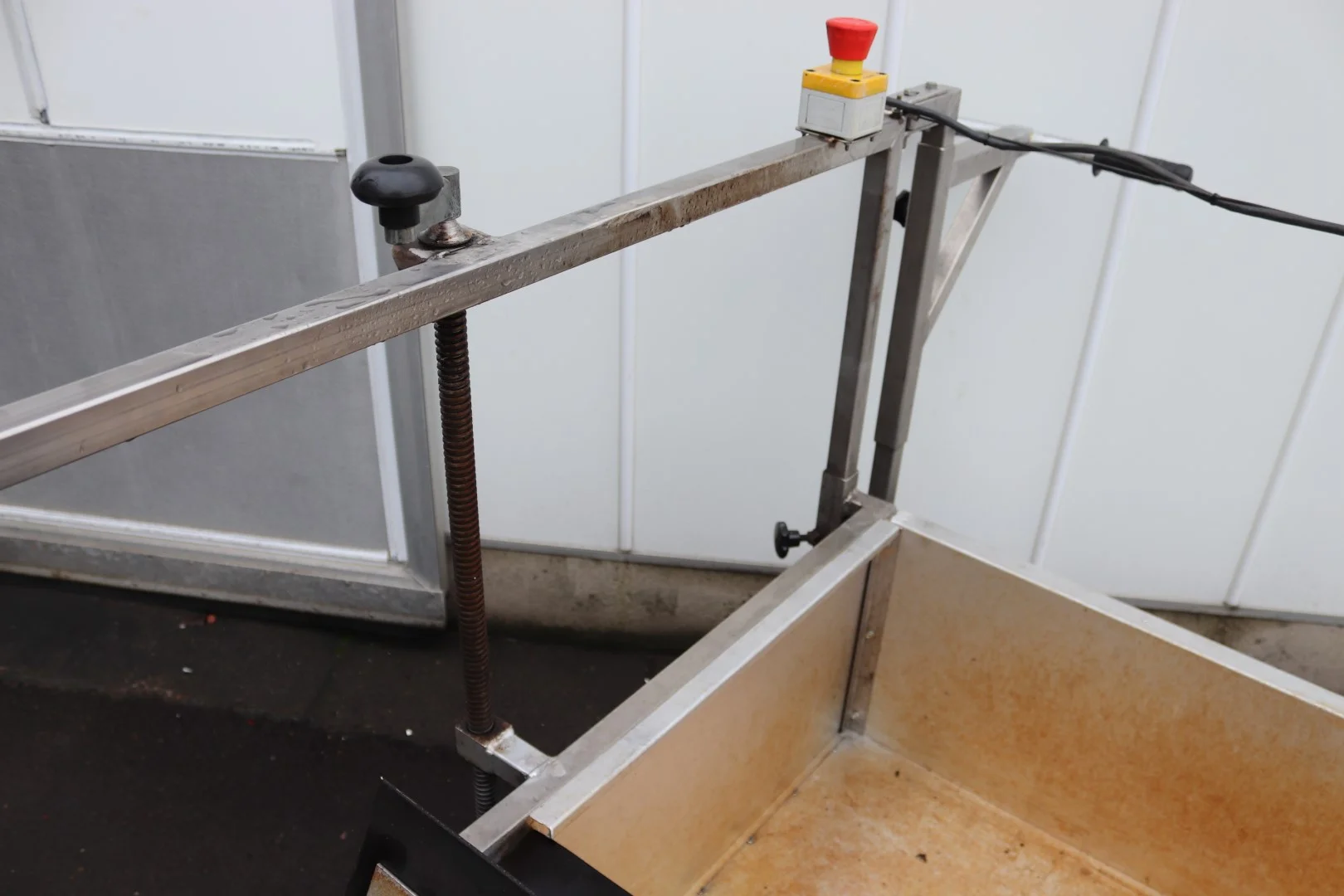

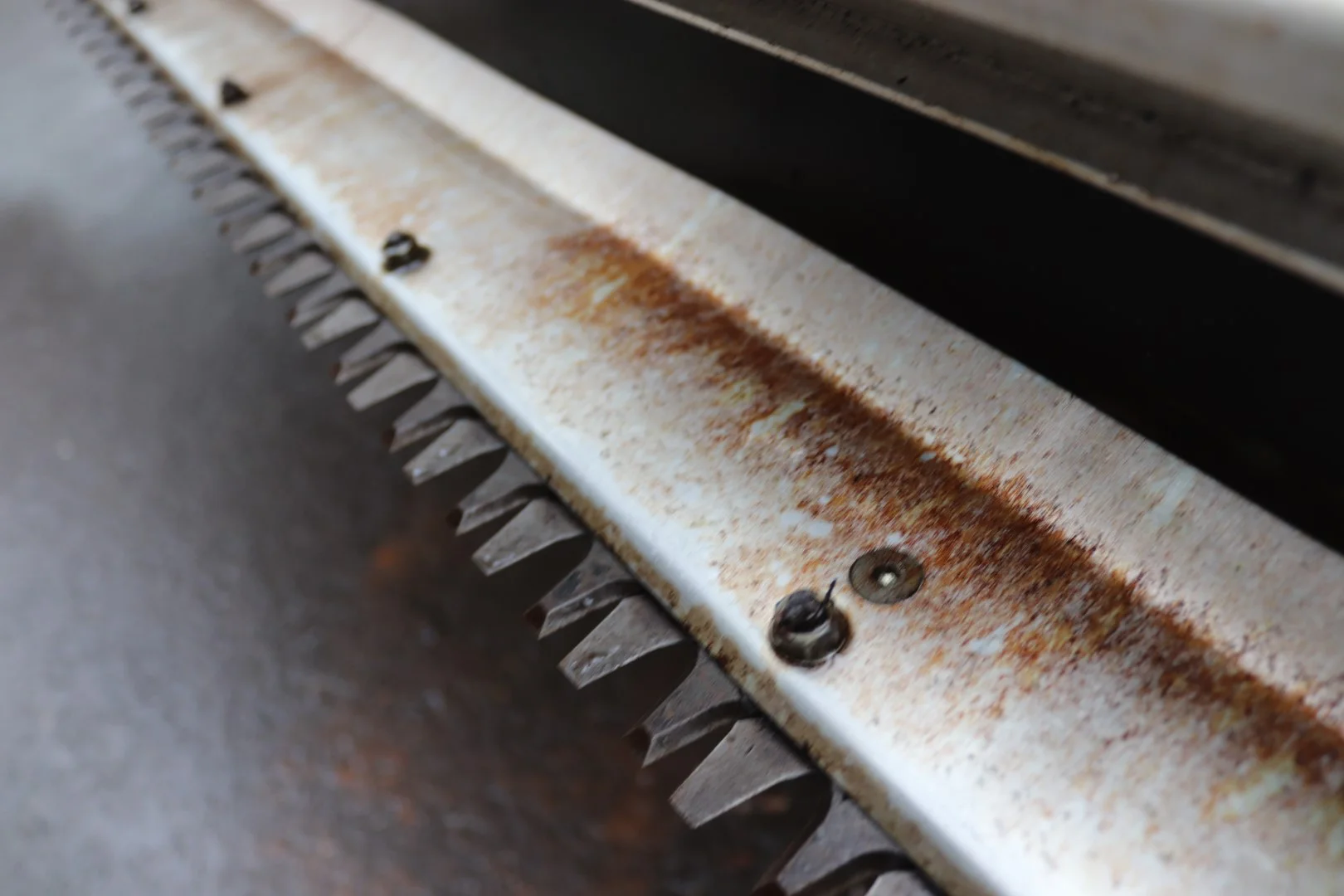

The machine is based on the principle of a hedge trimmer with two identical blades that move over each other. These so-called Japanese knives are razor sharp and will also thin and / or weak plants not 'chew'. Behind the pruning knife is mounted across the full width of a collection bin for cuttings with a depth of ± 65 cm. The height of the machine is adjusted by means of rotary spindles. The crop, the machine is introduced through an input reel 4 with blades on which brushes are mounted. This entry reel speed controllable, is driven by a gasoline engine The pruning knife is also powered by a separate petrol engine.

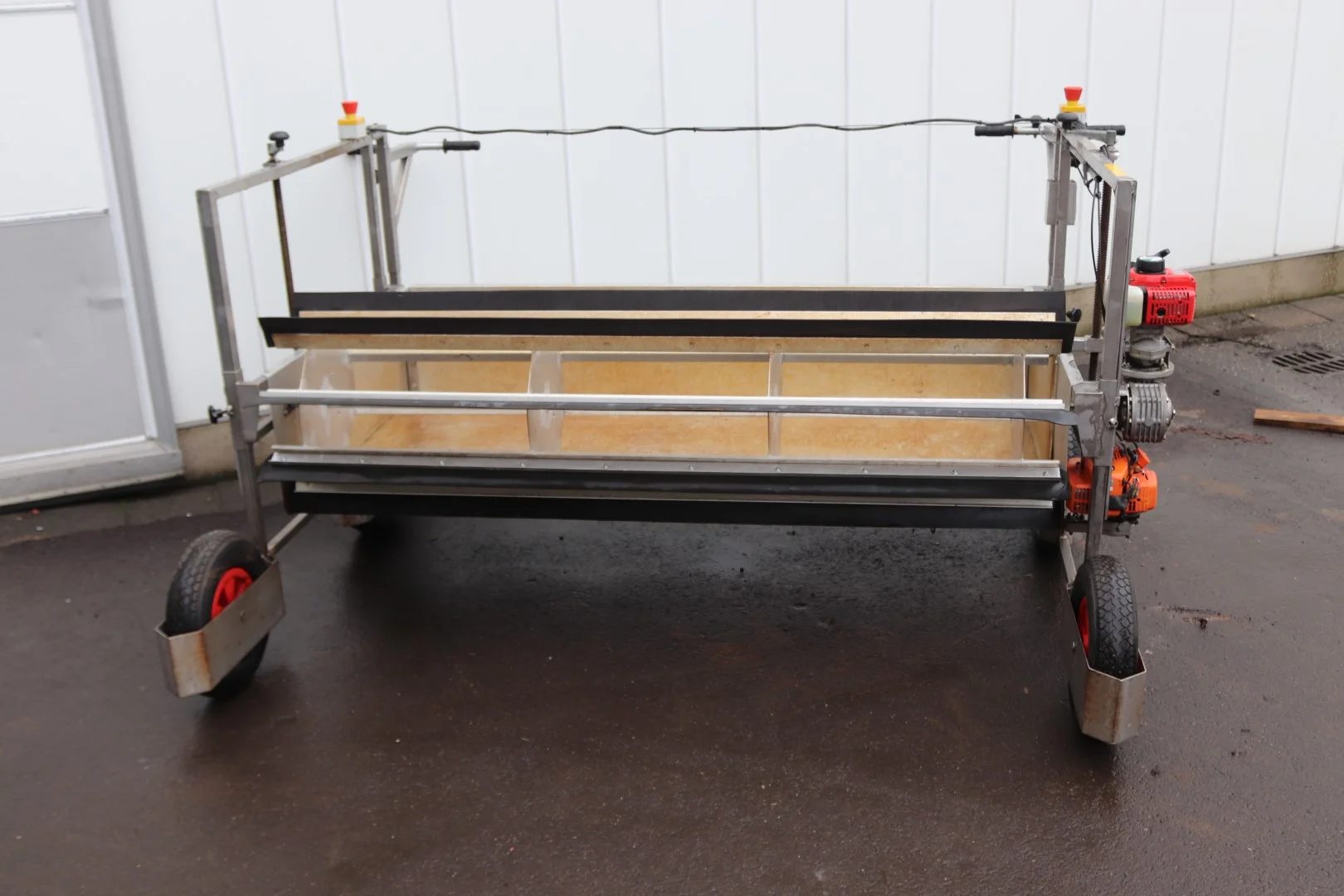

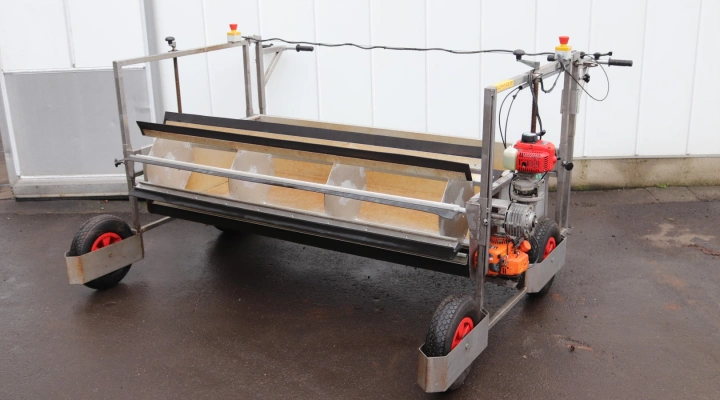

The whole is mounted on a sturdy frame and stands on four tire wheels.The outside of the wheels is also the maximum width (total) of the machine. The container has a flap on the right side to make it empty. On the side of the pruning knife crop guides may be mounted in order to possibly overhanging to guide crop to the knife.
