Description:

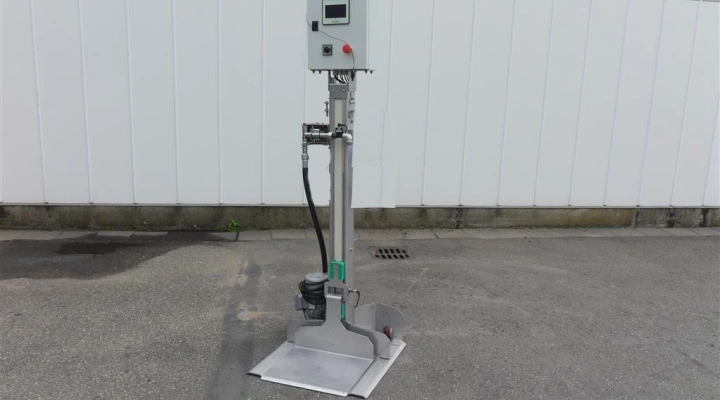

New QuickFill bucket filling system for flowers.
Without Dosatron

The QuickFill is a reliable system that guarantees continuity in your processing cycle. Clever details, new materials and a high capacity (up to 500 buckets/hour) make it the best solution for easy and fast bucket filling.

The Quick Fill does not need much space and is suitable for practically containers and buckets in any size. After filling the bucket, the tap swivels automatically. Flowers and leaves will stay in good condition, not stained by water. The Quick Fill is constructed of stainless steel and does not suffer from corrosion.

The QuickFill is safe and easy to use, thanks to the solid base. A stack of buckets is easily pushed onto the plateau that rises up to the right working height. When the machine is without buckets, the empty platform goes automaticly back to ground level.
With a QuickFill, there is no more unnecessary waiting for filled buckets and the continuity of your processing cycle is guaranteed.

Unique advantages of the bucket filling machine for flowers

A construction with clever details
The QuickFill is the best solution to guarantee continuity in your processing cycle. Clever details and new materials make a very trustworthy and essential machine.

Compact and fast
The QuickFill does not take up much room and is suitable for several types of buckets. The high capacity ensures fast bucket filling (up to 500 containers/hour).

No more heavy lifting
A stack of containers can be pushed easily and directly onto the tray. The tray automatically moves to the correct working height.

A unique filling technique
The tap swivels automatically after filling. Water drops do not fall on top of flowers. So stains and scale are a thing of the past.

Safe and robust
Thanks to the solid base and the clever construction, the QuickFill is safe. The system is made of stainless steel, so it will not suffer from corrosion

Technical description bucket filling system

• Type: QuickFill
• Fill with: Water (Optional (but recommended): flower food dispenser to fill with water with flower food)
• Capacity: Up to 500 containers / hour
• Bucket type: Buckets (round, max. Ø330 mm), Containers (max. 400x300 mm, l x w)
• Dimensions: Length: 715 mm, Width: 640 mm
• Weight: Approx. 65 kg
• Power supply: 230 V, 1 phase and neutral, 50 Hz
• Connection: 5m electricity cable with plug, 400 V, 16 ampere.
• Connected load: 0,18 kW
• Water: 3/4” hose socket with GEKA-coupling, air pressure minimum 2 bar, maximum 7,5 bar
