Description:

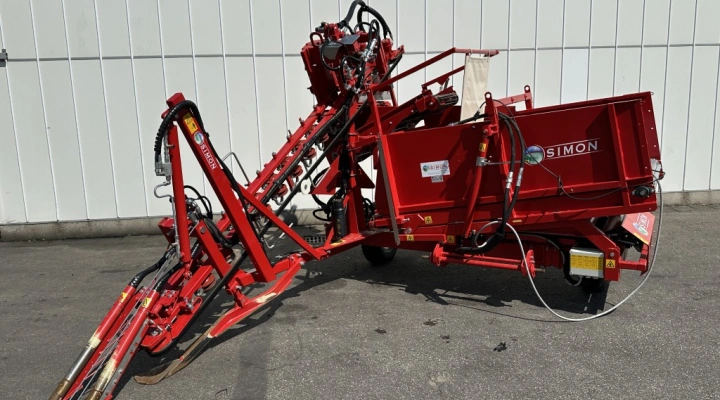

Simon S3B carrot harvester tractor-mounted, single-row with hopper

The SIMON S3B is a tractor-mounted, single-row carrot harvester developed for efficient harvesting of root vegetables. It is characterized by a compact design, easy handling, and a high discharge height, making it suitable for various field conditions. The machine is equipped with a collection hopper mounted via a three-point linkage system.

Key Features:

• Mounting: Three-point linkage for easy attachment to tractors.
• Design: Compact and user-friendly, allowing good maneuverability in the field.
• Discharge: High discharge height 3 meter for efficient transfer of harvested carrots into trailers or containers.
• Operation: Designed for gentle handling of carrots to minimize damage during harvesting.
• 3-point hitch for tractors with at least 80 HP
• Fully hydraulic operation via tractor hydraulics
• Electrically controlled from the tractor – control and operation box in the cabin
• Long clamping belt (3.75 m) for gentle crop intake
• Clamping belt extends beyond the top remover
• Two leaf-lifting torpedoes with hydraulic drive
• Precise depth control directly at the share (no tractor-mounted support)
• Adjustable speed for clamping belt and sorting belt
• Dirt scraper
• Sorting and loading belt (28 mm) with PVC coating
• Wind protection sail
• Drop curtain for gentle transfer of carrots, hydraulically adjustable
• Hopper capacity: 1.5 m³ (approx. 600–800 kg)
• Chassis: Wheels, Ø 65 cm x 19 cm
