Description:

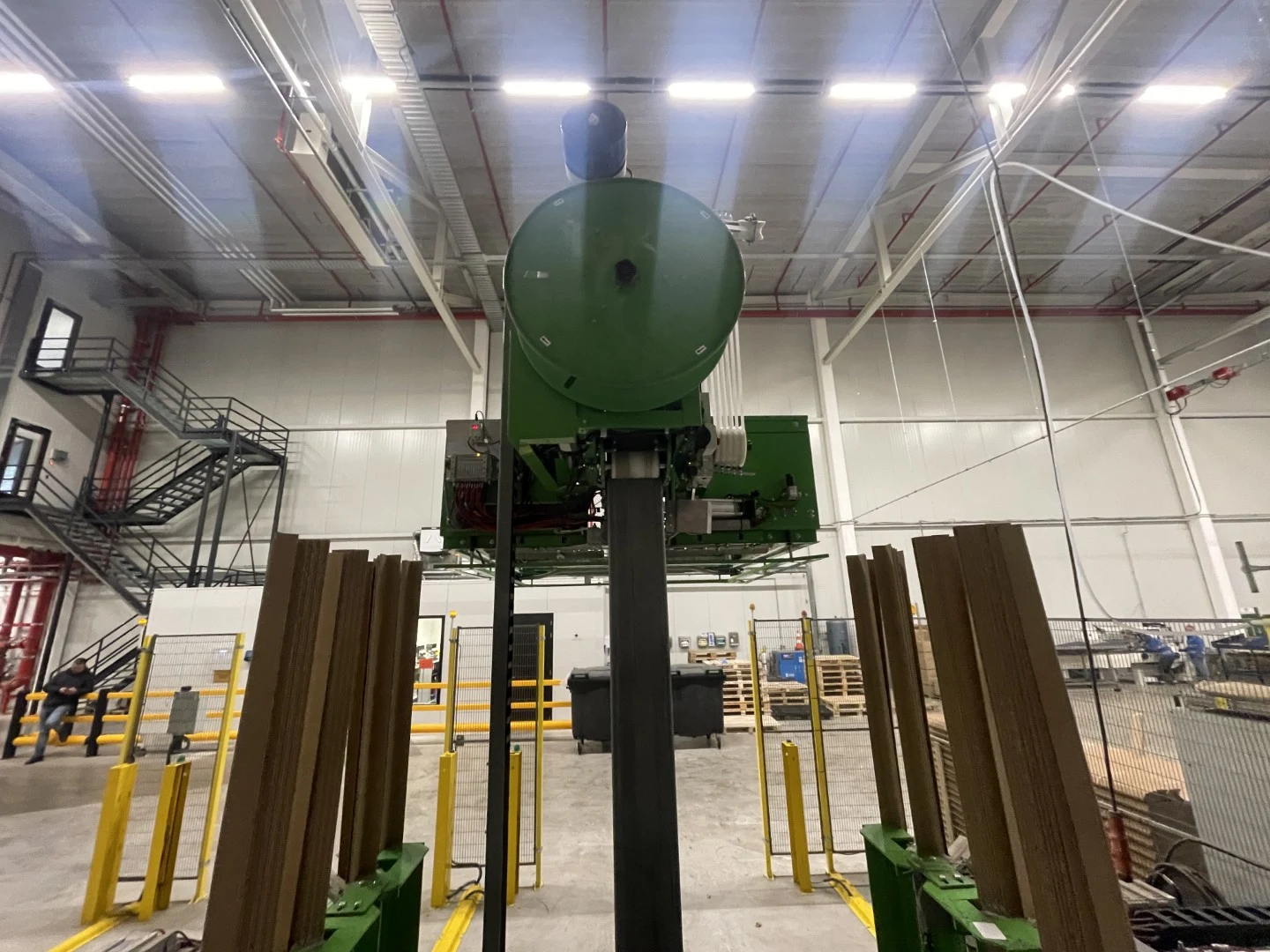

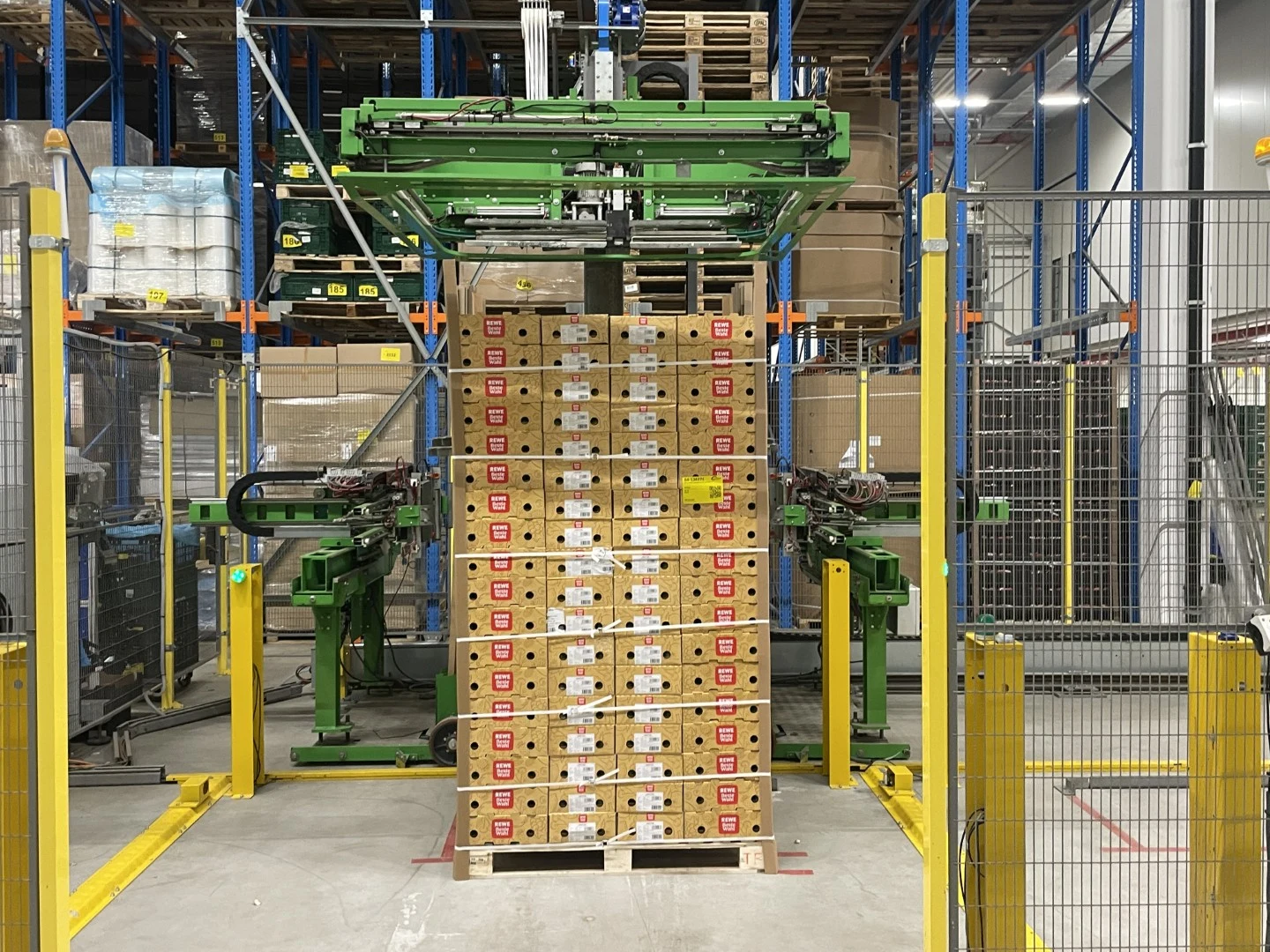

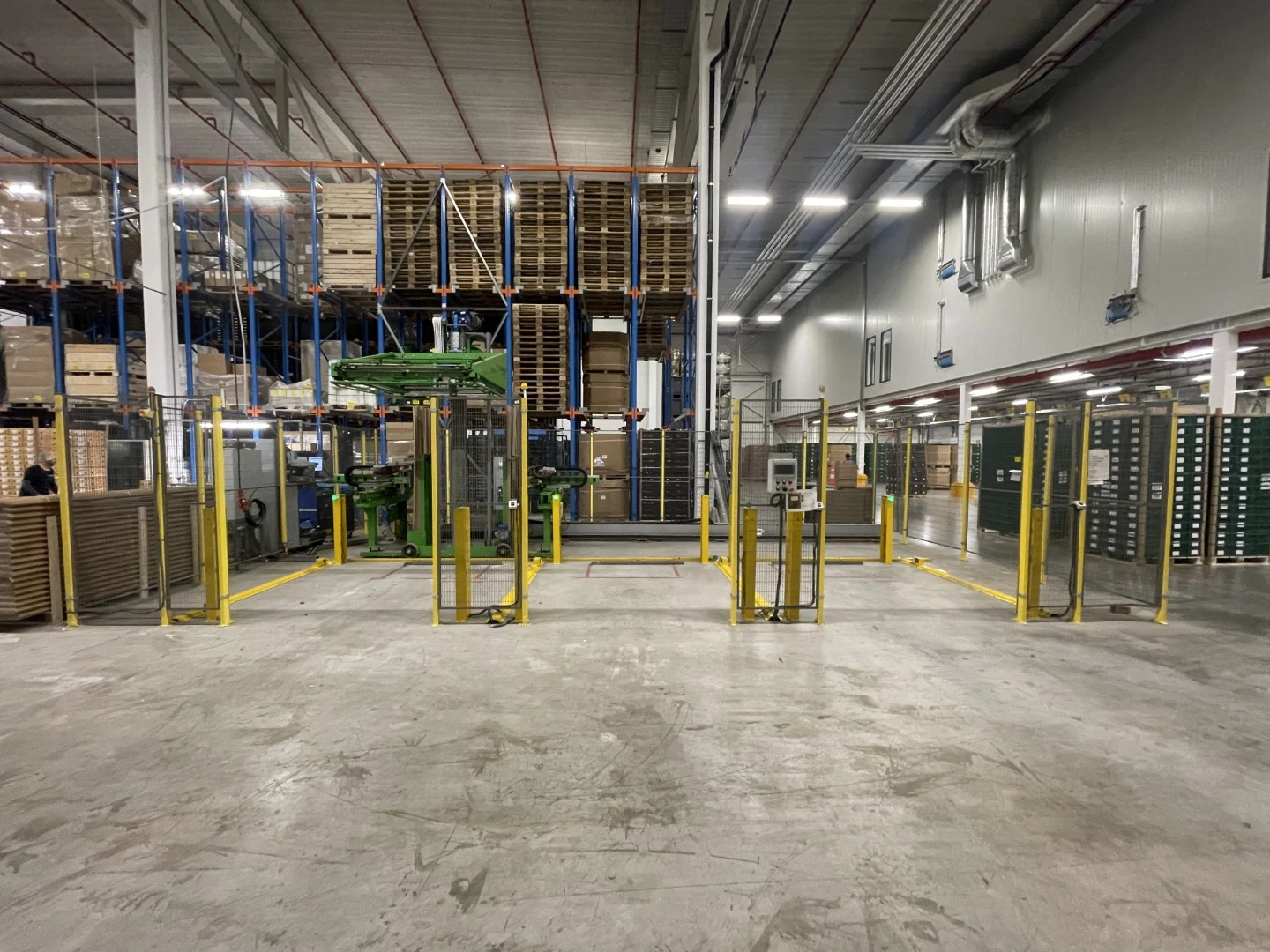

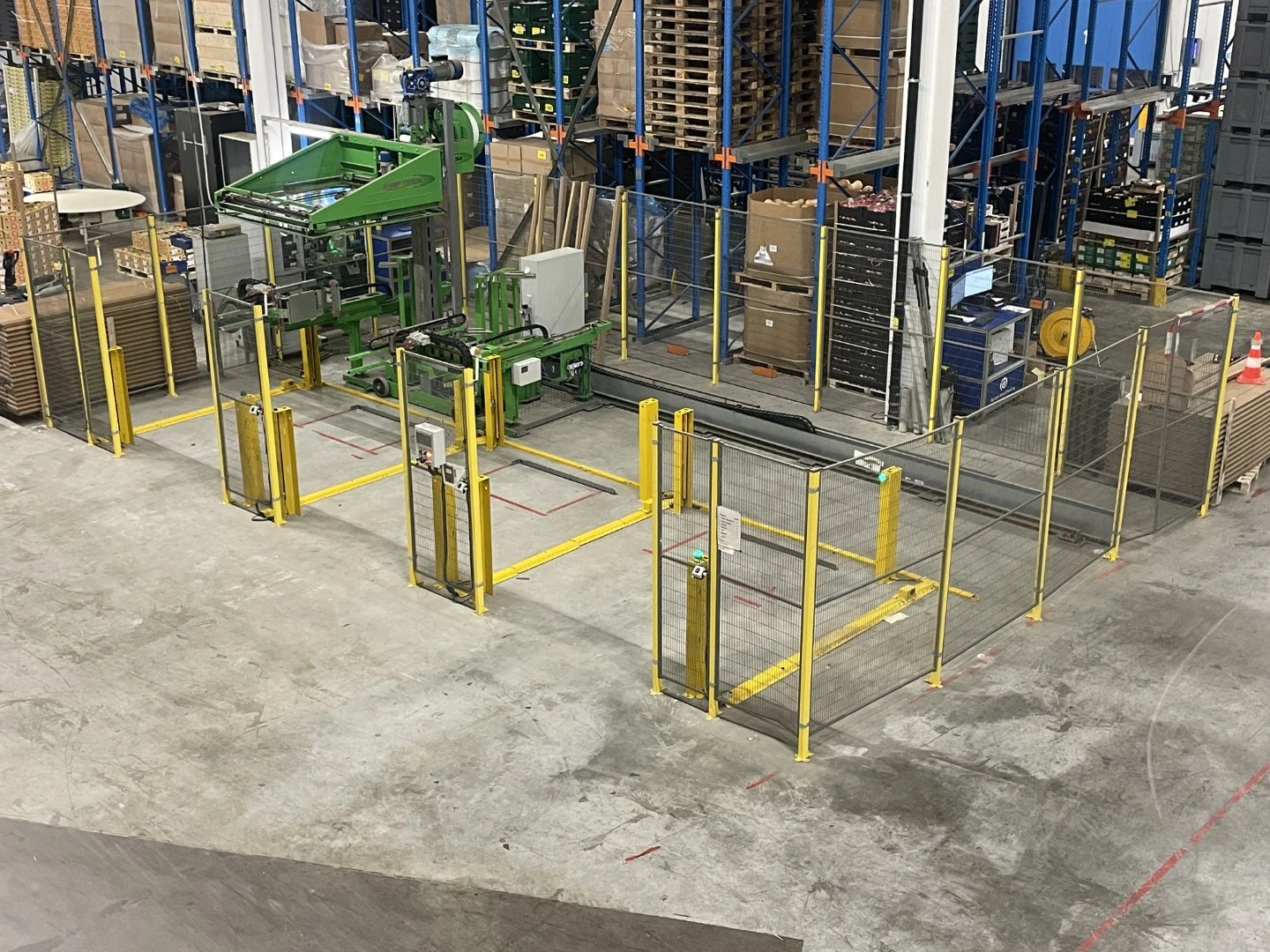

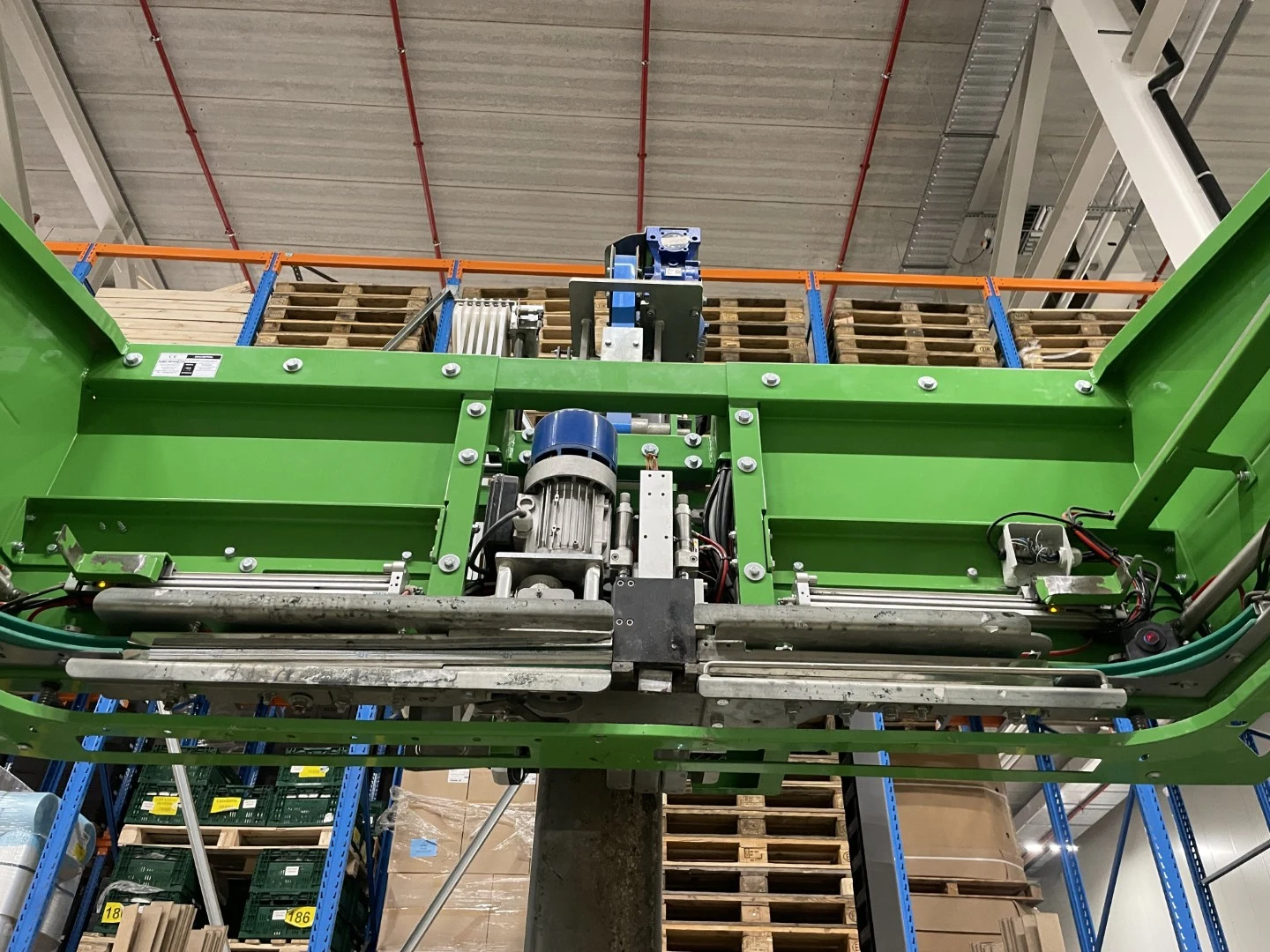

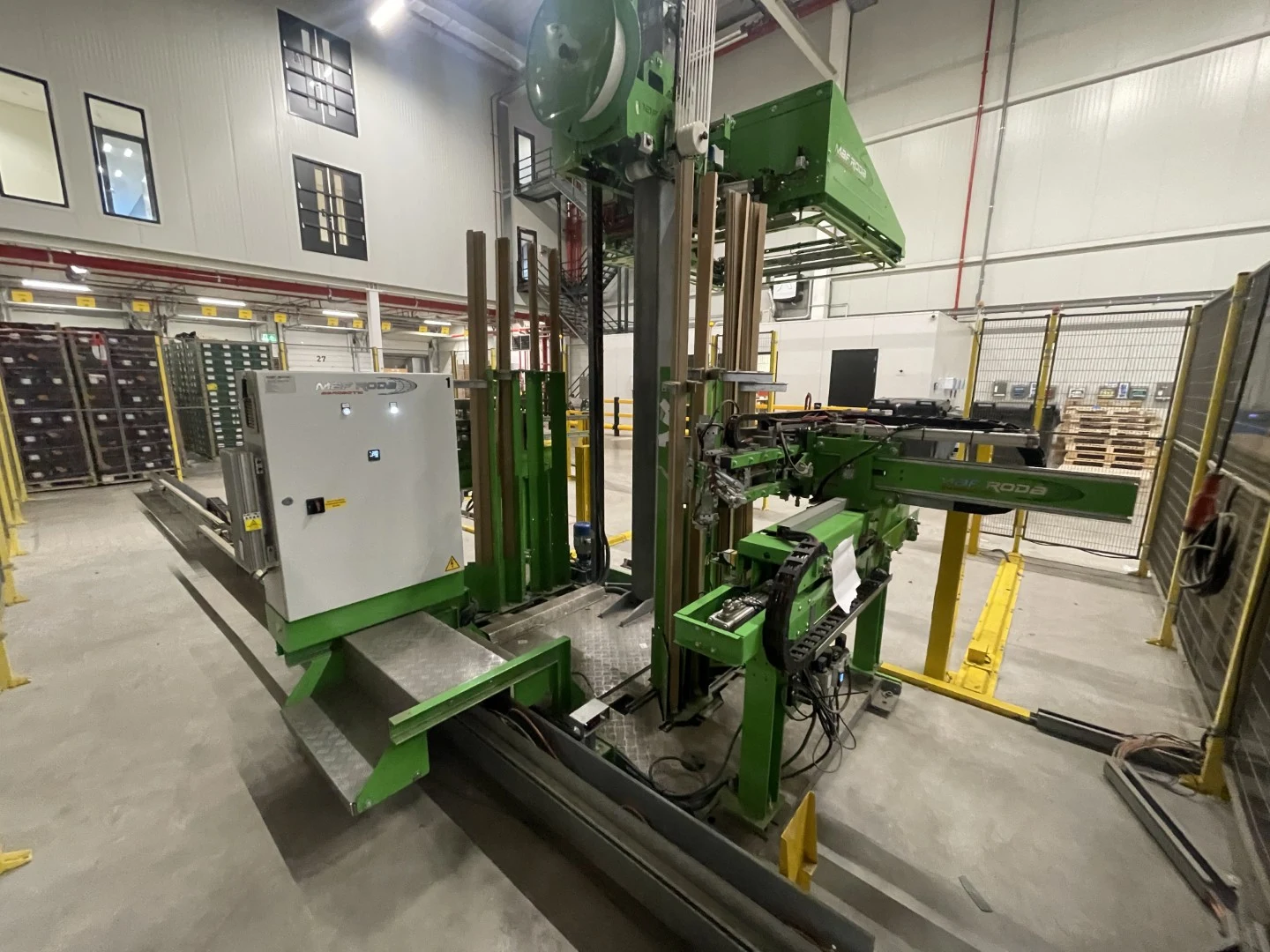

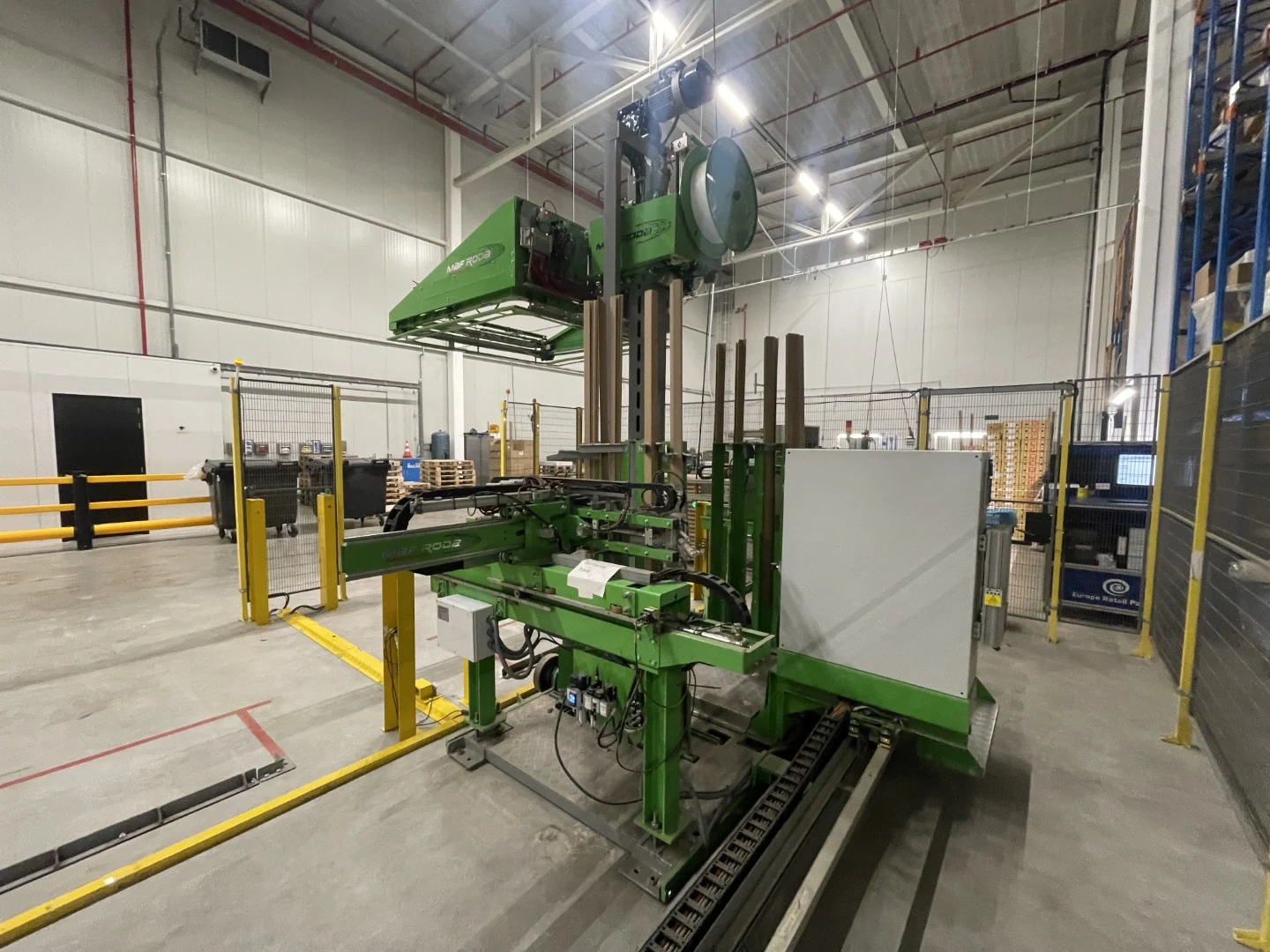

Maf Roda FLA400 mobile automatic pallet strapping machine with corner protector system and 3 stations

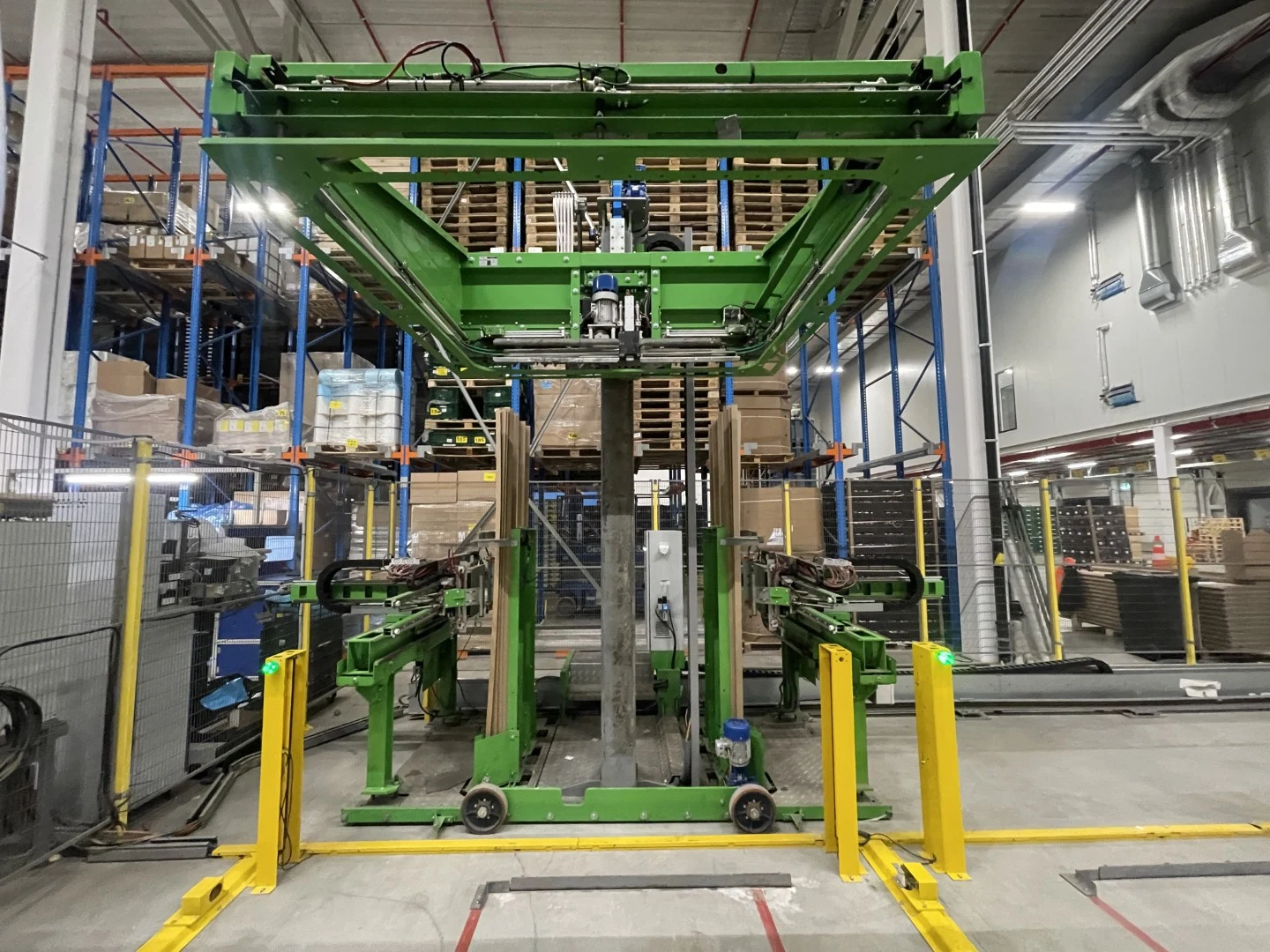

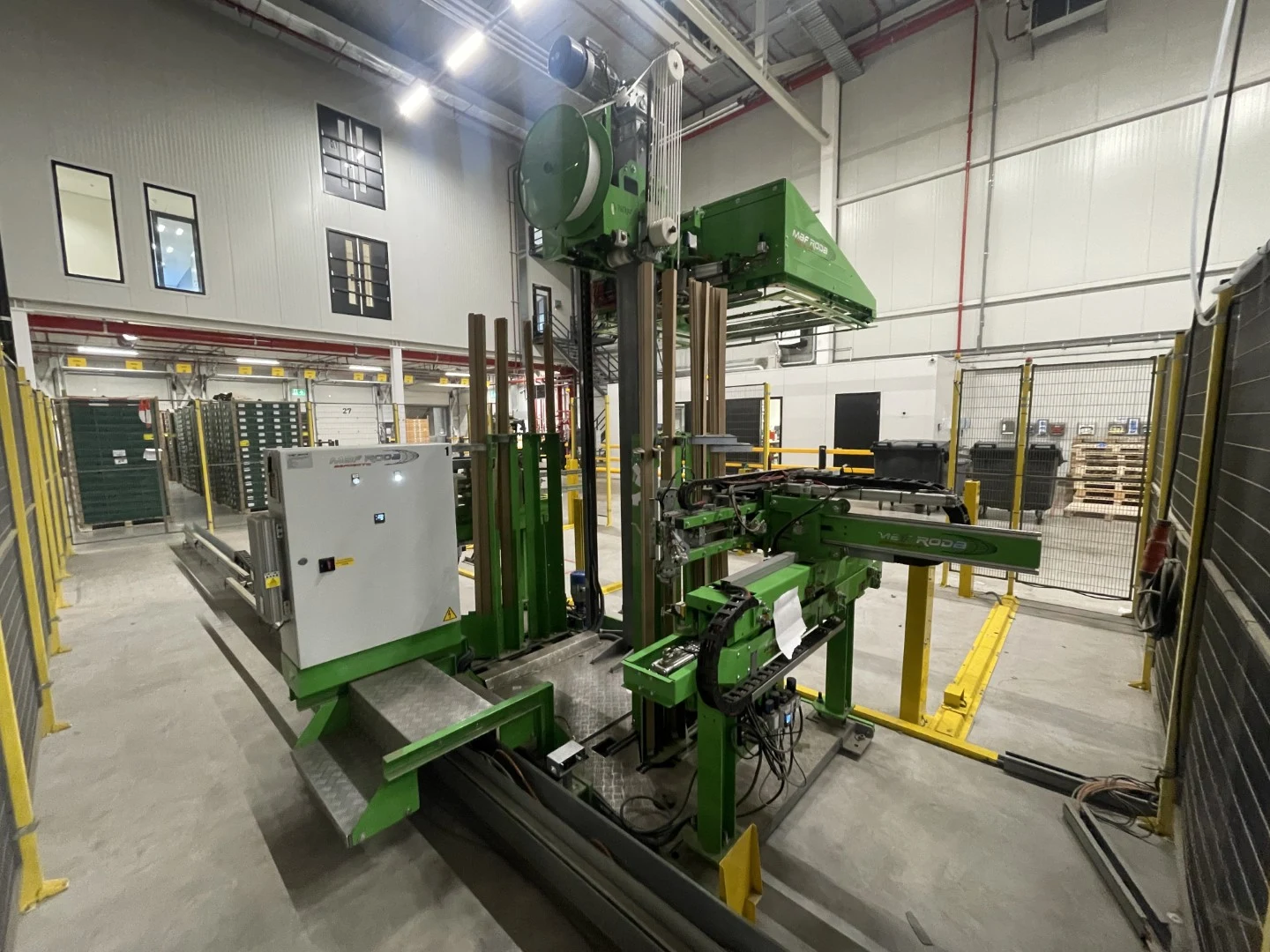

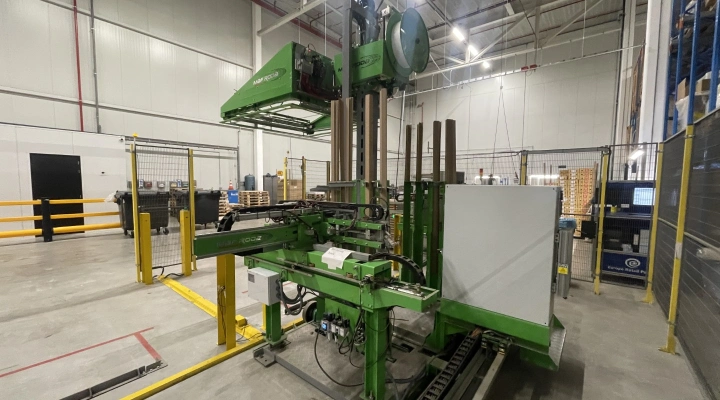

MAF Roda FLA-400 mobile strapping machine with corner protector system

Automatic pallet strapping machine for securing palletized products. The FLA-400 can process PP strapping and, depending on the configuration, PET strapping. This version is mobile and equipped with a system for applying corner protectors (cantoneras).

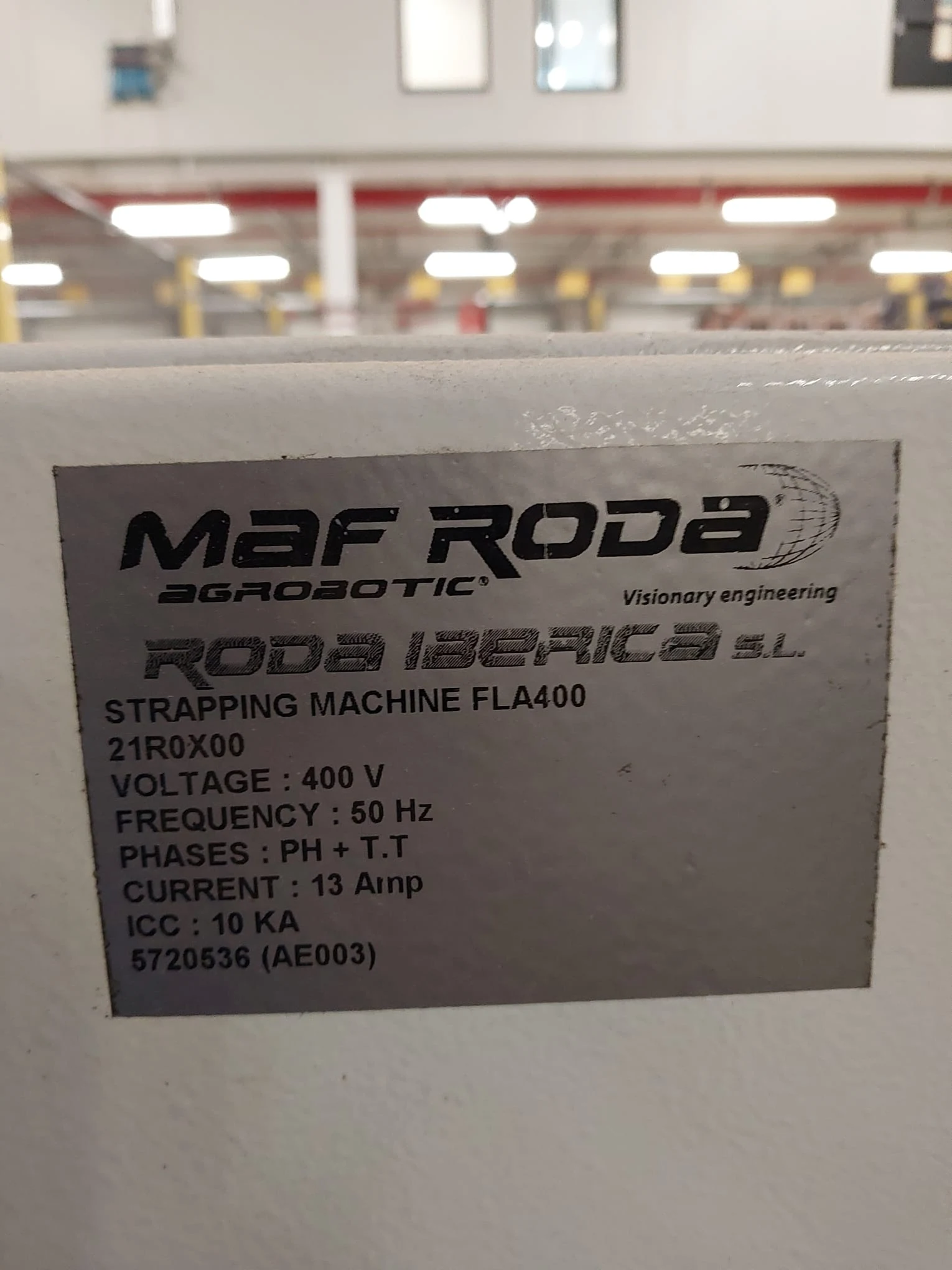

• Brand: MAF Roda / Roda Iberica
• Model: FLA-400
• Application: Automatic pallet strapping

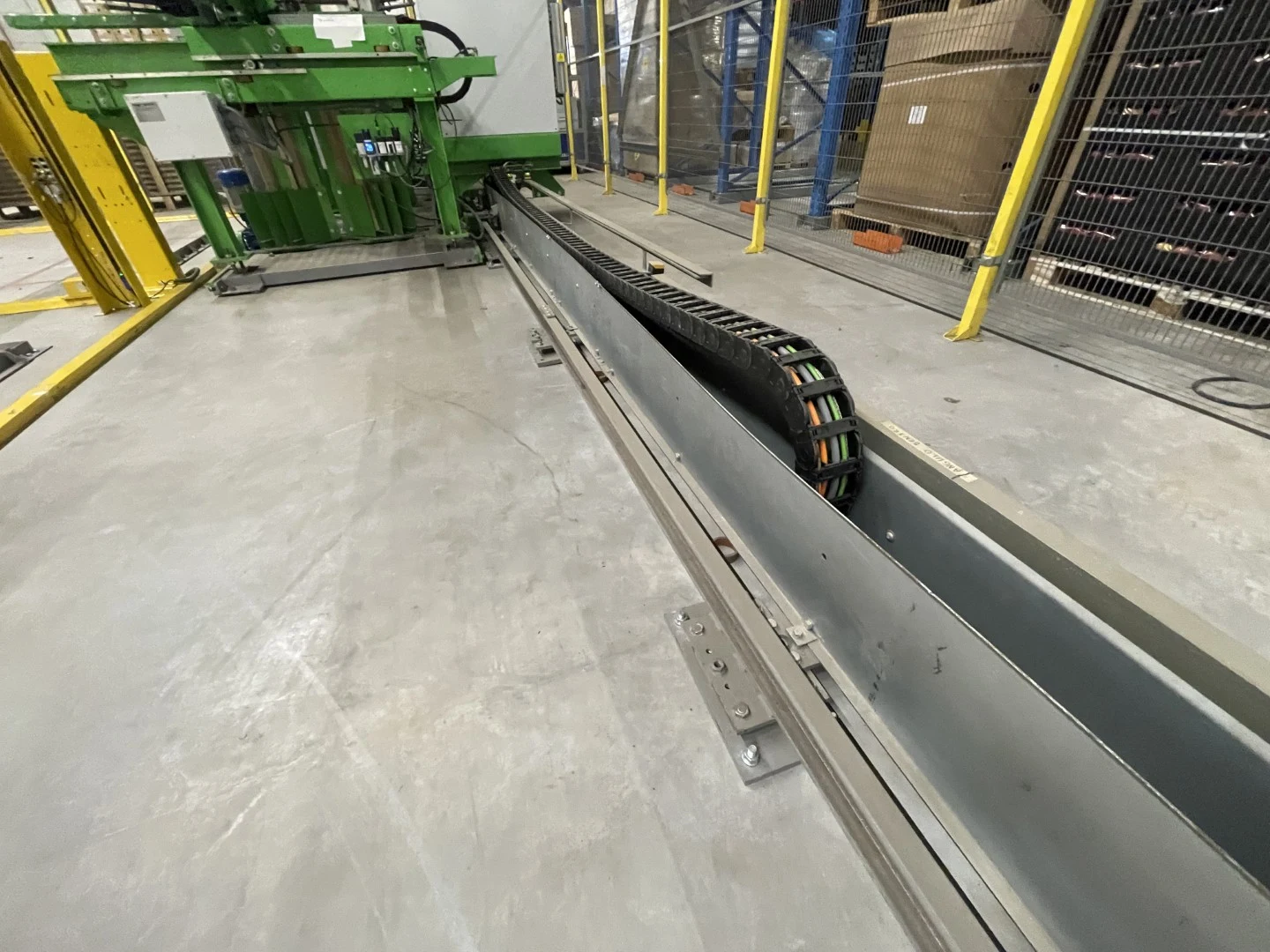

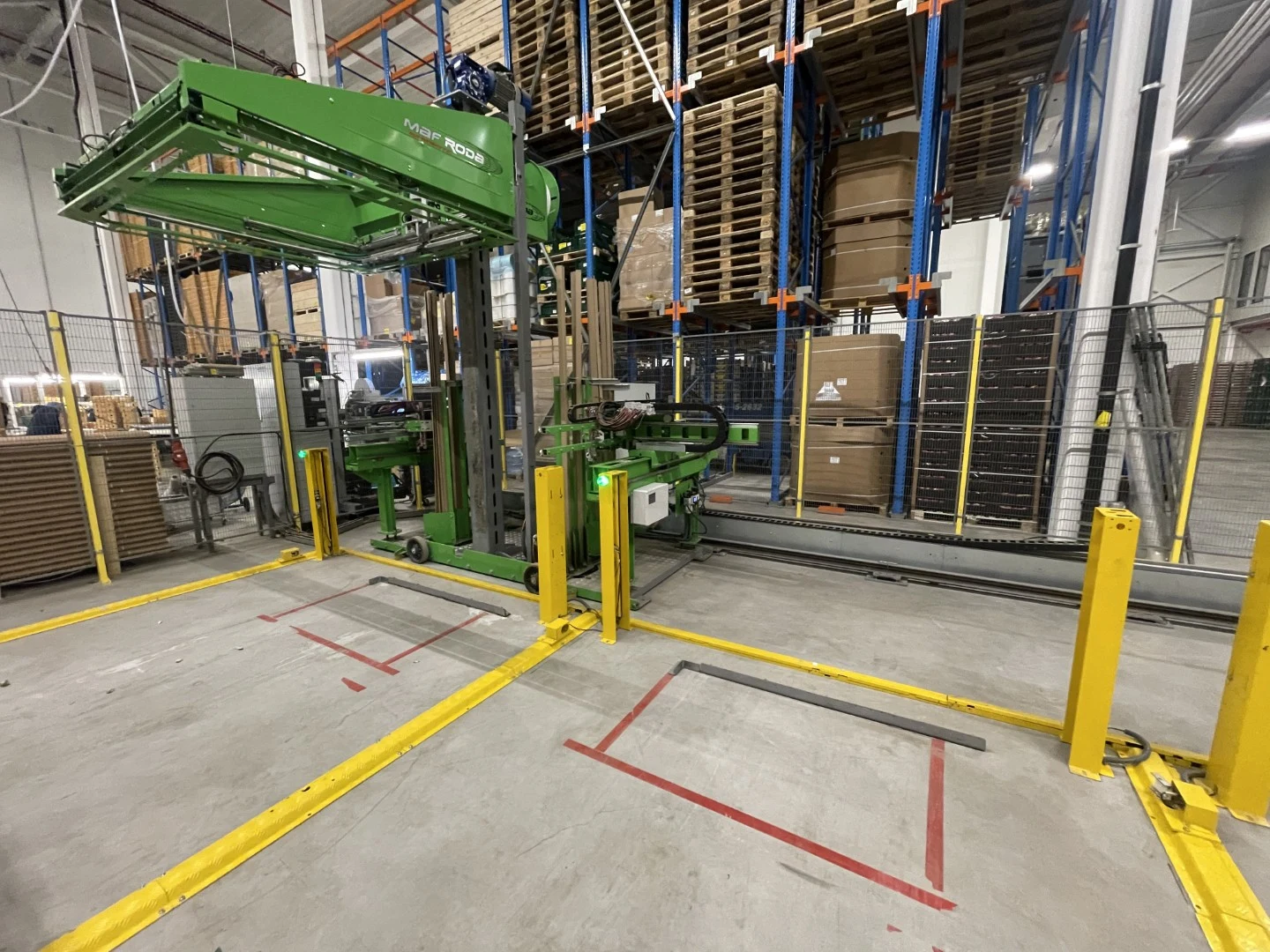

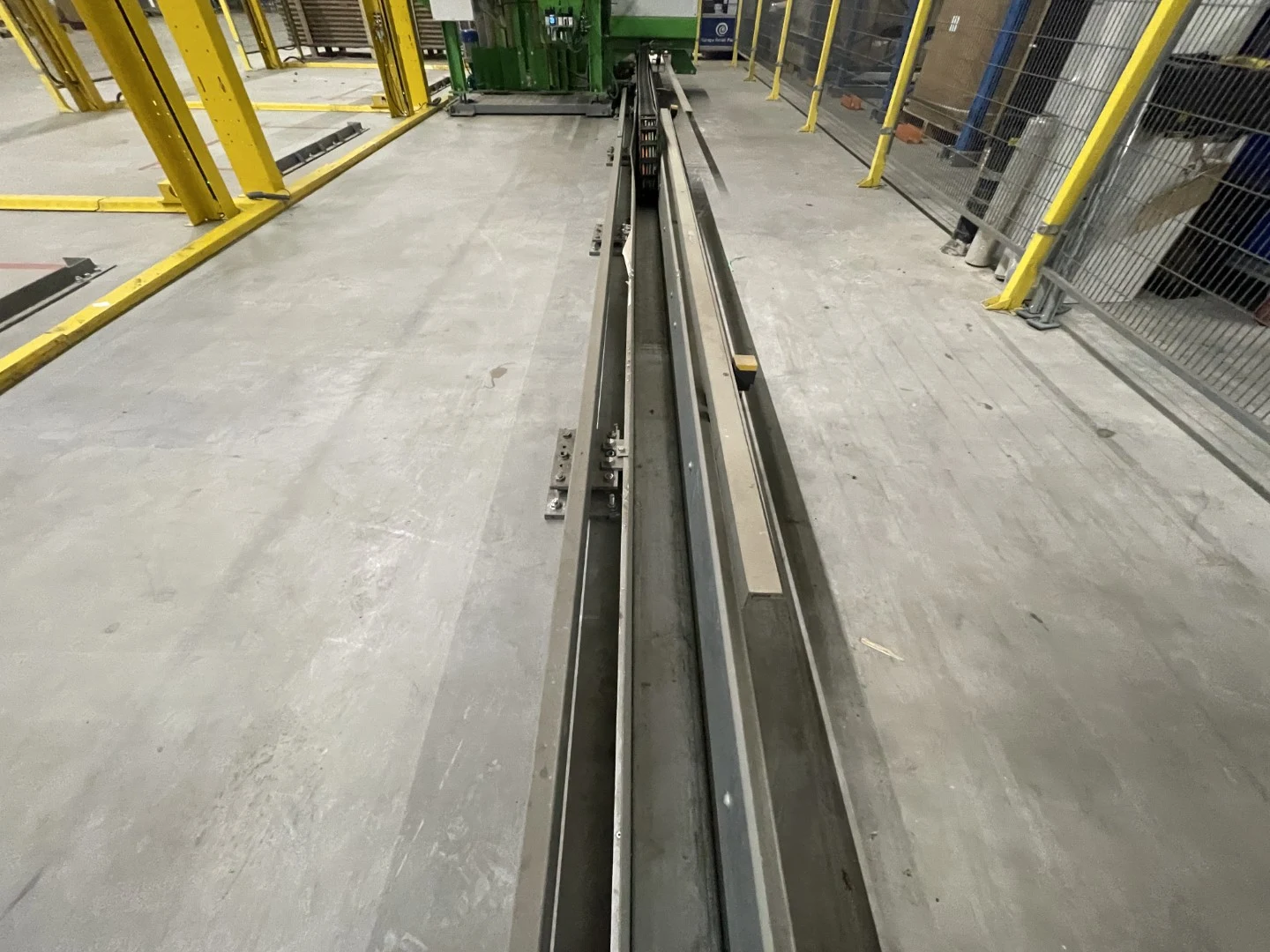

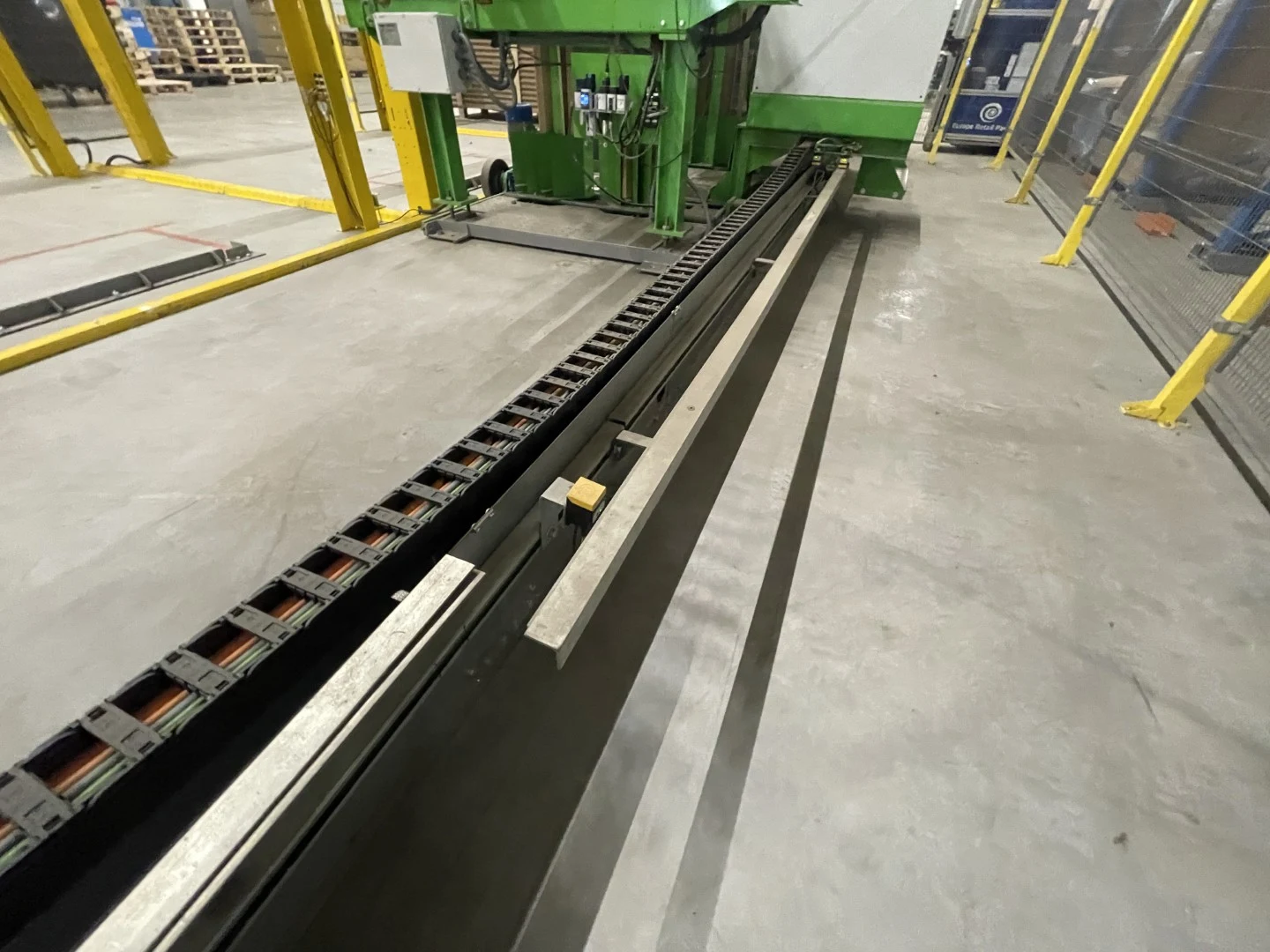

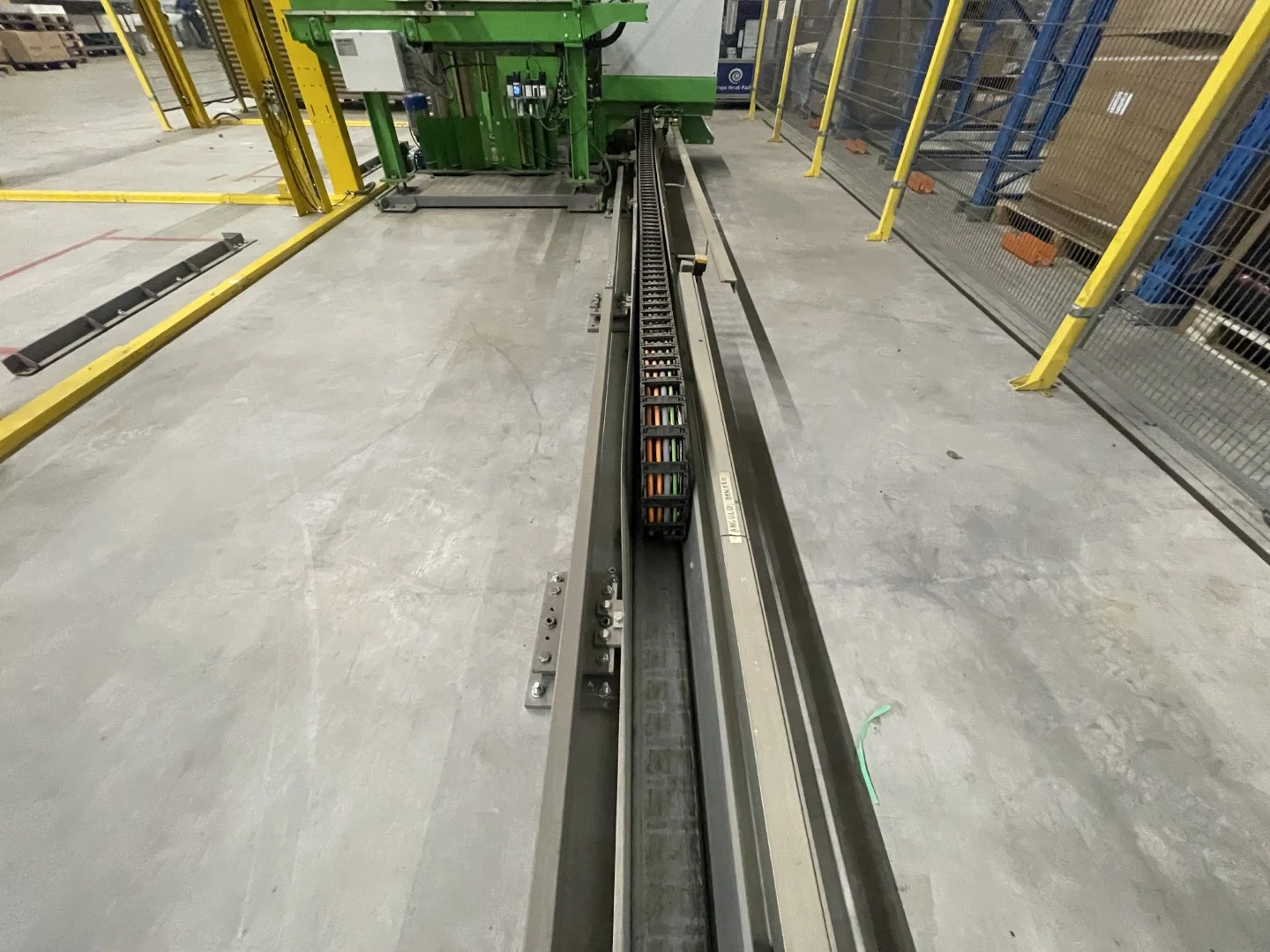

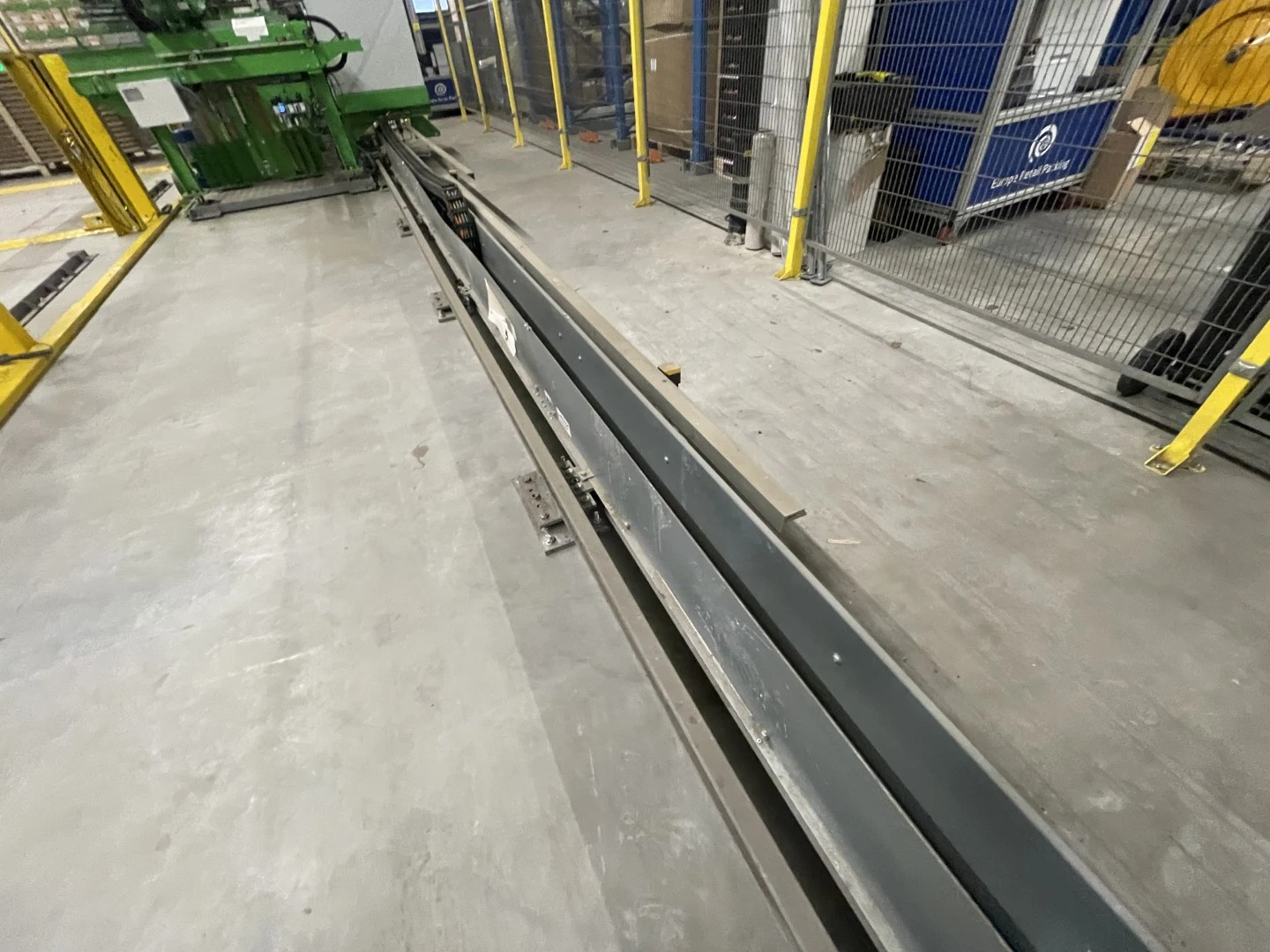

• Version: Mobile
• Strapping material: PP, according to the manual also suitable/equipped for PET
• Strap width: 12 mm
• Strap thickness: 0.5–0.9 mm
• Adjustable strap tension: 20–120 kg

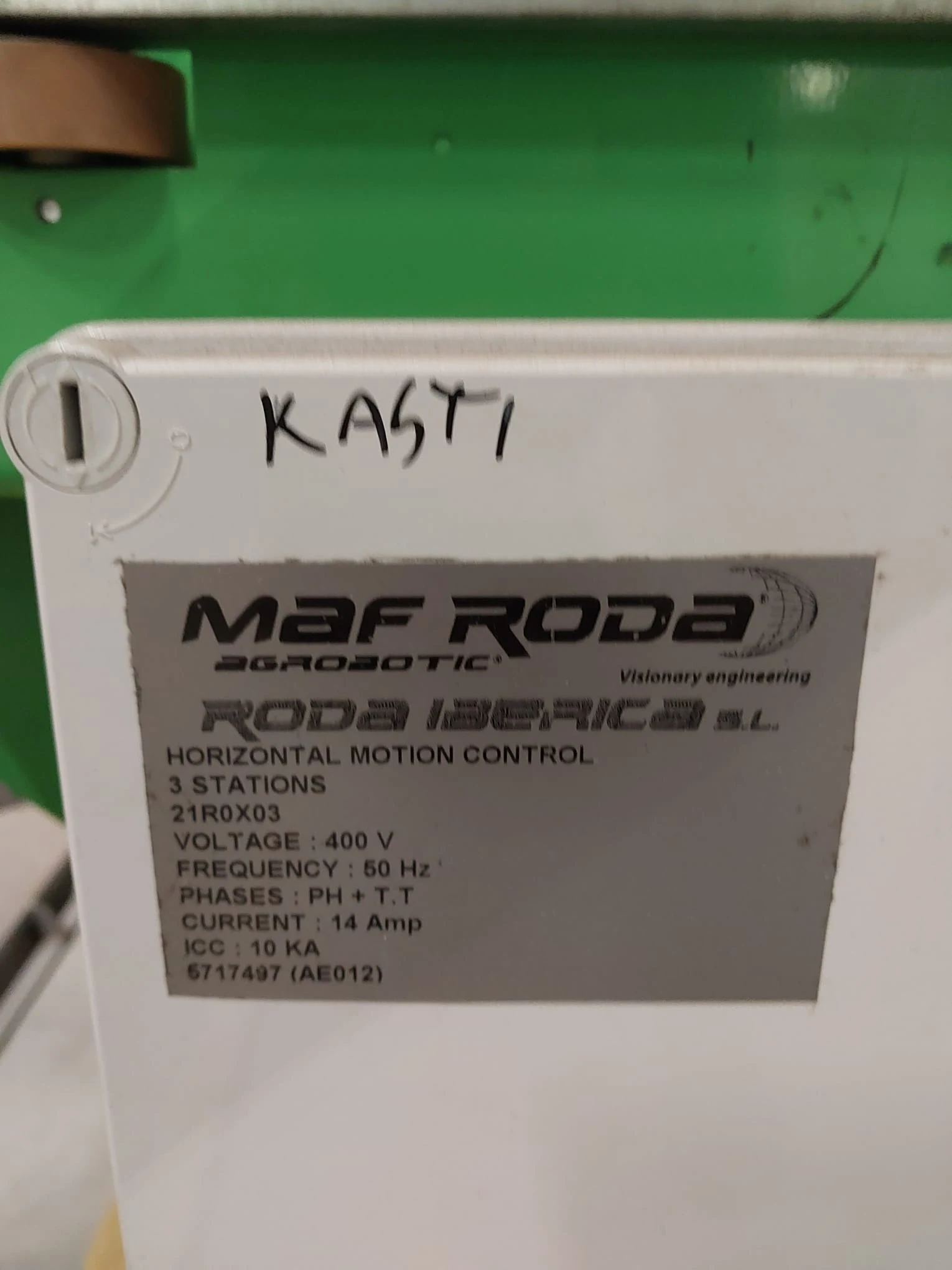

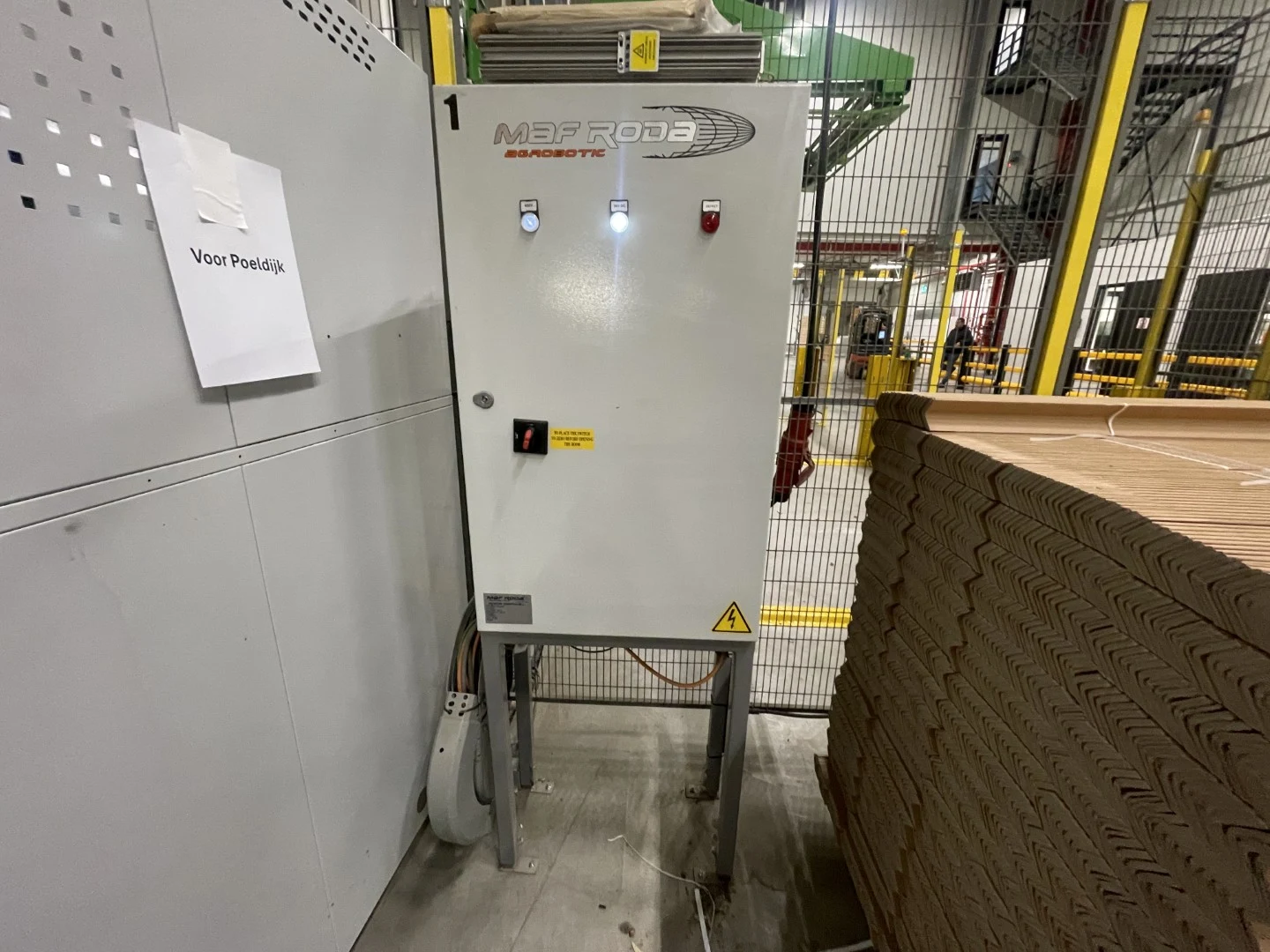

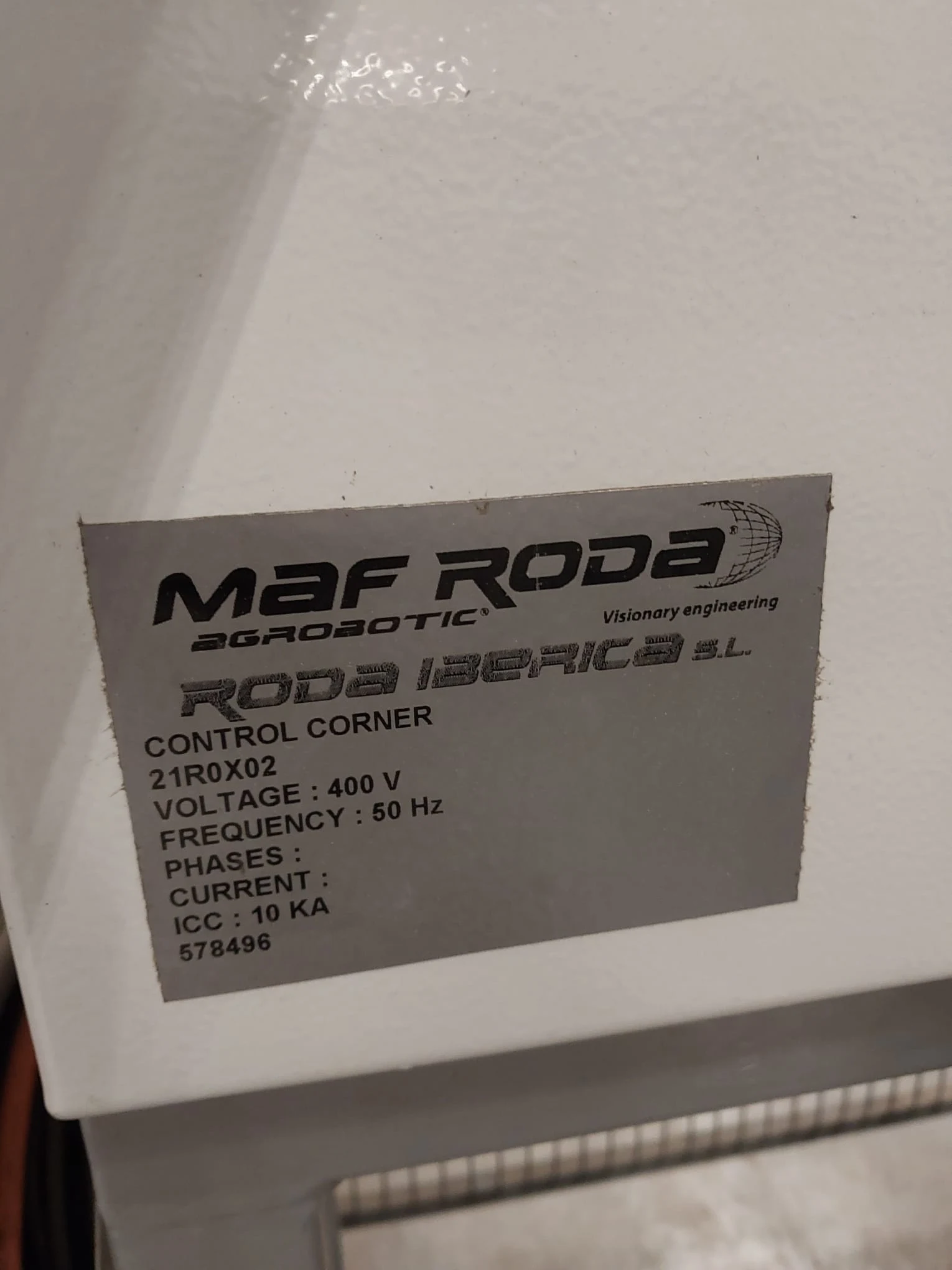

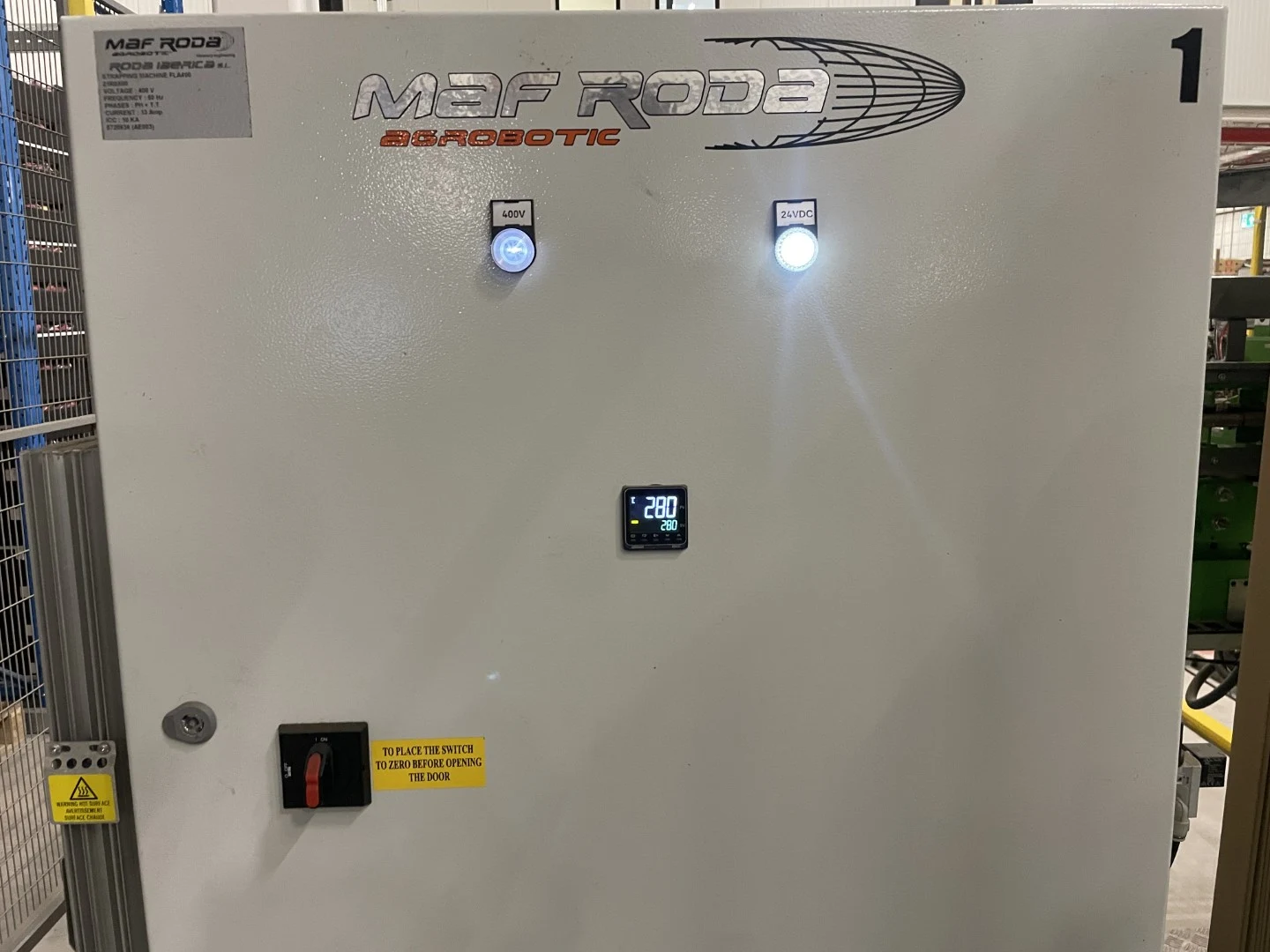

• Supply voltage: 400 V, 50/60 Hz, 3-phase + earth

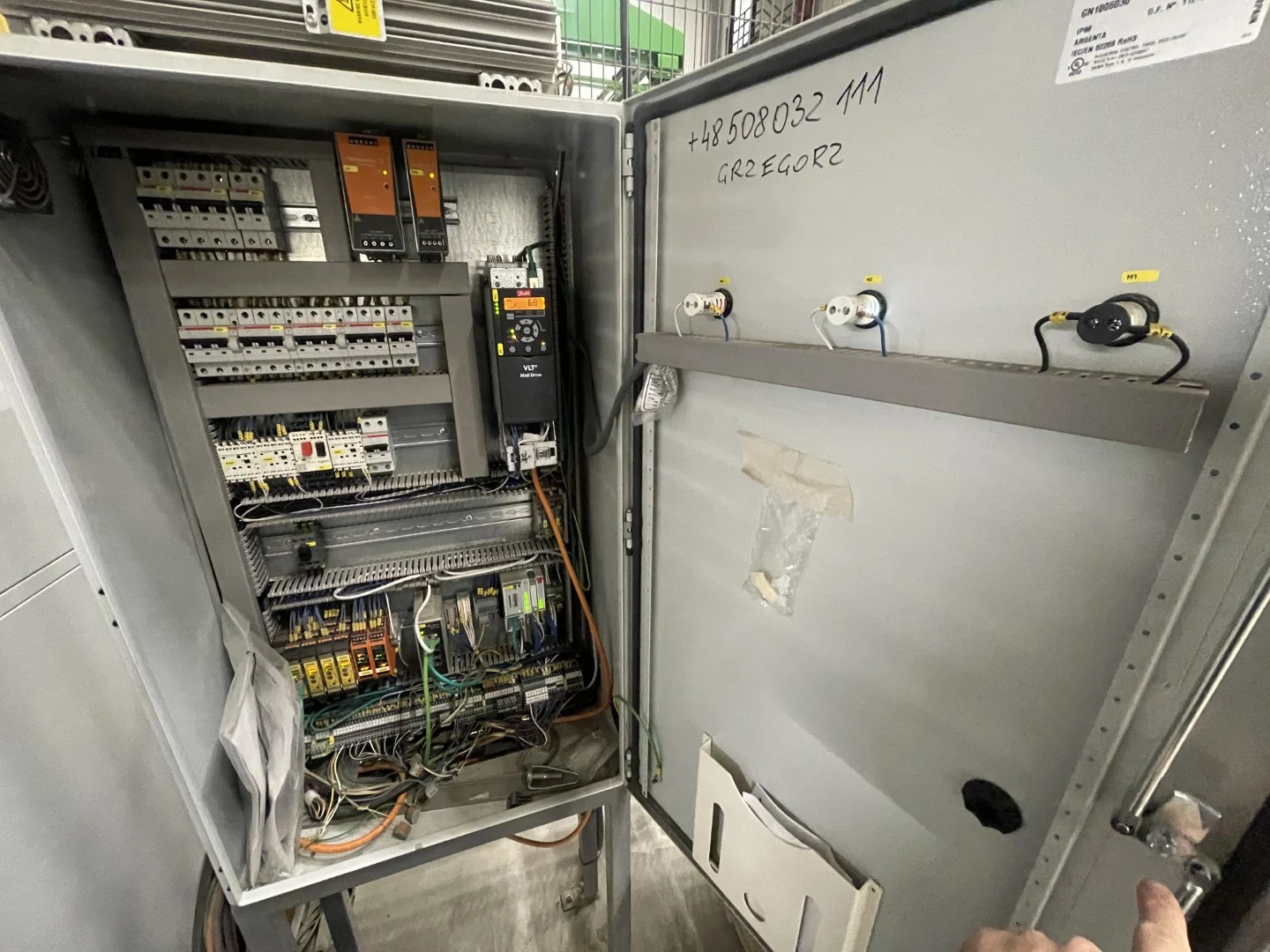

• Control voltage: 24 V DC
• Electrical consumption mobile version: 14 A

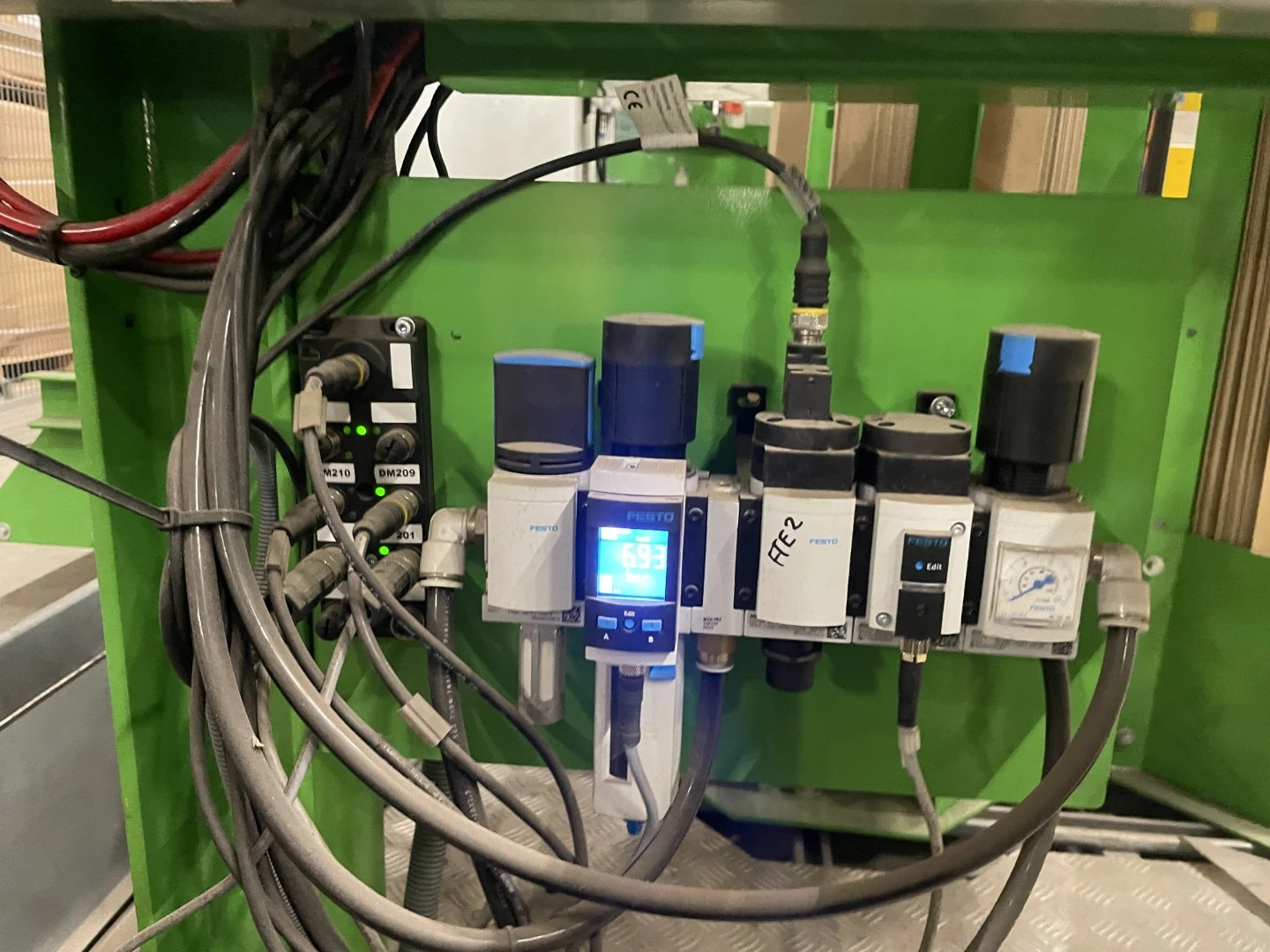

• Compressed air: 6 bar, dry and non-lubricated air
• Production without corner protectors: approx. 55 pallets/hour with 4 straps
• Production with corner protectors: approx. 43 pallets/hour with 4 straps
• Production with corner protectors: approx. 40 pallets/hour with 5 straps

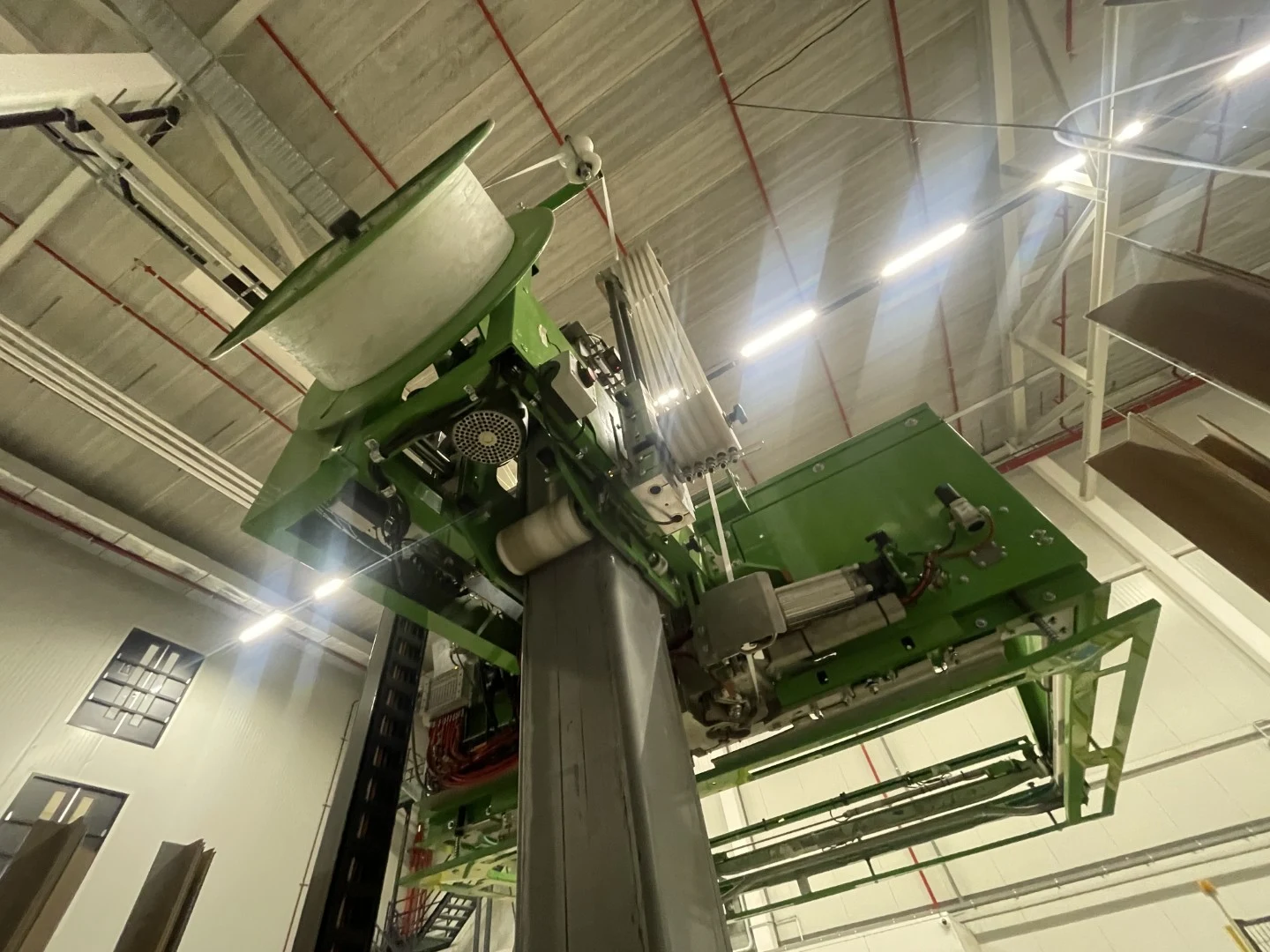

• Strap roll core diameter: 370–440 mm
• Max. outer strap roll diameter: 600 mm

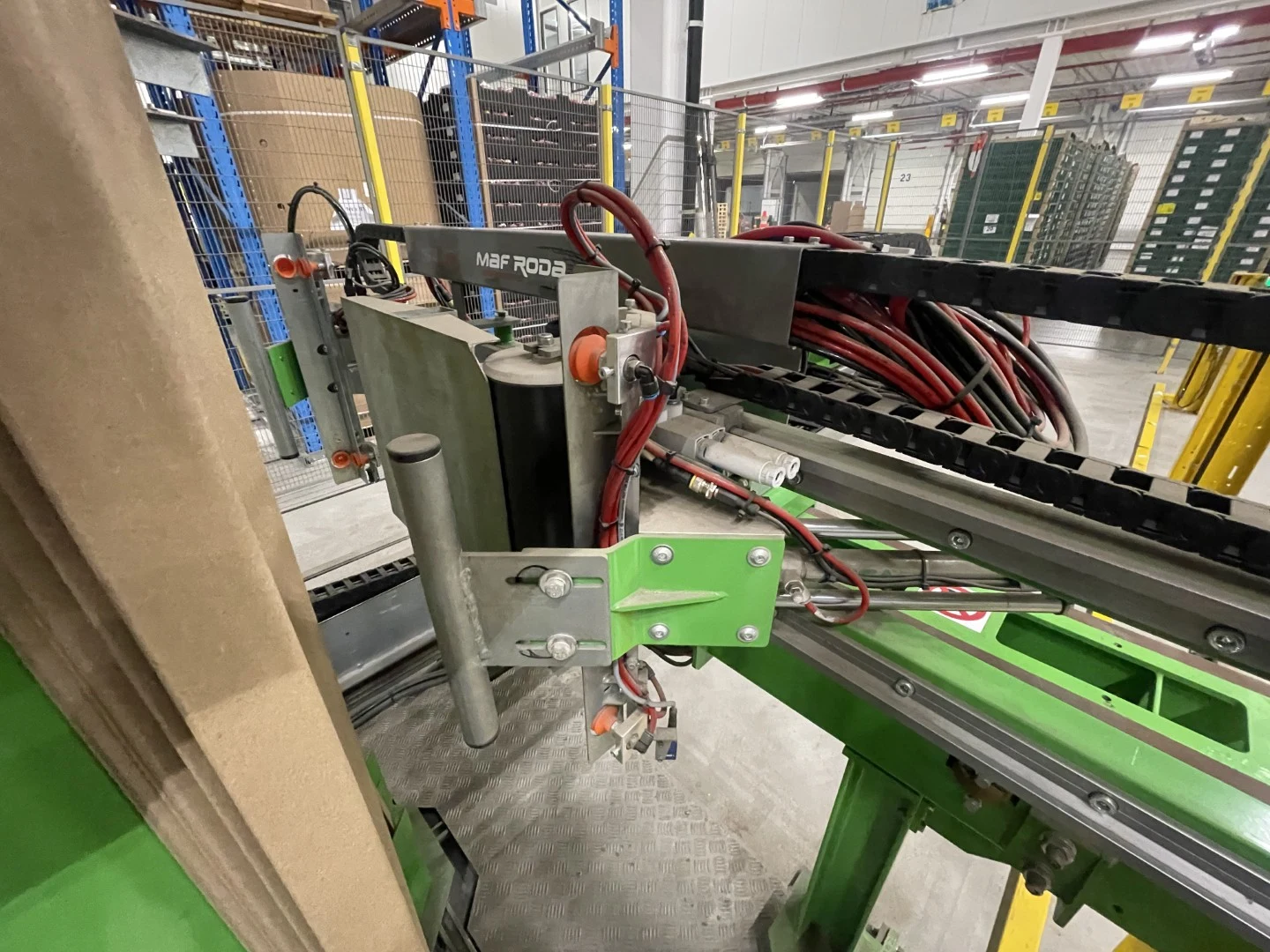

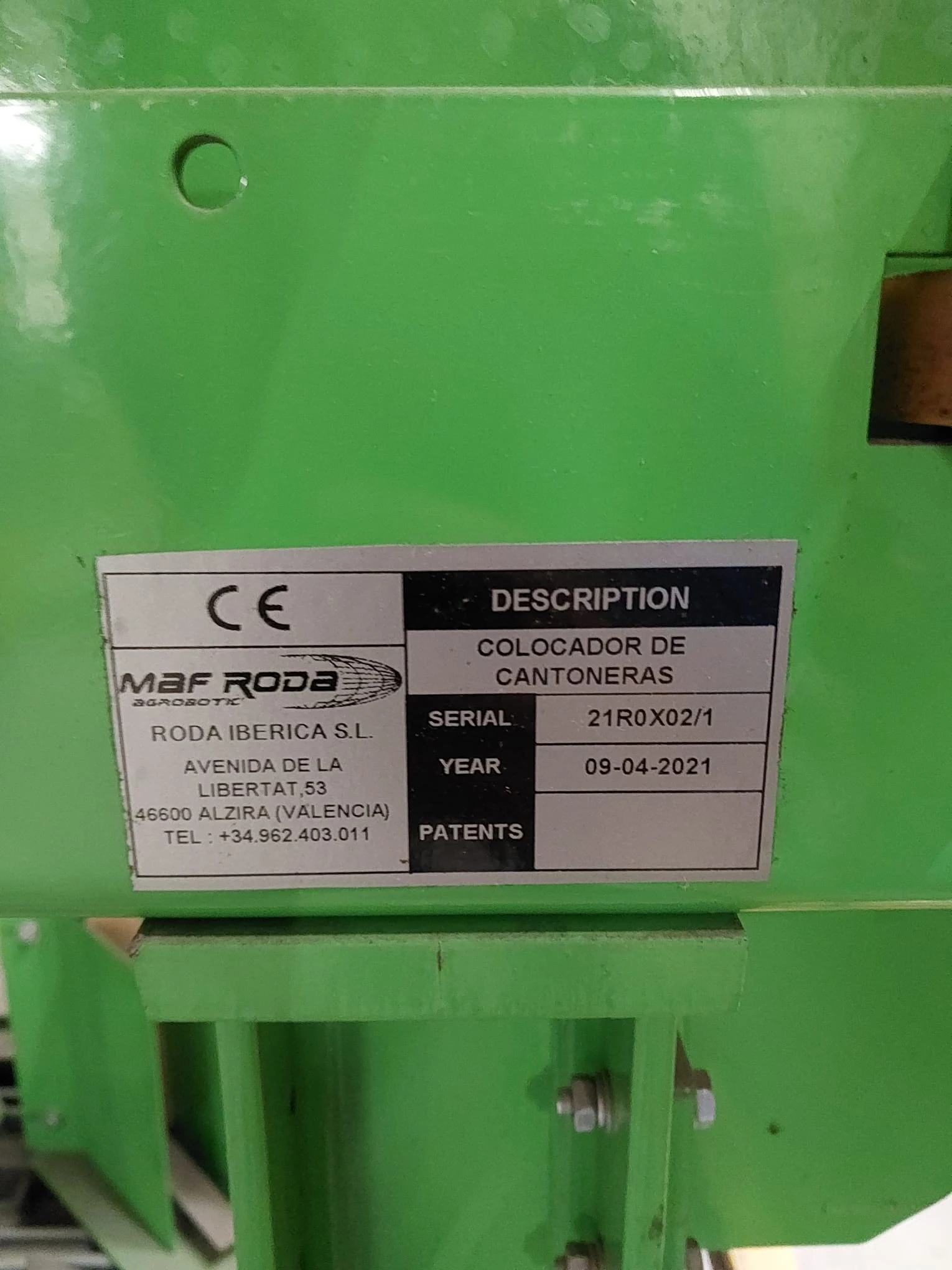

• Corner protectors: Plastic or cardboard
• Corner protector profile dimensions: 40 × 40 or 45 × 45 mm, 90°
• Max. corner protector weight: 400 g
• Operating temperature: 0–45 °C

The manual specifically states that the corner protectors may be made of plastic or cardboard and must have a smooth, non-porous surface. When the corner protectors are positioned manually, according to MAF Roda the machine can also strap other types of corner protectors. The vertical position of the strapping is determined using a distance sensor.
