Description:

Logitec DB-40 Big-Bale dosage bunker

New Logitec DB40 Bigbale dosing bunker

The standard DB40 comes with the following features:

• Wheels
• Transport bar
• Sensor for automatic discharge level
• Variable dosing height
• Programmable dosing height
• Chain tensioner
• 380V - 3 phase - 50Hz motors
• Condition: NEW
• Warranty: 1 year(excluding wear parts)
• Direct available from stock (while stocks last)
  • The machines that are in stock are equipped with a breaker

The DB40 can be equipped with the following options:

Water Dosing Systems

• Water dosing with single spray bar – €1.155,-
• Water dosing with double spray bar – €1.599,15
• Water dosing with triple spray bar – €1.827,-

Additional Options

• Extension plates for high Big Bales (over 220 cm) – €1.290,- (Art. nr. 9994210608)
• Bottomchain protection unit - €1.250,- (Art. nr. 99942602001)
  • When processing materials such as coconut fibre, wood fibre or other alternative raw materials instead of traditional peat, there is a risk that these materials will get caught between the soil feed chain, which could cause the chain to jump off the gear wheel. If you use these alternative materials, we recommend equipping your new Logitec DB-40 big bale crusher with this chain protection set.
• Rubber wheels for unpaved terrain – €1.130,85
• Vertically adjustable plate for loading half Big Bales – €766.50
• Rotating transport bar – €584,85
• Set of swivel castors – €855,75

The Big-Bale Dosage Bunker DB40 is specially used for the automatic processing of the Big-Bale. The product is brought back into the original structure and volume.

The DB40 has proven in practice to be multifunctional, and only requires a small investment that will give quick returns.

Packaging and Storage:

• Clean and efficient indoors and outside storage
• Allows separate storage of various products
• The lowest costs in packaging and waste

Transport & Handling

• Maximum volume per load and easy to move.
• No additional labour or materials needed.

Processing

• Quick and easy removal of the packaging
• Highly reduced chance of dehydration, heating or pollution of your soil
• Can be used on any location on site.

The Logitec Big-Bale Dosage Bunker DB40 is characterized by its:

• Mobile, and high-quality construction with limited maintenance.
• High operational reliability with simple and safe controls.
• Maximum output volume and retention of structure

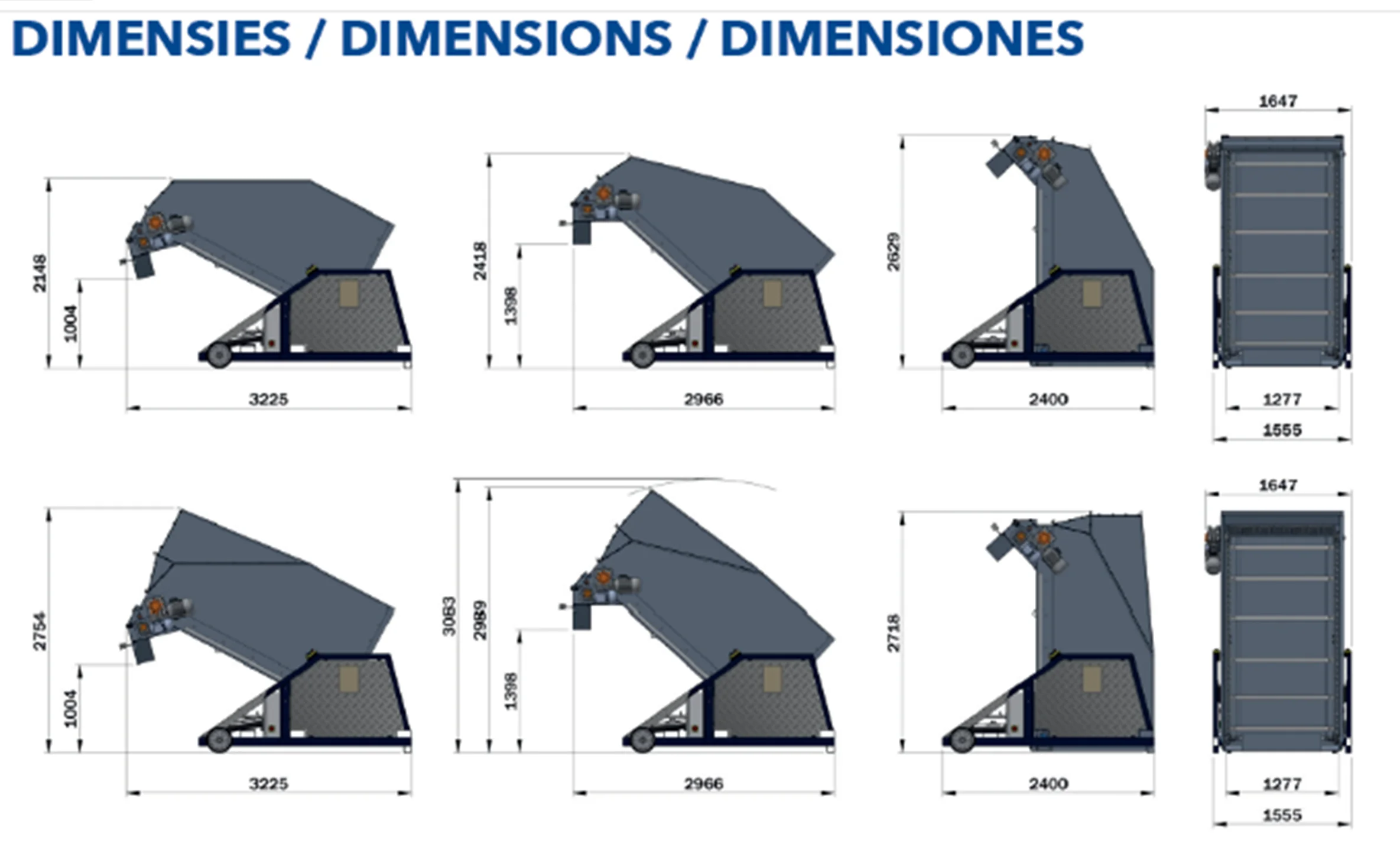

• Compact working position dimension (2.99 x 1.66 x 2.42 m)
• Small weight (1080 to 1280 kg)
• Voltage 400V/50-60Hz/3-phase
• 2 large wheels
