Description:

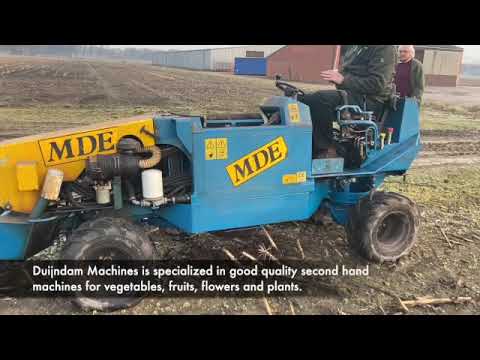

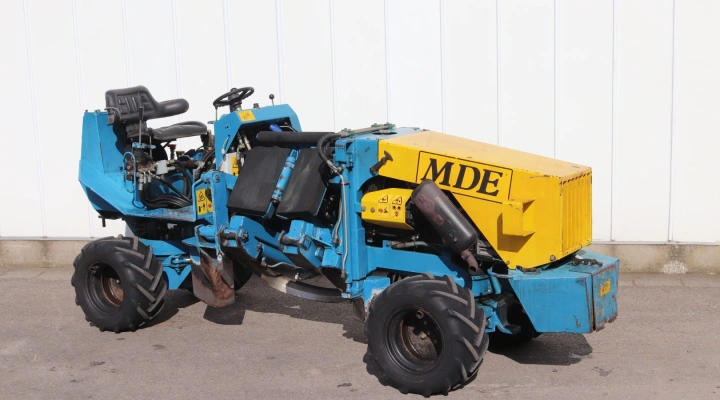

MDE Quad 50  tree digger / treelifter

Self-propelled four-wheel drive and four-wheel steerable boom lifter.
The machine has:

• Lombardini Focs 4 cylinder engine 35 hp
• Harvest knive: 50cm
  • New knives can be ordered in 30cm, 40cm & 50cm
• Water cooled
• 885 hours
• Hydraulic system
• 4-wheel steering and can:
  • Only steer the front axle
  • Only steer the rear axle
  • Tracking front and rear handlebars
  • Front and rear handlebars in dog walk

• not articulated steering, but two times a ball bearing slewing ring which can have very high forces. Due this construction, the machine is aprox 10% shorter and will always be 95 cm wide
• The clamp and tedder are hydraulically adjustable in height and can reach to the ground, resulting in less tree breakage and a better tedding result. The anchor plate is extra large and is equipped with parallel bars so that it turns vertically into the ground and does not turn away under the machine. This makes the machine much more stable.

There is also a second extra anchor mounted at the front, which guarantees extra stability under extreme conditions.

Since independent hydraulic circuits are installed, the machine is very fast yet controllable.
