Description:

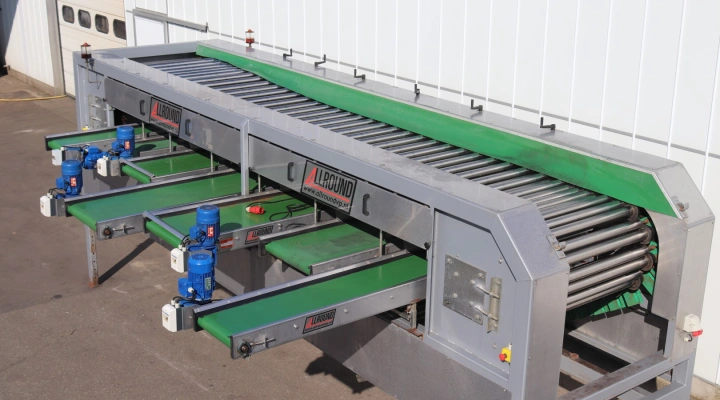

Allround radial rollergrader with 7 product conveyors

Allround radial Rollergrader for carrots, bulbs, onions, etc

• 3 conveyors 40 cm wide
• 4 conveyors 60 cm wide
• Adjustable speed
• Grading size 20 - 110 mm (min - max)
• Chain pitch 90 mm
• Diameter of the rolls 70 mm

This machine is equipped with lateral placed grading rollers out of stainless steel. The distance between these rollers changes in steps over the different grading stages.

When the distance between the rollers changes above the size sections, every second roller lowers its position. This ensures a proper positioning of the product between the rollers. The speed is adjustable by frequency control, and the machine is equiped with a special greasing system.

Conveyors:

Conveyors are placed under the machine to transport the graded sizes to the side. One conveyor for each grading size.
