Description:

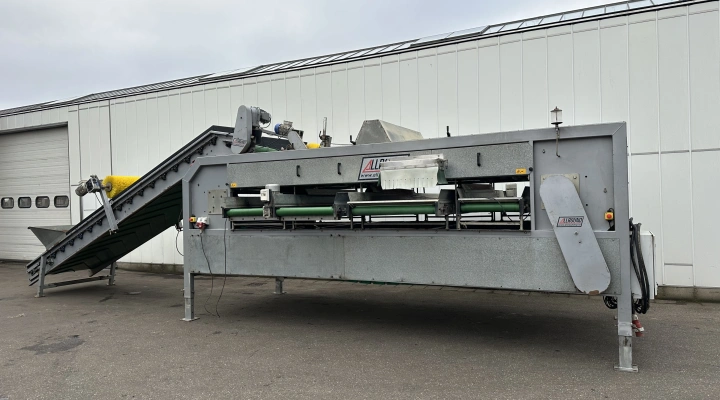

Allround radial roller grader for grading by size with 4 conveyors

Roller sorting machine for products like carrots, bulbs, etc.

• Width of rollers 150 cm ( effective 140 cm)
• With adjustable speed
• 4 conveyors
• Supply elevator with kink 600 x 120 cm
• With cleaning brush
• With watering unit
• Grading size 14 - 104 mm (min - max)
• Diameter rollers 76 mm
• Chain pitch 90 mm

The Allround Radial grader is equipped with lateral placed grading rolls out of stainless steel. The distance between these rolls changes in steps over the different grading stages. Conveyor belts are placed under the machine, one for each grading size.

When the distance between the rollers changes above the size sections, every second roller lowers its position. This ensures a proper positioning of the product between the rollers. The speed is adjustable by frequency control
