Description:

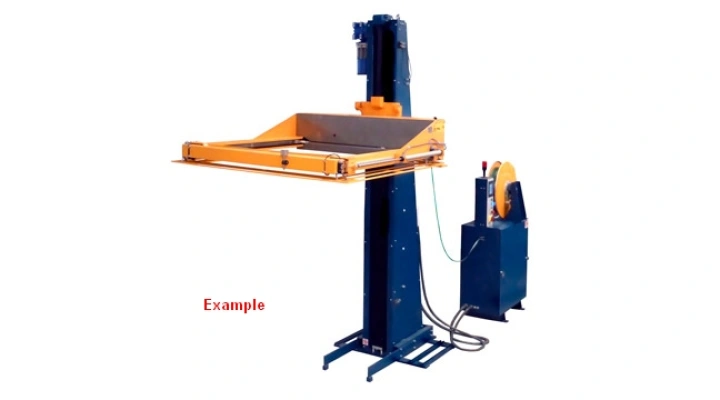

Reisopack Automatic pallet strapping machine

Reisopack Automatic pallet strapping machine

Features

• Designed and manufactured using highest quality components.
• Different strapping heights easy to set by pressing a button while the machine is in the desired position. Ten different programs available with ten different strapping heights for each.
• Warning light system.
• Compression system in the arch compacts load and guides the strap to the correct position.
• Approximate production 60 pallets per hour.
• Mechanical tension adjustable through a holding strap system to get the highest tension.
• Security system under the arch. If the machine contacts anything while moving down to the ready position, it immediately stops and returns to home

*

Specifications

• Voltage: 380 V · 50 / 60 Hz. III-phase.
• Electric Consumption: 2k VA.
• Approx. Production: 60 to 80 pallets / hour.
• Packaging Dimensions: 3 packages. 340 x 136 x 110 cm. / 120 x 67 x 187 cm. / 198 x 52 x 213 cm.
• Strap Width: 8-12-15.5 mm. (Factory set).
• Strap Thickness: 0.63-0.85 mm.
• Heating System: Electrical heating. Heating temperature and cooling time adjustable.
• Minimum Strapping Height: 130 mm.

* Machine has been dismantled in working order
