Description:

Allround R120-70-3

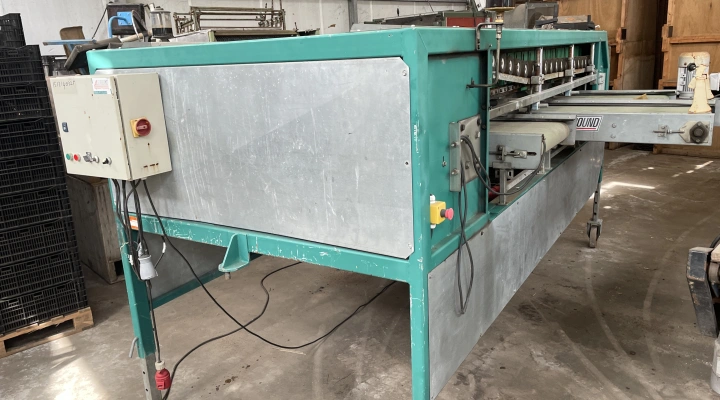

Allround R120-3 radial roller sorting machine

For grading root crops by size, such as like carrots, chicory, red beets, onions and flower bulbs.

• Input conveyor
• 3 conveyors 60 cm wide
• Adjustable speed
• Diameter rollers 57 mm
• Chain pitch 63 mm
• Brushing unit (this brush cleans the rollers of the machine from dirt or dust that sticks to the rollers when grading )

This machine is equipped with lateral placed grading rollers out of stainless steel. The distance between these rollers changes in steps over the different grading stages. Conveyor belts are placed under the machine, one for each grading size.

When the distance between the rollers changes above the size sections, every second roller lowers its position. This ensures a proper positioning of the product between the rollers. The speed is adjustable by frequency control,
