Description:

Bizerba GLM-I price labeler top and bottom

Bizerba Price/Weighing Machine with Top and Bottom Labeller

Suitable for European market

With color display
BIZERBA Pricing Machine GLM-I 150
Model GLM-I 150 Maxx.
Small control cabinet like the GLM-I 100, integrated into the frame
5-port switch instead of 8-port
2 red signal lamps for roll end detection

Technical Specifications:

• Weighing range: 6 kg
• Readability: 1 g

• Weighing unit(s): 1 g
• Calibration according to Measurements Instrument Directive MID(Ya)
• Program version 12.xx with menu structure 3

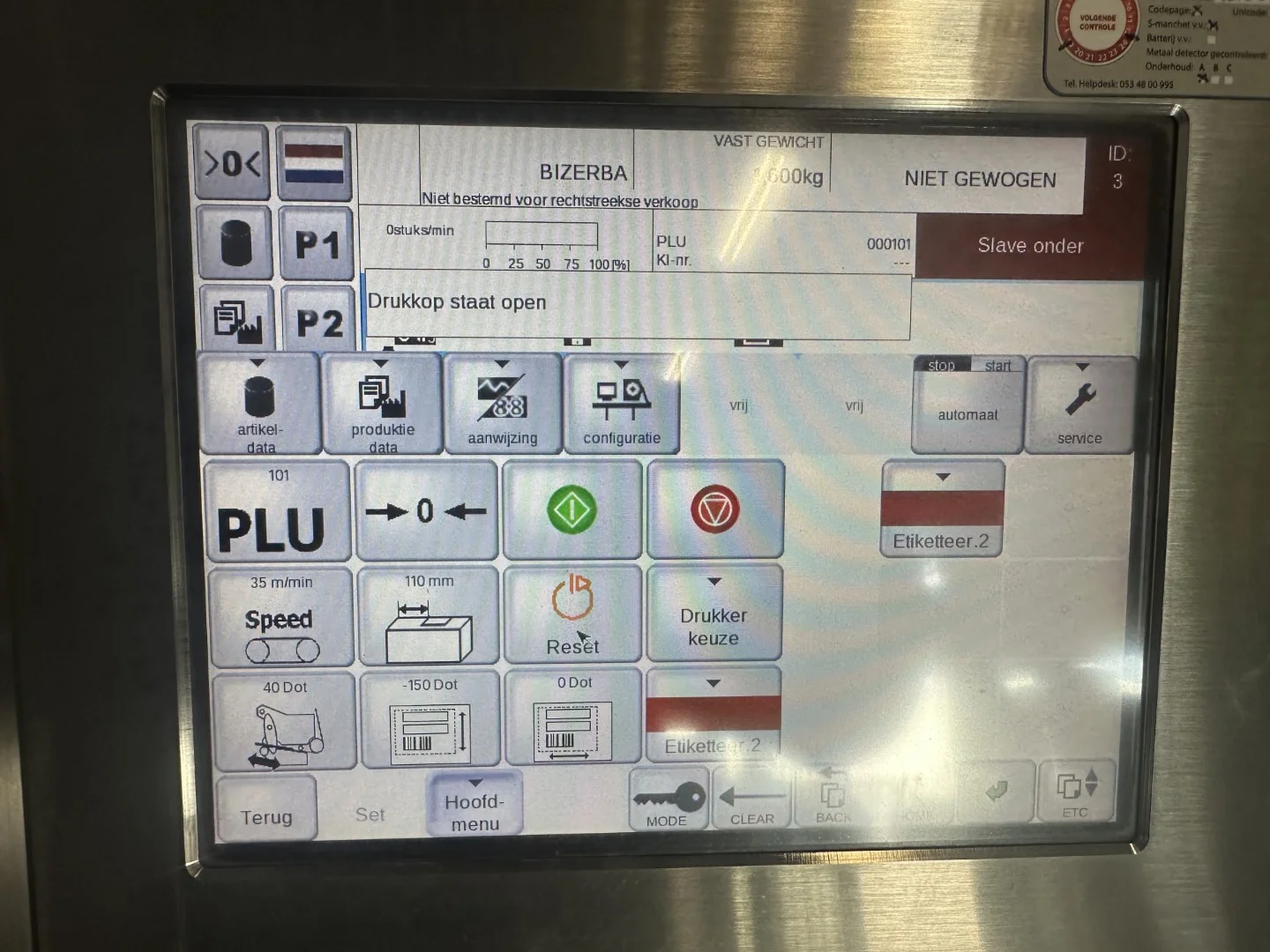

• 12" Color touchscreen display
• Horizontal photocell distance for package detection
• With port switch and socket in control cabinet
• Stand, 2 red signal lamps/roll end detection
• With I/O port 4 inputs
• With I/O port 4 outputs
• 4 x Relay for galvanic isolation of signals / 1-channel
• All belts ribbed design
• Infeed belt in white, other belts in grey
• Infeed belt 300x500 mm (wxl) / closed – low friction value
• Separation belt 300x500 mm (wxl) / closed – high friction value
• Aluminium parallel guides on infeed and separation belts
• Processing belt 300x500 mm (wxl) / split – high friction value
• Weighing belt fitted with plastic weighing plate – 600 mm long
• Labelling belt 300x1400 mm (wxl) / closed – high friction value

Equipped with cross-slot for label dispensing from the bottom labelling station (belt version).
Labelling belt with exit roller conveyor
Transport height adjustable 770 – 920 mm via adjustable feet
Transport direction LEFT --> RIGHT
Protection class control cabinet IP 54
Protection class entire machine IP 20
Total machine length approx. 3600 mm

20 BIZERBA GLM-I Labelling Units

Mounted as Top Labelling Station 1T with motorized height and cross adjustment MASTER 1TOP

Program version 12.xx and menu structure 3
Lettuce application / print width 80 mm – 8 dot / 250 mm-sec
With USB connection and 2GB USB stick for data storage
Standard Compact Flash 500 MB memory
Thermo-transfer unit TTF
License SoftControl 1
License Loadable Fonts
License Weight Classes
License Code_Part_Print
Interface EDV 1 – RS 232
Ethernet interface with license release via
Bizerba WinCWS/BLD or Brain software
Label core diameter adjustable 74–82 mm
Label roll diameter max. 300 mm
Compressed air supply 240 l/min – oil-free / 6 bar per labelling station
Protection class IP 20

30 BIZERBA GLM-I Labelling Units

Mounted as Bottom Labelling Station 1B Slave 1 BOTTOM in belt version, manually extendable for label roll change
Automatic bottom-side labelling using a pressure roller via cross-slot in the labelling belt
Program version 12.xx and menu structure 3
Print width 80 mm – 8 dot / 250 mm-sec
License Loadable Fonts
License Code_Part_Print
Ethernet interface with license release via
Bizerba WinCWS/BLD or Brain software
Label core diameter adjustable 74–82 mm
Label roll diameter max. 300 mm
Compressed air supply 240 l/min – oil-free / 6 bar per labelling station
