Description:

Reisopack 2901 pallet strapping machine with corner applicator

The machine is equipped with the following options:

• Corner slat application
• Strapping at a fixed position

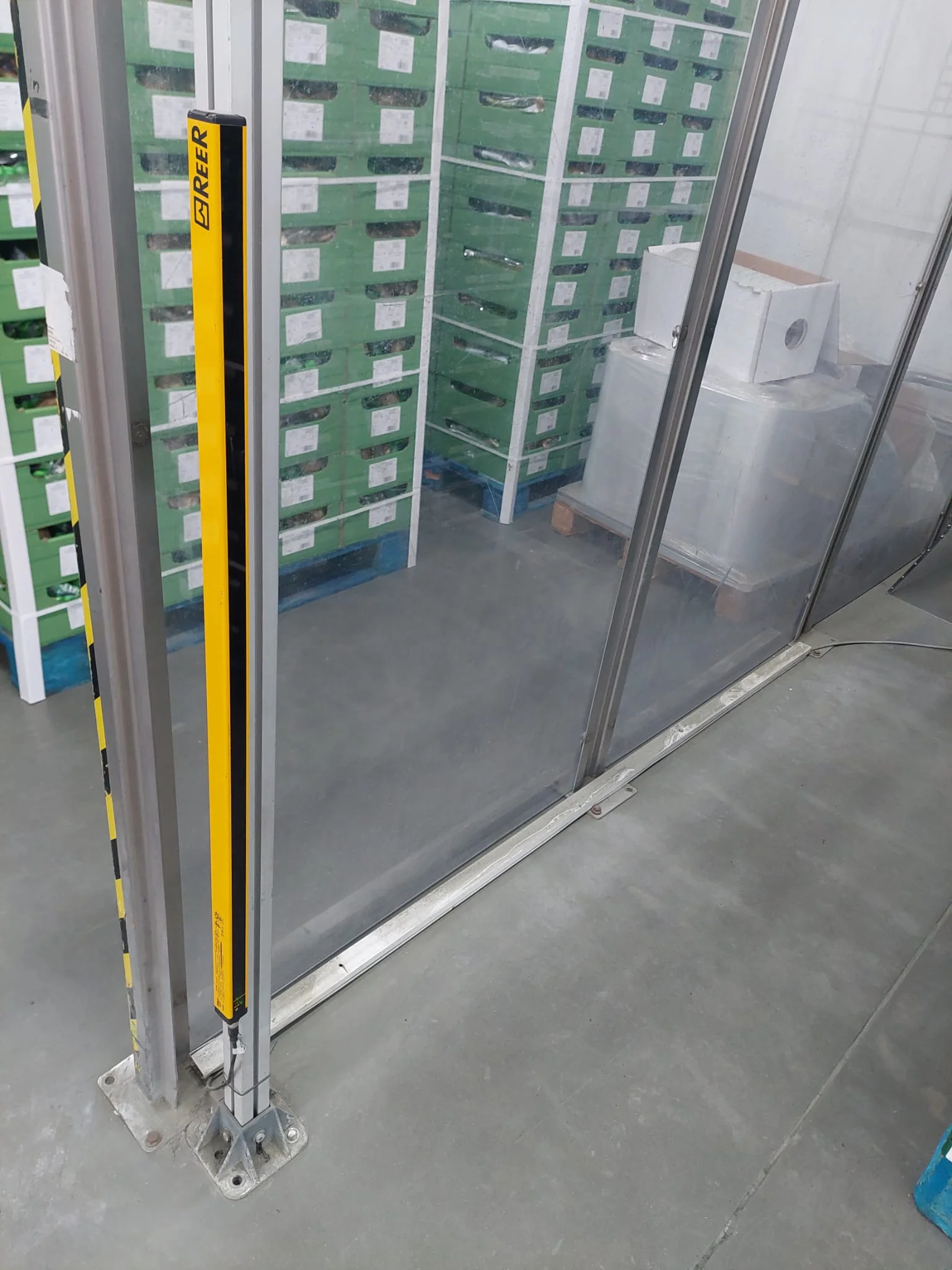

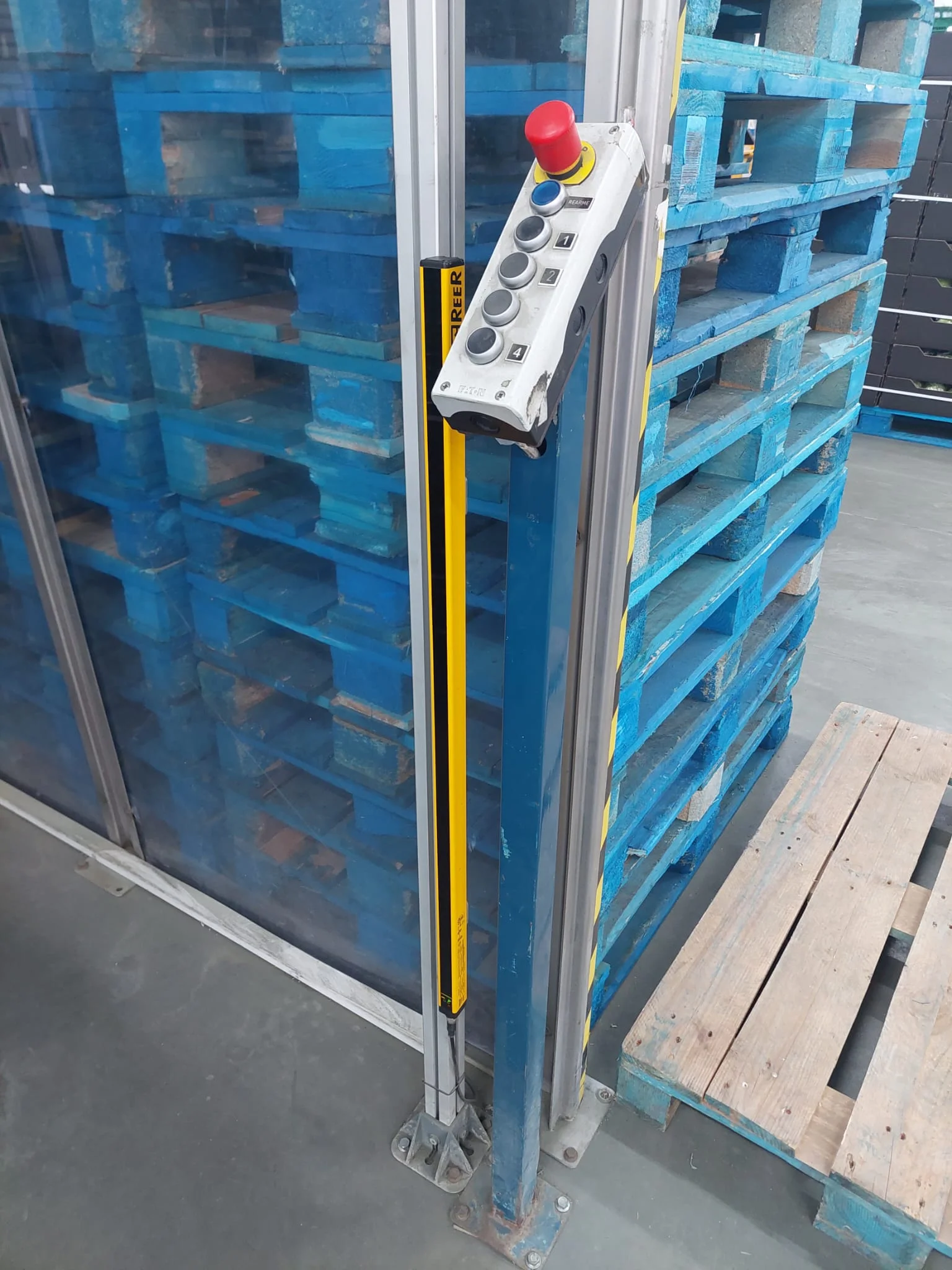

• With walk-in protection (gates not included in pictures)
• Omron PLC

Horizontal strapping machine with automatic corner applicator, easy and user-friendly set up. Ready to be built into a complete automatic line.

• Own technology and manufacture using European componets of highest quality.
• Easy memorization of the different heights of strapping by pressing a button when the machine is in the desired position. Possibility of savinf 10 different heights and in 10 different programs.

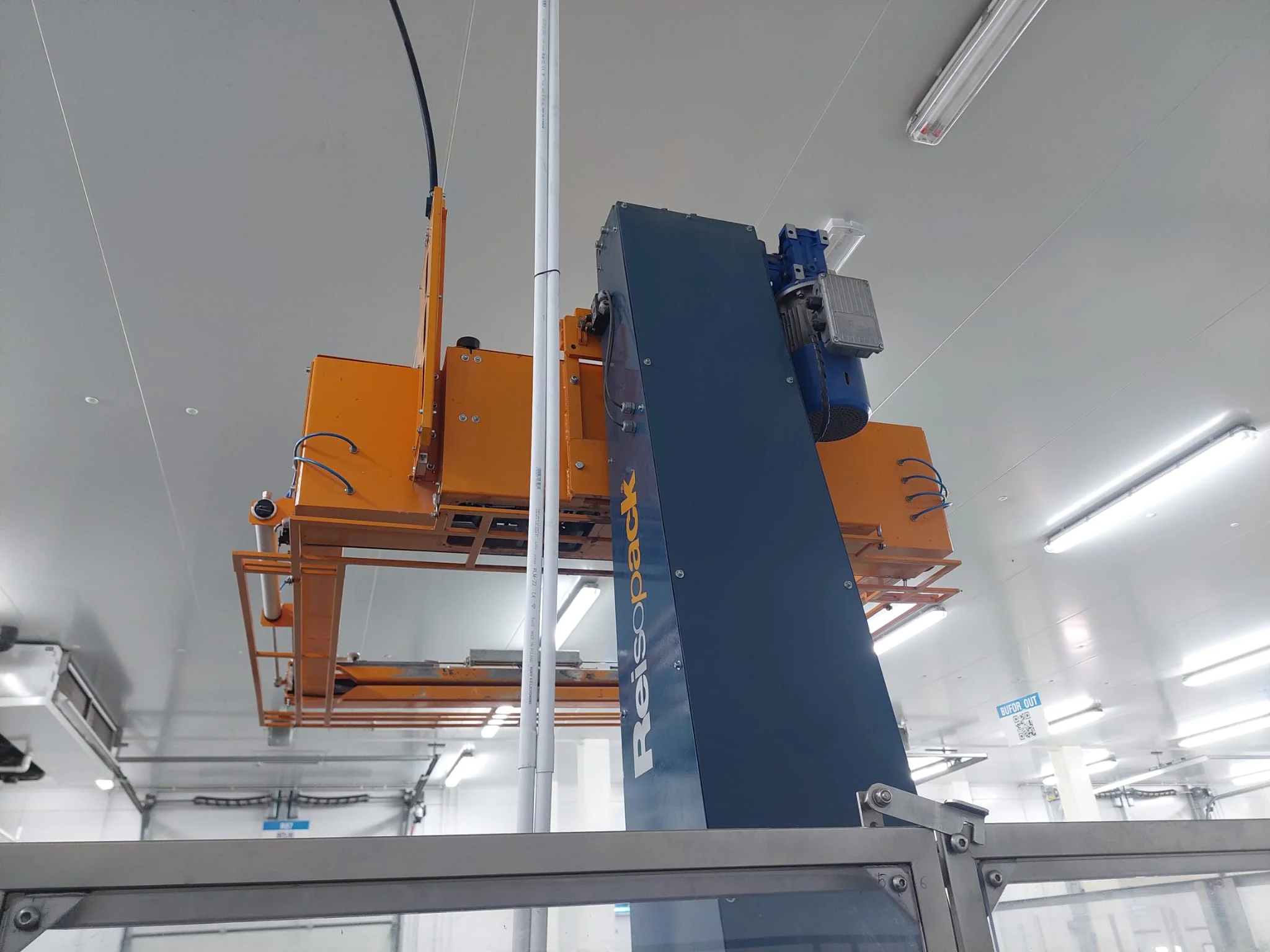

• Automatic corner applicator.

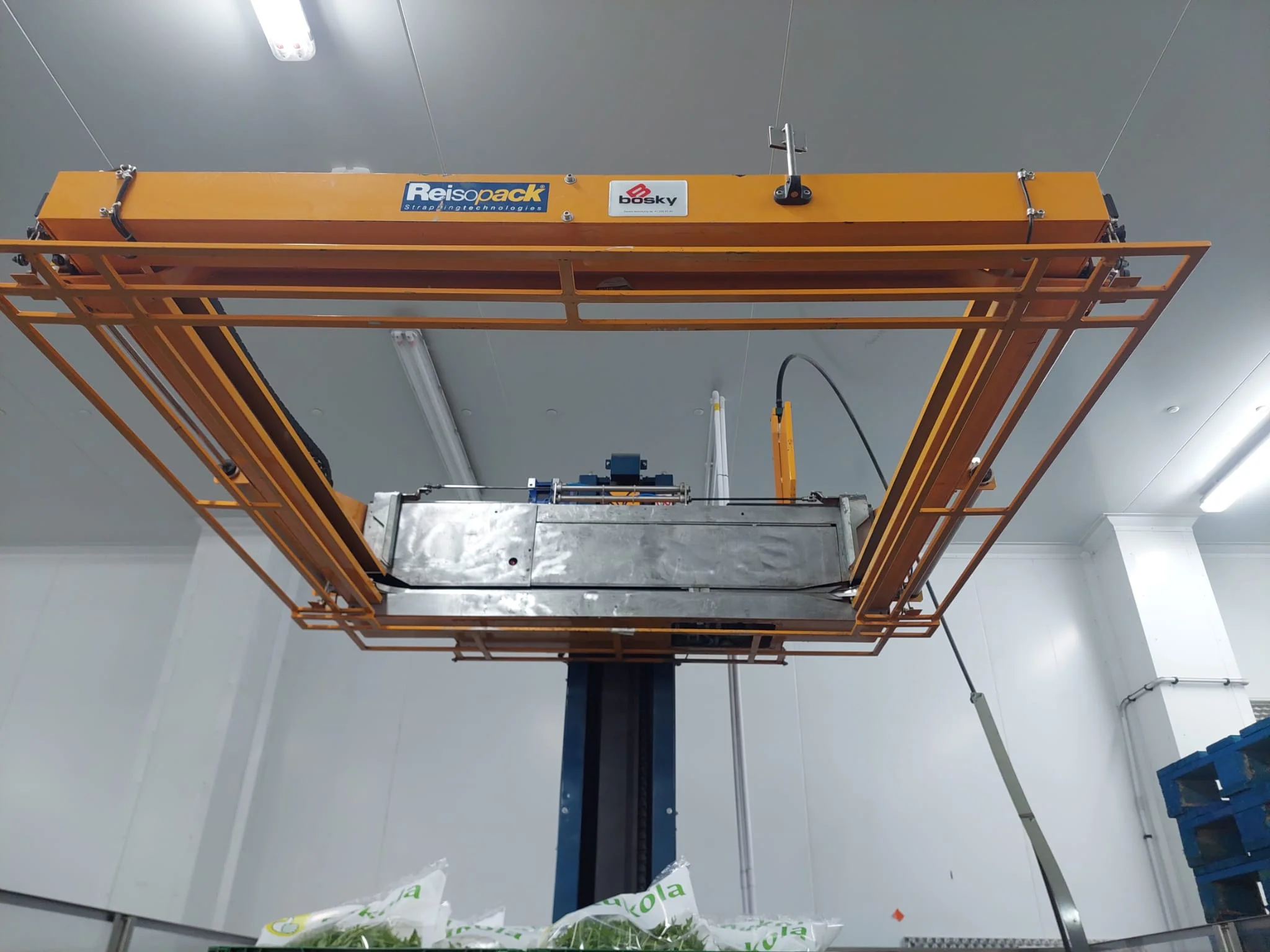

• Pressing system in the arch to compact the loads and guide the strap.
• Corner application air system by means of 4 telescopic L-shaped arms, adjustable to the size of the pallet.
• Adjustable tension by means of high-tension clamp system.
• Reisopack model 1900 aluminim strapping head ensures long life of the machine.
• Approximate production of 50 pallets/hour with 4 corner boards and 3 straps.
• Security system with inversion of the motor direction.
• Failure warning lights.

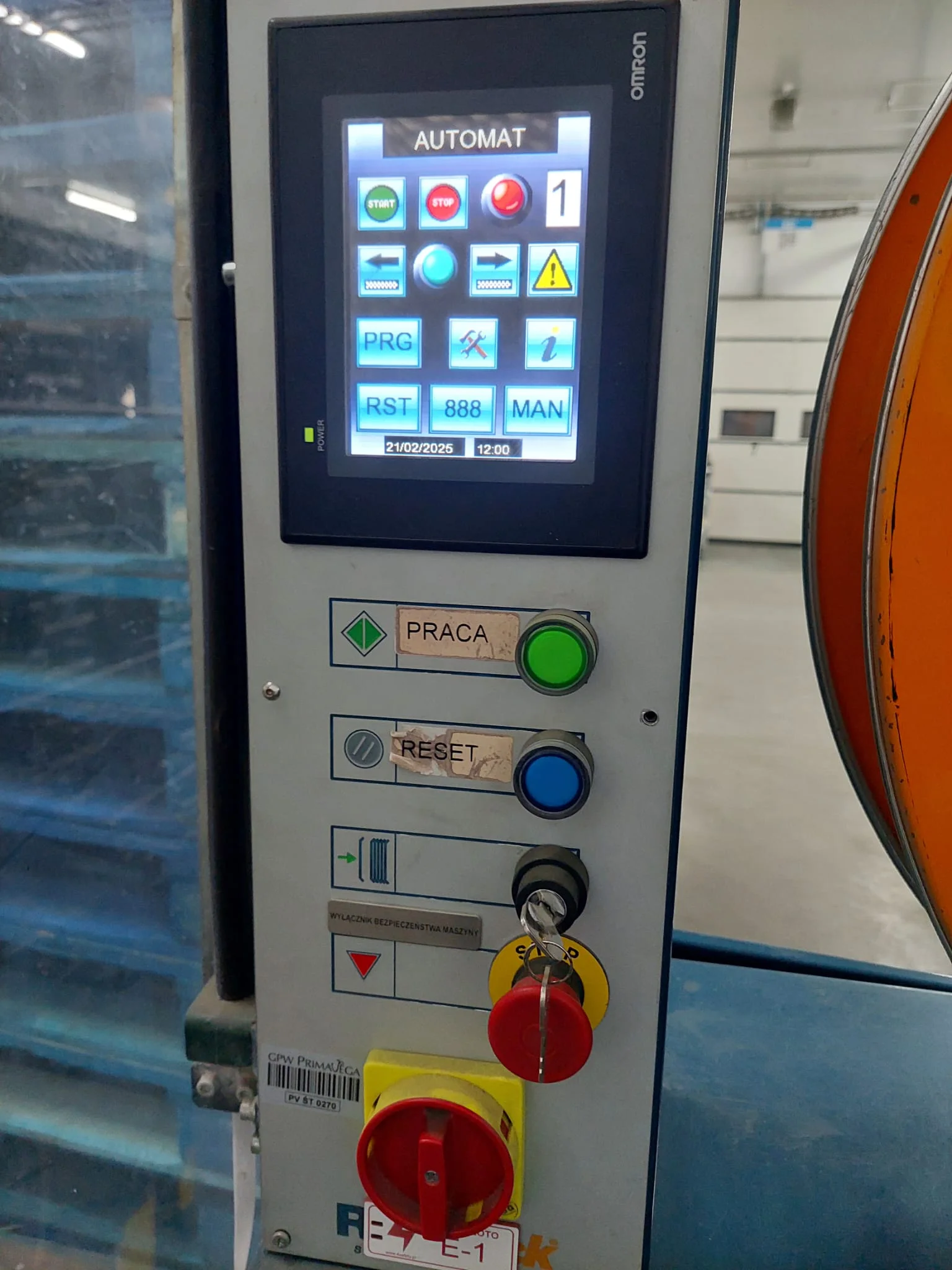

• Control panel with touch screen.
• Failure visualization and selection of languages.
