Description:

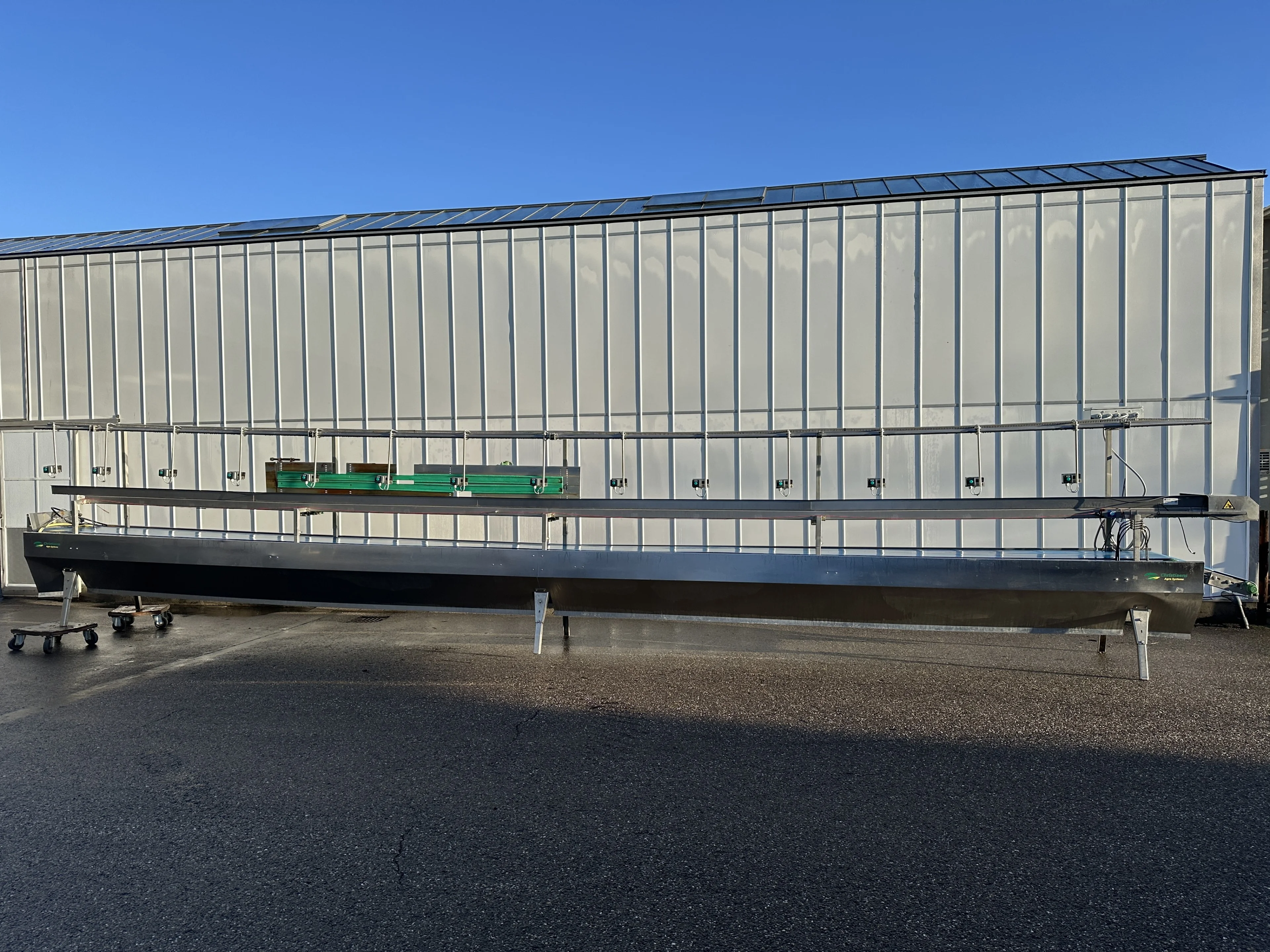

Christiaens 850-5000 washing ,cutting and binding line for spring onions

• 1 spring onion cleaning machine type 850-5000 L x W x H spring onion mach. 6200x1100x1950 mm
• 1 sorting conveyor type 600-11000  L x W x H conveyor 11000x1100x1000 mm
• 1 binding conveyor type 150 - 13880  L x W x H binding conveyor 13880x1240x2030 mm
• 1 take-off conveyor type 600-3000 L x W x H take off conveyor 3400x1100x1000 mm
• 1 control panel equipped with touchscreen Siemens SIMATIC HMI
• 2 x elastic band binder Cyklop Axro-FQC2 L-TS Marine

Function description and purpose of use:

The complete connected machines are been designed to work as a stand-alone machine for spring onions.
The functions of the parts of this machine are:
The spring onion machine is to wash, cut and pre cleaning spring onions.
The reading conveyor is for after cleaning and put the bundled spring onions on the binding conveyor.

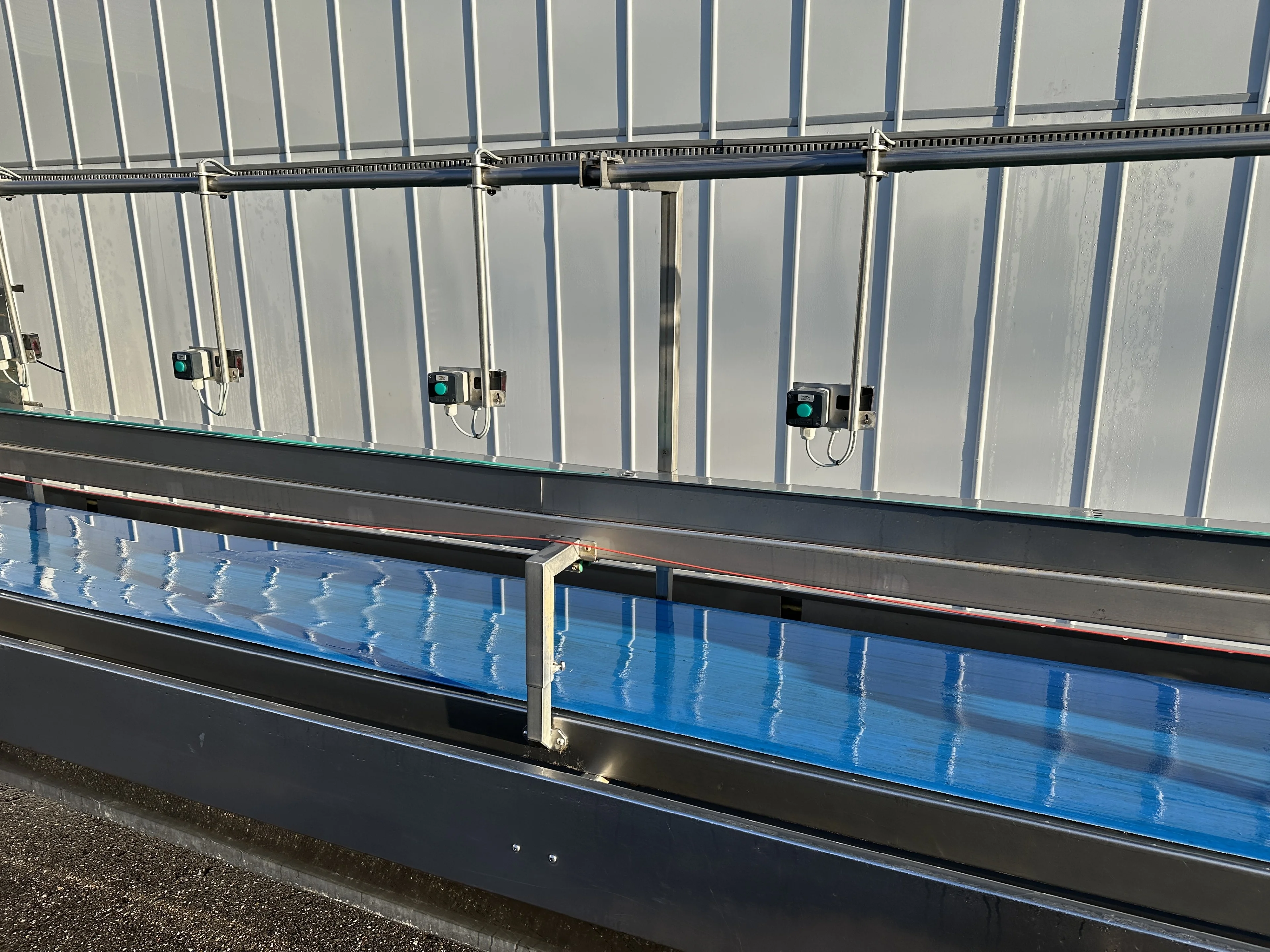

The sensors above the reading belt are a counting system that can count the number of bundles per person
The binding conveyor with the bundling machines is for bundling the spring onions and cut them straight after this.
The take-off conveyor is to take away the bundled spring onions
