Description:

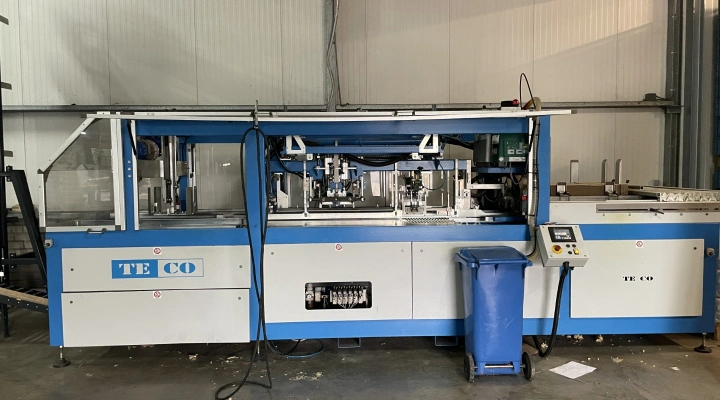

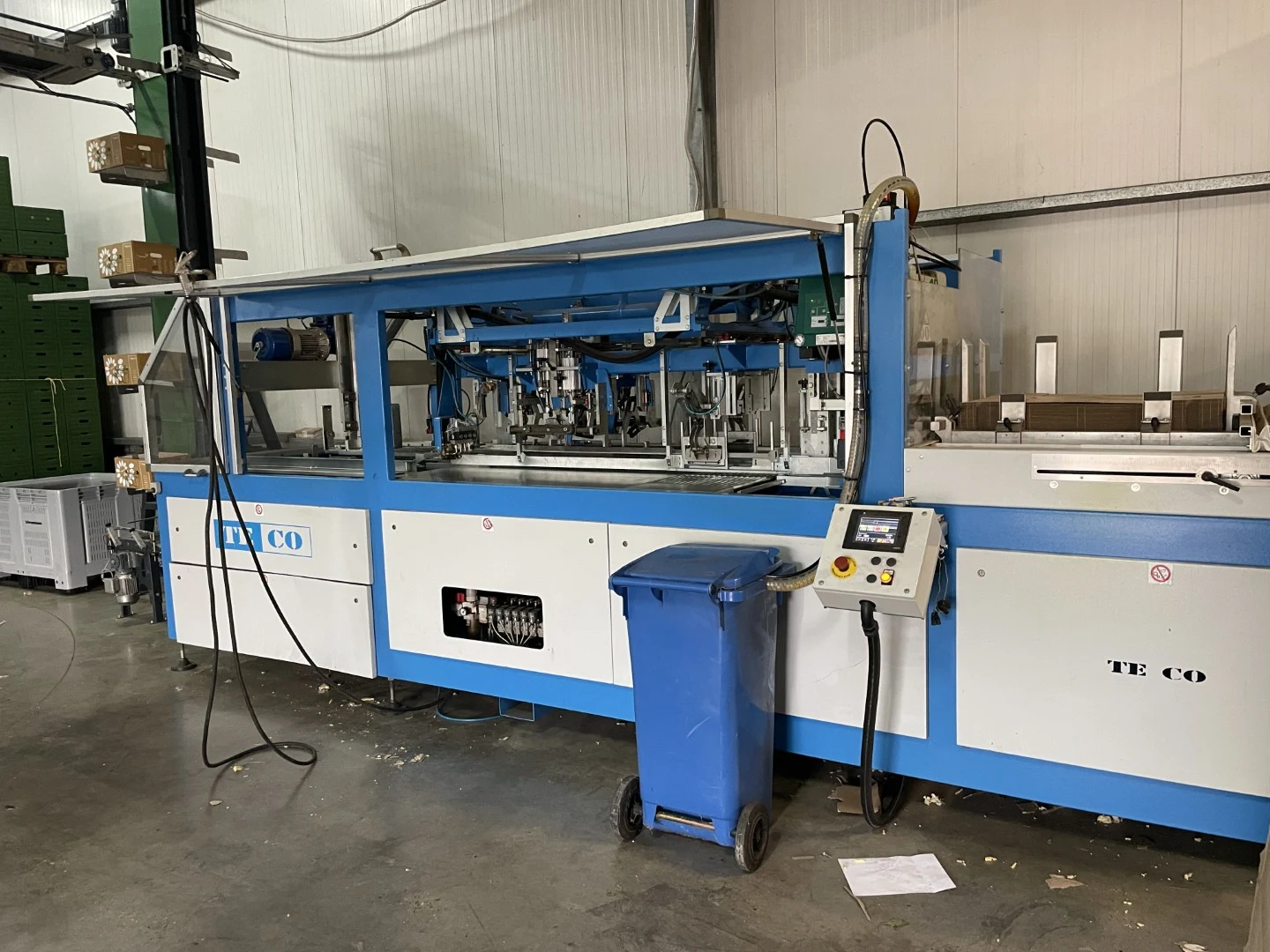

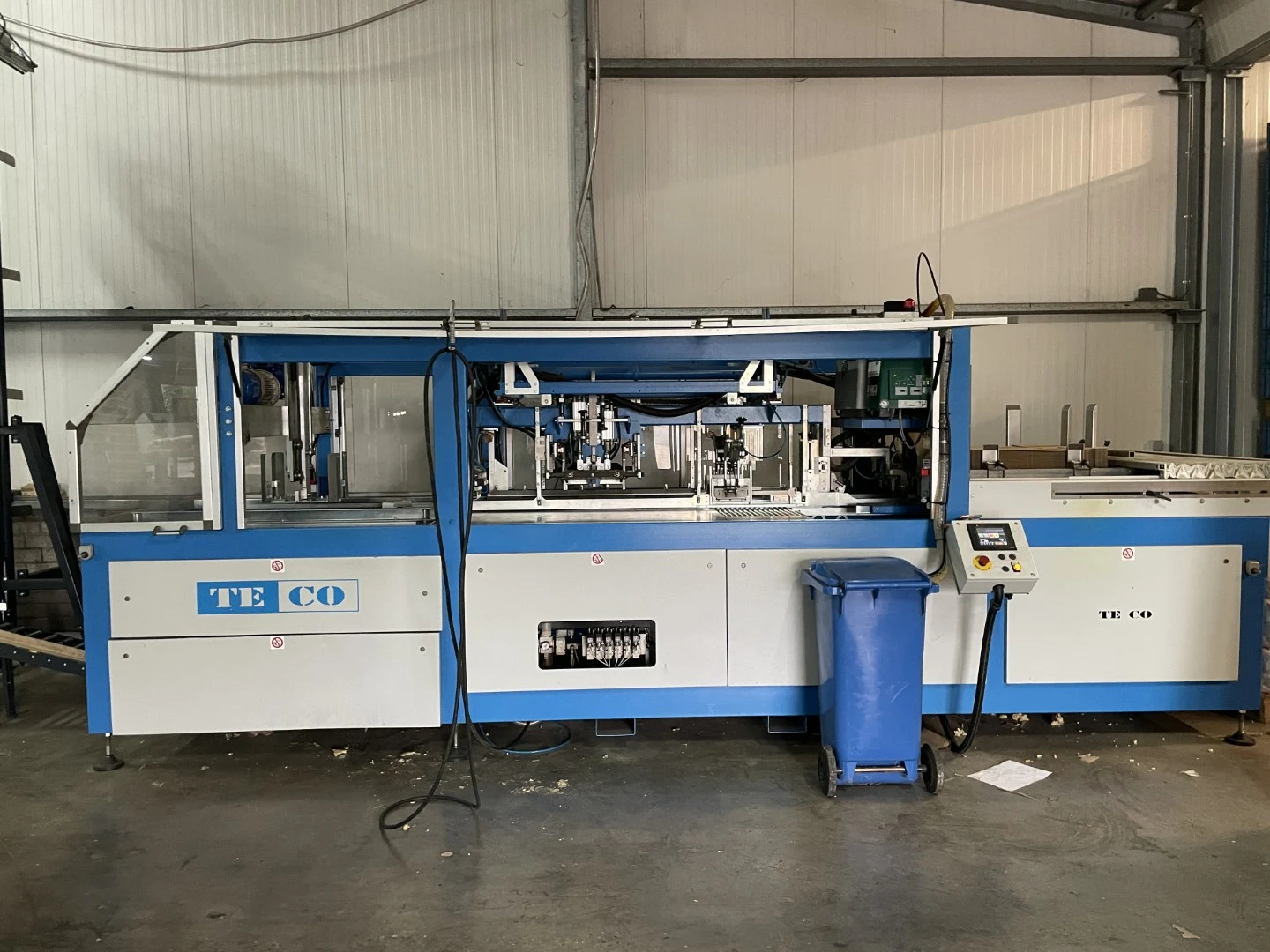

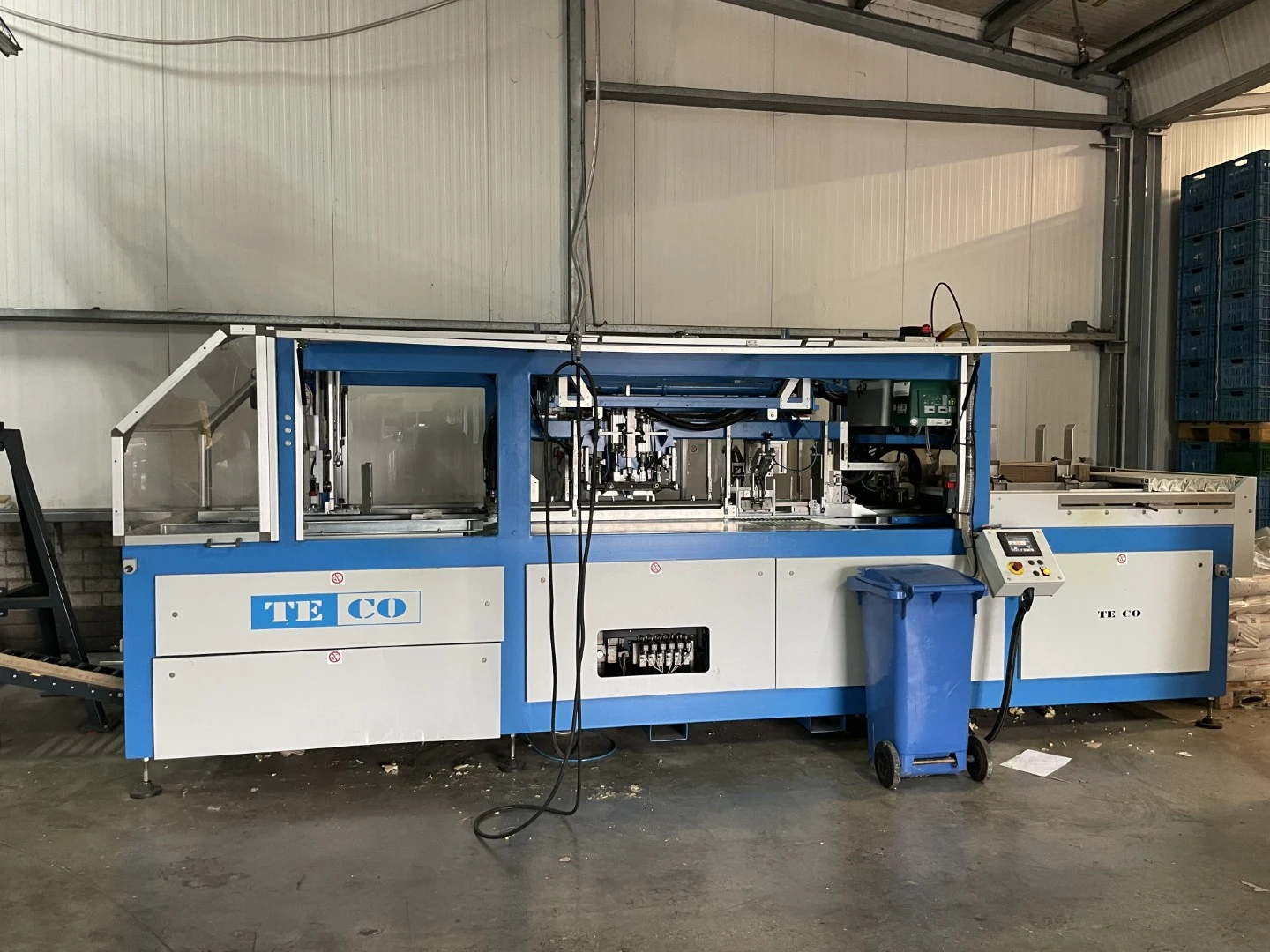

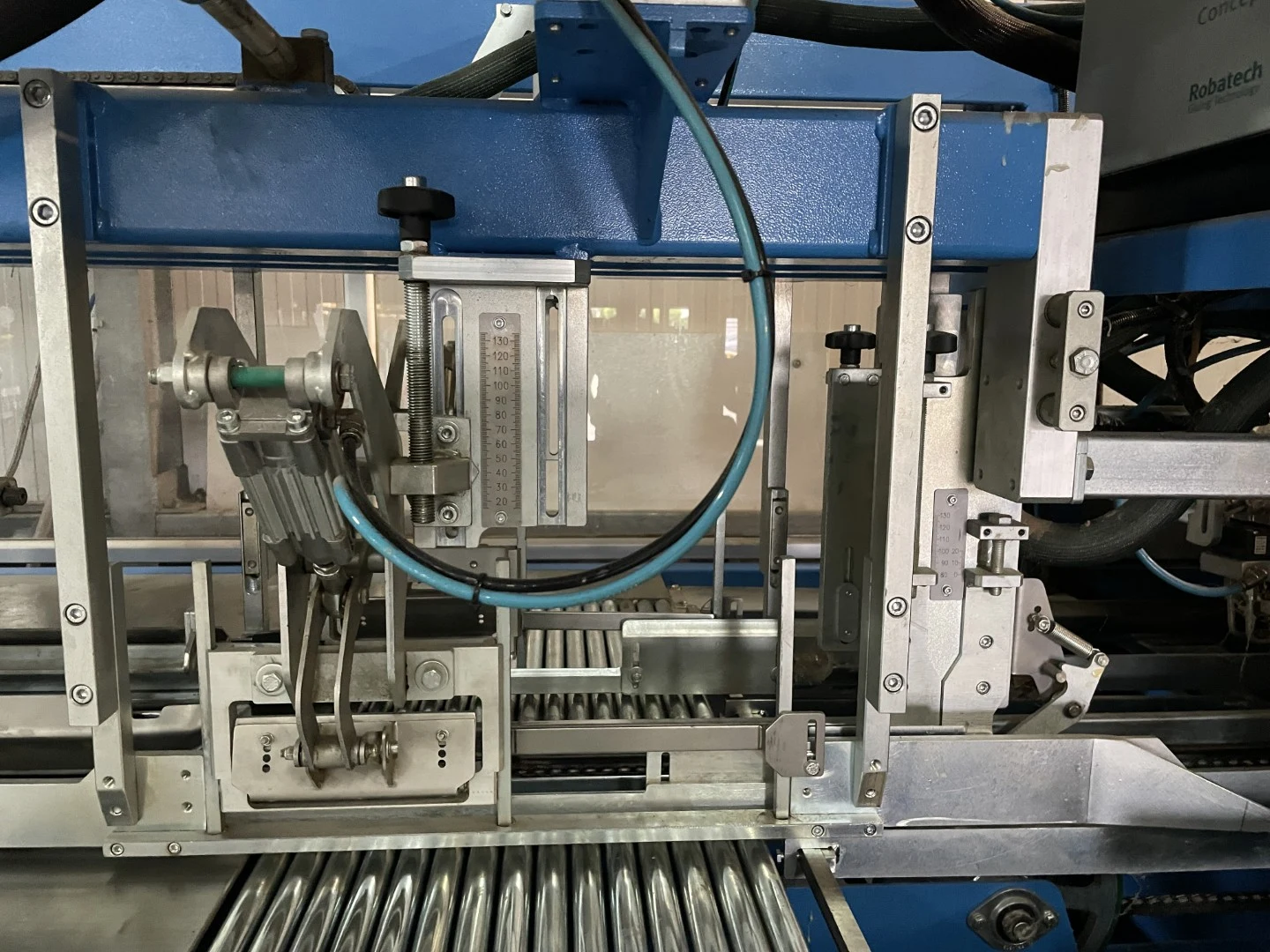

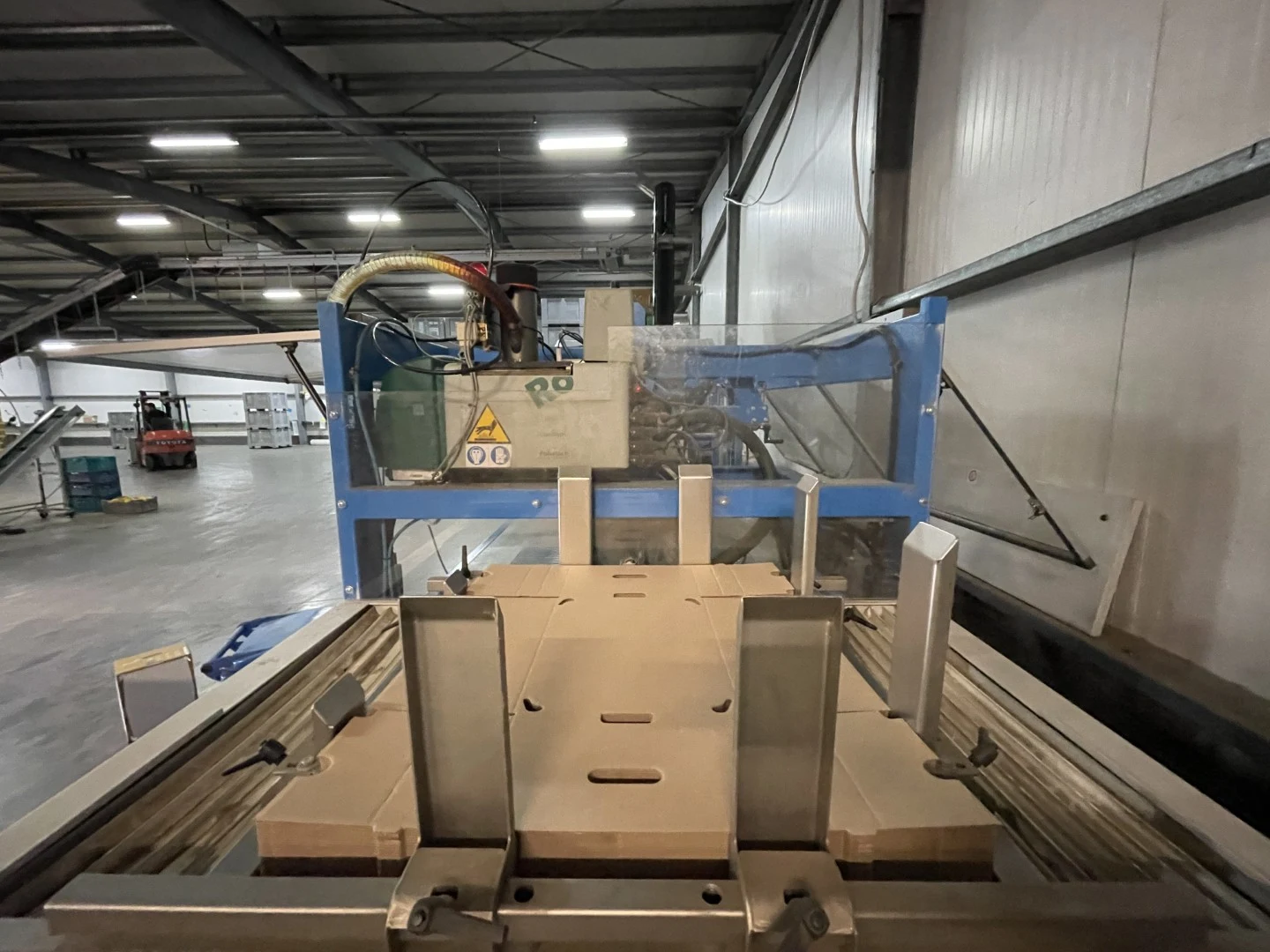

Teco T3 carton box/tray forming & erecting machine with Robatech adhesive melter

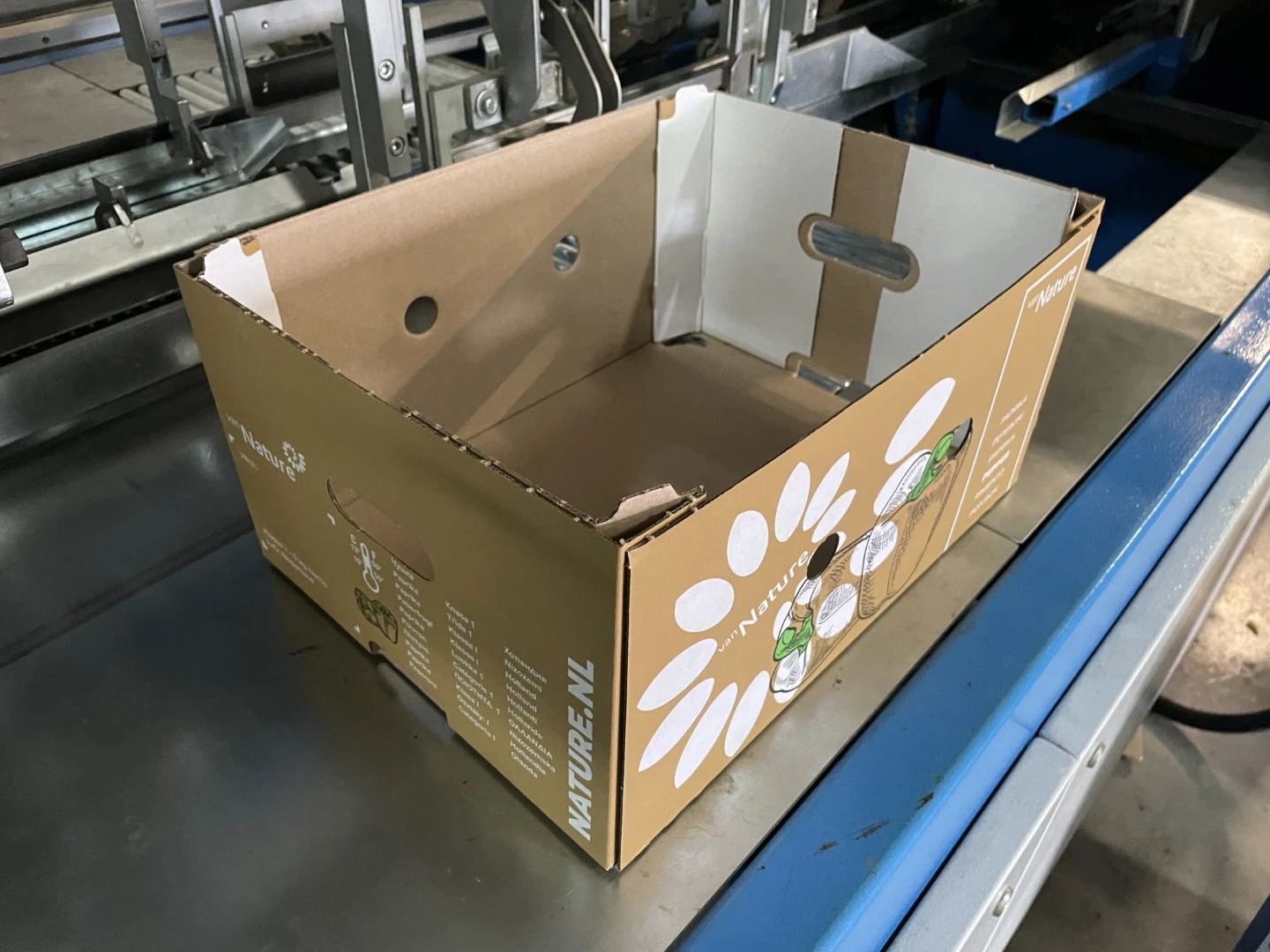

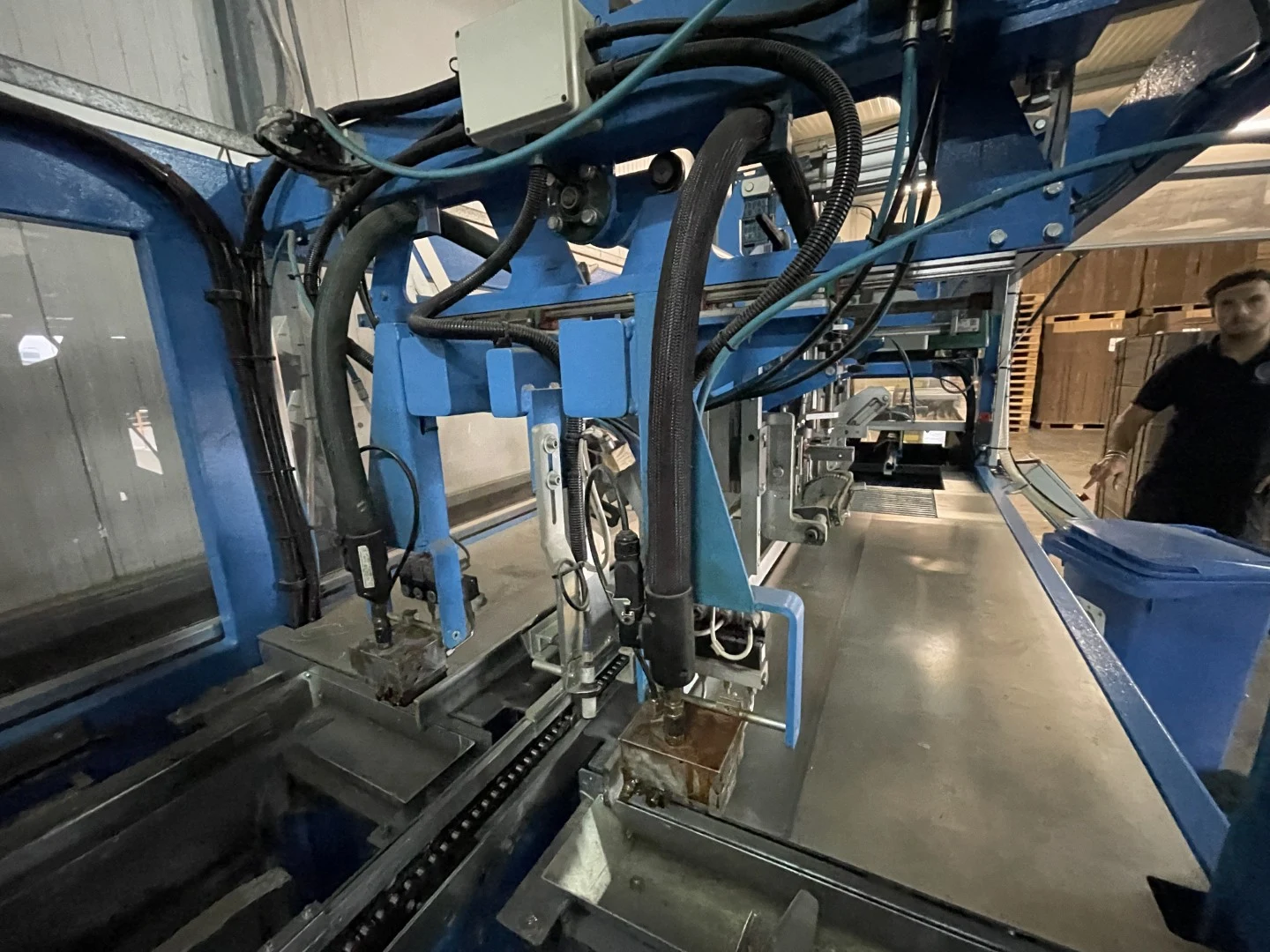

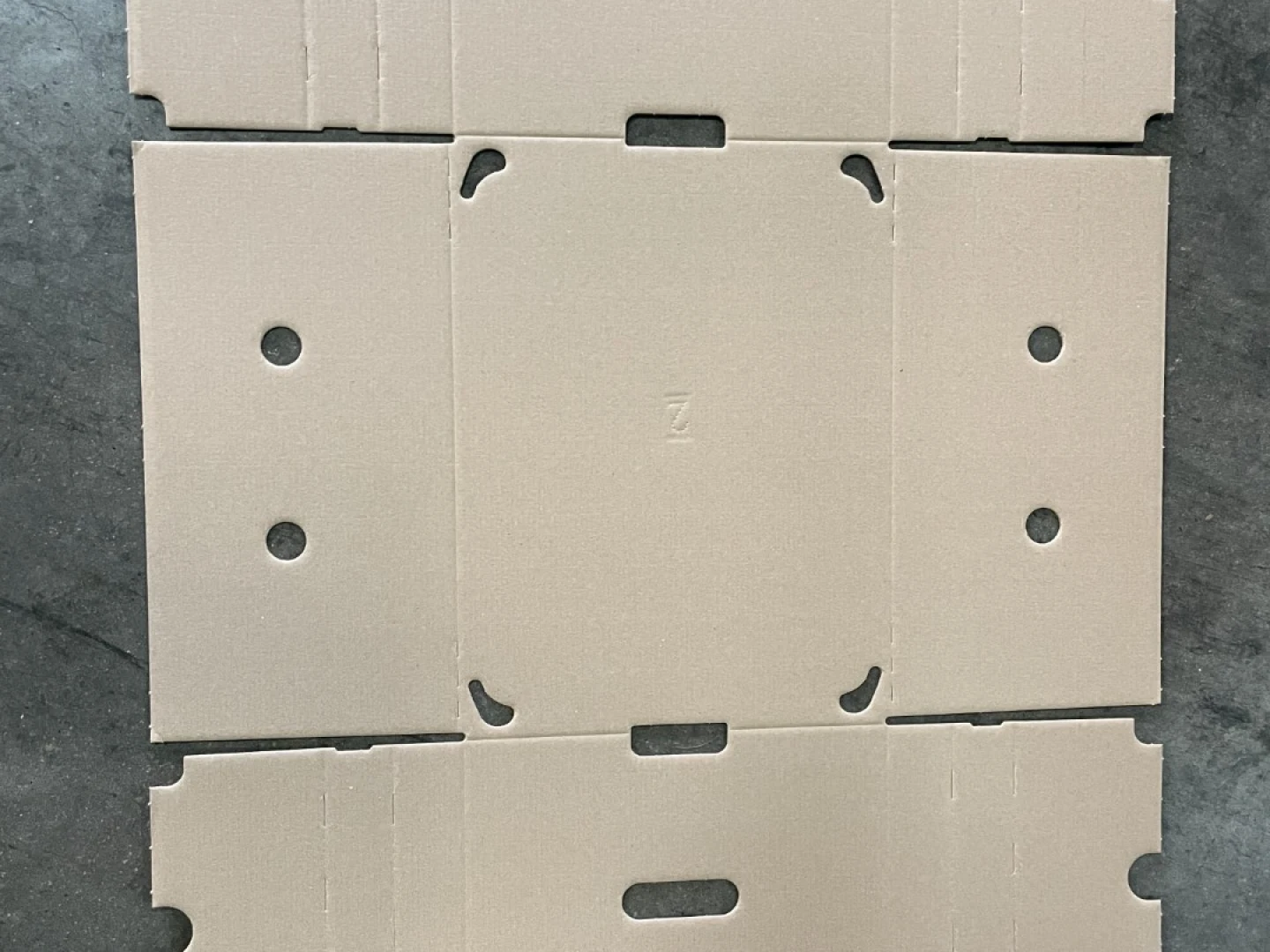

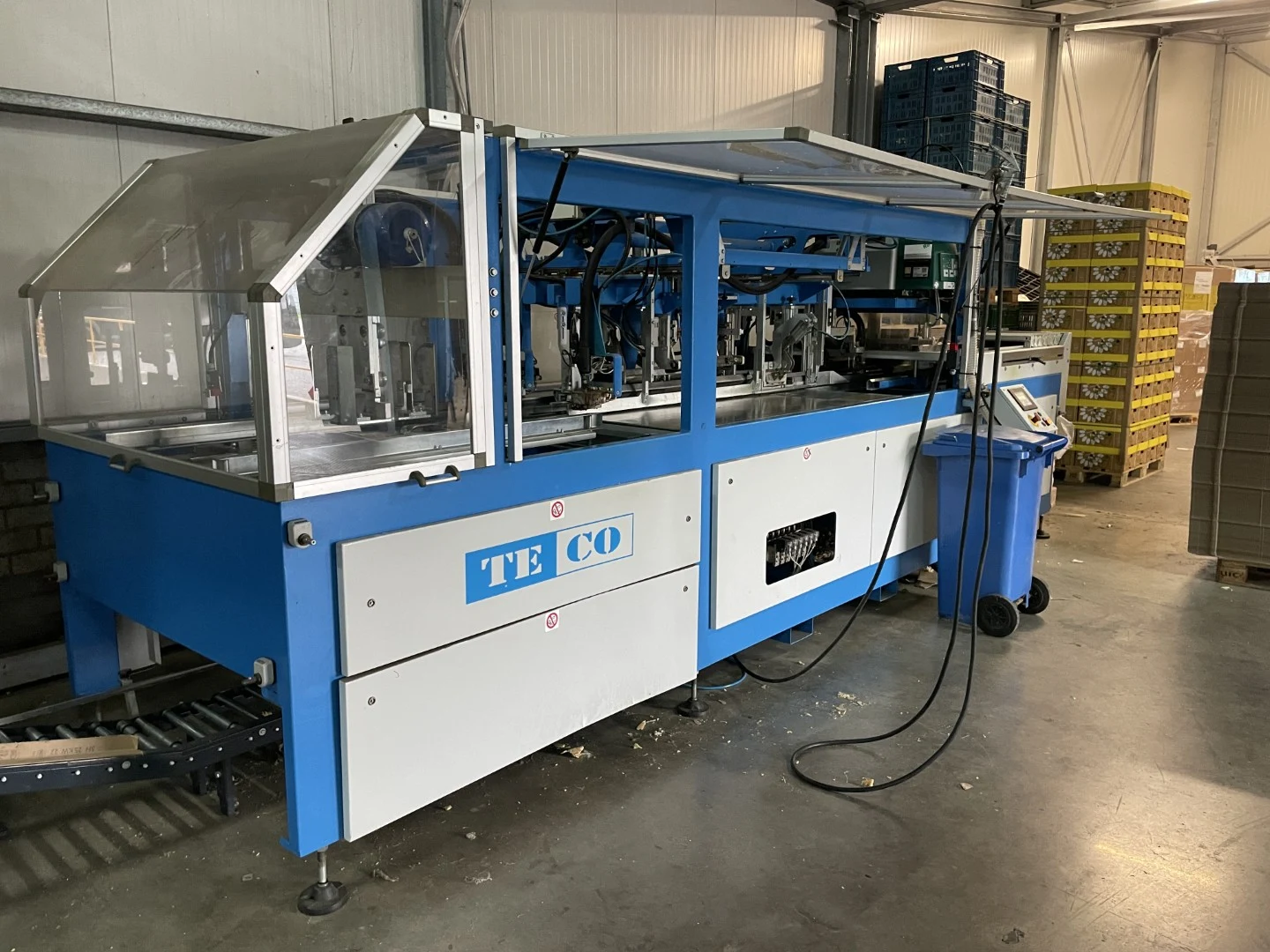

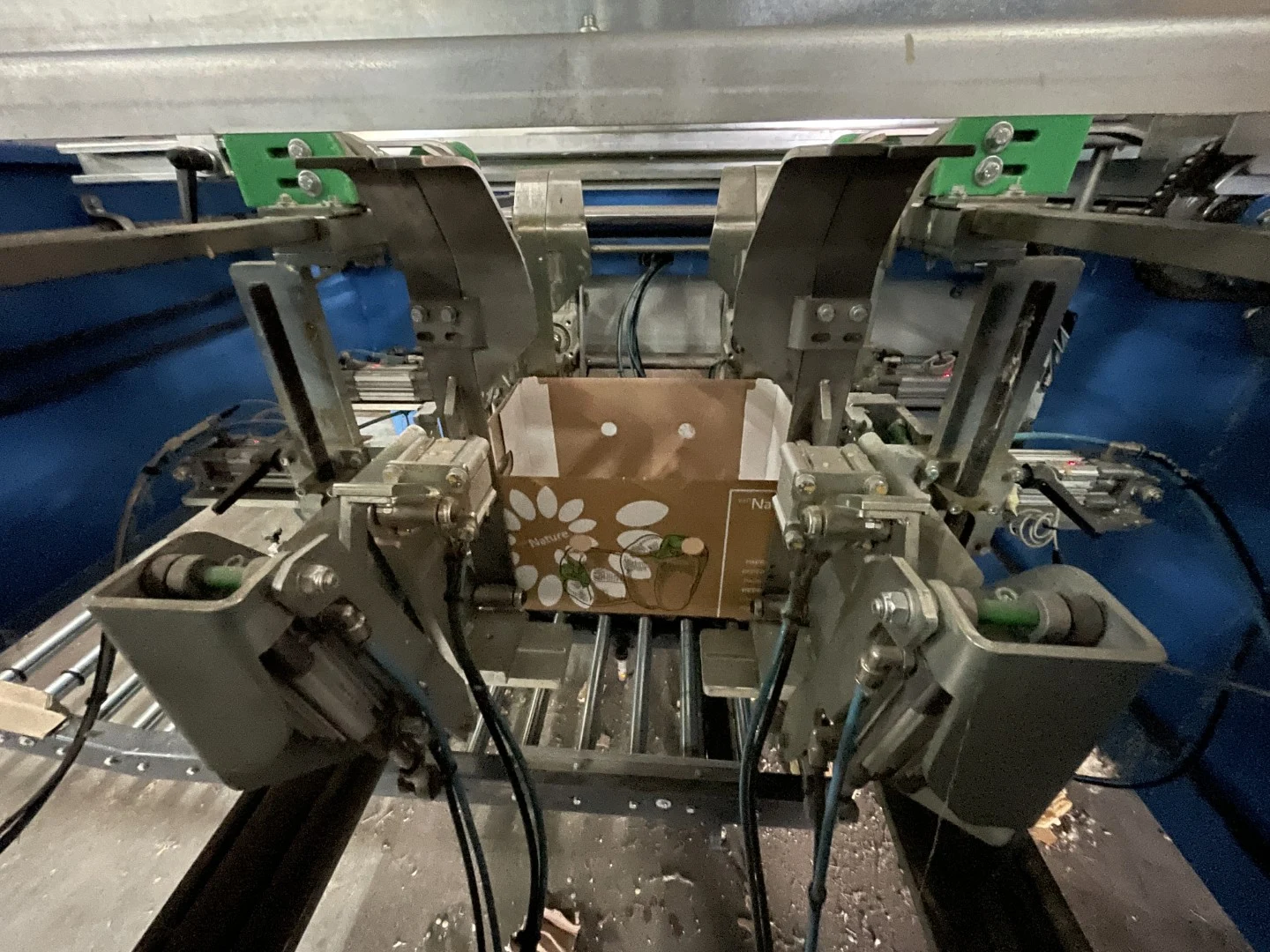

Teco T3 Automatic Box / Tray Erecting Machine with Robatech Hotmelt System Teco T3 automatic box and tray erecting machine, manufactured in 2016, for automatically forming and hotmelt gluing cardboard boxes and trays. The machine was previously used to produce bell pepper boxes. Equipped with a Robatech Concept A 12/6 hotmelt adhesive melter and a BiT Hotmelt Technology AutoFill system for automatic adhesive supply. The machine is controlled by an Omron PLC and has 2 additional sensors at the rear for extra glue heads. The machine has produced approximately 2,350,000 boxes in total. Specifications:

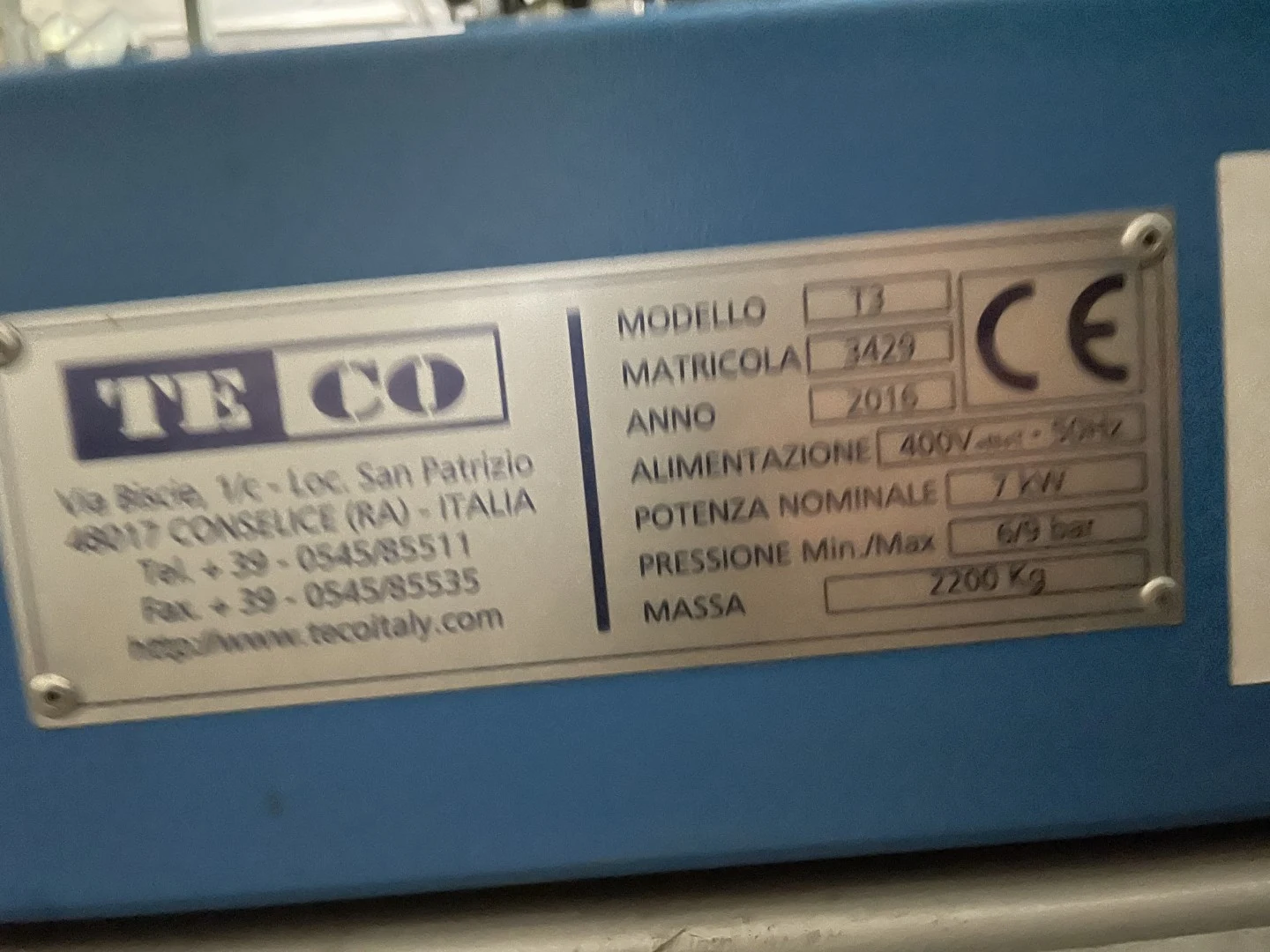

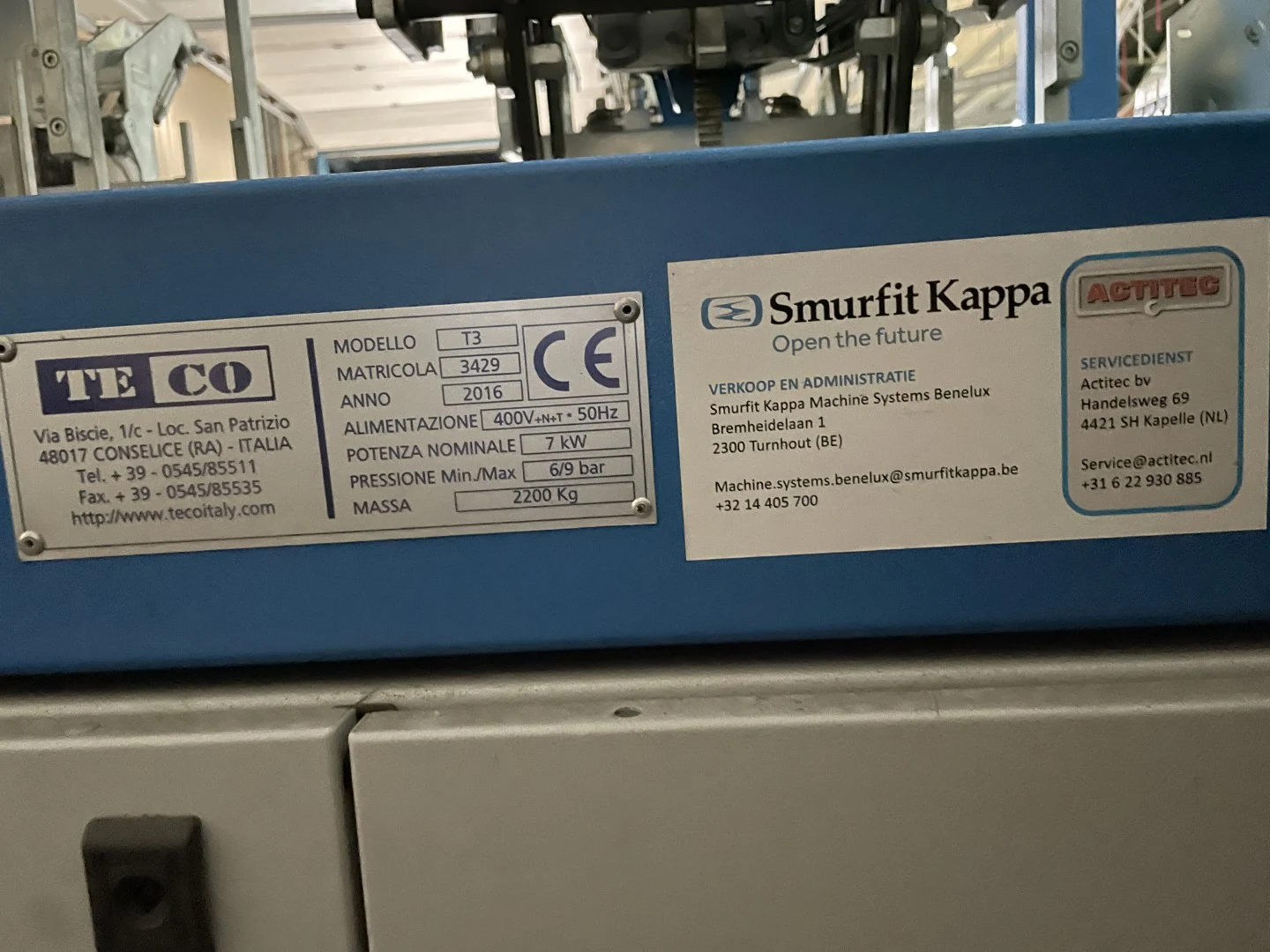

• Manufacturer: Teco
• Model: T3
• Year of manufacture: 2016
• Serial number: 3429

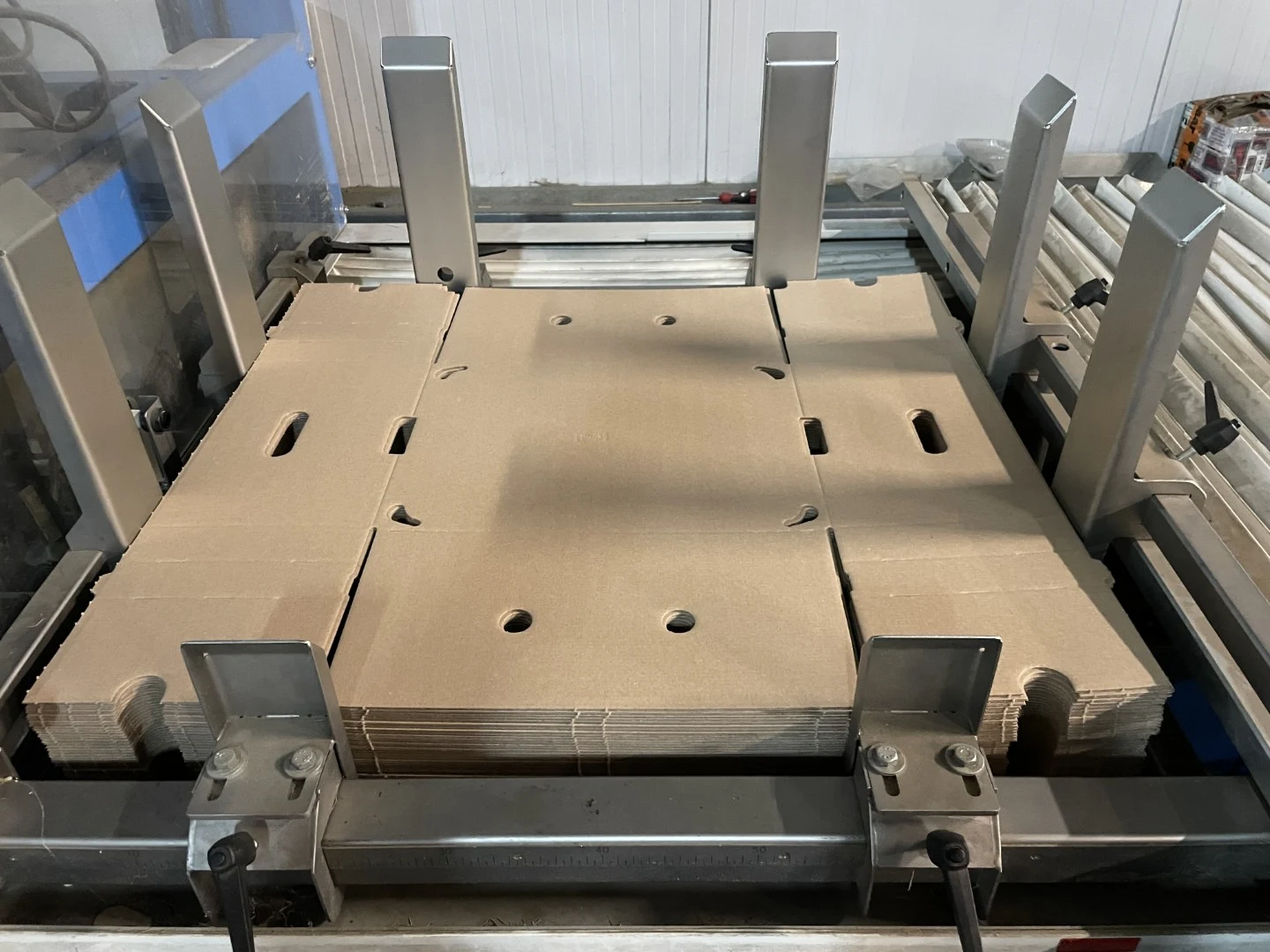

• Application: Forming and erecting boxes / trays

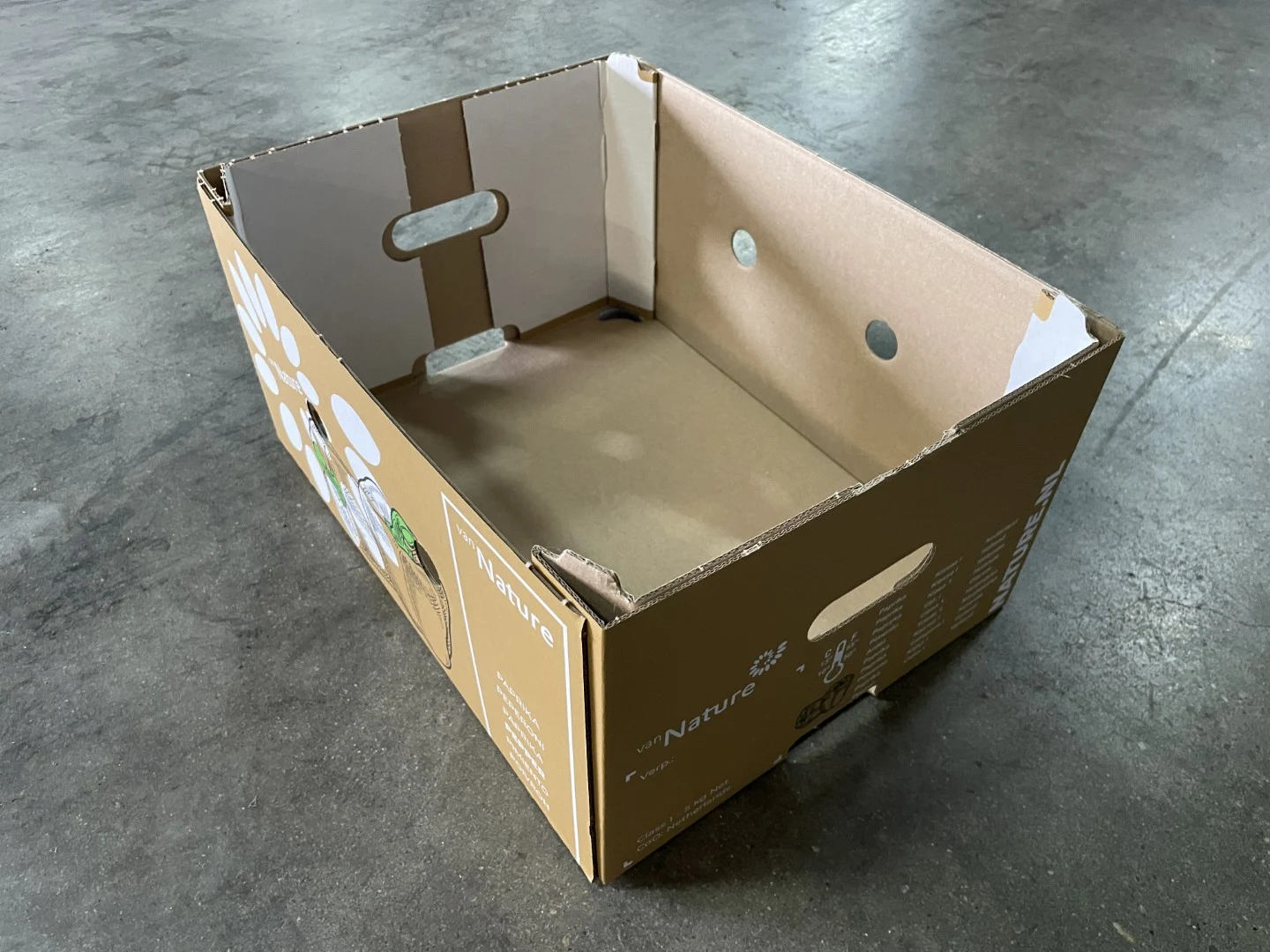

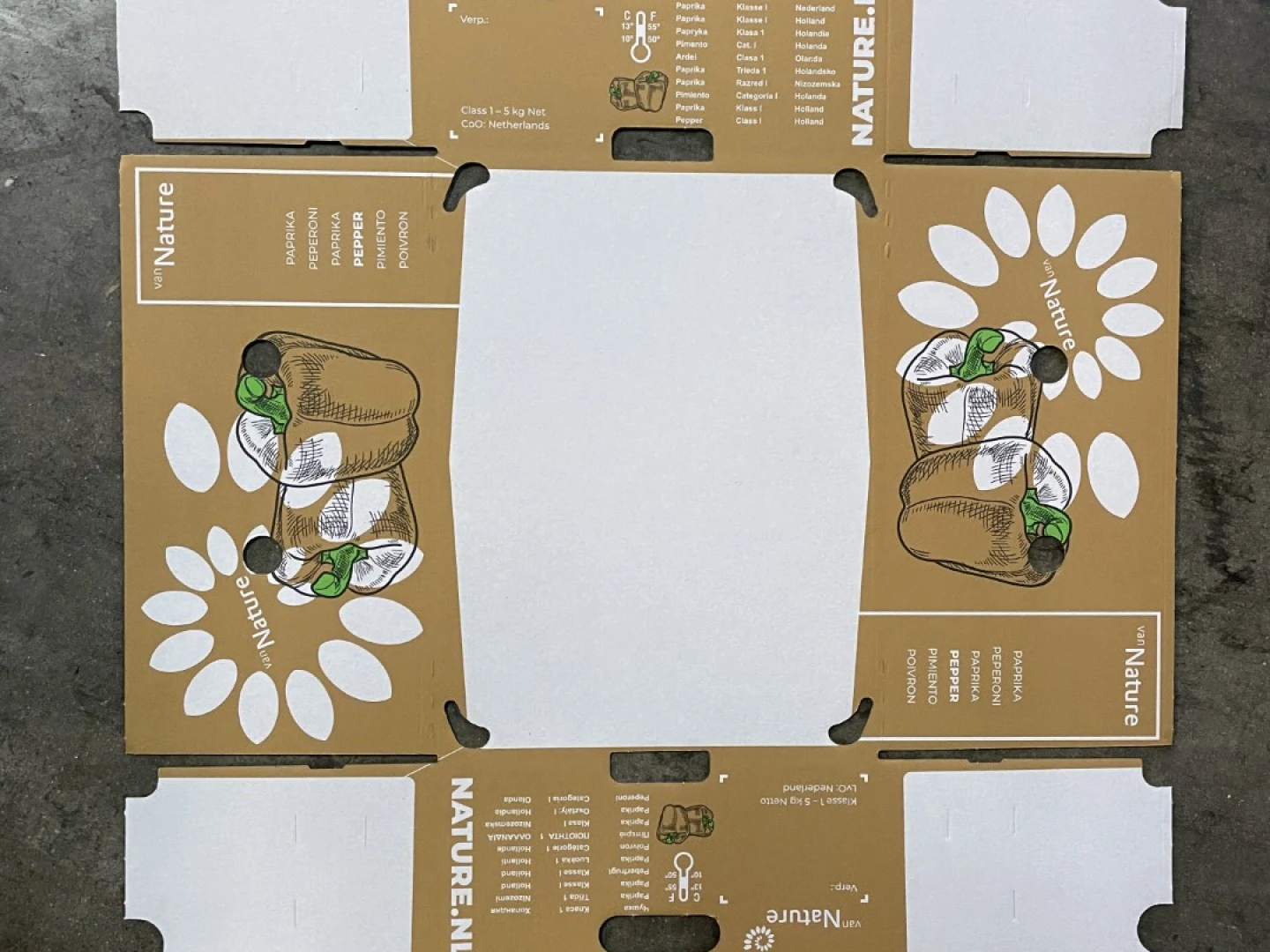

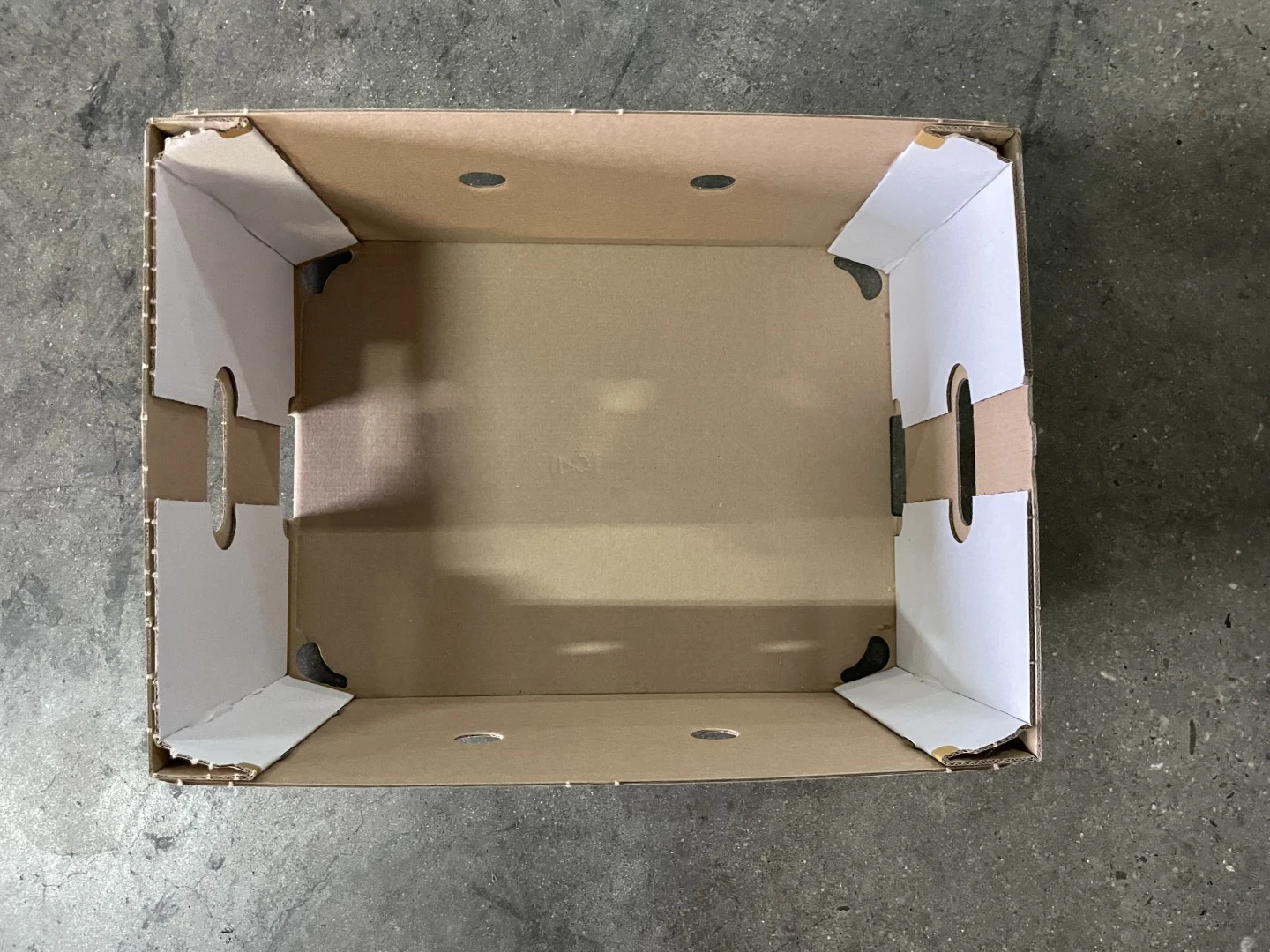

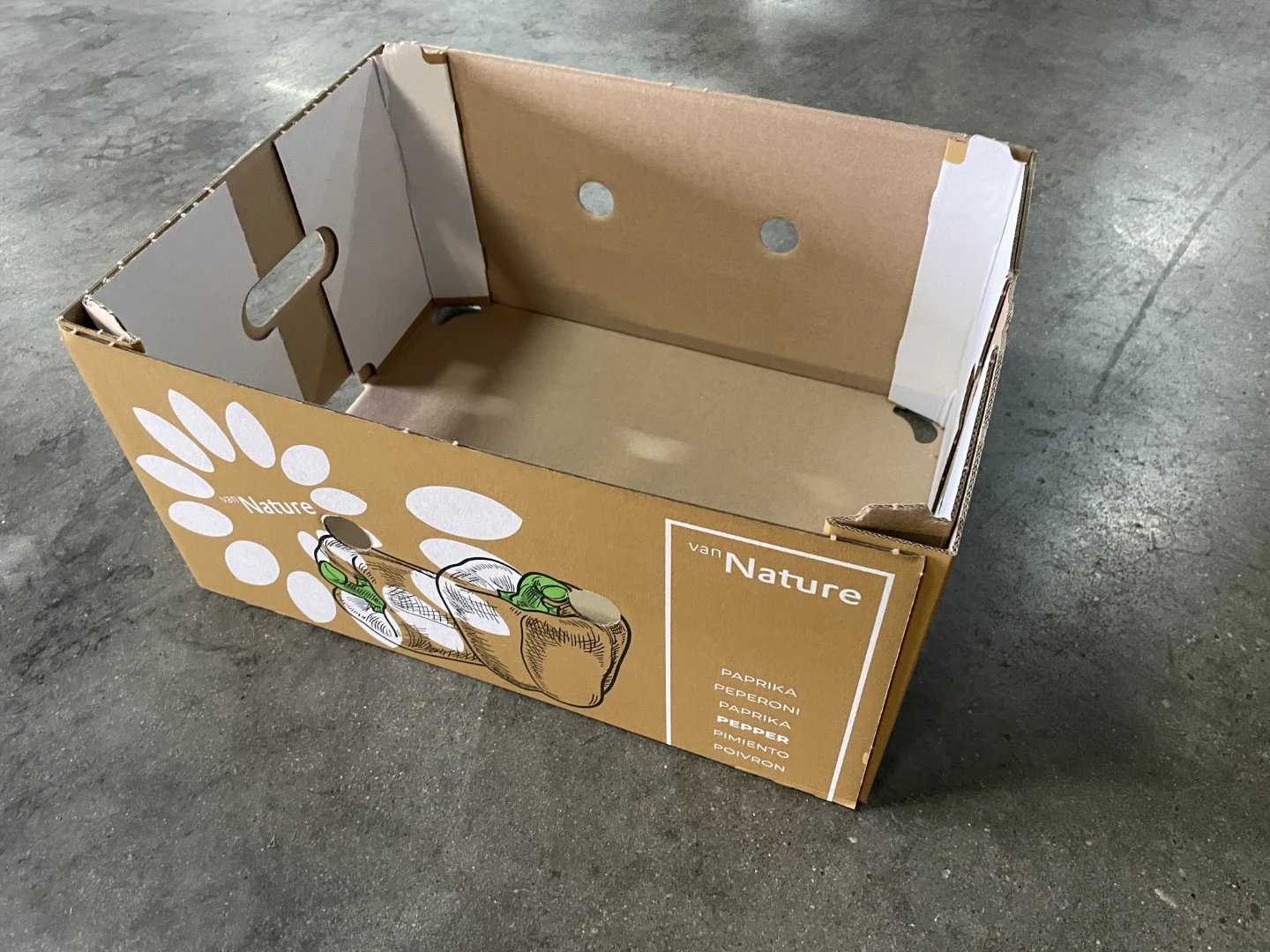

• Previously used for: Bell pepper boxes
• Capacity: Up to 2,100 boxes/trays per hour (35/min.)

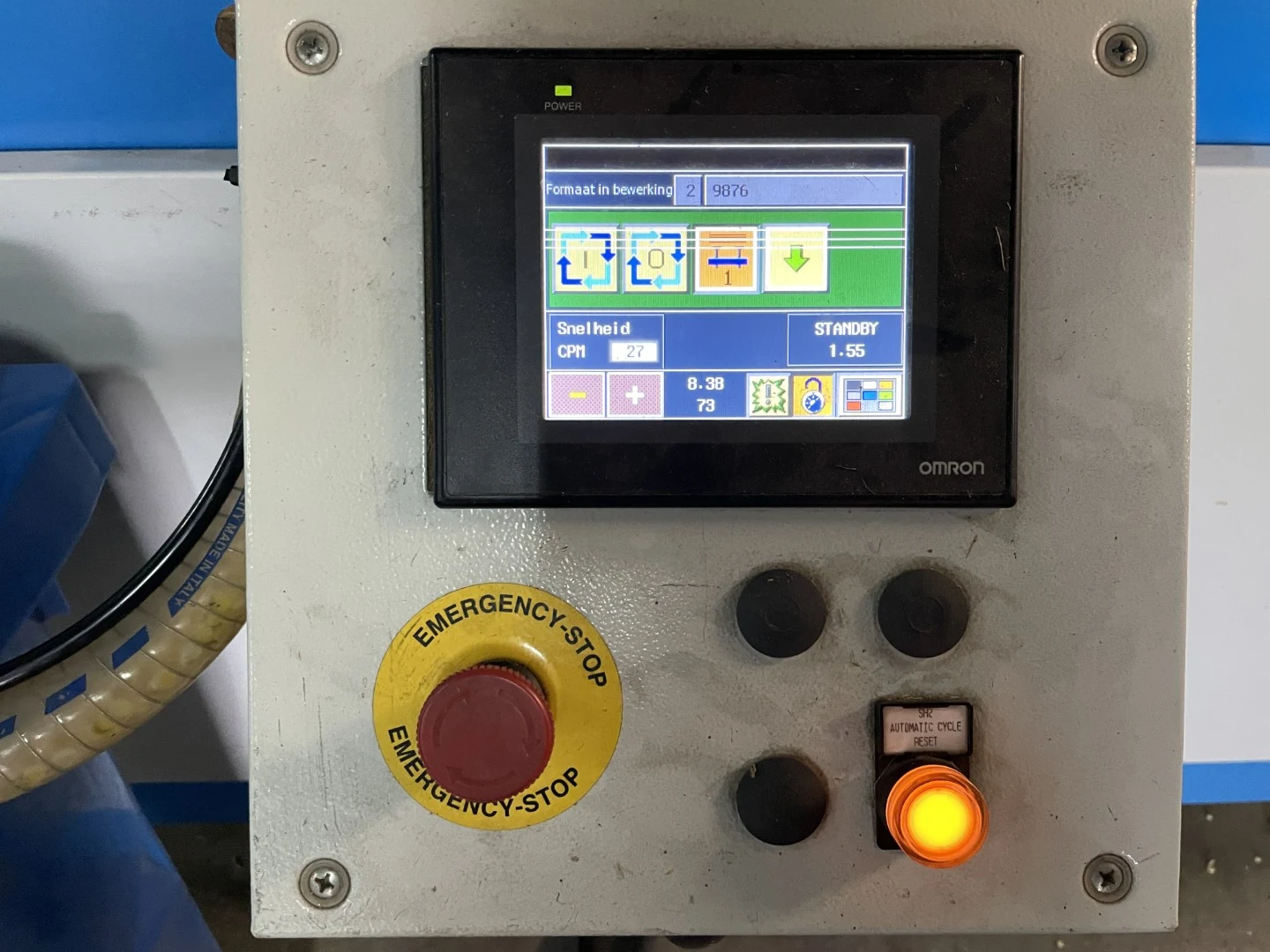

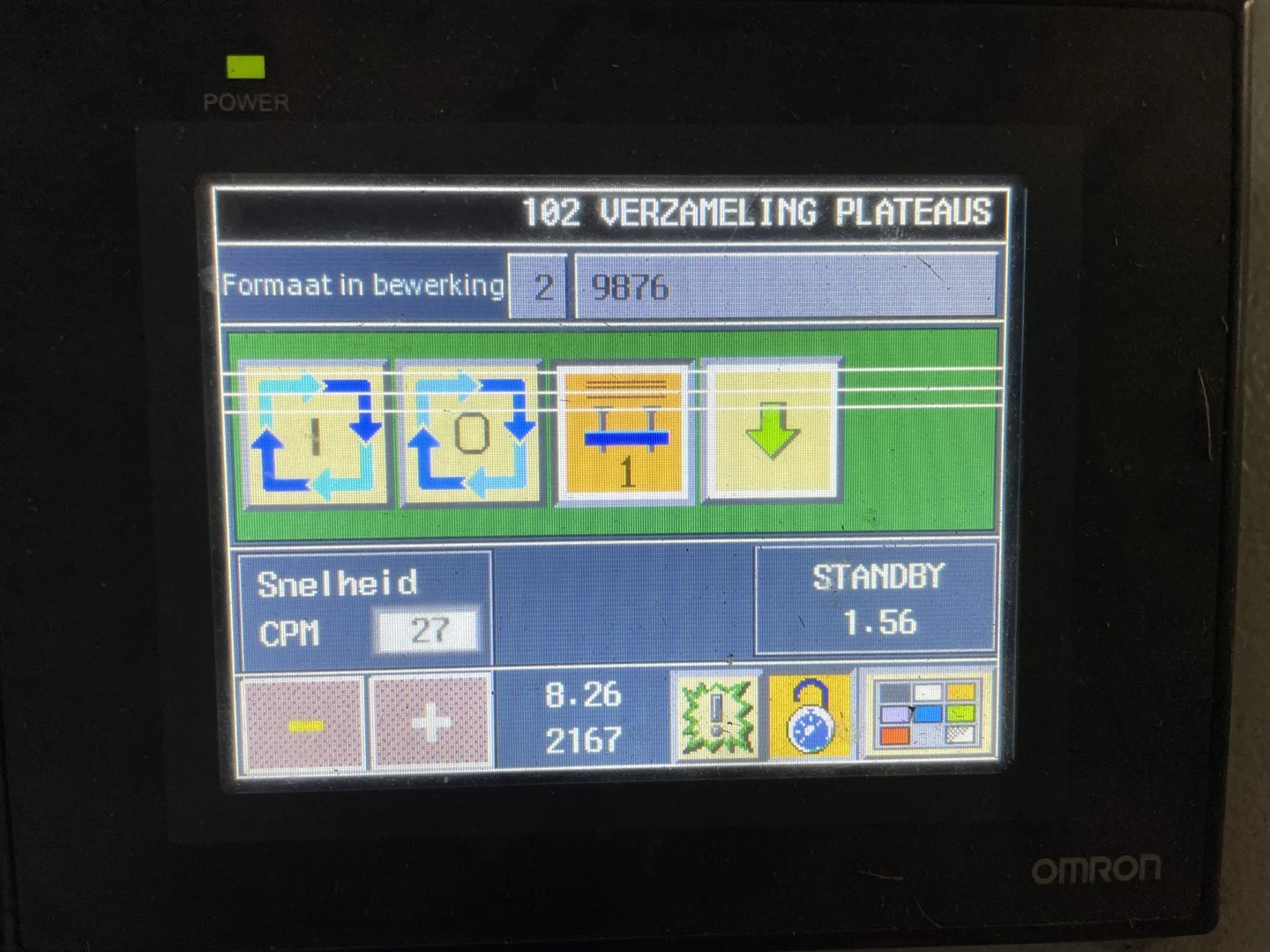

• Control: Omron PLC
• Power: 7 kW
• Power supply: 400 V + N + PE

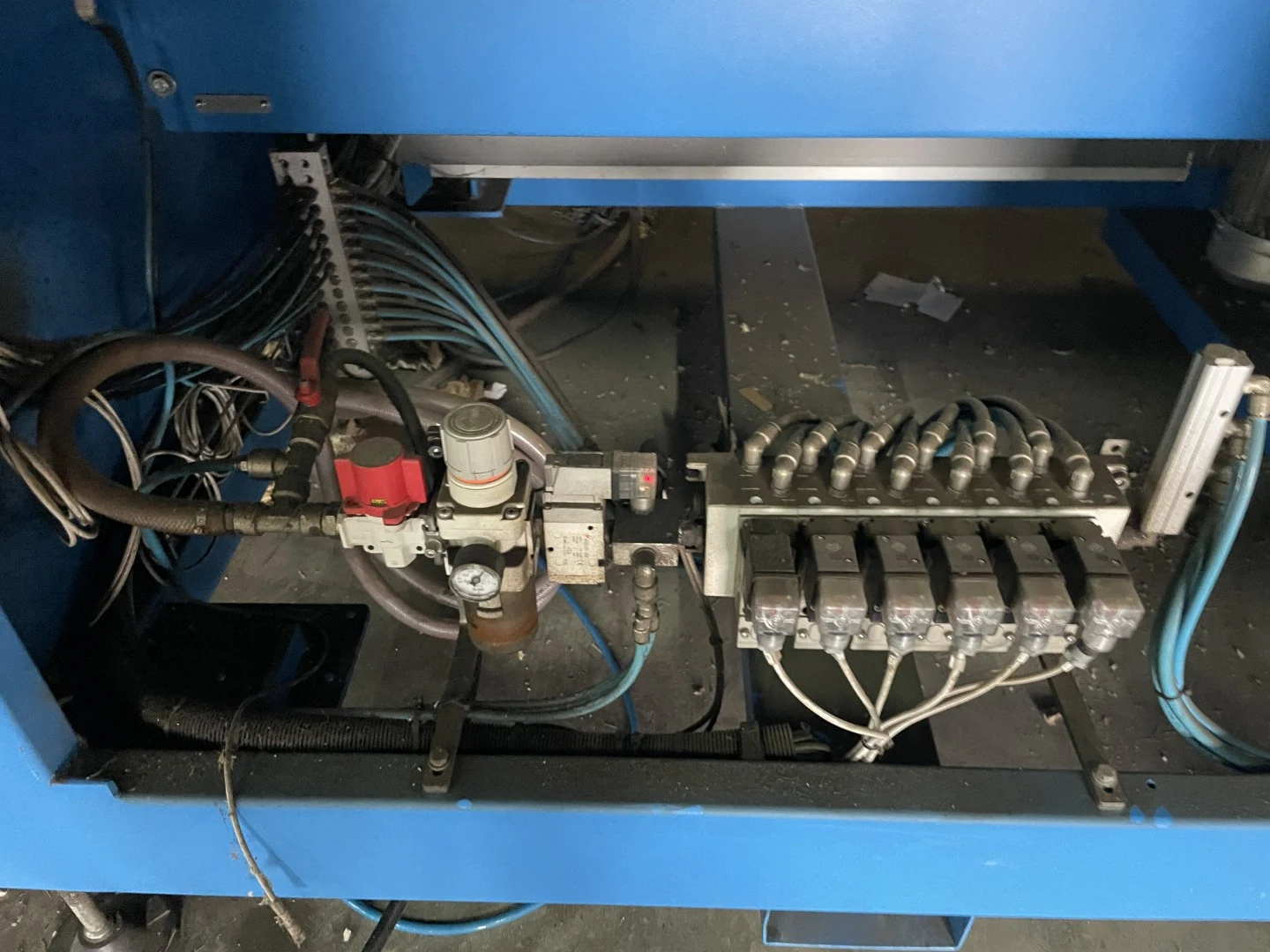

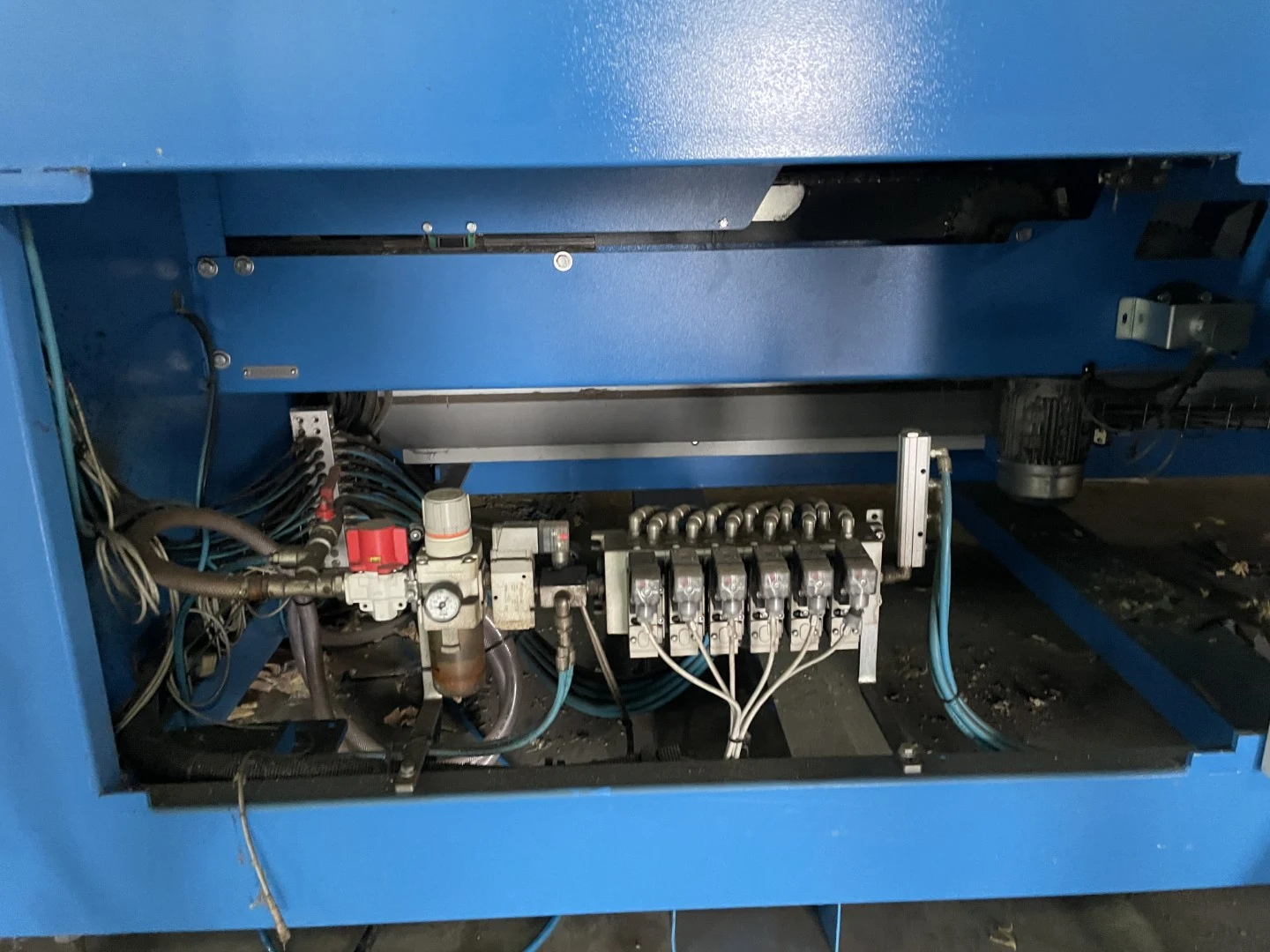

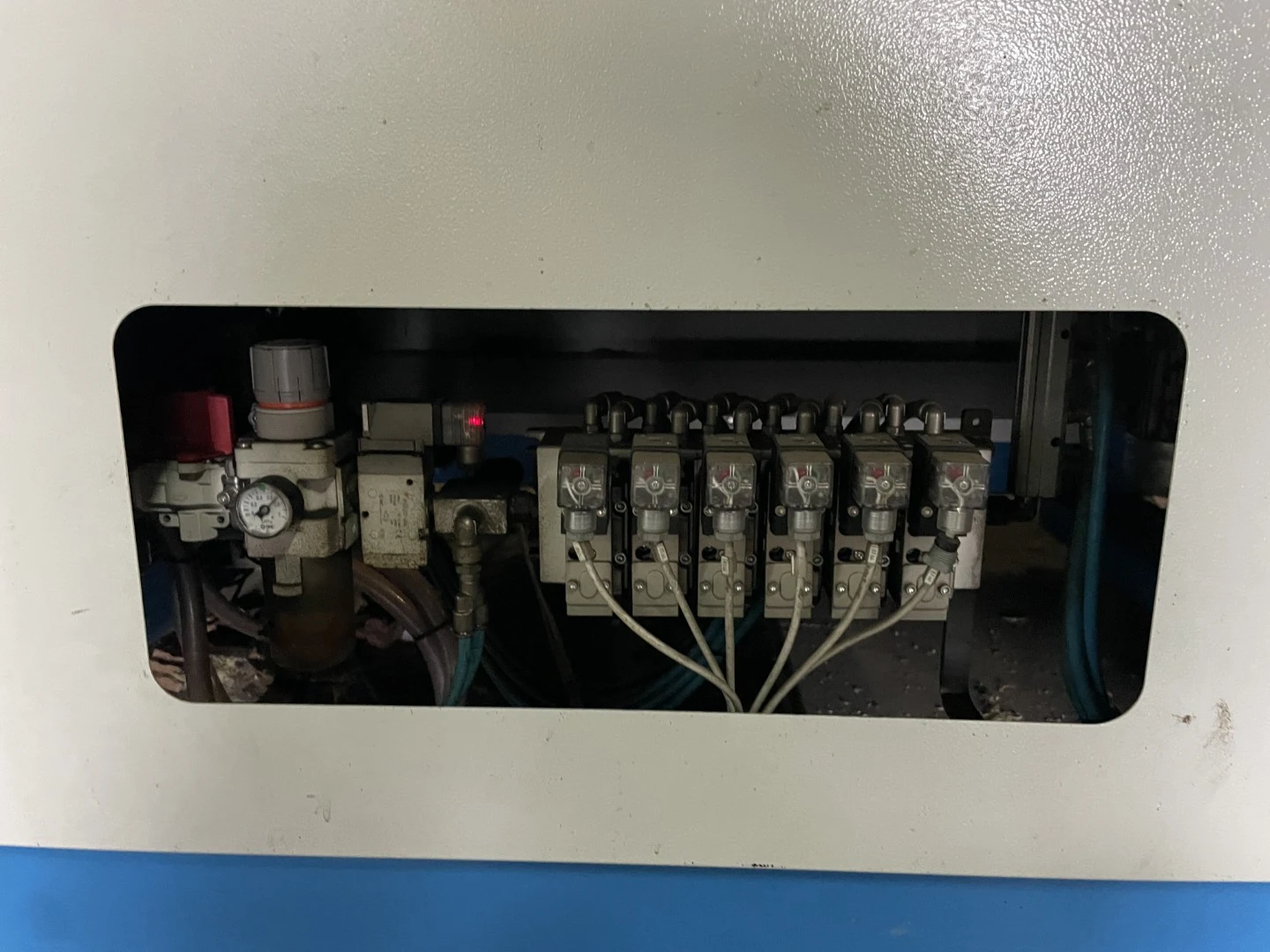

• Air pressure: 6–8 bar according to the machine’s nameplate
• Weight: 2,200 kg

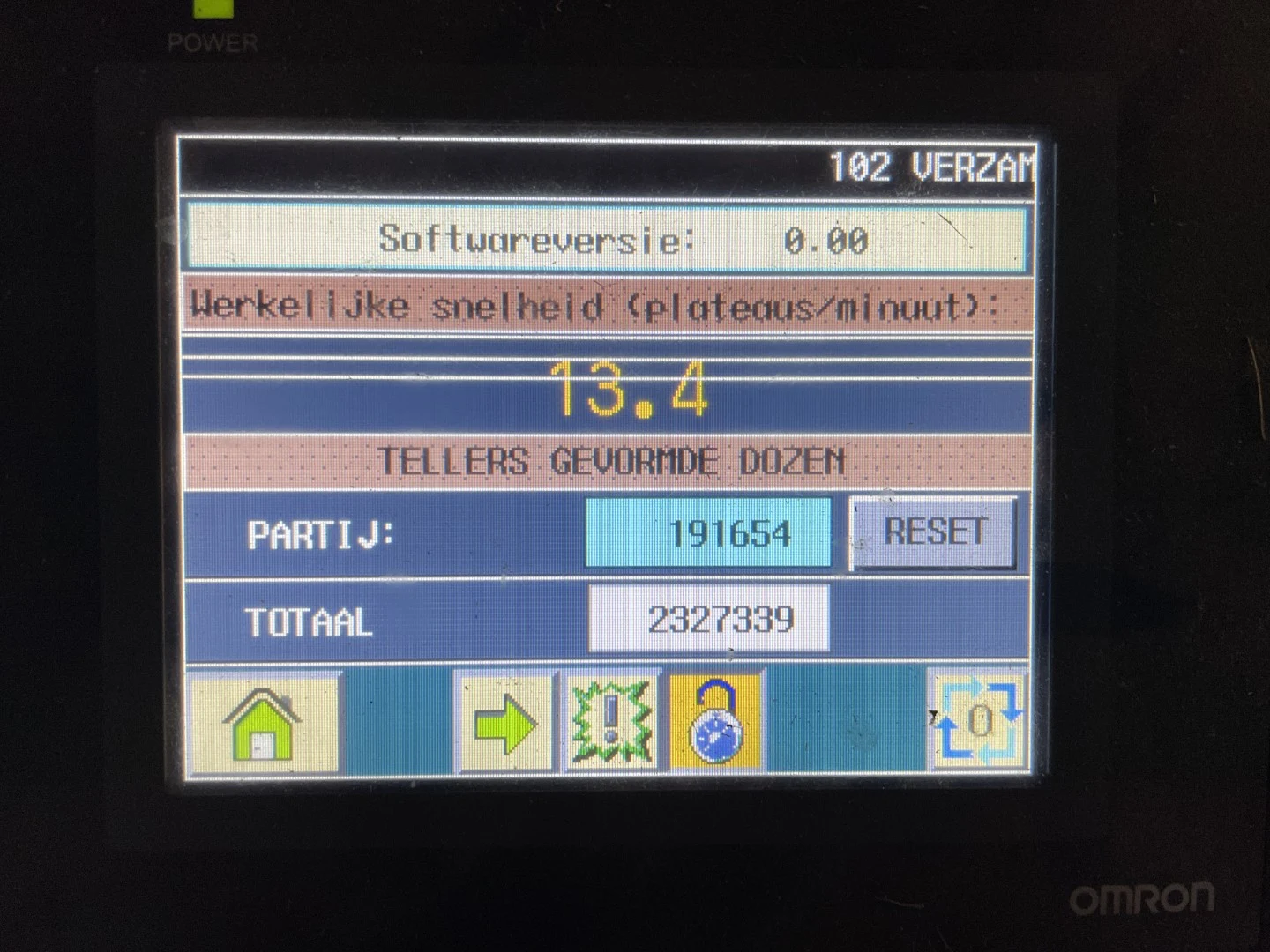

• Total production: Approx. 2,350,000 boxes

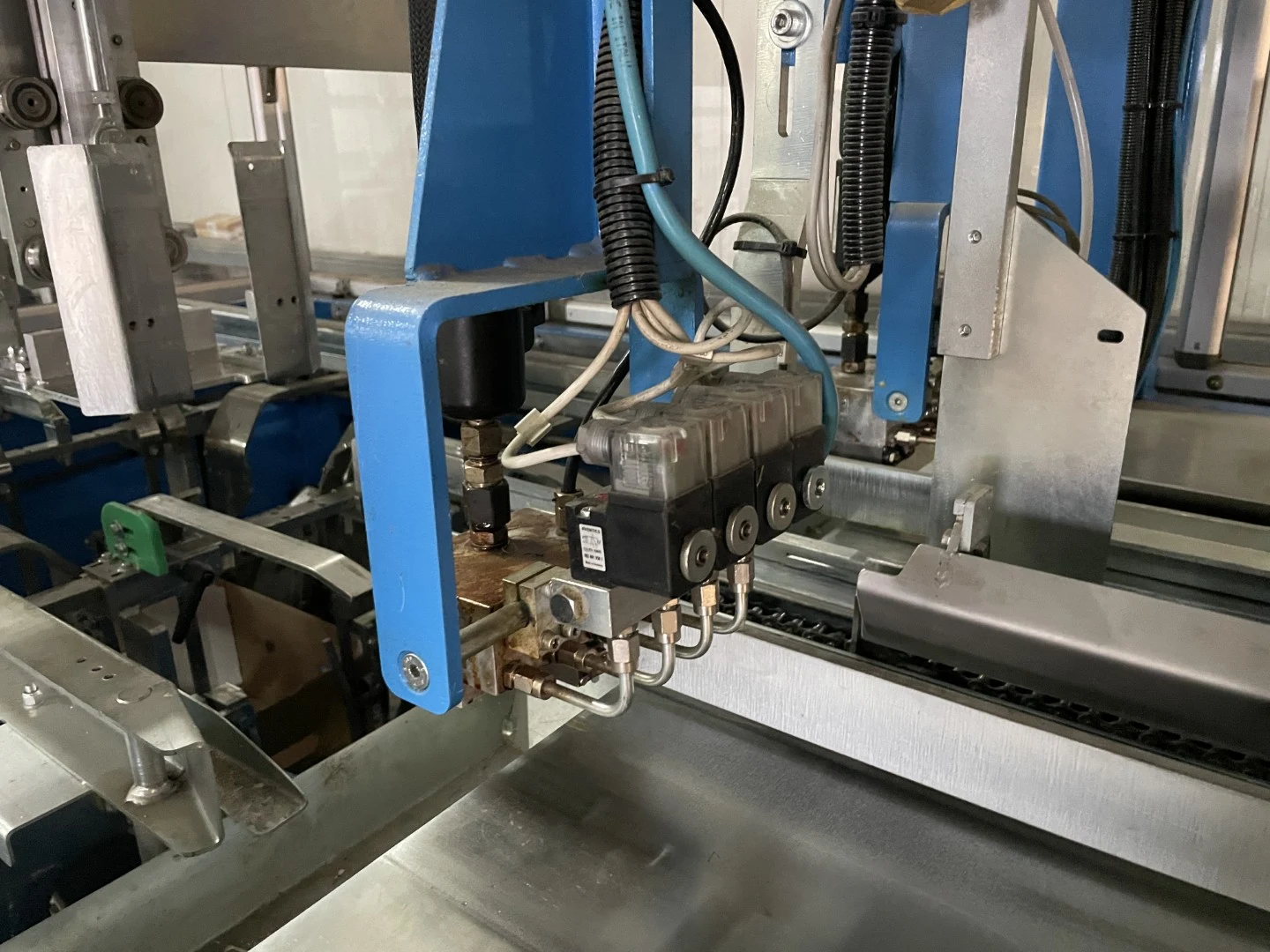

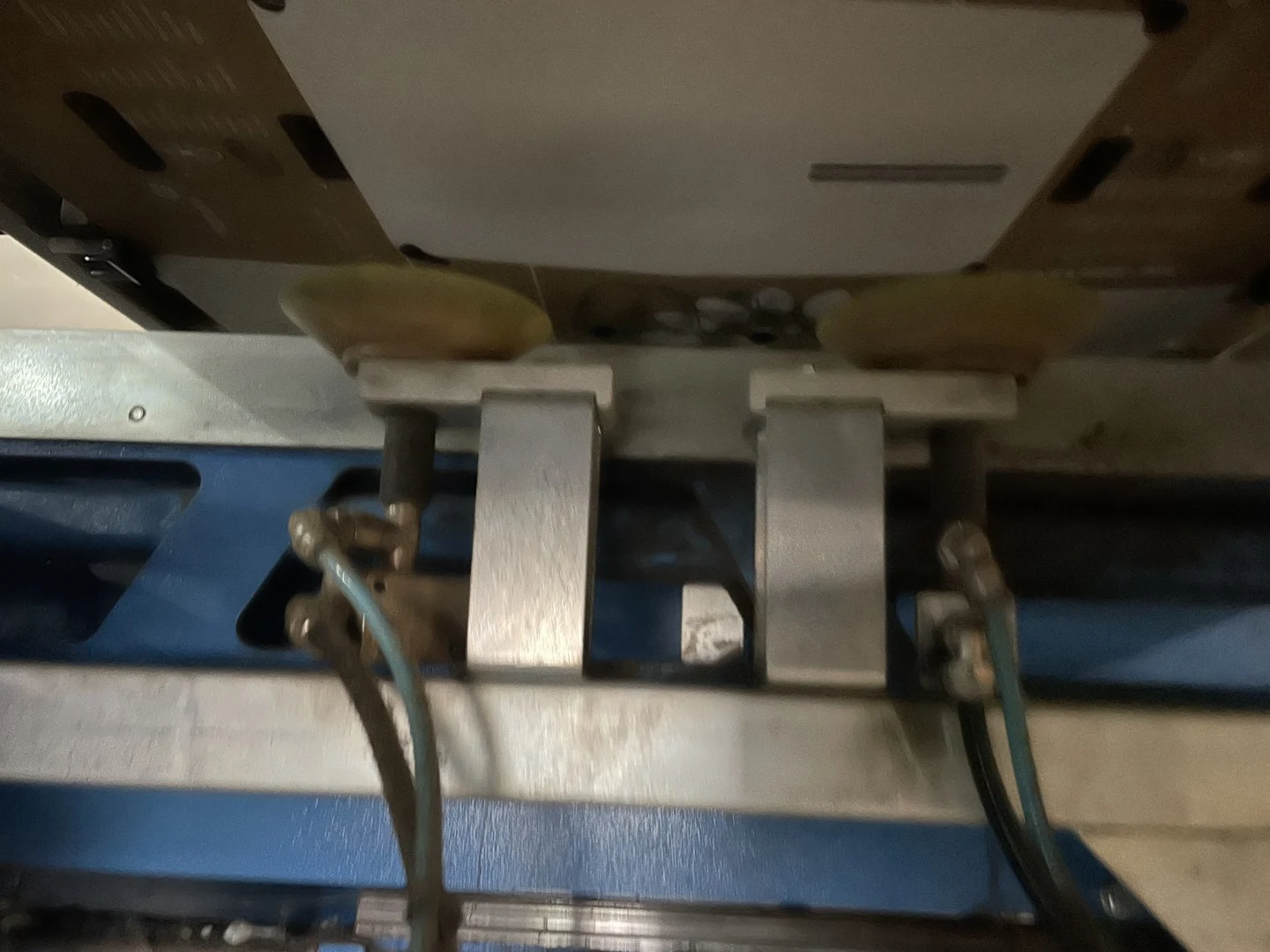

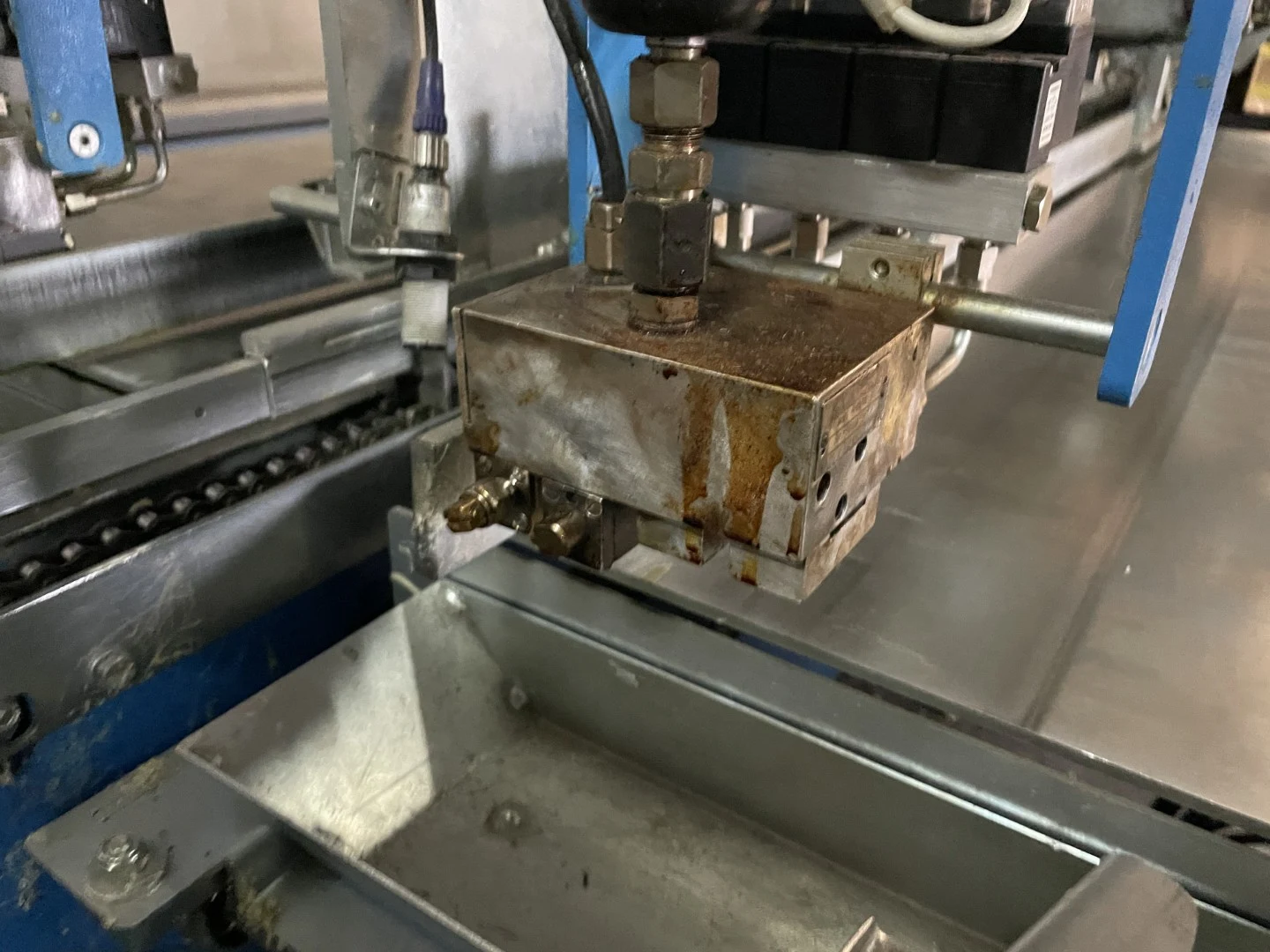

• 2 additional sensors at the rear for extra glue heads

• Box lift is not included.

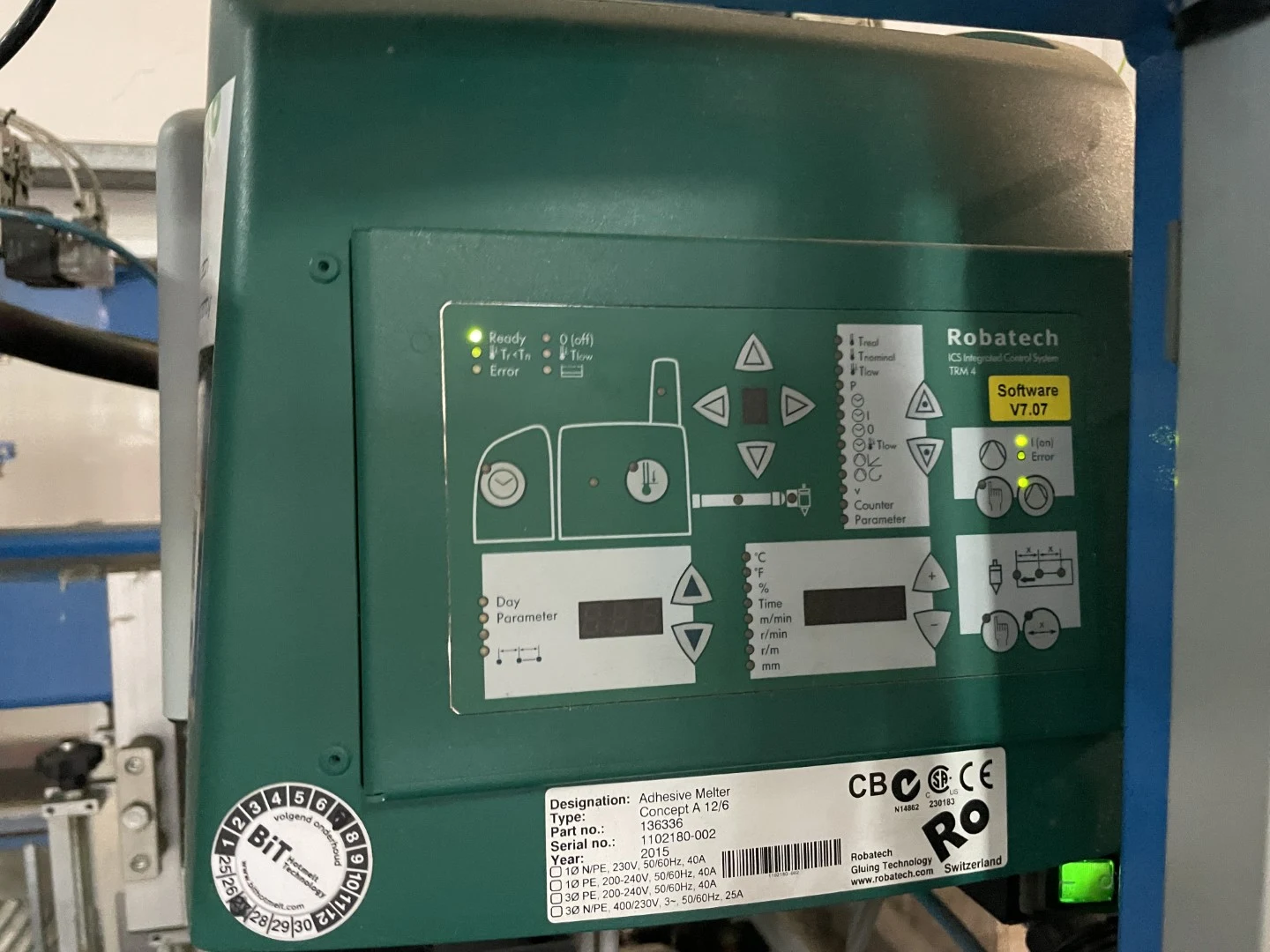

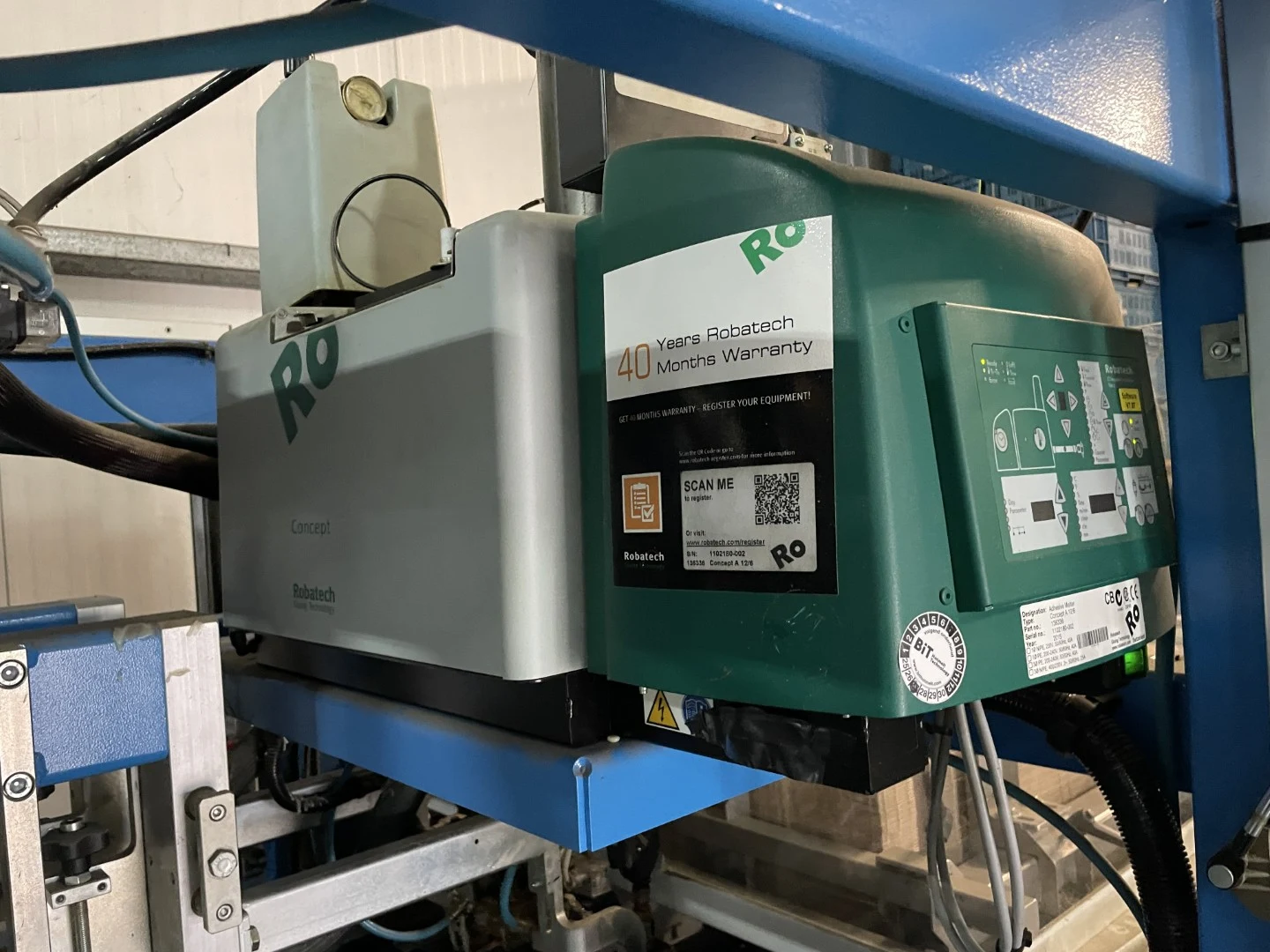

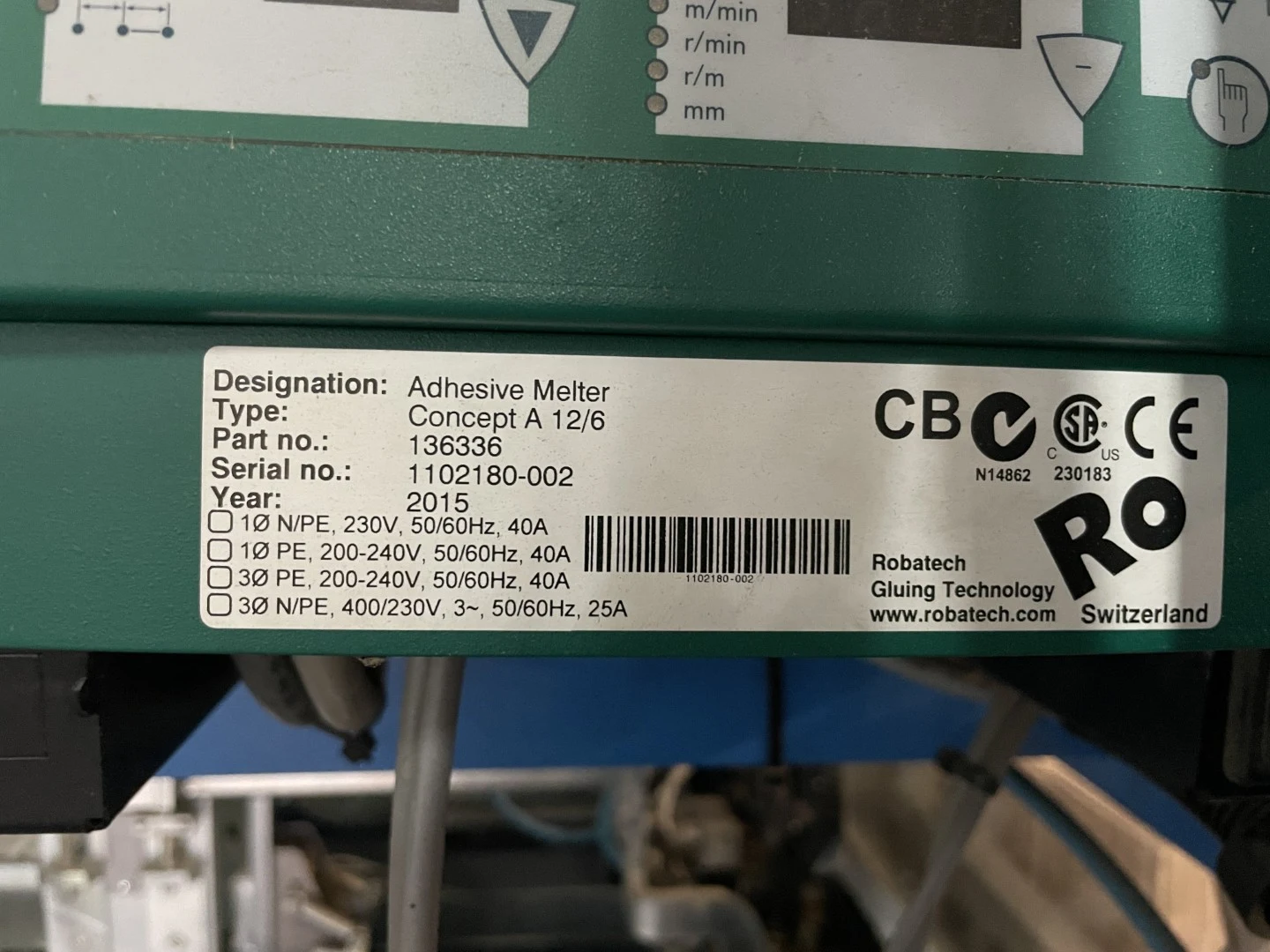

Robatech hotmelt system:

• Manufacturer: Robatech
• Type: Concept A 12/6
• Year of manufacture: 2015
• Part number: 136336
• Serial number: 1102180-002

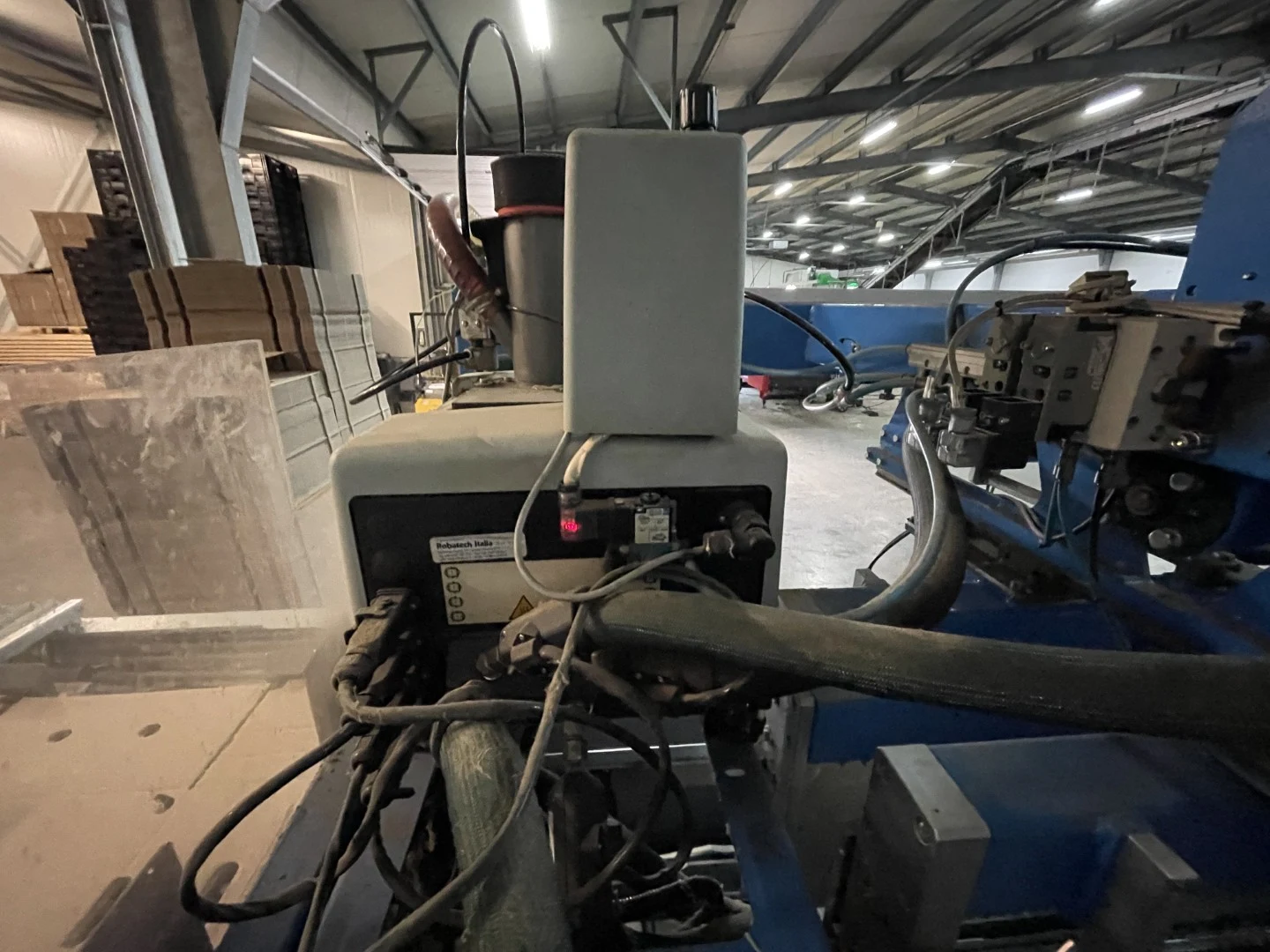

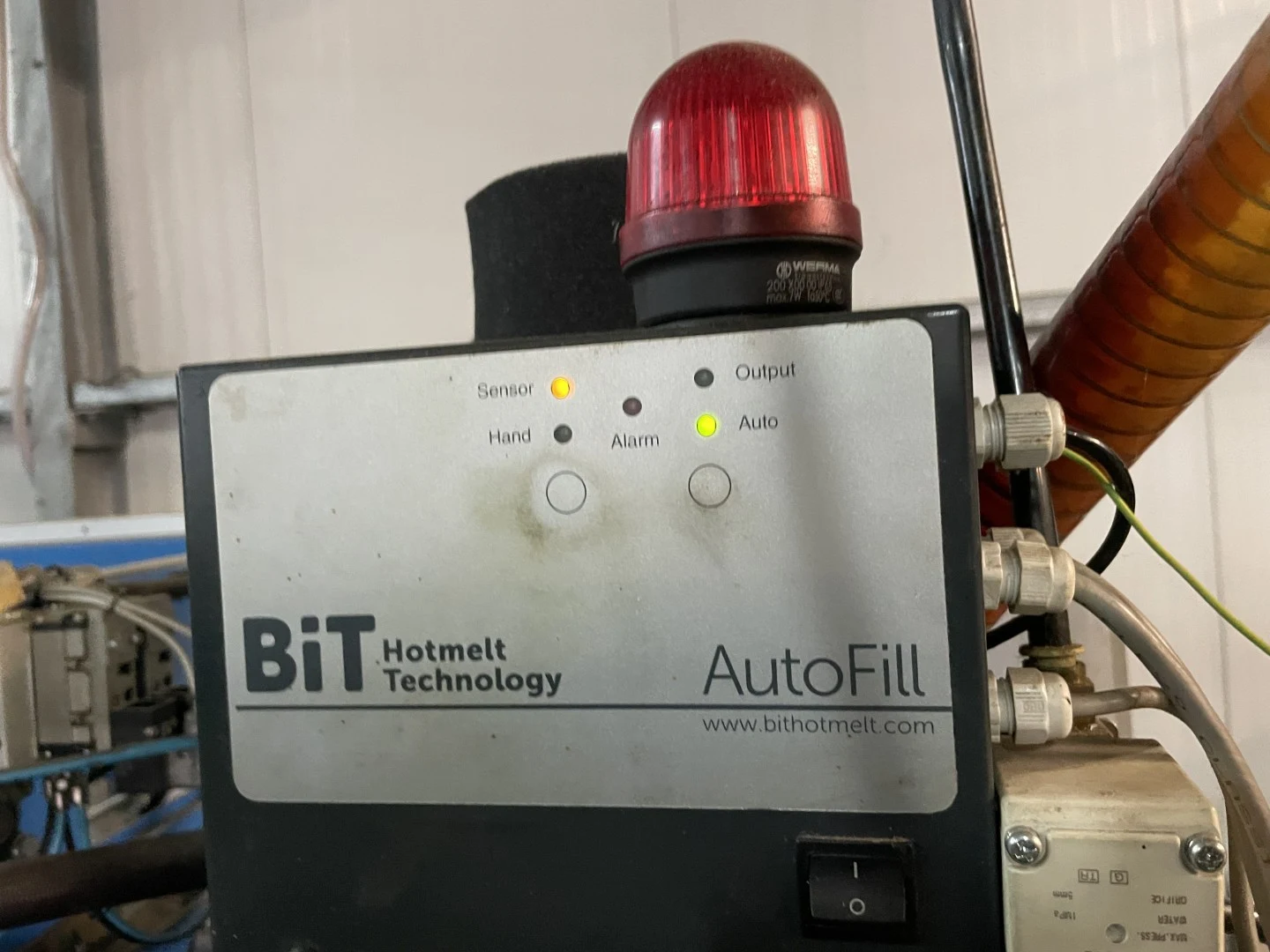

• Equipped with a BiT Hotmelt Technology AutoFill system for adhesive supply
