Description:

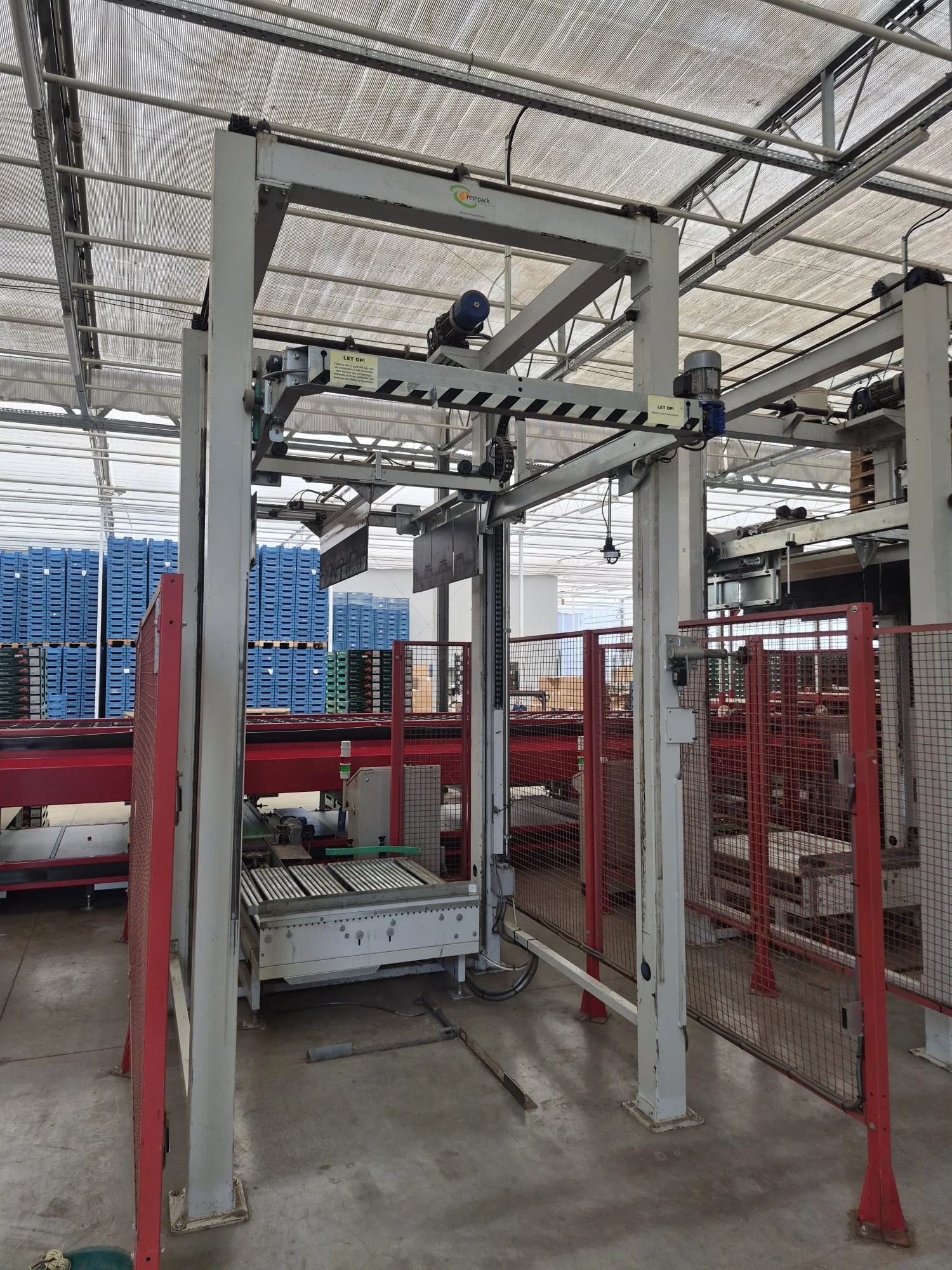

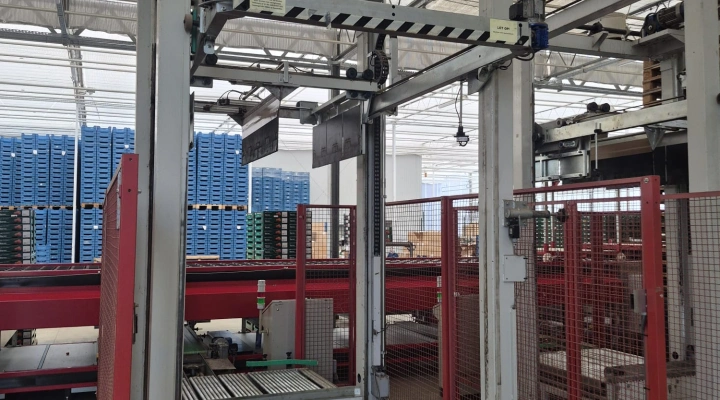

Sorma FBR 108S palletizer infeed from the right
The Sorma FBR-108S is an automatic clamp palletiser for boxes and crates made of cardboard, wood or plastic, including those used for fruit and vegetables. The machine forms layers and stacks them on a pallet.
- Infeed from the right
- Gantry with lifting and clamping system
- Roller conveyor
- Safety fencing
- Pallet sizes: 800 × 1,200 and 1,000 × 1,200 mm
- Maximum stacking height: 2,400 mm
- Maximum weight per layer: 150 kg
- Capacity: approximately 780–1,320 boxes/hour, depending on size, infeed direction and pallet
- Electrical connection: 3-phase, 380–400 V, 50 Hz
- Power: 4 kW
- Compressed air pressure: 6 bar
- Air consumption: 230 Nl/min
- Dimensions: approximately 2.00 × 4.05 × 4.00 m, excluding safety fencing
- Machine weight: approximately 1,600 kg
- Ambient temperature: +5 to +40 °C
Technical specifications:
| Model: | FBR 108S |
| Condition: | Including servicing |
| Year: | 2006 |
Sorma FBR 108S palletizer infeed from the right
