Description:

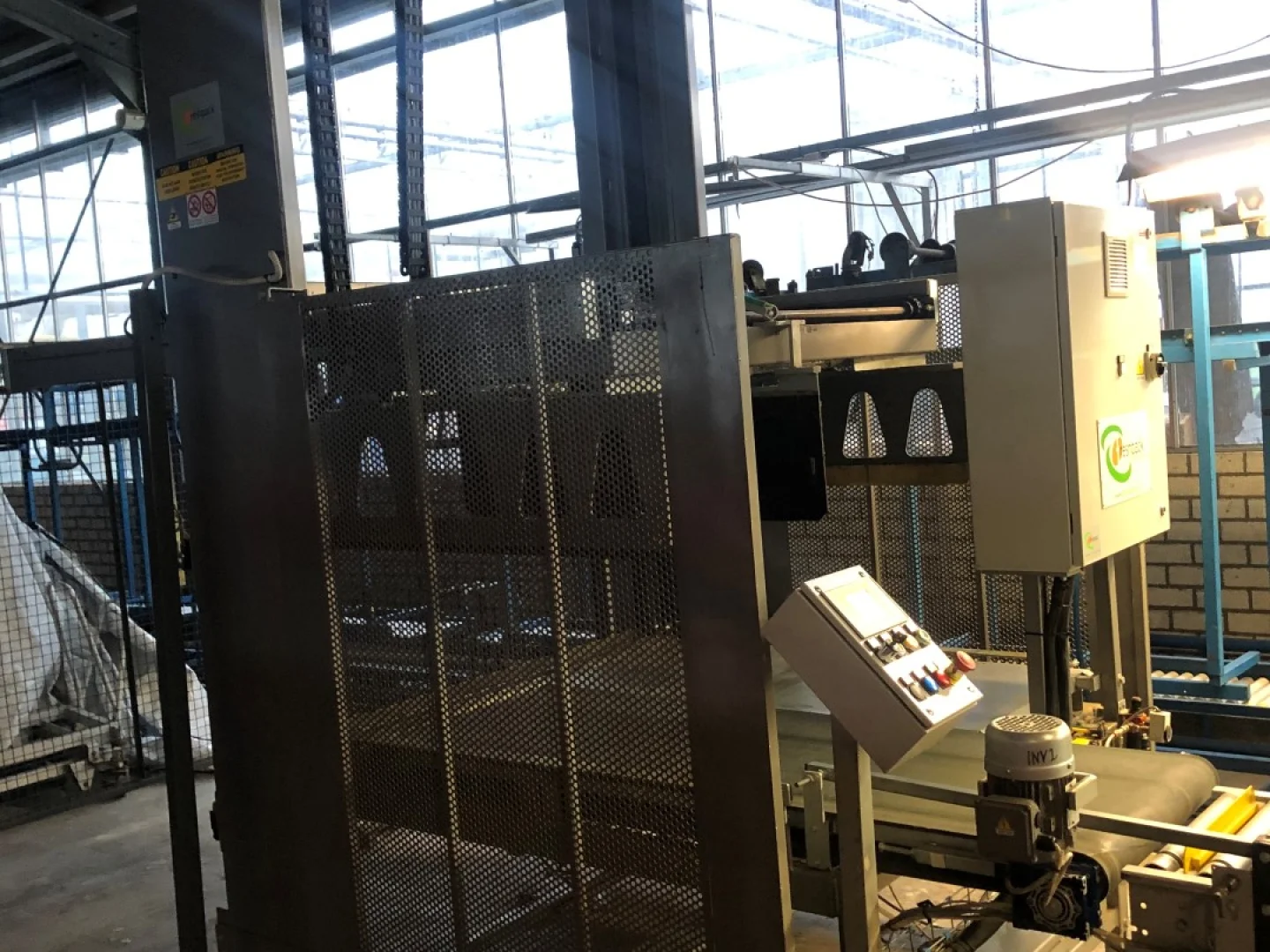

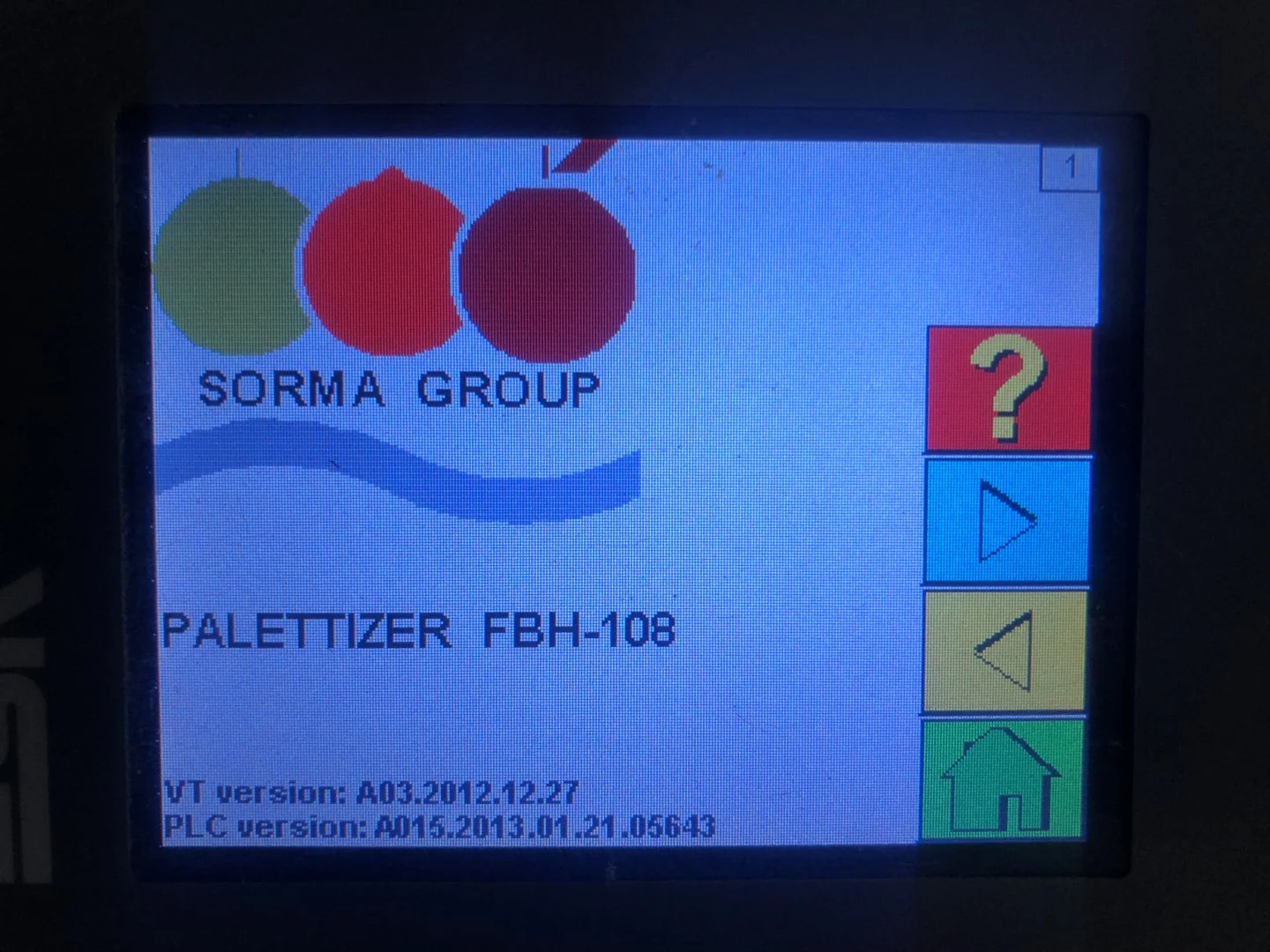

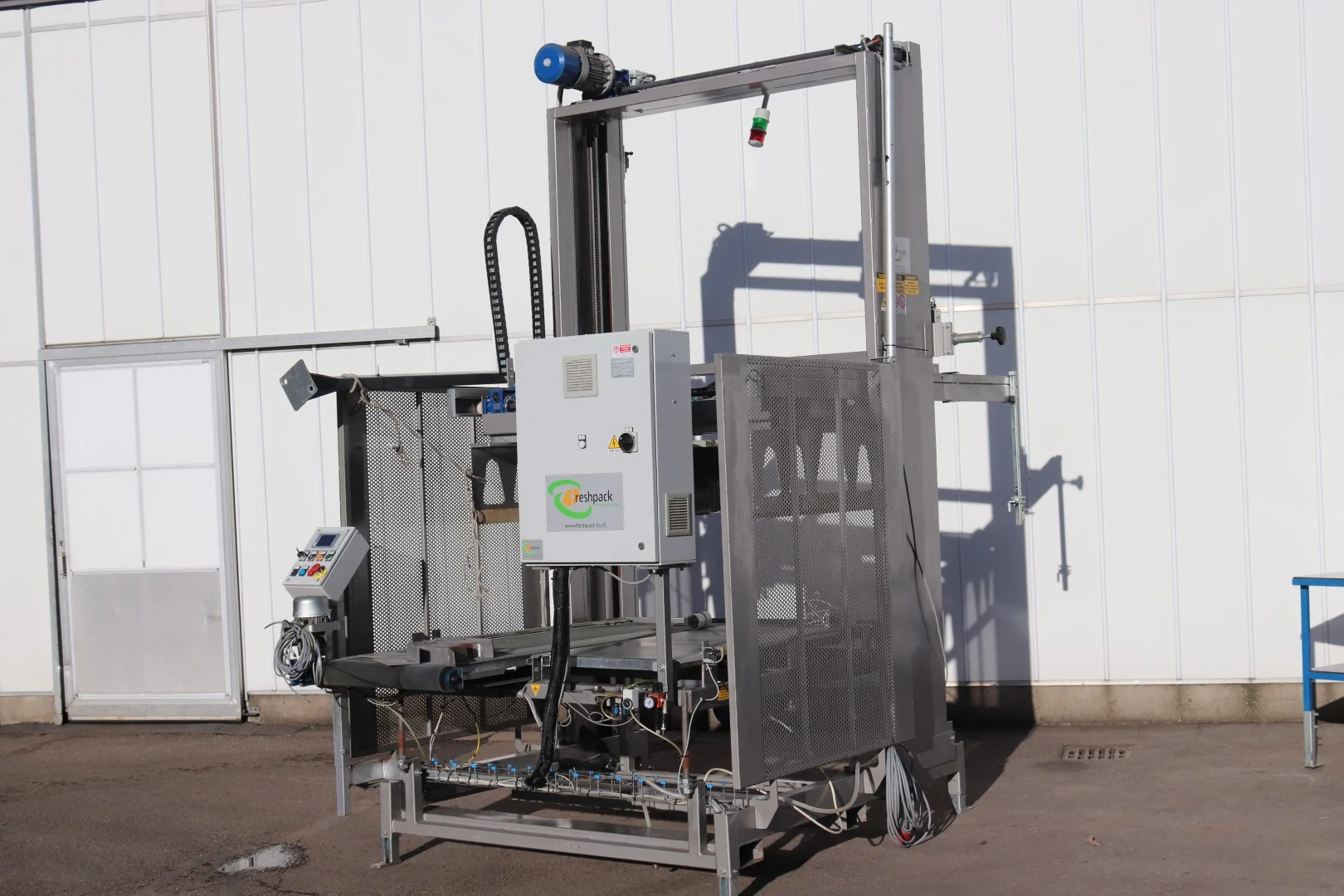

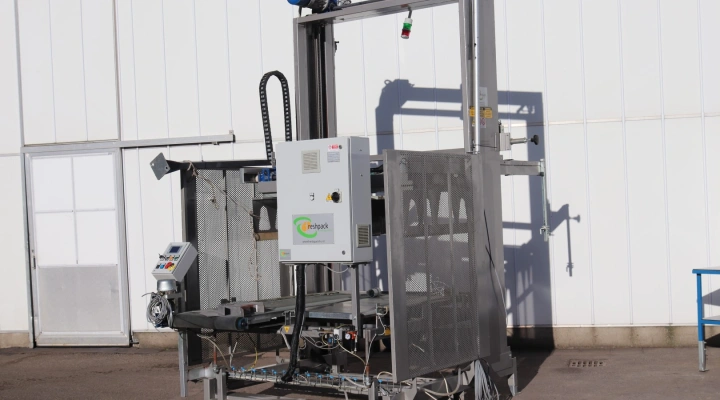

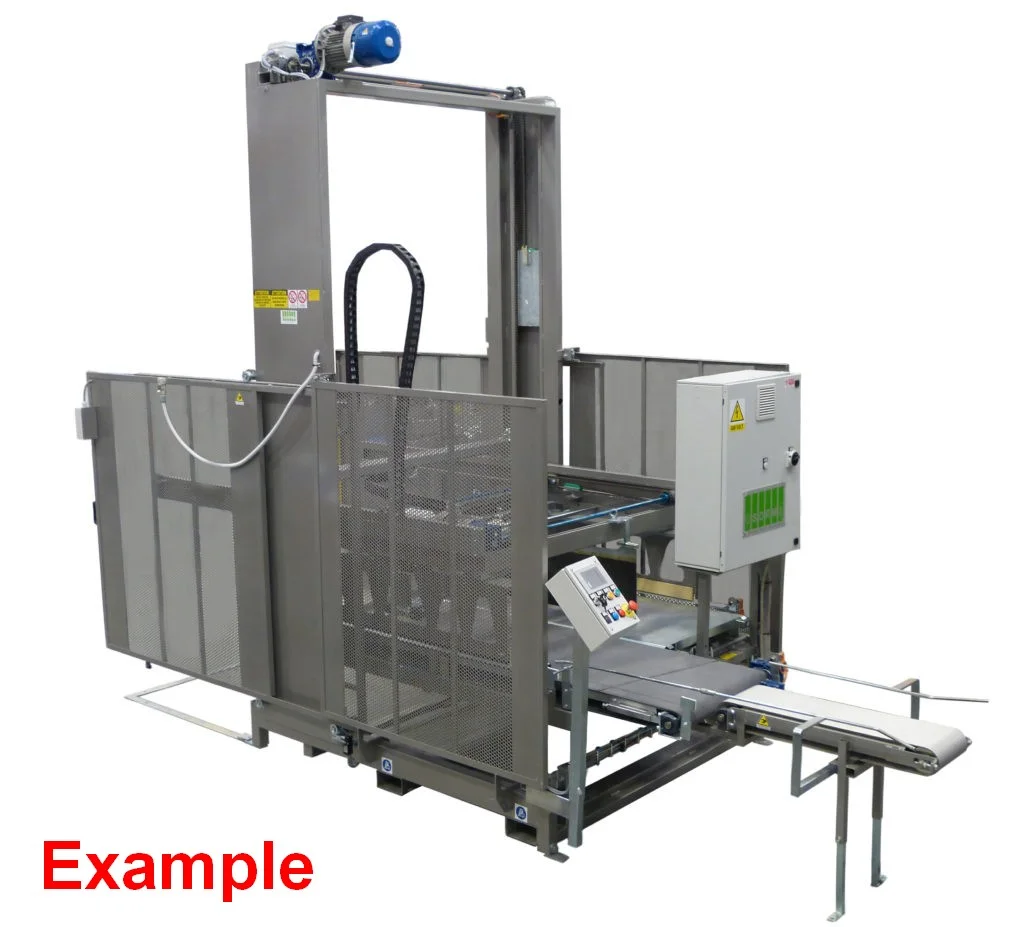

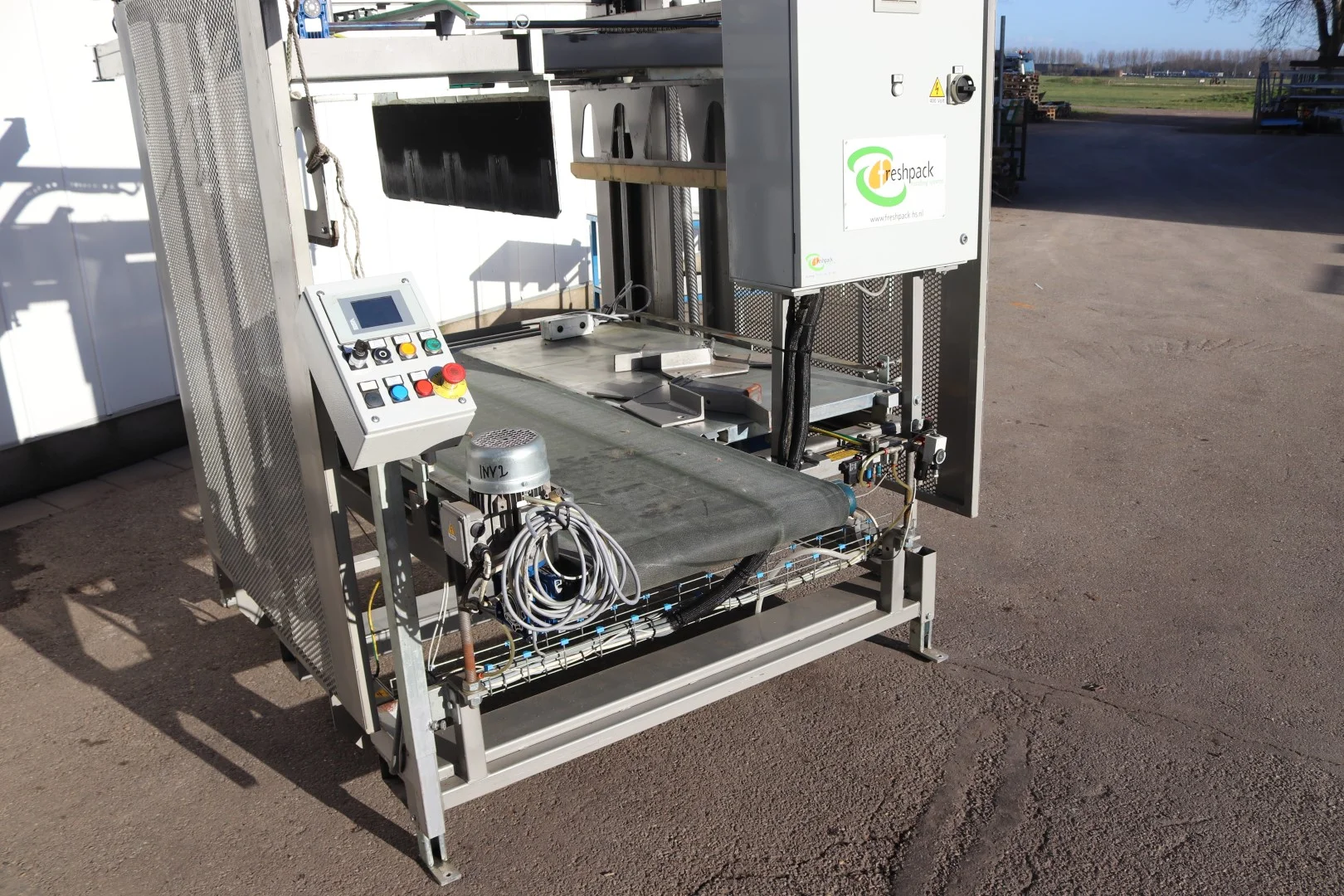

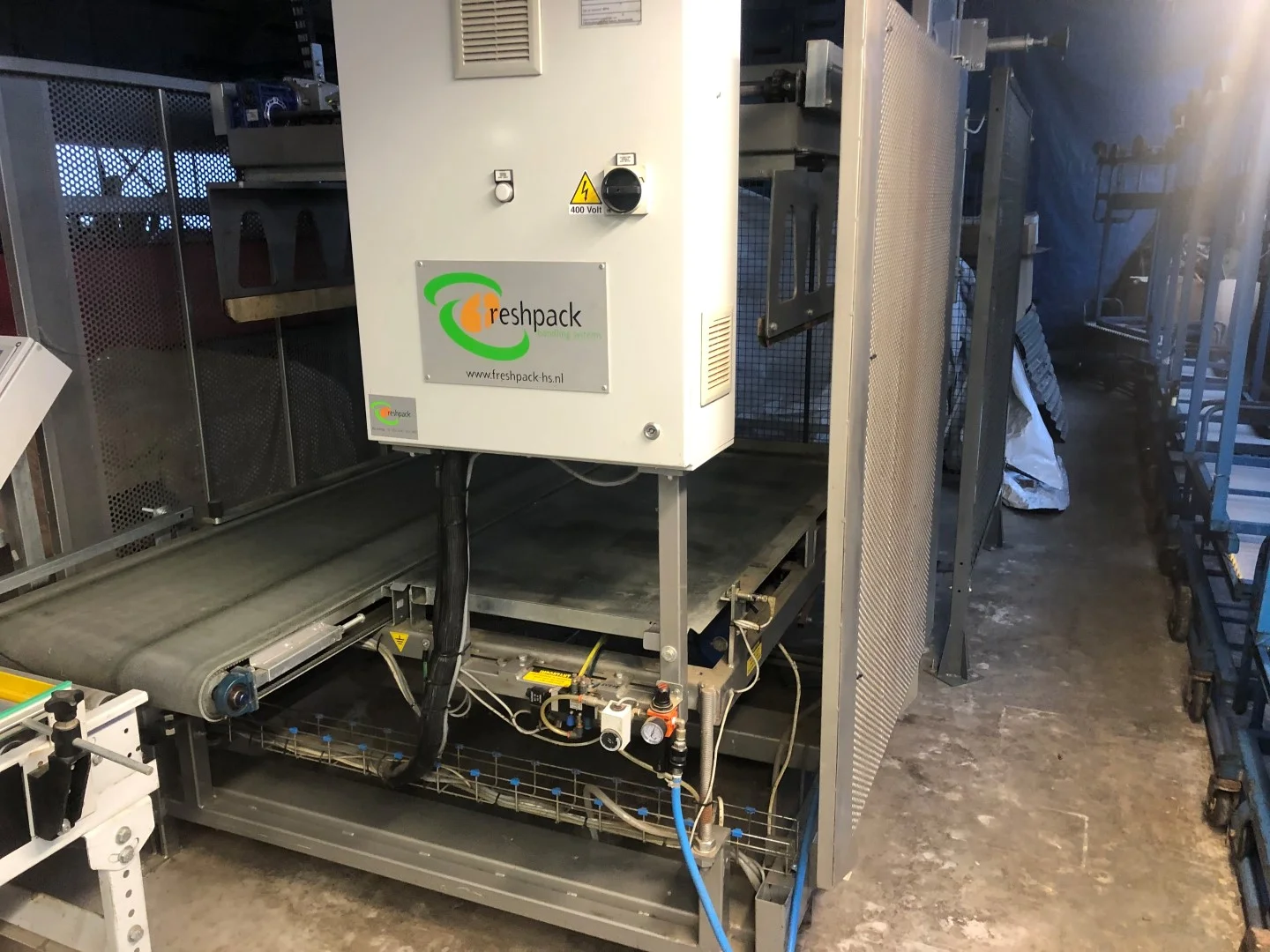

Sorma FBH 108 clamp palletizer

Suitable for different sizes, suitable for stacking wood, cardboard and plastic boxes.

This Sorma palletizer enables you to automatically stack boxes or crates on pallets. This smart stacking system offers you not only considerable labour reductions, it is also ergonomically. Furthermore, the boxes and crates are stacked very nicely.

After each layer is added, a retractable plate and pneumatic clamps move the next layer into position before lowering it into the stacking position.

Specifications of Sorma FBH 108

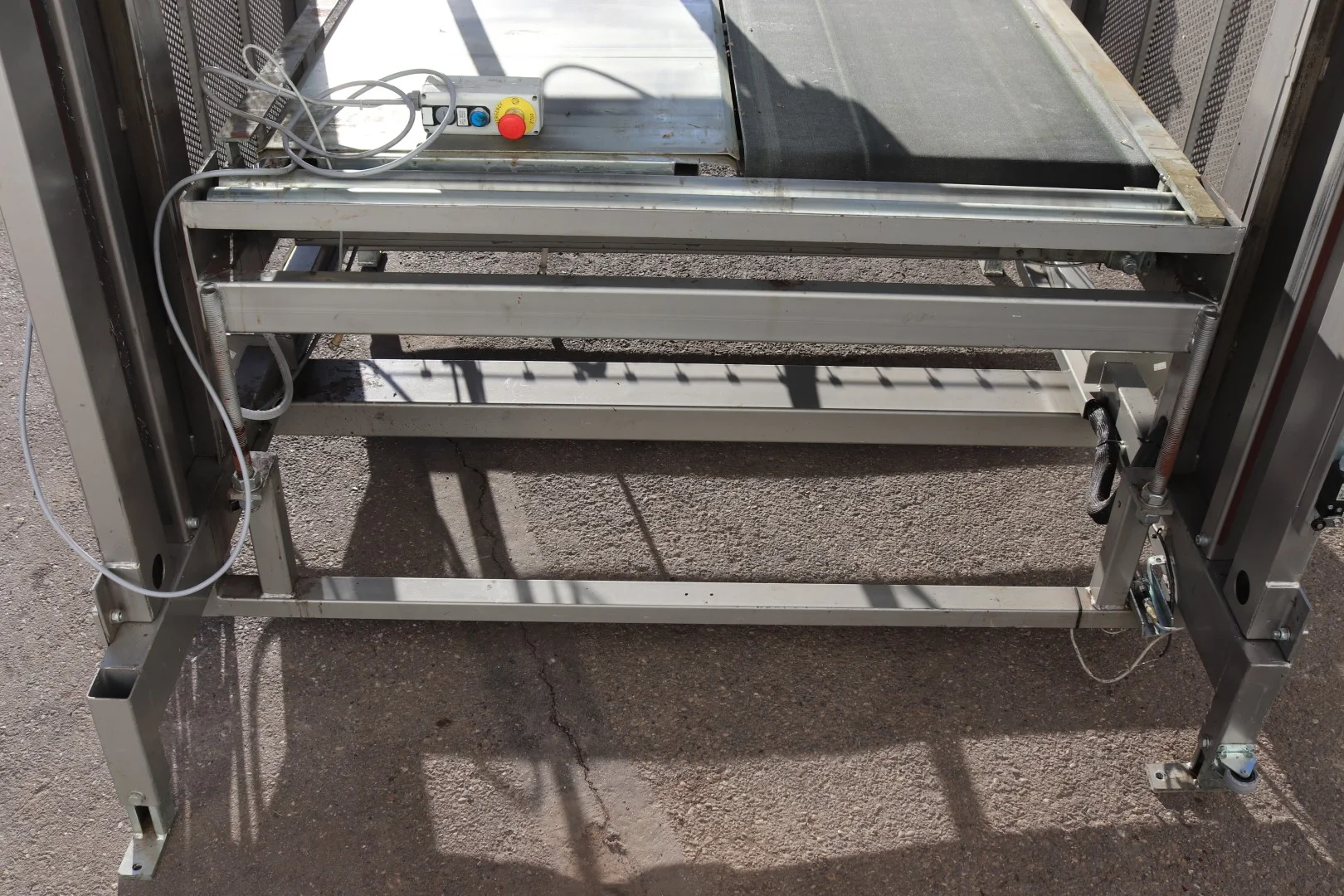

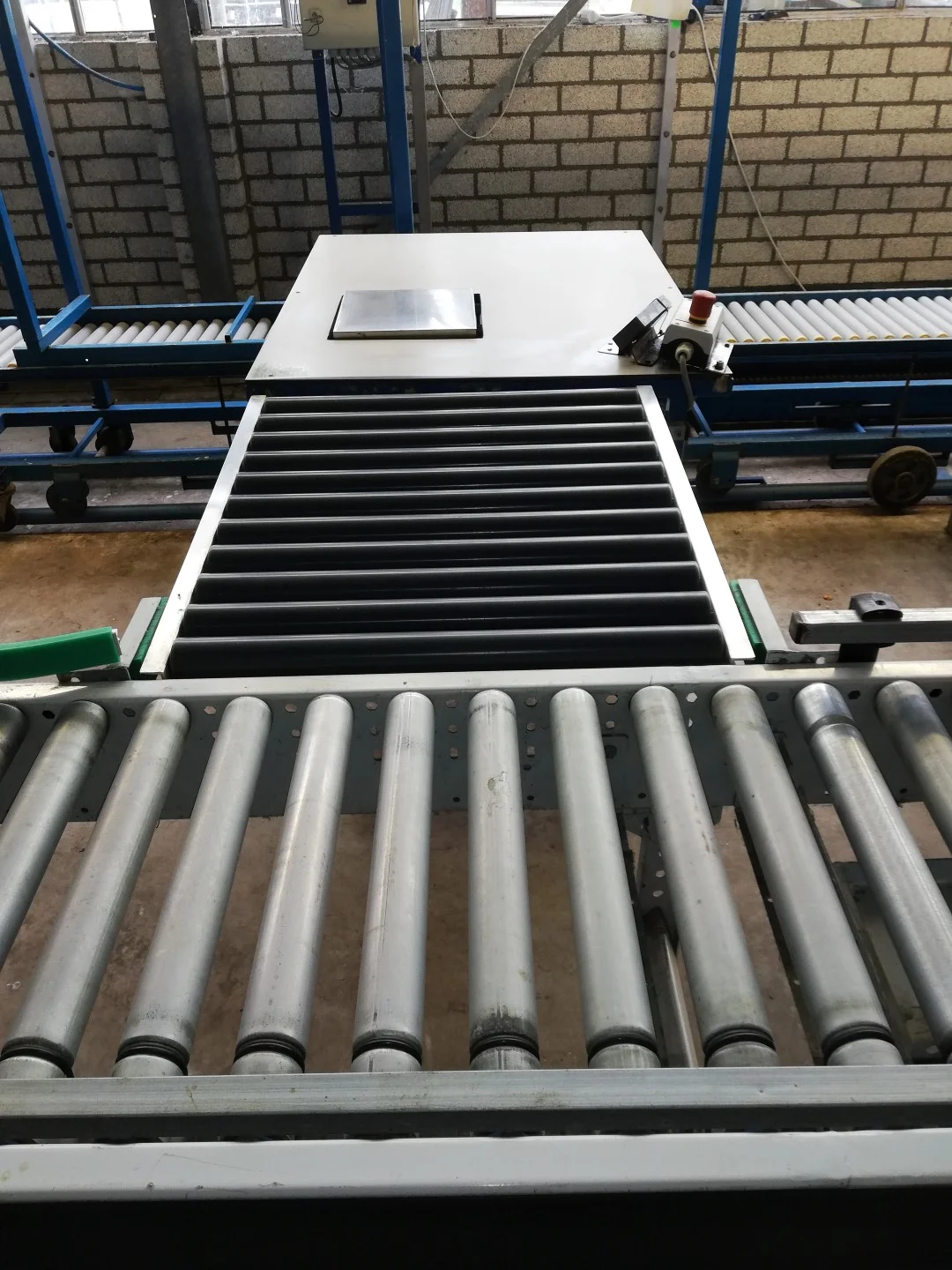

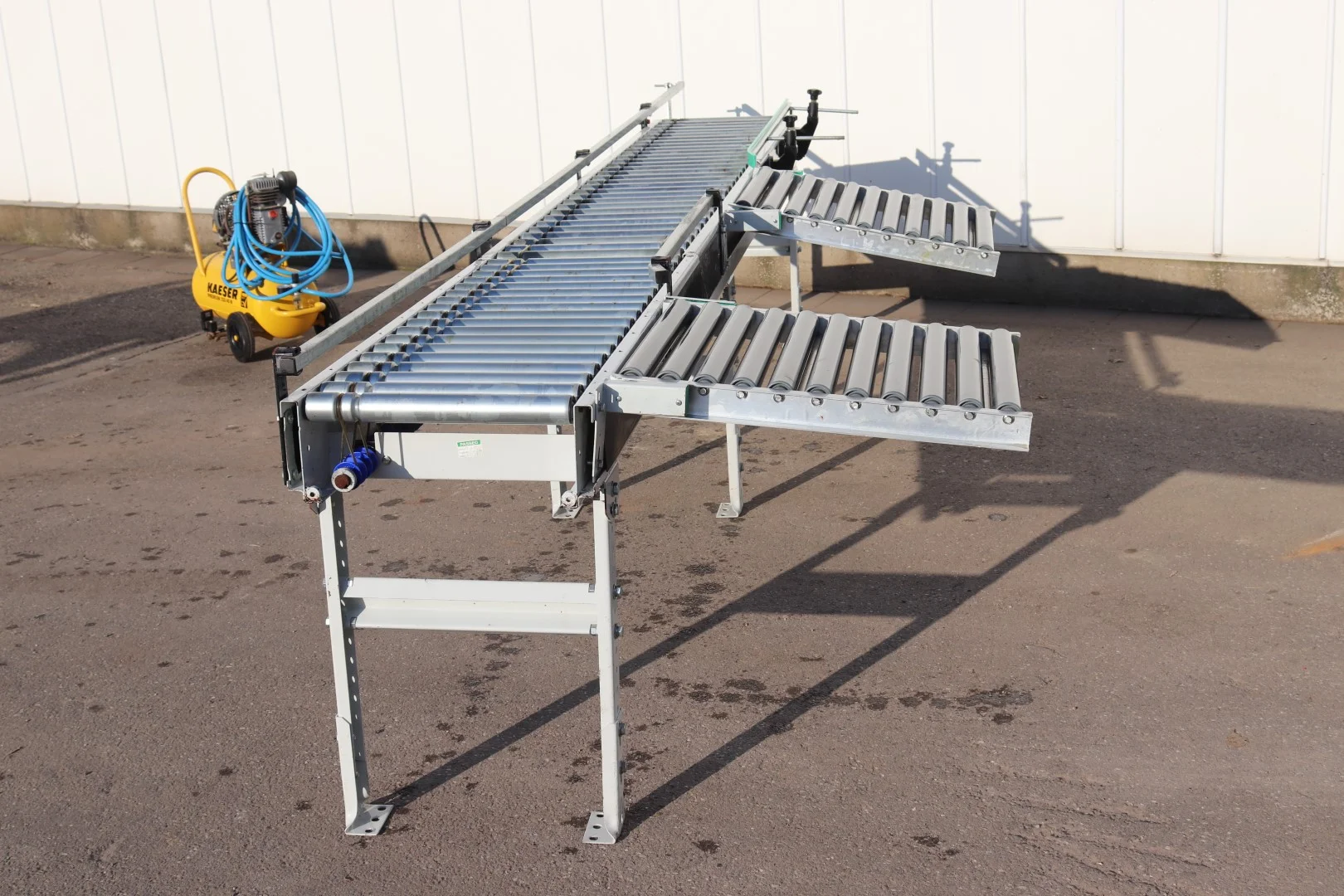

• Complete with driven roller conveyor to feed the boxes
• Rotate box 90 degrees with a pusher

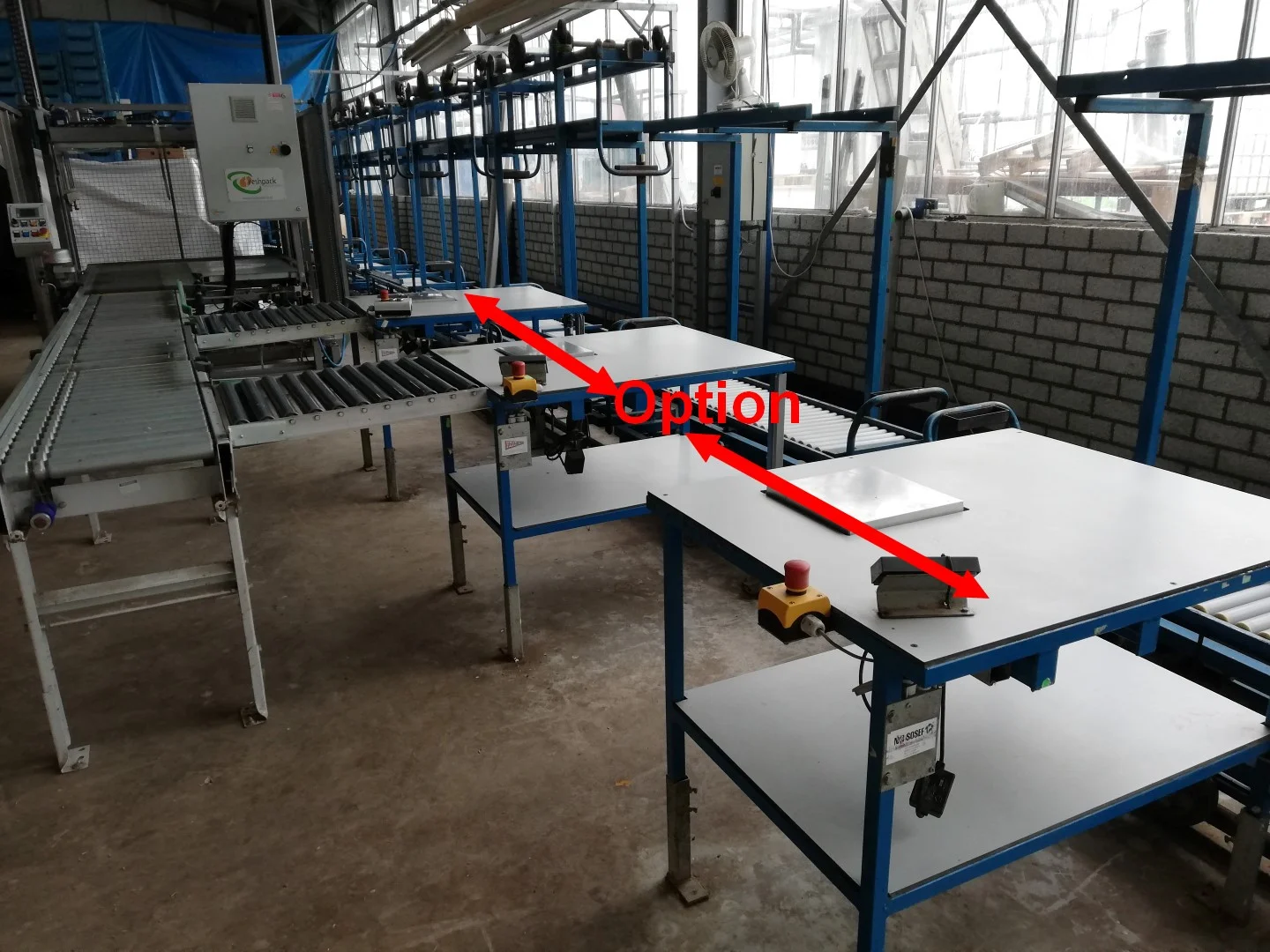

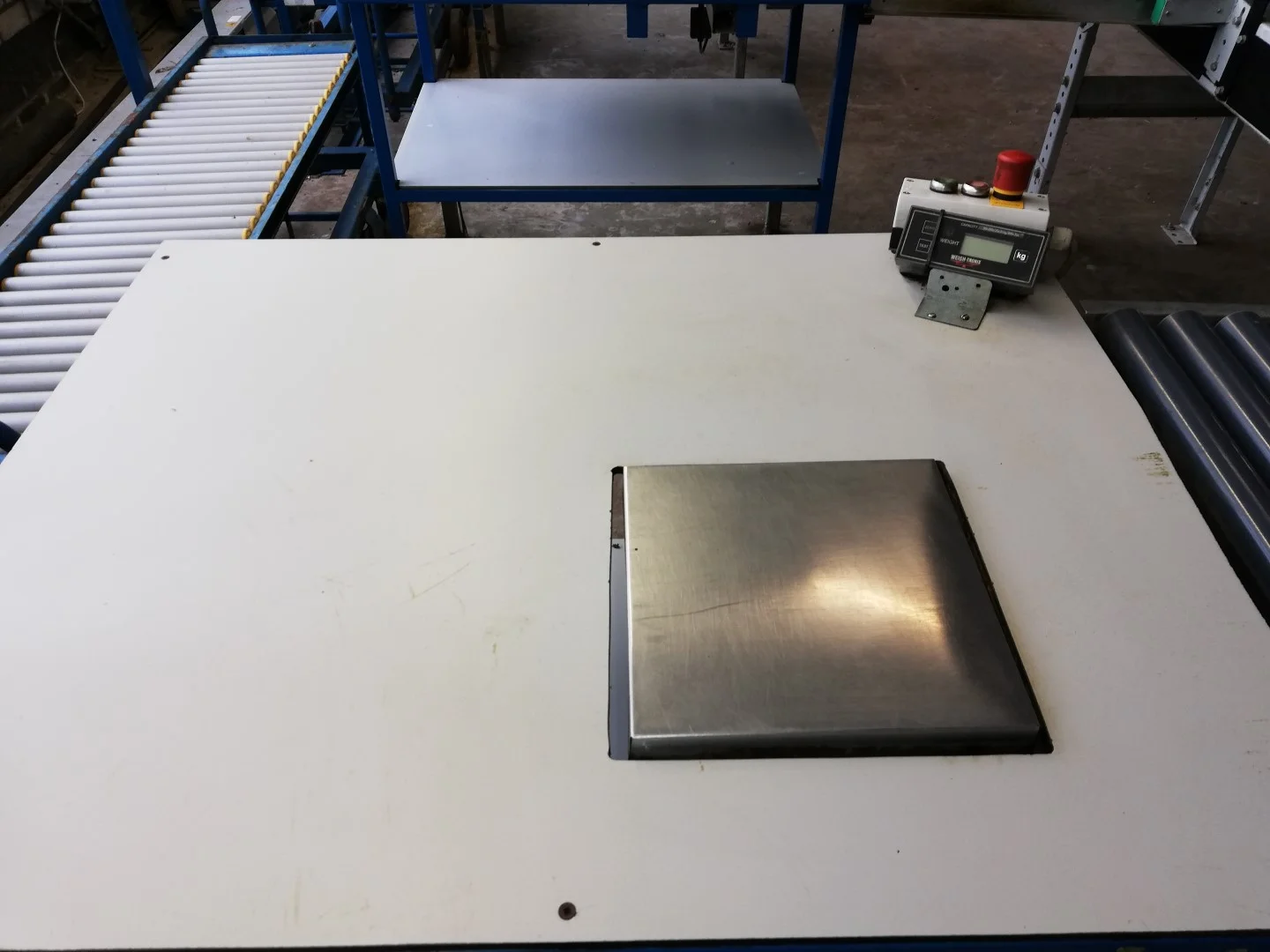

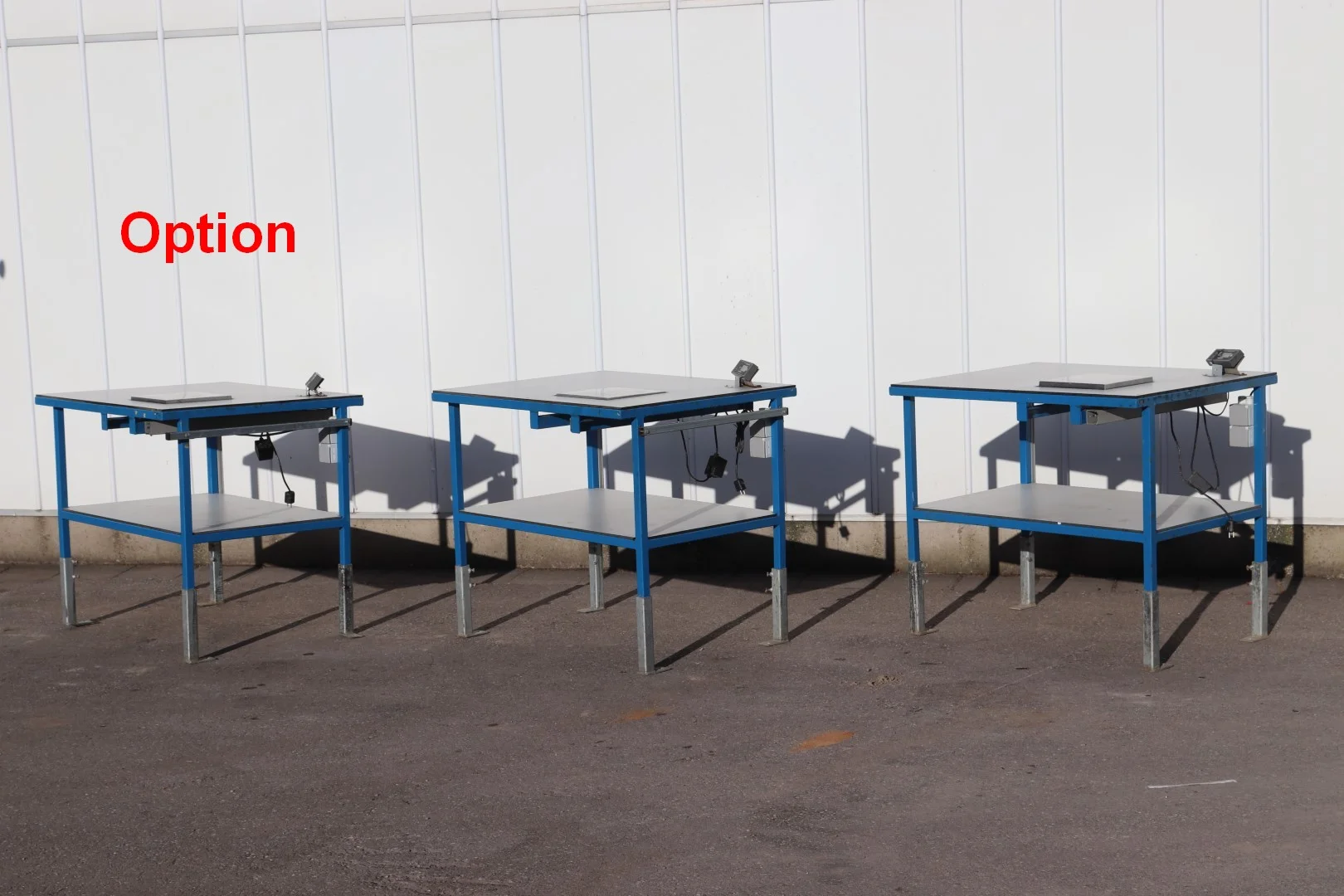

• 3 working tables with scale (art.nr. 9960210216 - Optional with this machine, price per piece €300,-, alltogether €750,-)

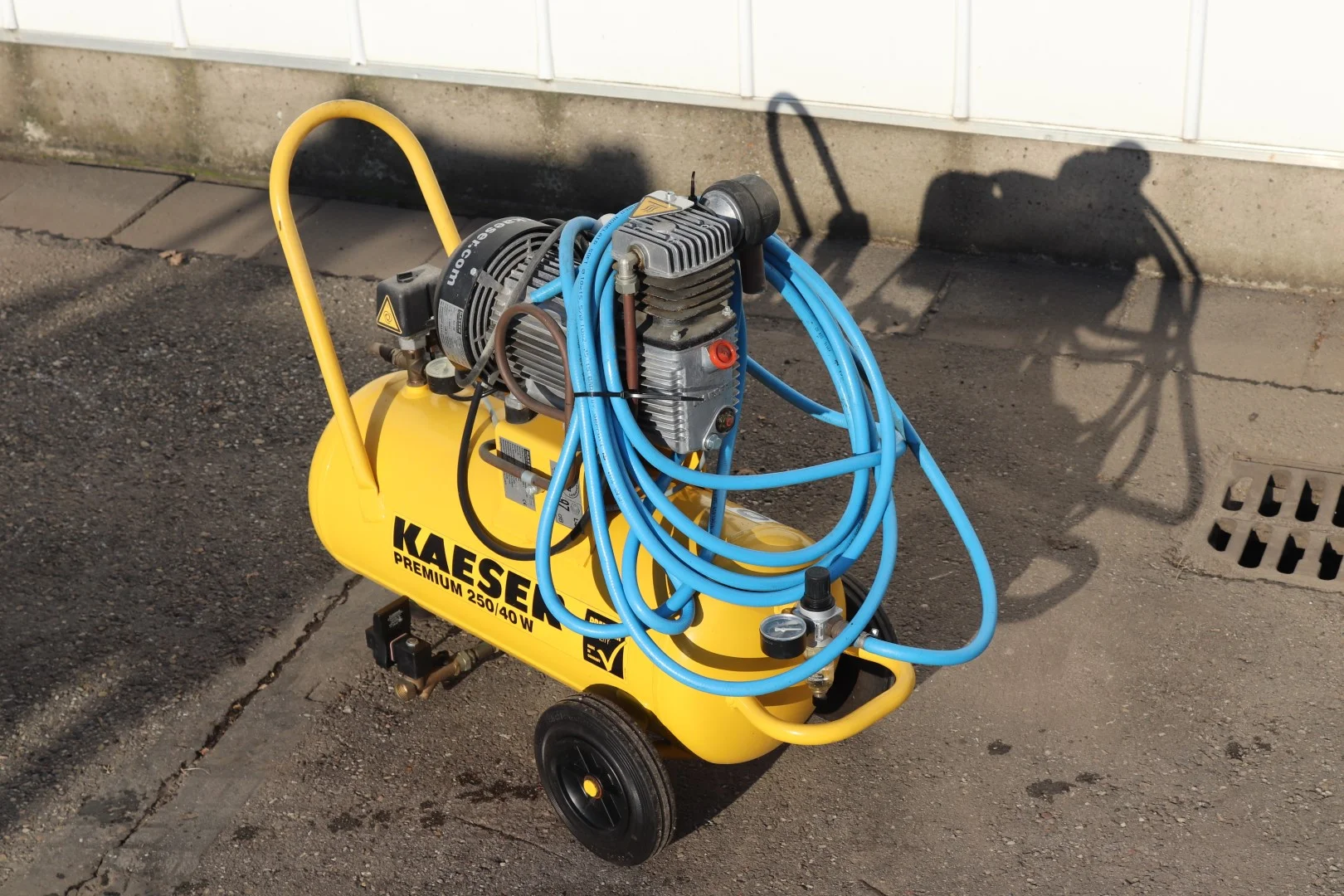

• Kaeser compressor
• Max. height of boxes 30 cm
• Max. height of pallet 240 cm
• Max. load per layer 120 kg

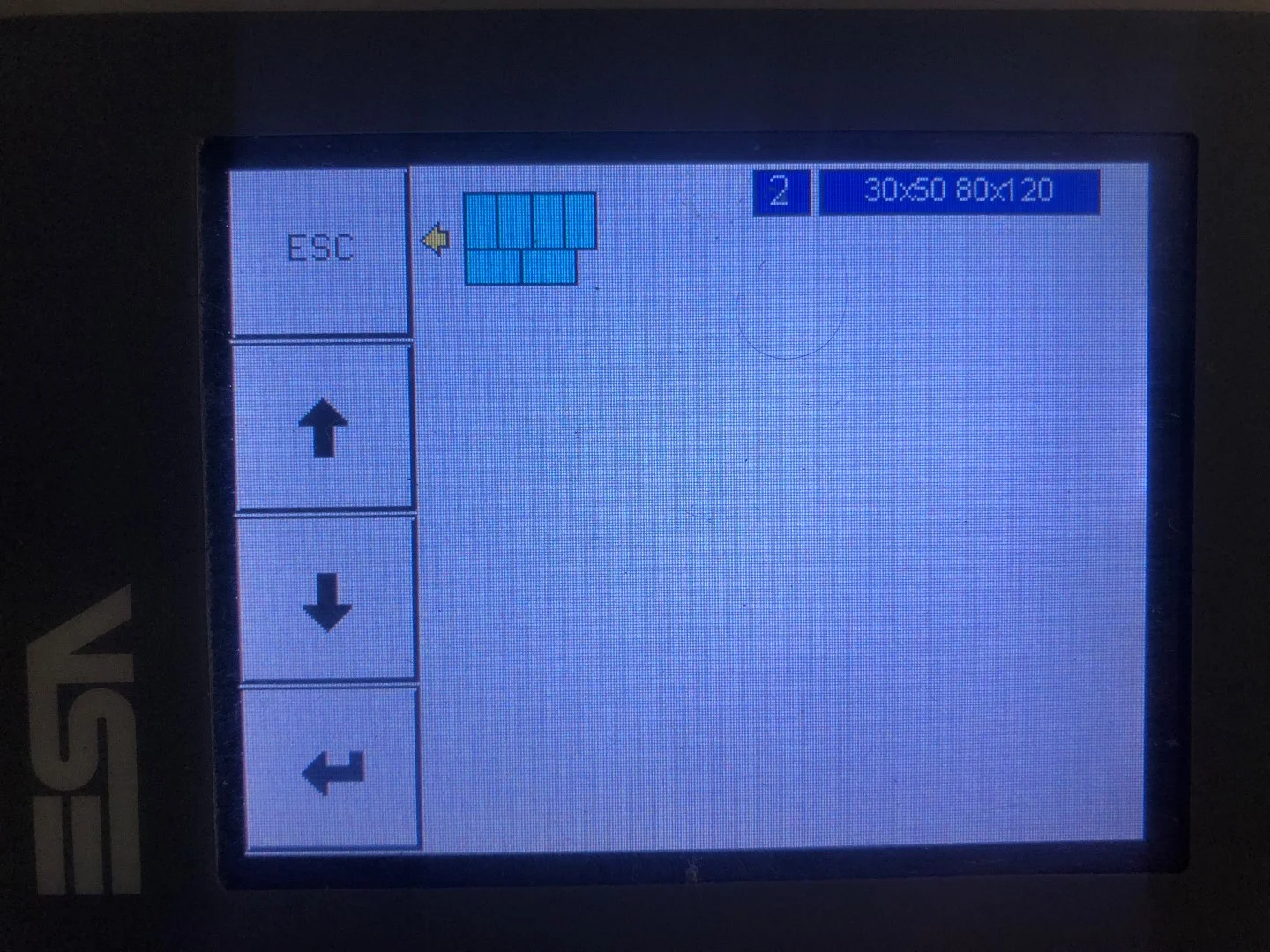

Suitable for the following sizes of boxes and pallets:

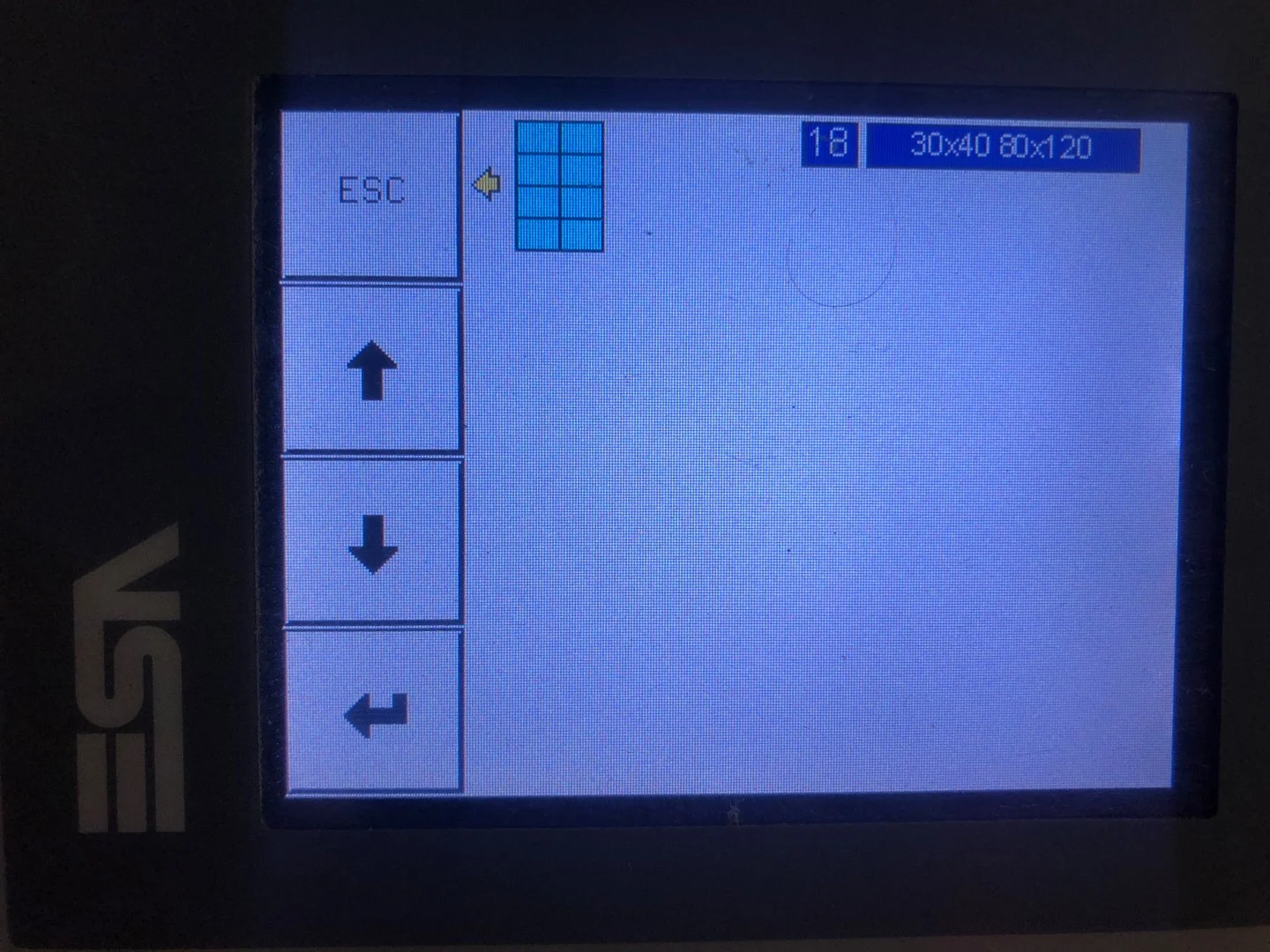

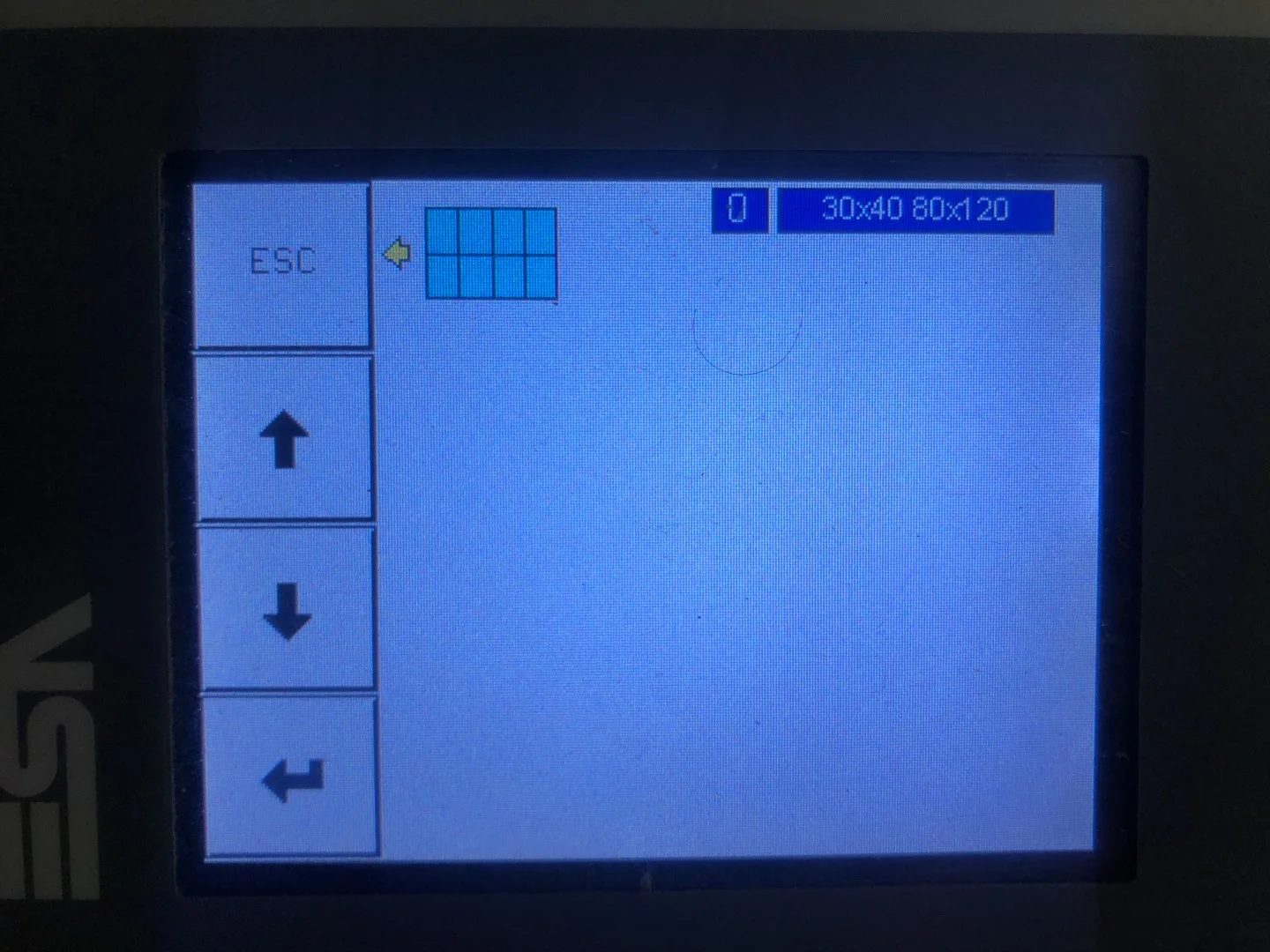

• 30 x 40 cm boxes on 80 x 120 cm pallets (nr. 0 & 18)

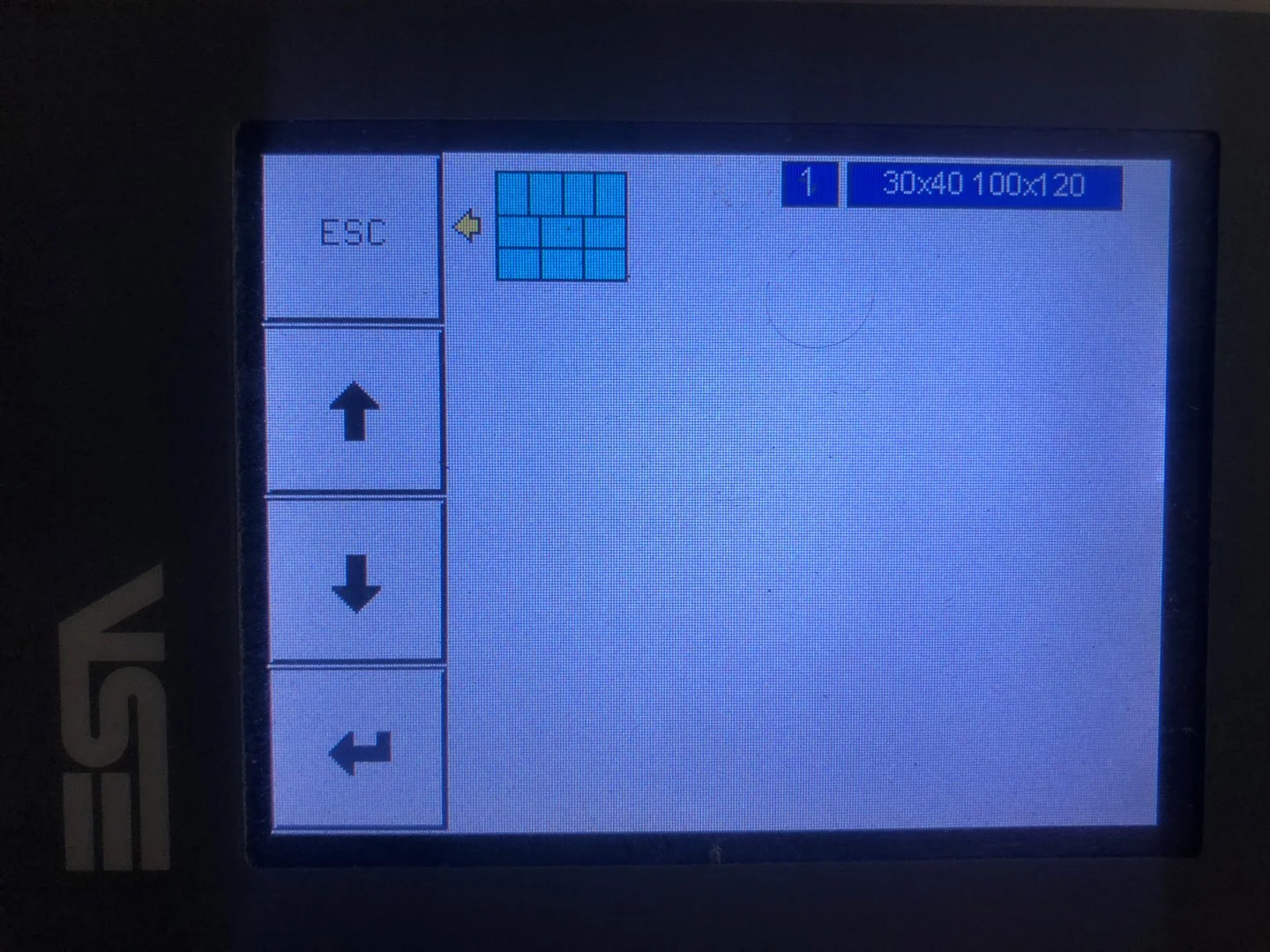

• 30 x 40 cm boxes on 100 x 120 cm pallets (nr. 1)

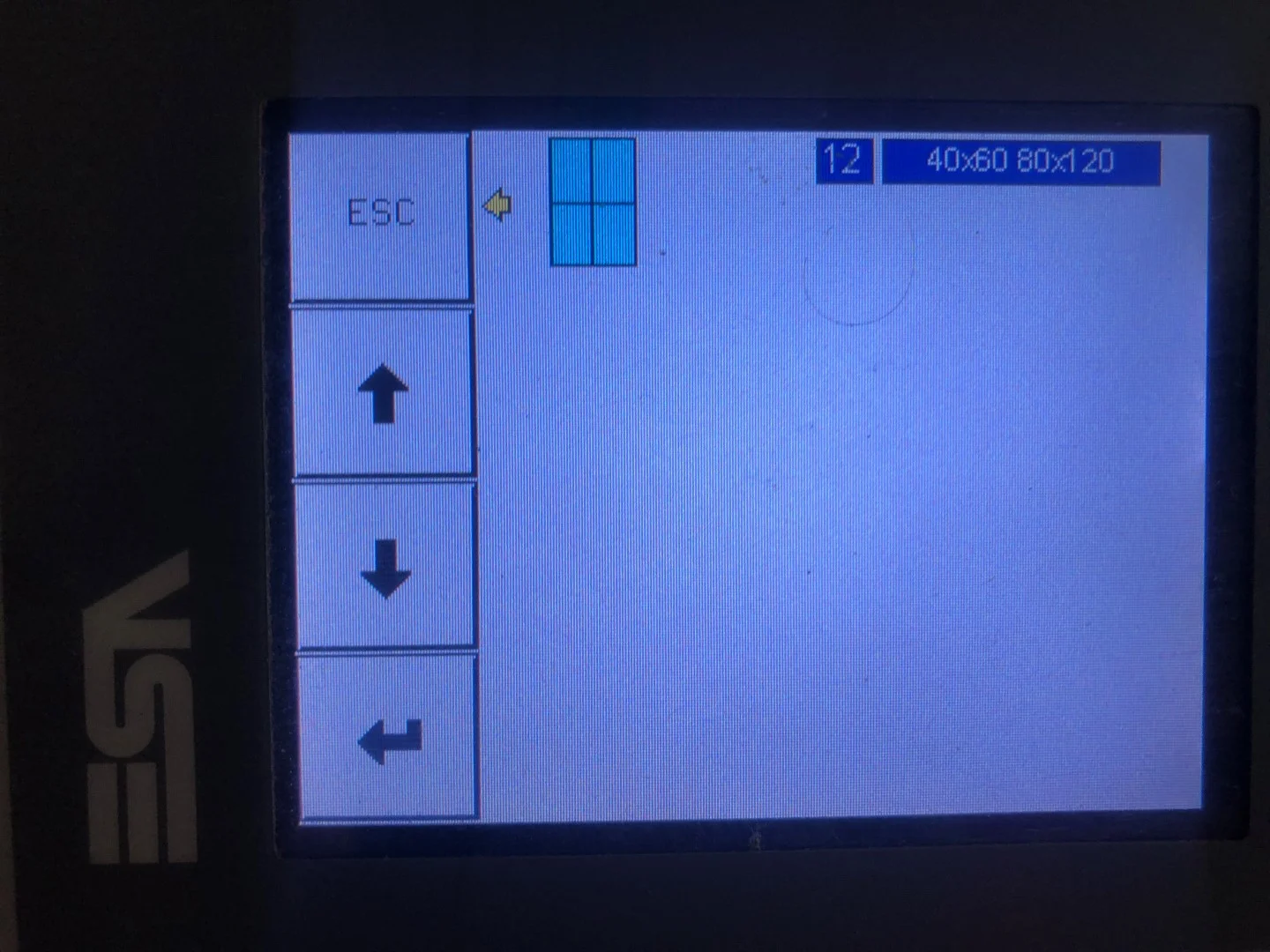

• 40 x 60 cm boxes on 80 x 120 cm pallets (nr. 12 & 6)

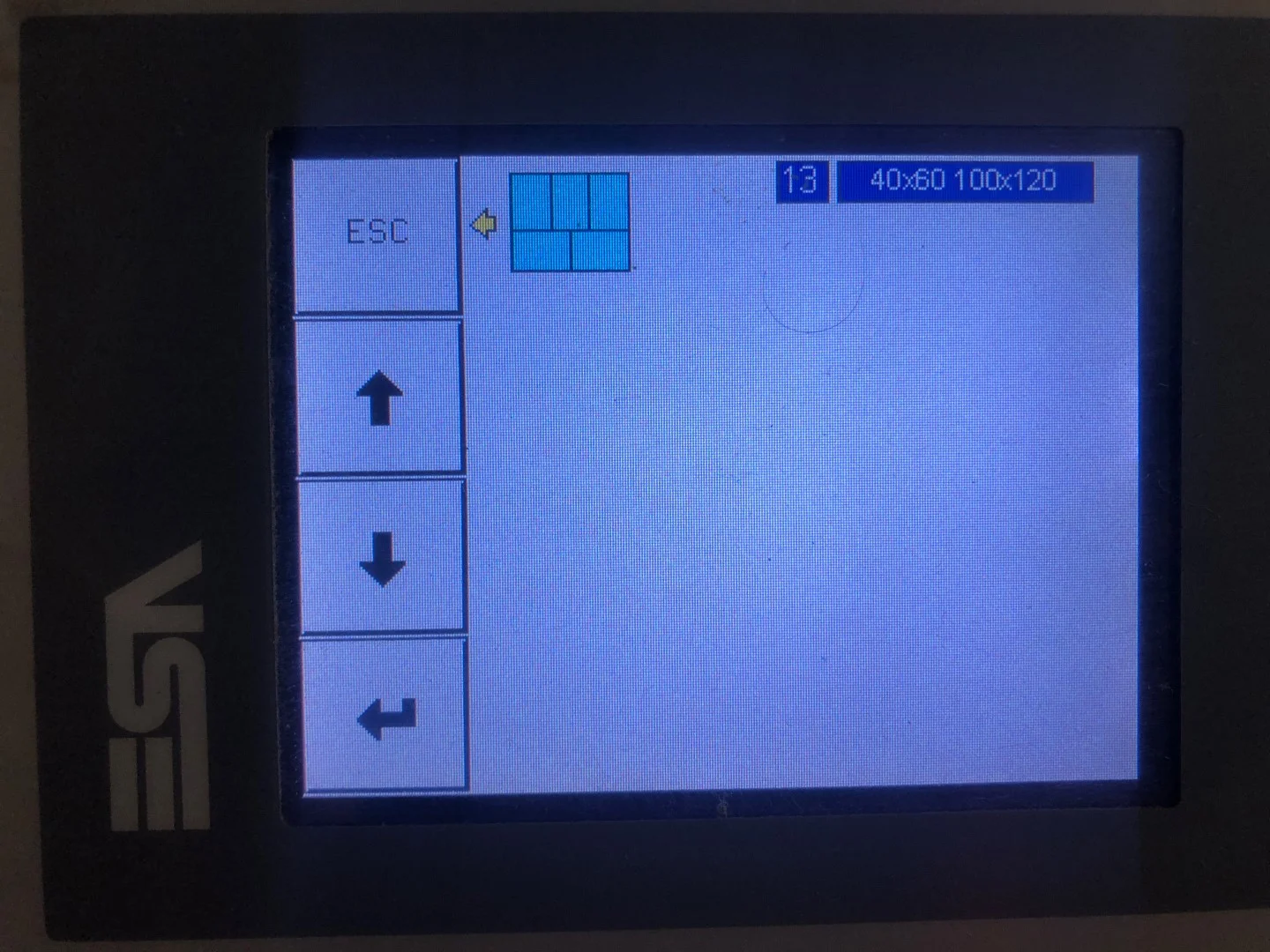

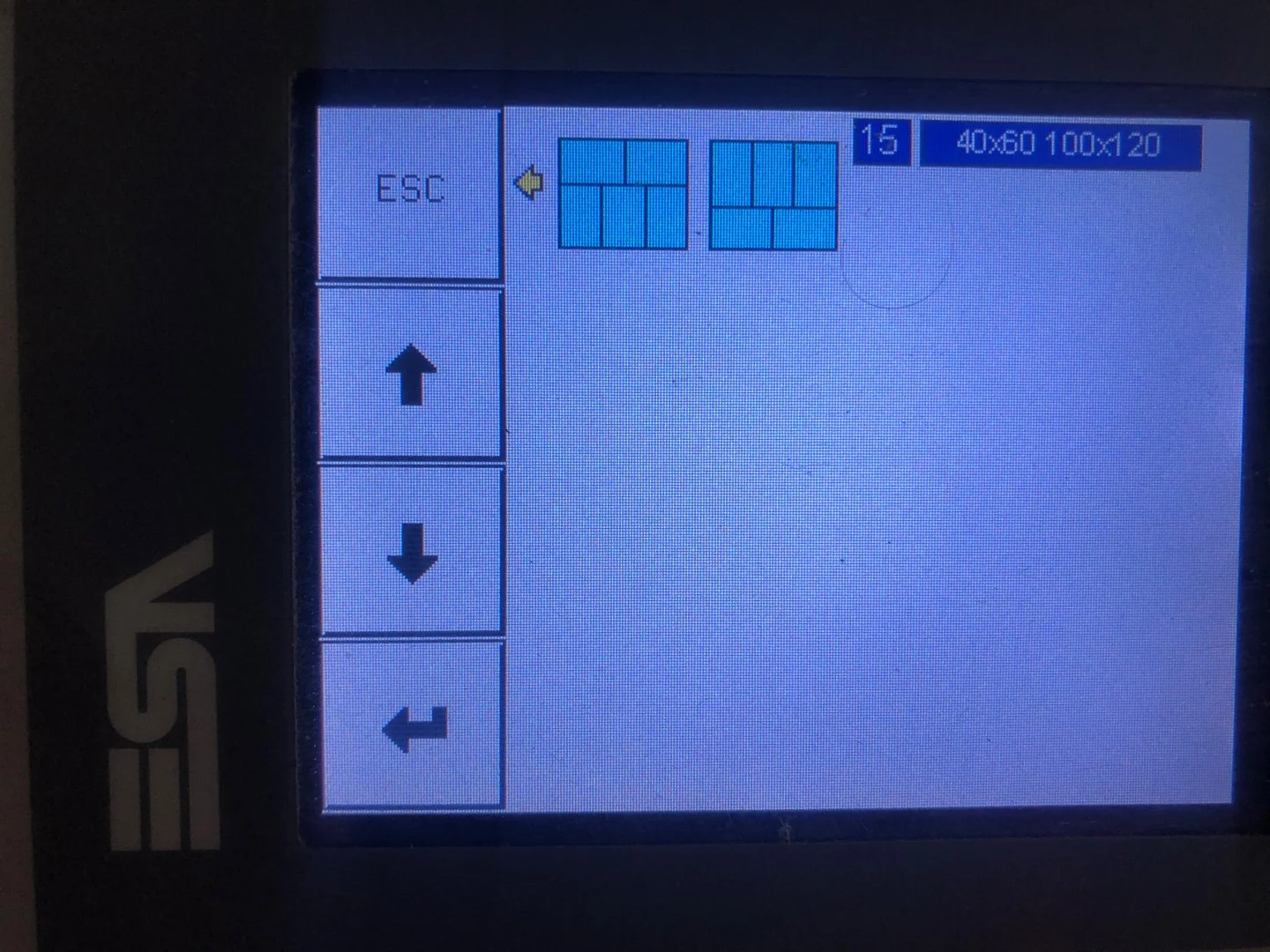

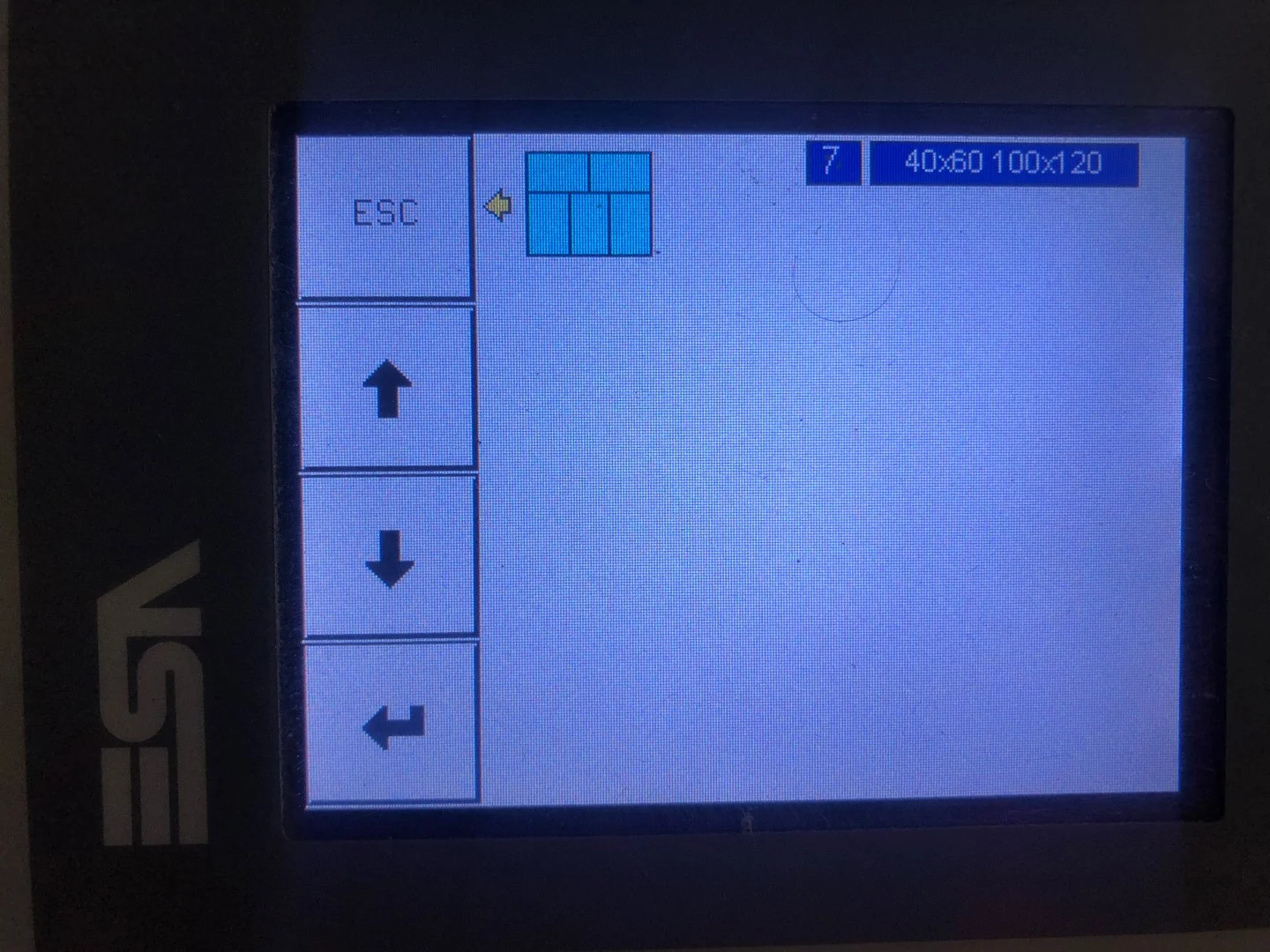

• 40 x 60 cm boxes on 100 x 120 cm pallets (nr. 7, 13 & 15)

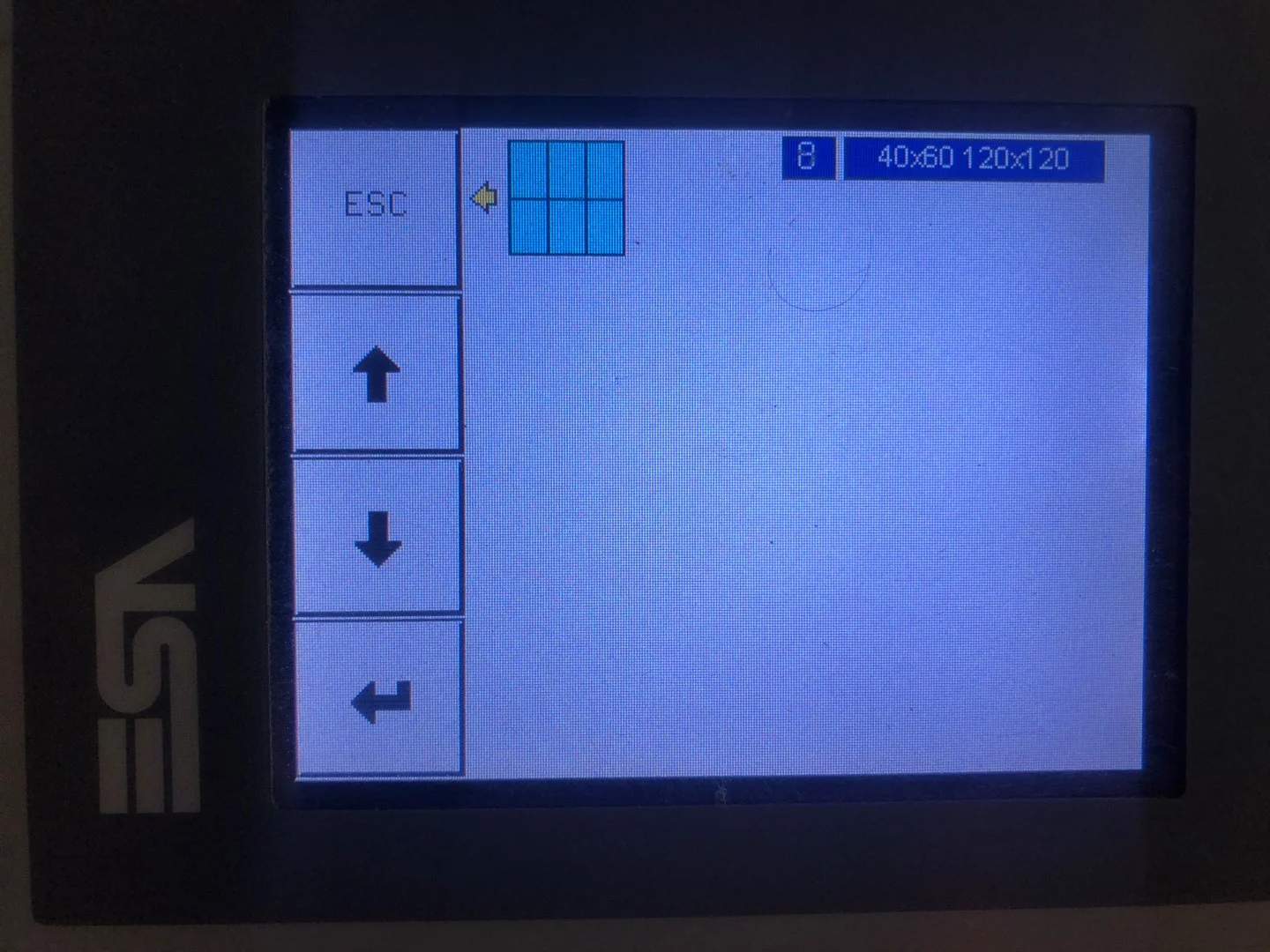

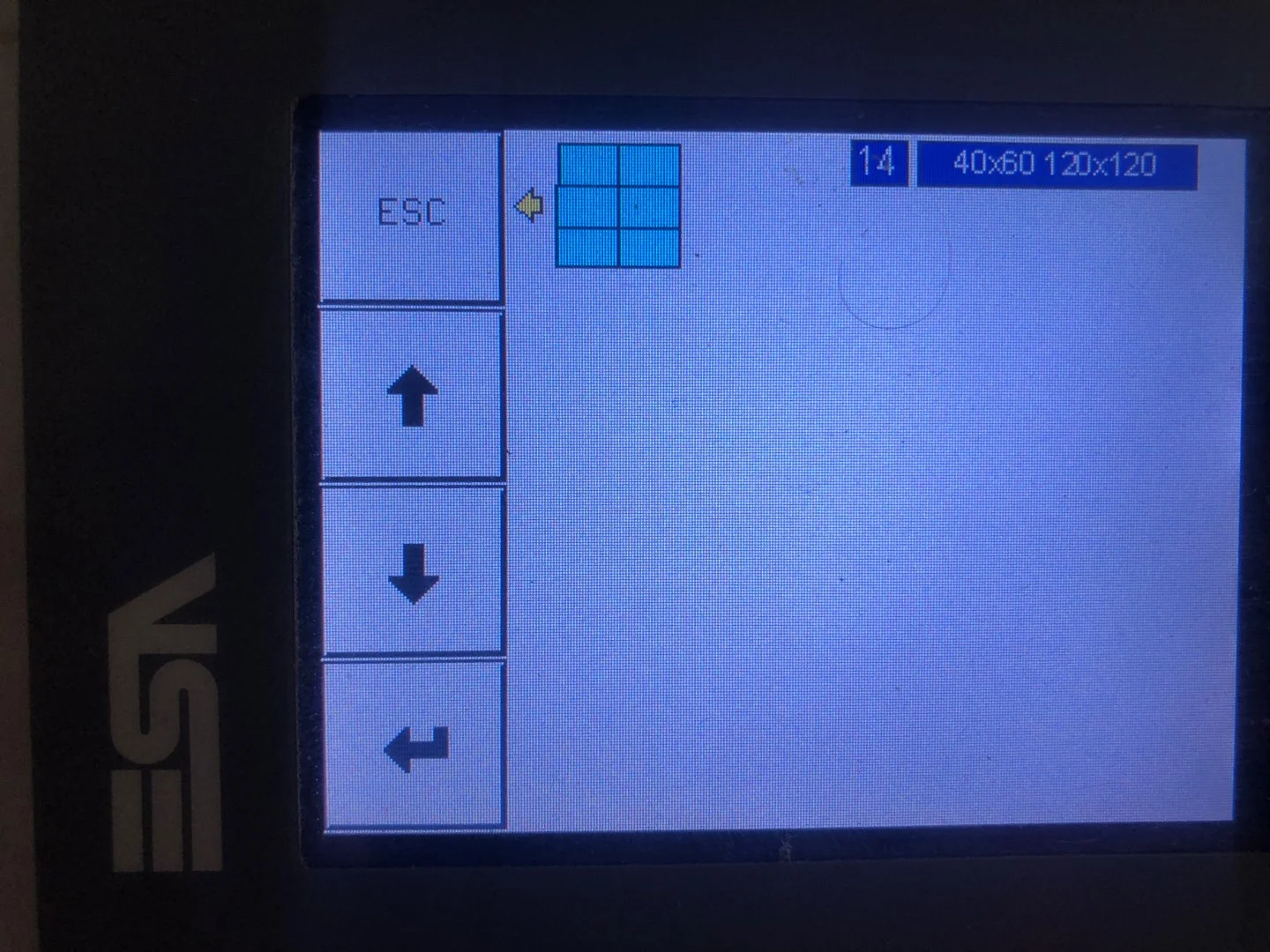

• 40 x 60 cm boxes on 120 x 120 cm pallets (nr. 8 & 14)

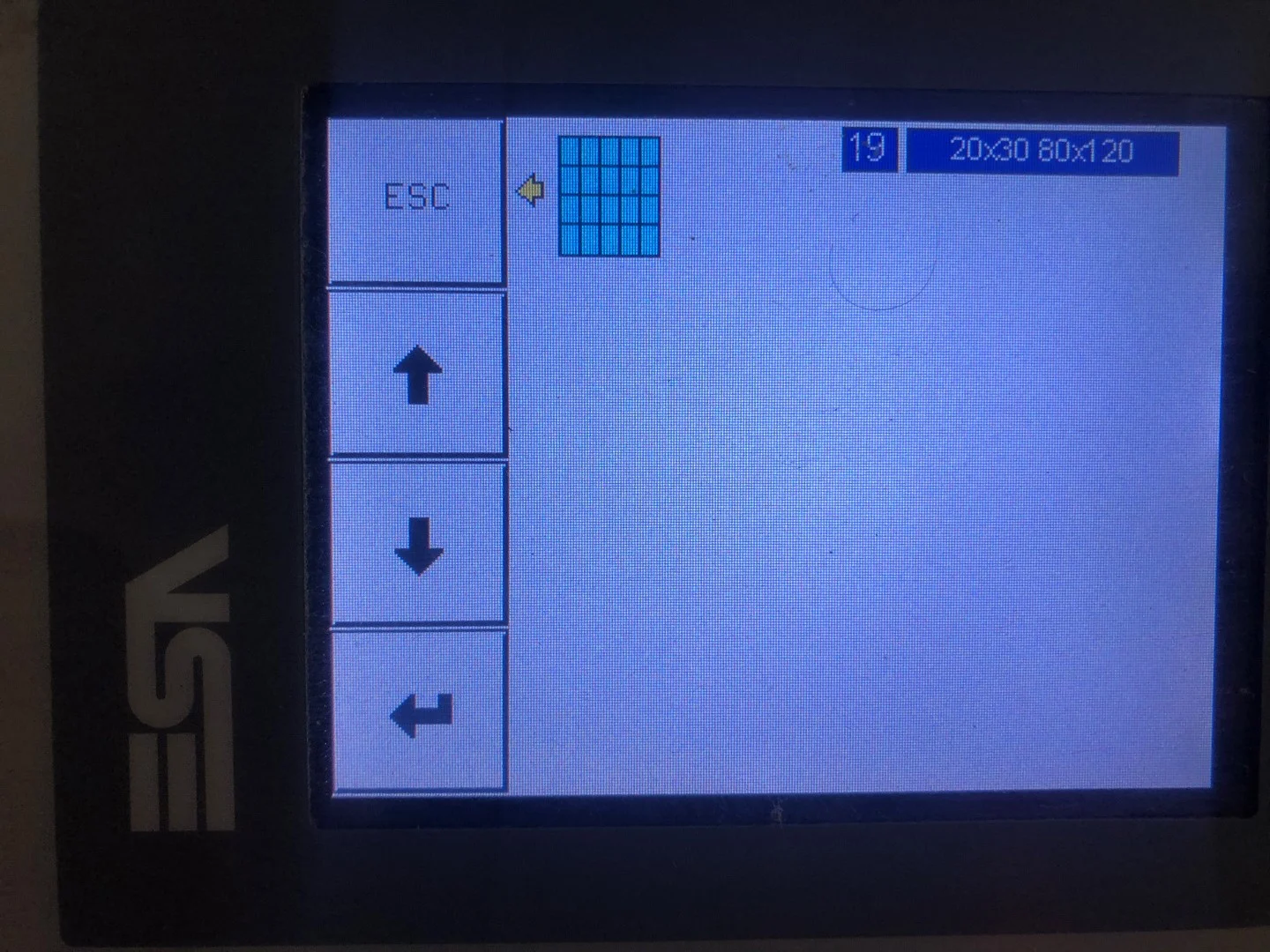

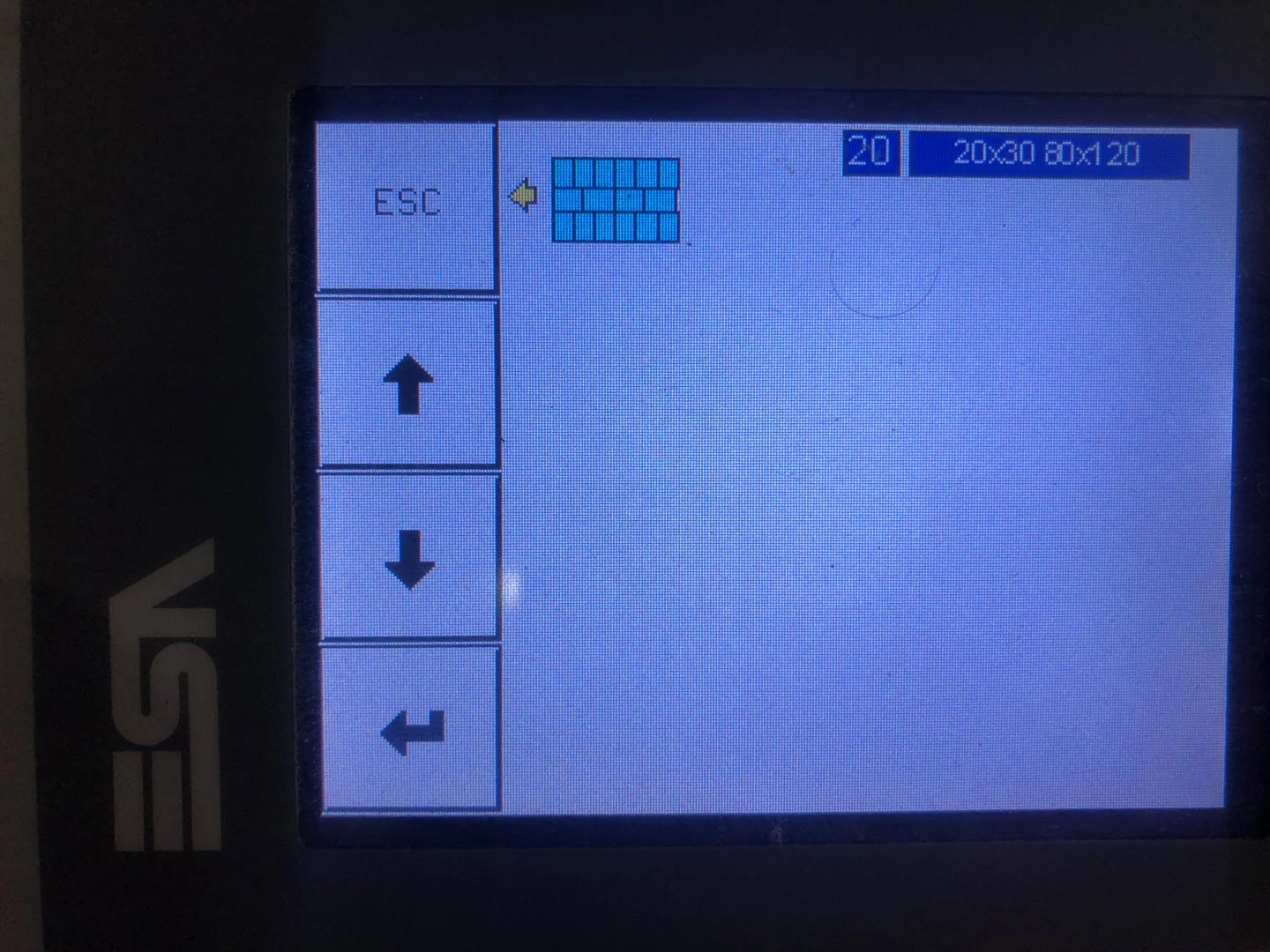

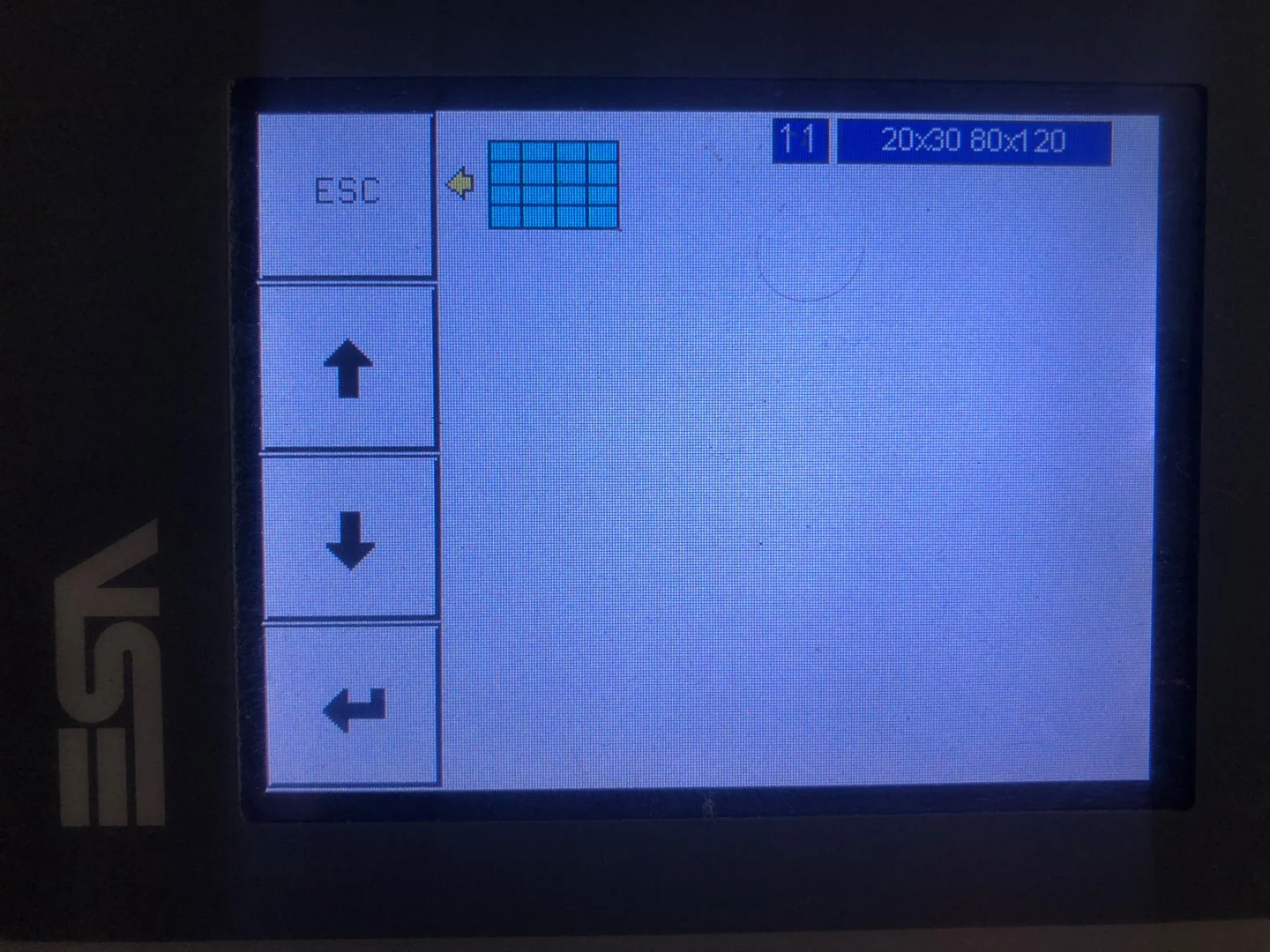

• 20 x 30 cm boxes on 80 x 120 cm pallets (nr. 11, 19 & 20)

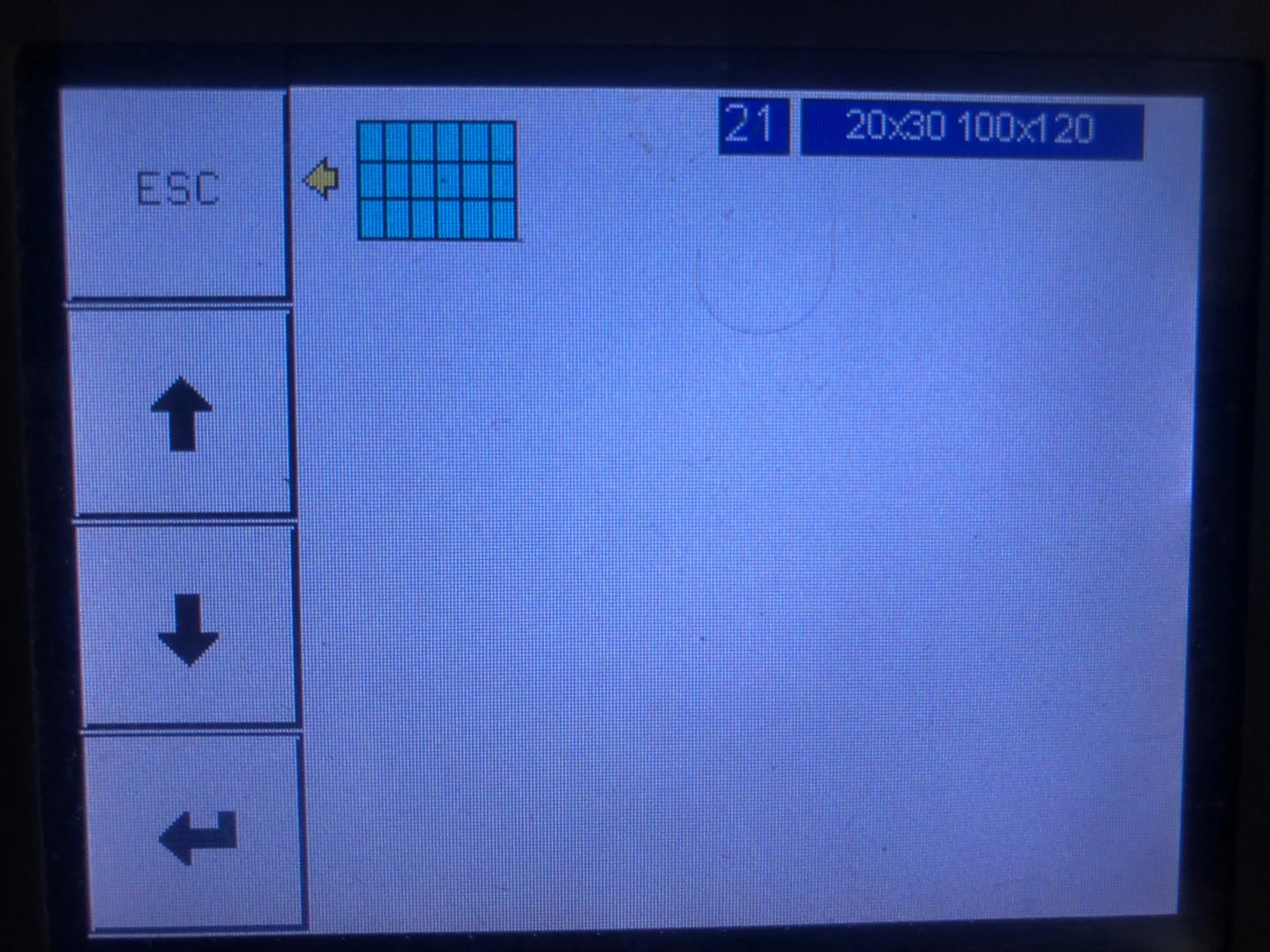

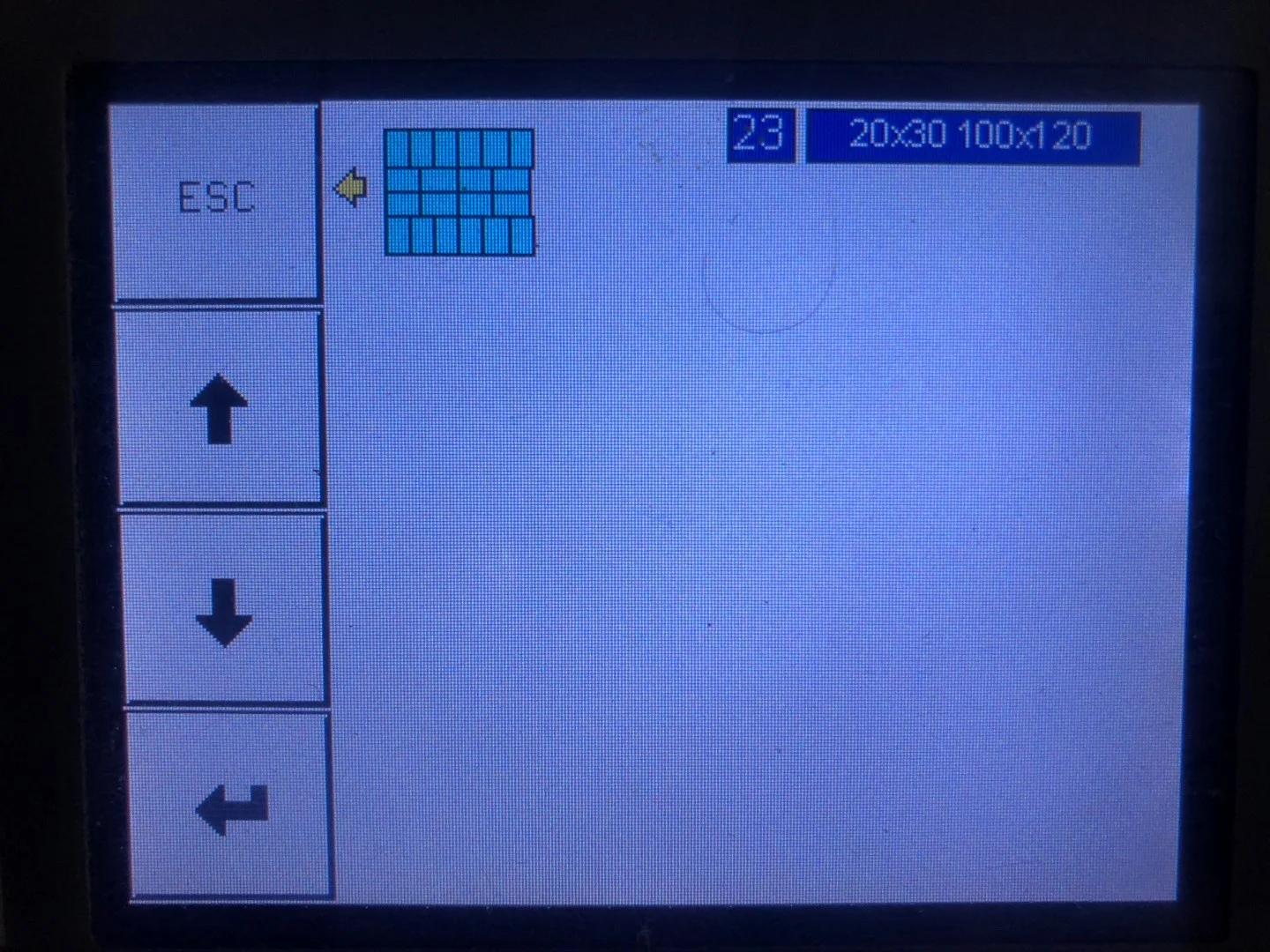

• 20 x 30 cm boxes on 100 x 120 pallets (nr. 21, 22 & 23)
• 24 x 40 cm boxes on 80 x 120 cm pallets (nr. 9)

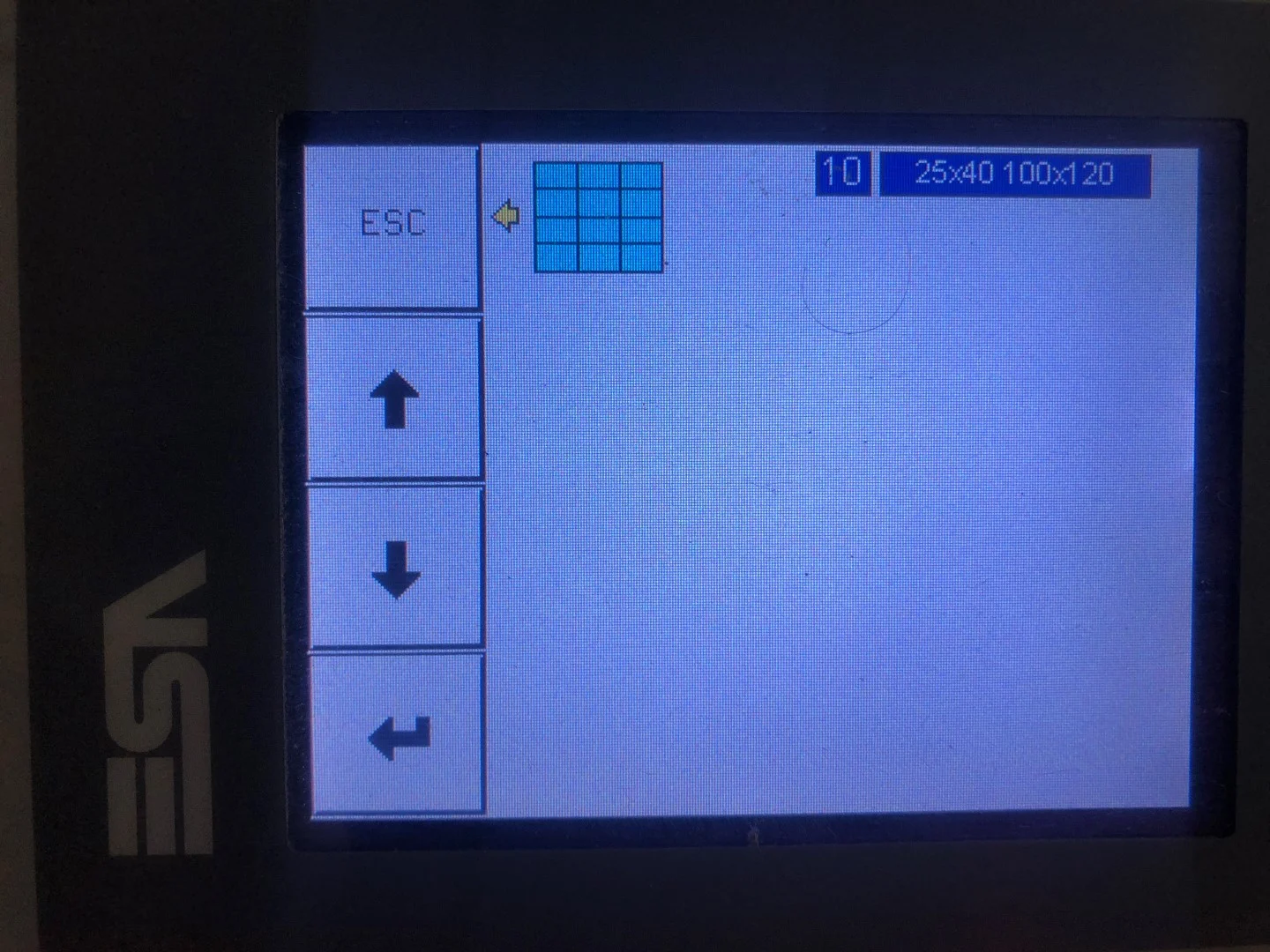

• 25 x 40 cm boxes on 100 x 120 cm pallets (nr. 10)

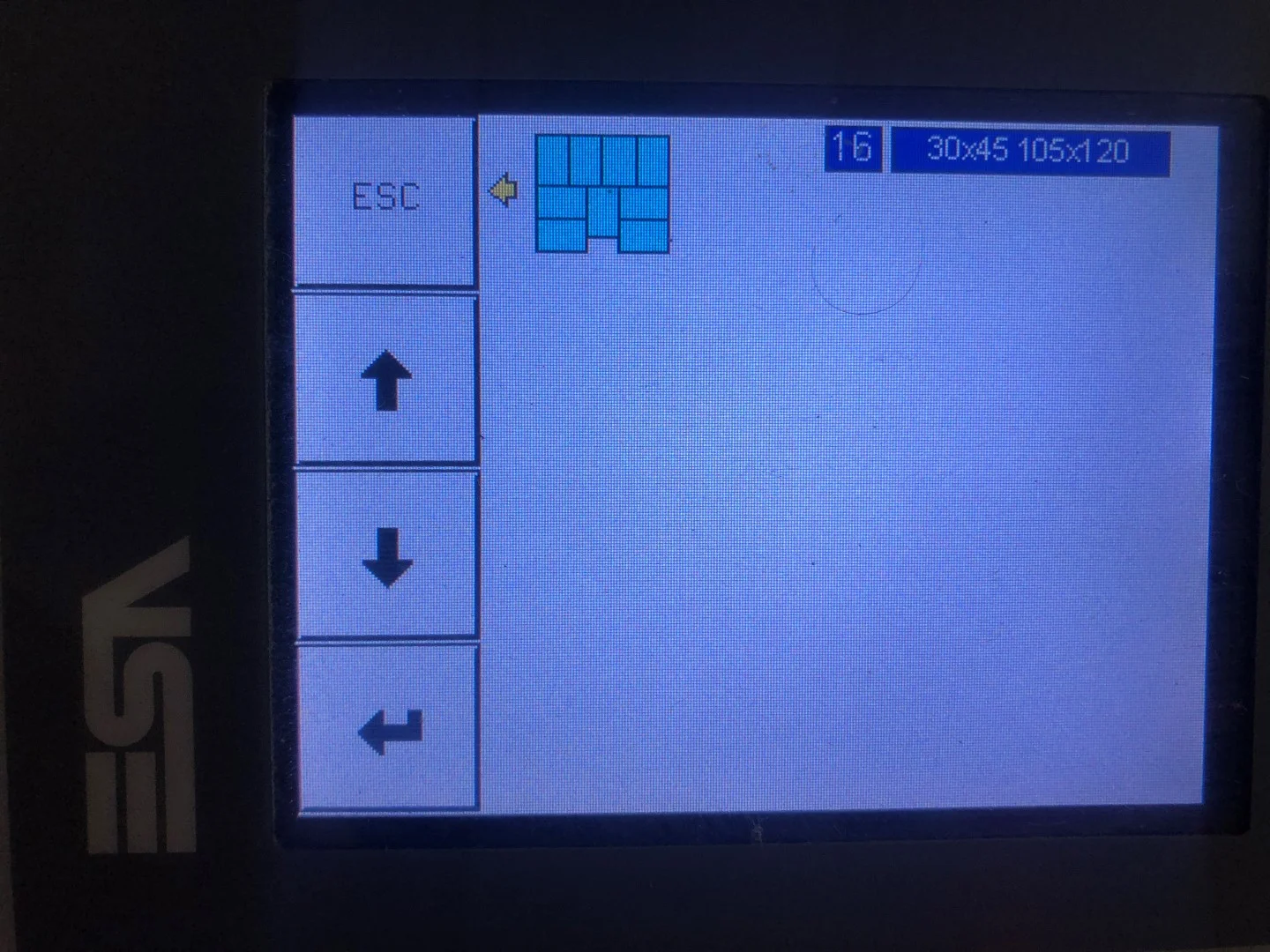

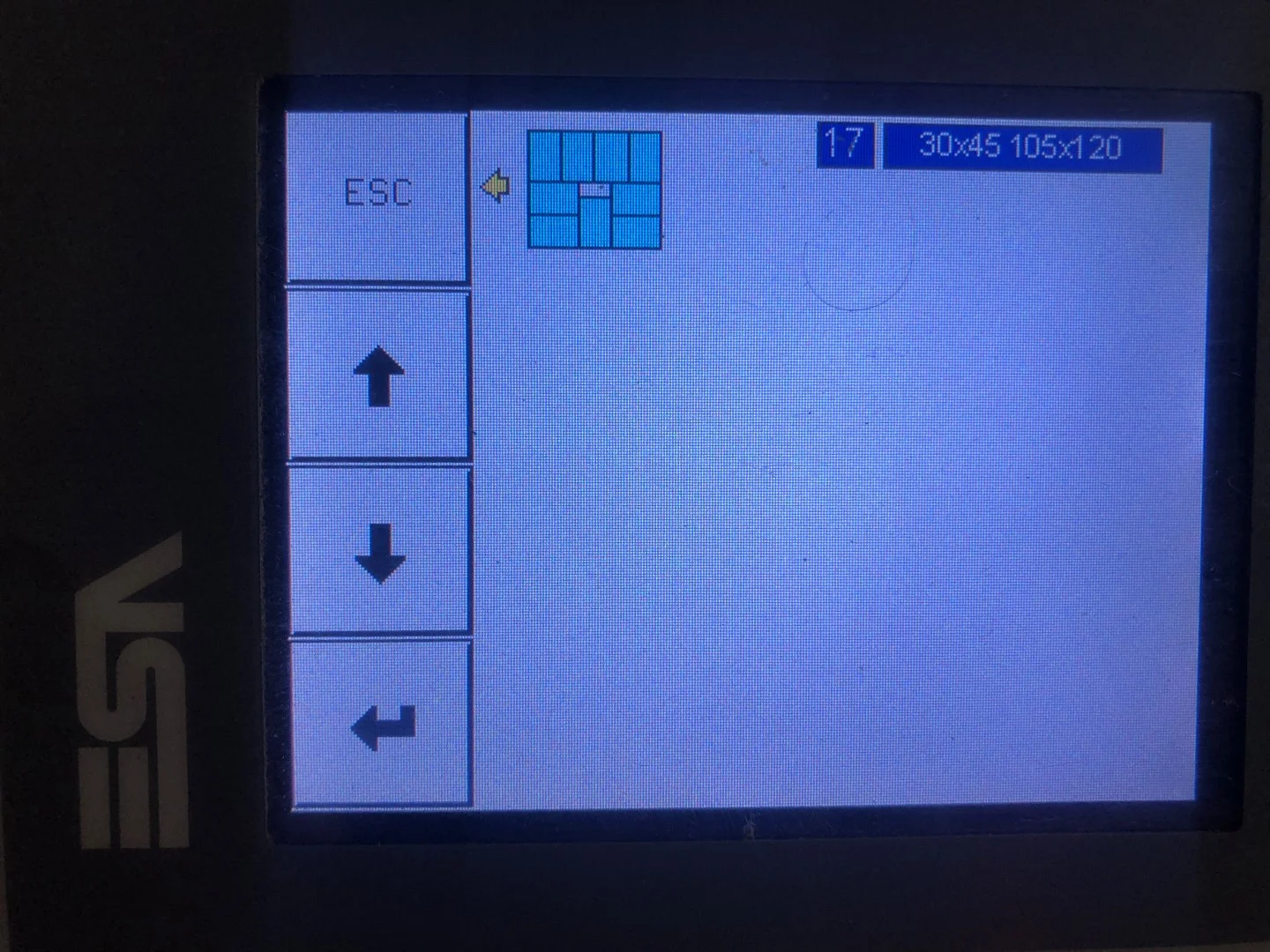

• 30 x 45 cm boxes on 105 x 120 cm pallets (nr. 16 & 17)

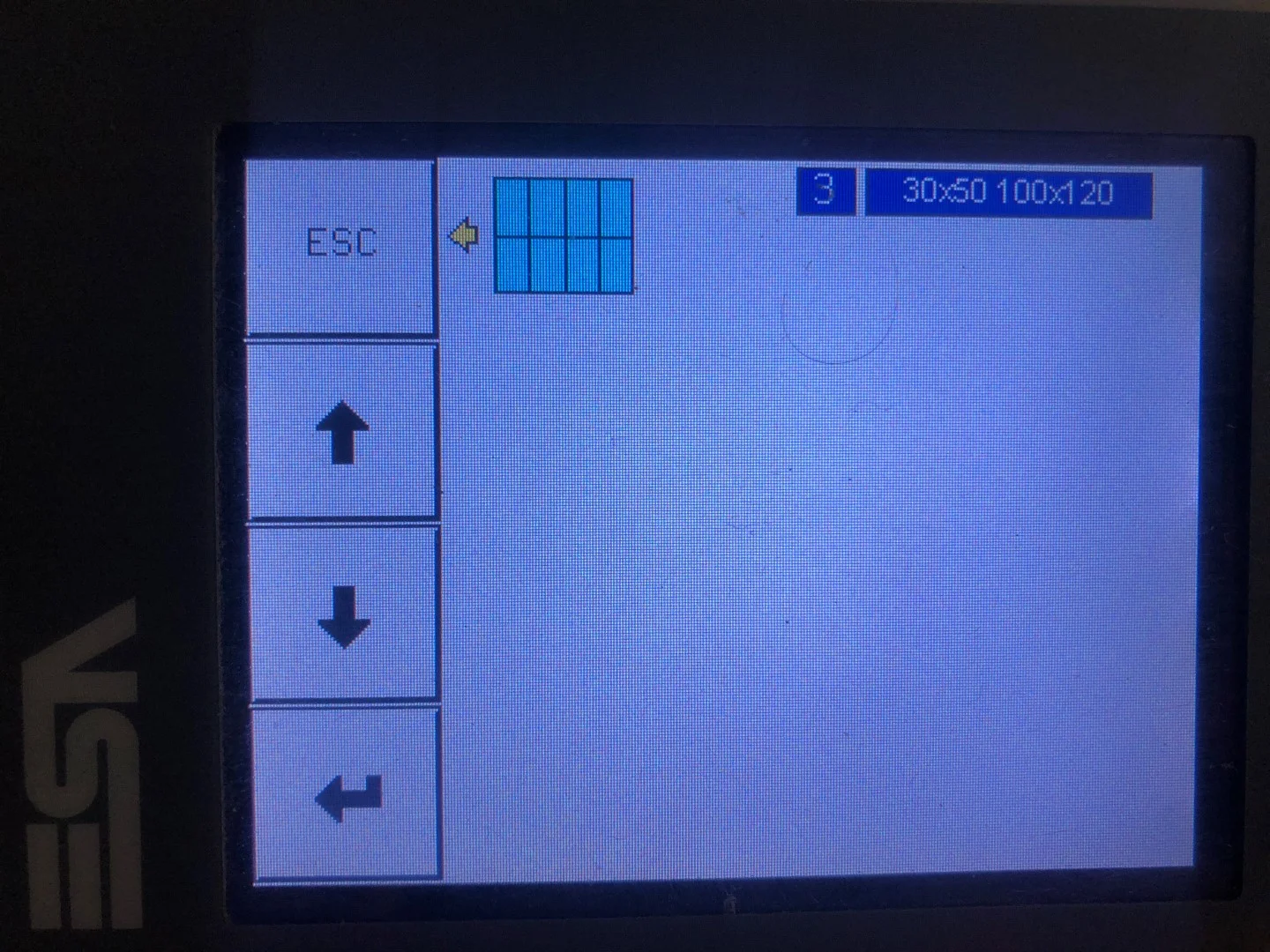

• 30 x 50 cm boxes on 100 x 120 cm pallets (nr. 3)

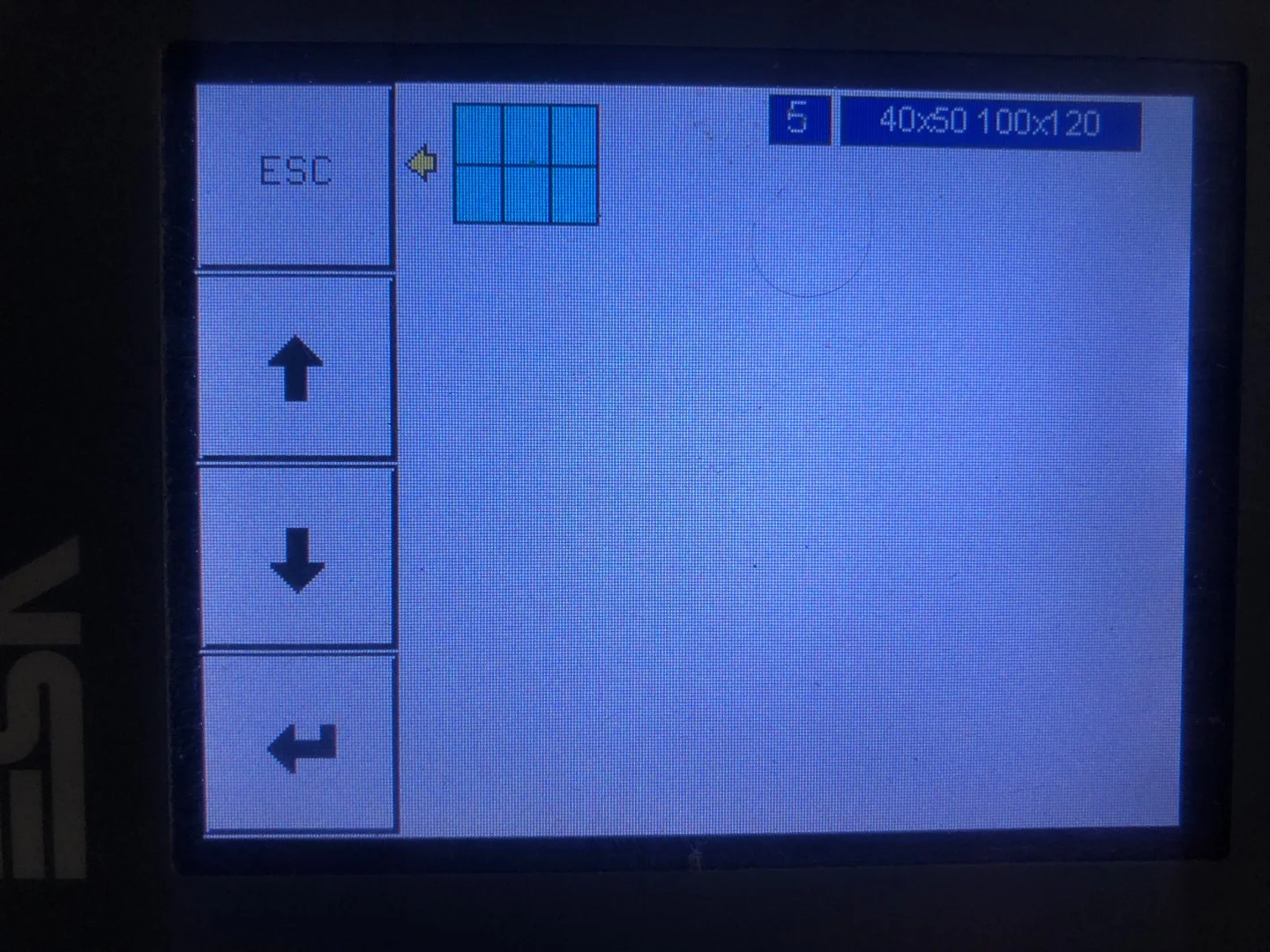

• 40 x 50 cm boxesn on 100 x 120 cm pallets (nr. 5)
