Description:

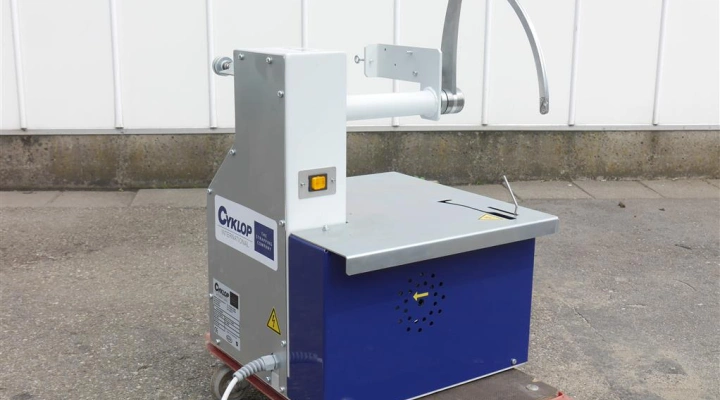

Cyklop Axro 2 Basic Binding machine - Year: 2016

Standalone Cyklop Axro 2 Basic binding machine.

Year: 2016
Demo machine

• Ideal for unitizing small products, plastic tubing, loose wires, envelopes, cut flowers or vegetables (for example leek, spring onions, carrots or asparagus) and other soft of delicate bundles or packages.
• Using high strength, reinforced elastic cord, stays tight around bundles but won’t bruise or damage products.
• Extremely easy operation, all functions executed automatically after trigging start switch.
• Appropriate modern industrial design, covered mechanism for safety and protection against dirt.
• Fast to maximize labour productivity.
• Minimal maintenance, robust and noiseless.

How does the Cyklop binding machine work?

Products are passed along the table surface through the pre-draped elastic cord. The machine switches on: the needle arm pulls the elastic cord behind the bundle into the tying mechanism. The ends of the elastic cord are tied and then cut. A new end of elastic cord returns with the needle to the “up position” completing the cycle. The tied product can be removed.

Or see the video.

Specifications

• Capacity up to 60 cycles / minute
• String tension adjustable
• Trigger in tabletop.
• Push-in from left to right, only for manual operation
• Bench steel zinc coated
• Elastic string Cylastic PC s1300, Cylastic PES
• Machine weight approx. 45 kg
• Feed through height 140 mm, depth 239 mm
• Power supply 230 V, 50 Hz, 1 ph
